CLR30R-MRMDTW (2001)
Toyota Previa/Tarago

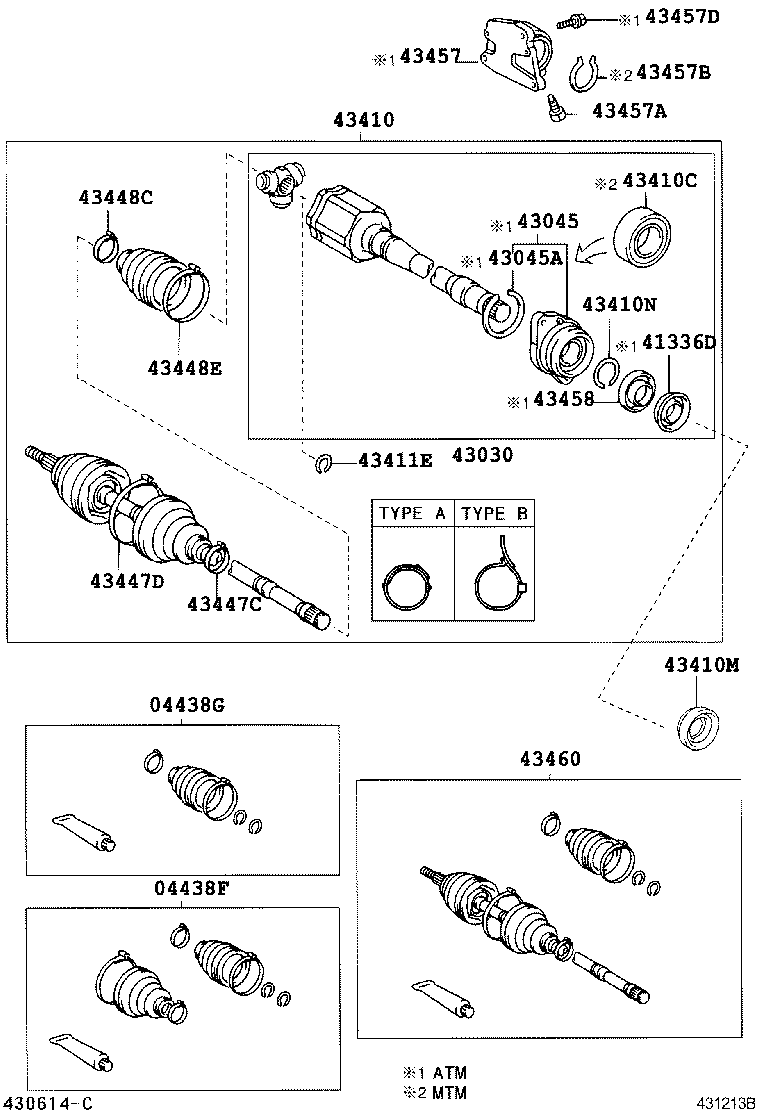

(0002-0105)MTM
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-33012 |
ACR30,CLR30..MTM |
1 | ||
| 04438-33070 |
ACR30,CLR30..MTM |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12020 |
ACR30,CLR30 |
1 | ||
| 41336-12020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43049 - SHAFT SUB-ASSY, FRONT DRIVE FLANGE | ||||
| 43049-28030 |
ACR30,CLR30..MTM |
1 | ||
| 43409G - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH | ||||
| 43409-28010 |
ACR30,CLR30..MTM |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-28070 |
ACR30,CLR30..MTM |
1 | ||
| 43410-28100 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43410-28071 |
ACR30,CLR30..MTM |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-41002 |
ACR30,CLR30..MTM |
1 | ||
| 43410L - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH) | ||||
| 90110-10015 |
ACR30,CLR30..MTM |
6 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-40025 |
ACR30,CLR30..MTM |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-38015 |
ACR30,CLR30 |
1 | ||
| 90520-38015 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-28010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90520-26028 |
ACR30,CLR30..MTM |
1 | ||
| 43446B - COVER, FRONT AXLE INBOARD JOINT, RH | ||||
| 43446-28010 |
ACR30,CLR30..MTM |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-04030 |
ACR30,CLR30..MTM ID=33.7 |
1 | ||
| 42345-48030 |
ACR30,CLR30..08S..MTM |
1 | ||
| 42345-48030 |
ACR30,CLR30..MTM |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-44010 |
ACR30,CLR30..MTM ID=98.7 |
1 | ||
| 42345-04040 |
ACR30,CLR30..MTM ID=99.8 |
1 | ||
| 42345-44020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01559 |
ACR30,CLR30..08S..MTM TYPE B:REFER ILLUST. |
1 | ||
| 42345-42010 |
ACR30,CLR30..08S..MTM TYPE A:REFER ILLUST. |
1 | ||
| 42345-14010 |
ACR30,CLR30..MTM |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90949-01340 |
ACR30,CLR30..MTM |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
ACR30,CLR30..MTM *10-1.25PX19.8-8.3 |
1 | ||
| 90119-10461 |
ACR30,CLR30..08S..MTM *10-1.25PX19.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
ACR30,CLR30..MTM |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-12010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43458-12010 |
ACR30,CLR30 |
1 | ||
| 43459C - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH | ||||
| 43459-17010 |
ACR30,CLR30..MTM |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-39165 |
ACR30,CLR30..MTM |
1 | ||
| 43470-29605 |
ACR30,CLR30..MTM |
1 | ||
| 43489D - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH | ||||
| 43489-17010 |
ACR30,CLR30..MTM |
3 | ||
| Linked diagrams | ||||
| 1107 | ||||

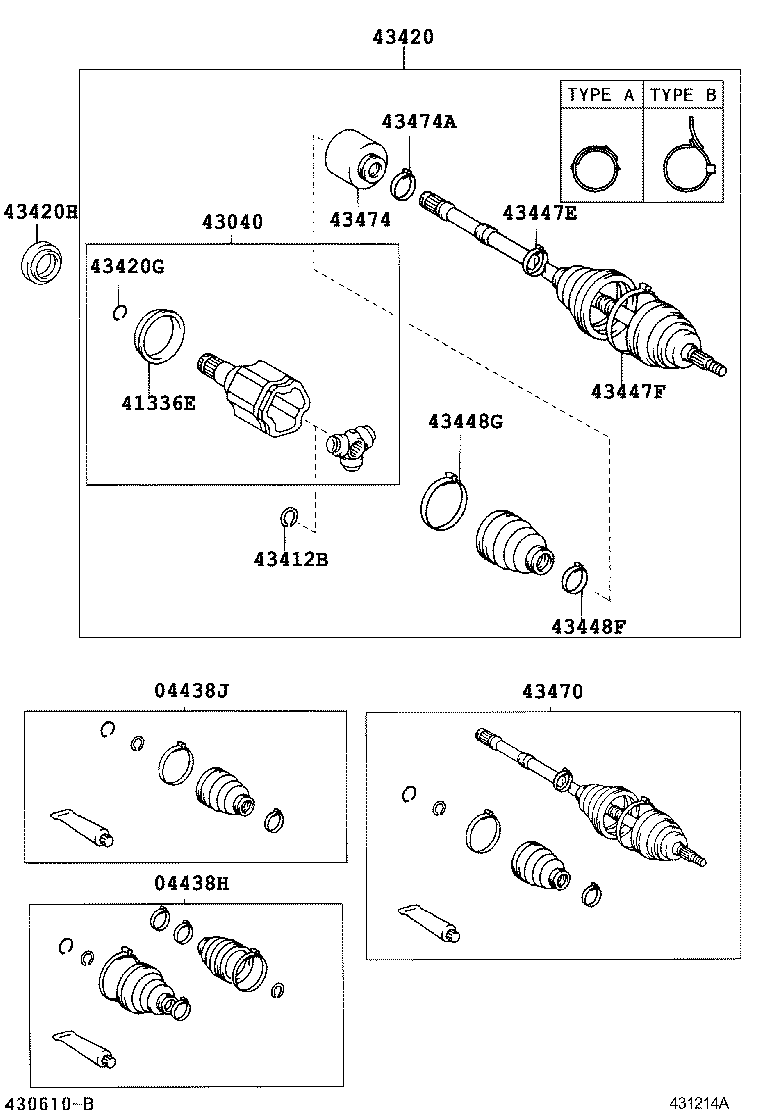

(0002-0105)MTM
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-28041 |
ACR30,CLR30..08S..MTM |
1 | ||
| 04438-33012 |
ACR30,CLR30..MTM |
1 | ||
| 04438-33070 |
ACR30,CLR30..MTM |
1 | ||
| 41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-28040 |
ACR30,CLR30..MTM |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-28020 |
ACR30,CLR30 |
1 | ||
| 41336-28020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43409H - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, LH | ||||
| 43409-28010 |
ACR30,CLR30..MTM |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-28010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90520-26028 |
ACR30,CLR30..MTM |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-28061 |
ACR30,CLR30..MTM |
1 | ||
| 43420-28100 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43420-28060 |
ACR30,CLR30..MTM |
1 | ||
| 43420C - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH) | ||||
| 90110-10015 |
ACR30,CLR30..MTM |
6 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-33002 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90521-33002 |
ACR30,CLR30 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50024 |
ACR30,CLR30..MTM |
1 | ||
| 43446C - COVER, FRONT AXLE INBOARD JOINT, LH | ||||
| 43446-28010 |
ACR30,CLR30..MTM |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-48030 |
ACR30,CLR30..08S..MTM |
1 | ||
| 42345-48030 |
ACR30,CLR30..MTM |
1 | ||
| 42345-04030 |
ACR30,CLR30..MTM ID=33.7 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-04040 |
ACR30,CLR30..MTM ID=99.8 |
1 | ||
| 42345-44010 |
ACR30,CLR30..MTM ID=98.7 |
1 | ||
| 42345-44020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
ACR30,CLR30..MTM |
1 | ||
| 42345-42010 |
ACR30,CLR30..08S..MTM TYPE A:REFER ILLUST. |
1 | ||
| 90949-01559 |
ACR30,CLR30..08S..MTM TYPE B:REFER ILLUST. |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90949-01340 |
ACR30,CLR30..MTM |
1 | ||
| 43459D - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH | ||||
| 43459-17010 |
ACR30,CLR30..MTM |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43460-39165 |
ACR30,CLR30..MTM |
1 | ||
| 43470-29605 |
ACR30,CLR30..MTM |
1 | ||
| 43489E - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH | ||||
| 43489-17010 |
ACR30,CLR30..MTM |
3 | ||
(0105-0304)MTM
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-33080 |
ACR30,CLR30..MTM |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-33012 |
ACR30,CLR30..MTM |
1 | ||
| 04438-33070 |
ACR30,CLR30..MTM |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12020 |
ACR30,CLR30 |
1 | ||
| 41336-12020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43049 - SHAFT SUB-ASSY, FRONT DRIVE FLANGE | ||||
| 43049-28030 |
ACR30,CLR30..MTM |
1 | ||
| 43409G - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH | ||||
| 43409-28010 |
ACR30,CLR30..MTM |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-28070 |
ACR30,CLR30..MTM |
1 | ||
| 43410-28100 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43410-28071 |
ACR30,CLR30..MTM |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-41002 |
ACR30,CLR30..MTM |
1 | ||
| 43410L - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH) | ||||
| 90110-10015 |
ACR30,CLR30..MTM |
6 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-40025 |
ACR30,CLR30..MTM |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-38015 |
ACR30,CLR30 |
1 | ||
| 90520-38015 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-28010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90520-26028 |
ACR30,CLR30..MTM |
1 | ||
| 43446B - COVER, FRONT AXLE INBOARD JOINT, RH | ||||
| 43446-28010 |
ACR30,CLR30..MTM |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01559 |
ACR30,CLR30..08S..MTM TYPE B:REFER ILLUST. |
1 | ||
| 42345-42010 |
ACR30,CLR30..08S..MTM TYPE A:REFER ILLUST. |
1 | ||
| 42345-14010 |
ACR30,CLR30..MTM |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90949-01340 |
ACR30,CLR30..MTM |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
ACR30,CLR30..MTM *10-1.25PX19.8-8.3 |
1 | ||
| 90119-10461 |
ACR30,CLR30..08S..MTM *10-1.25PX19.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
ACR30,CLR30..MTM |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-12010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43458-12010 |
ACR30,CLR30 |
1 | ||
| 43459C - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH | ||||
| 43459-17010 |
ACR30,CLR30..MTM |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-39165 |
ACR30,CLR30..MTM |
1 | ||
| 43470-29605 |
ACR30,CLR30..MTM |
1 | ||
| 43489D - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH | ||||
| 43489-17010 |
ACR30,CLR30..MTM |
3 | ||
| Linked diagrams | ||||
| 1107 | ||||
(0105-0304)MTM
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-33080 |
ACR30,CLR30..MTM |
1 | ||
| 04438-44051 |
ACR30,CLR30..08S..MTM |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-28041 |
ACR30,CLR30..08S..MTM |
1 | ||
| 04438-33012 |
ACR30,CLR30..MTM |
1 | ||
| 04438-33070 |
ACR30,CLR30..MTM |
1 | ||
| 41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-28040 |
ACR30,CLR30..MTM |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-28020 |
ACR30,CLR30 |
1 | ||
| 41336-28020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43409H - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, LH | ||||
| 43409-28010 |
ACR30,CLR30..MTM |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-28010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90520-26028 |
ACR30,CLR30..MTM |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-28061 |
ACR30,CLR30..MTM |
1 | ||
| 43420-28100 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43420-28060 |
ACR30,CLR30..MTM |
1 | ||
| 43420C - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH) | ||||
| 90110-10015 |
ACR30,CLR30..MTM |
6 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-33002 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90521-33002 |
ACR30,CLR30 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50024 |
ACR30,CLR30..MTM |
1 | ||
| 43446C - COVER, FRONT AXLE INBOARD JOINT, LH | ||||
| 43446-28010 |
ACR30,CLR30..MTM |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
ACR30,CLR30..MTM |
1 | ||
| 42345-42010 |
ACR30,CLR30..08S..MTM TYPE A:REFER ILLUST. |
1 | ||
| 90949-01559 |
ACR30,CLR30..08S..MTM TYPE B:REFER ILLUST. |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90949-01340 |
ACR30,CLR30..MTM |
1 | ||
| 43459D - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH | ||||
| 43459-17010 |
ACR30,CLR30..MTM |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43460-39165 |
ACR30,CLR30..MTM |
1 | ||
| 43470-29605 |
ACR30,CLR30..MTM |
1 | ||
| 43489E - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH | ||||
| 43489-17010 |
ACR30,CLR30..MTM |
3 | ||
(0304- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-33080 |
ACR30,CLR30..MTM |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-33012 |
ACR30,CLR30..MTM |
1 | ||
| 04438-33070 |
ACR30,CLR30..MTM |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12020 |
ACR30,CLR30 |
1 | ||
| 41336-12020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-28040 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-28070 |
ACR30,CLR30..MTM |
1 | ||
| 43410-28100 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43410-28071 |
ACR30,CLR30..MTM |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-41002 |
ACR30,CLR30..MTM |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-40025 |
ACR30,CLR30..MTM |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-38015 |
ACR30,CLR30 |
1 | ||
| 90520-38015 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-28010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90520-26028 |
ACR30,CLR30..MTM |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-04030 |
ACR30,CLR30..MTM ID=33.7 |
1 | ||
| 42345-48030 |
ACR30,CLR30..08S..MTM |
1 | ||
| 42345-48030 |
ACR30,CLR30..MTM |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-44010 |
ACR30,CLR30..MTM ID=98.7 |
1 | ||
| 42345-04040 |
ACR30,CLR30..MTM ID=99.8 |
1 | ||
| 42345-44020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01559 |
ACR30,CLR30..08S..MTM TYPE B:REFER ILLUST. |
1 | ||
| 42345-42010 |
ACR30,CLR30..08S..MTM TYPE A:REFER ILLUST. |
1 | ||
| 42345-14010 |
ACR30,CLR30..MTM |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90949-01340 |
ACR30,CLR30..MTM |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
ACR30,CLR30..MTM *10-1.25PX19.8-8.3 |
1 | ||
| 90119-10461 |
ACR30,CLR30..08S..MTM *10-1.25PX19.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
ACR30,CLR30..MTM |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-12010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43458-12010 |
ACR30,CLR30 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-39165 |
ACR30,CLR30..MTM |
1 | ||
| 43470-29605 |
ACR30,CLR30..MTM |
1 | ||
(0304- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-33080 |
ACR30,CLR30..MTM |
1 | ||
| 04438-44051 |
ACR30,CLR30..08S..MTM |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-28041 |
ACR30,CLR30..08S..MTM |
1 | ||
| 04438-33012 |
ACR30,CLR30..MTM |
1 | ||
| 04438-33070 |
ACR30,CLR30..MTM |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-28020 |
ACR30,CLR30 |
1 | ||
| 41336-28020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-28011 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-28010 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90520-26028 |
ACR30,CLR30..MTM |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-28061 |
ACR30,CLR30..MTM |
1 | ||
| 43420-28100 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43420-28060 |
ACR30,CLR30..MTM |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-33002 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90521-33002 |
ACR30,CLR30 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50024 |
ACR30,CLR30..MTM |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-48030 |
ACR30,CLR30..08S..MTM |
1 | ||
| 42345-48030 |
ACR30,CLR30..MTM |
1 | ||
| 42345-04030 |
ACR30,CLR30..MTM ID=33.7 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-04040 |
ACR30,CLR30..MTM ID=99.8 |
1 | ||
| 42345-44010 |
ACR30,CLR30..MTM ID=98.7 |
1 | ||
| 42345-44020 |
ACR30,CLR30..08S..MTM |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
ACR30,CLR30..MTM |
1 | ||
| 42345-42010 |
ACR30,CLR30..08S..MTM TYPE A:REFER ILLUST. |
1 | ||
| 90949-01559 |
ACR30,CLR30..08S..MTM TYPE B:REFER ILLUST. |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
ACR30,CLR30..08S..MTM |
1 | ||
| 90949-01340 |
ACR30,CLR30..MTM |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43460-39165 |
ACR30,CLR30..MTM |
1 | ||
| 43470-29605 |
ACR30,CLR30..MTM |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
