CLR30R-MRMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Apr 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0102- )CLR30

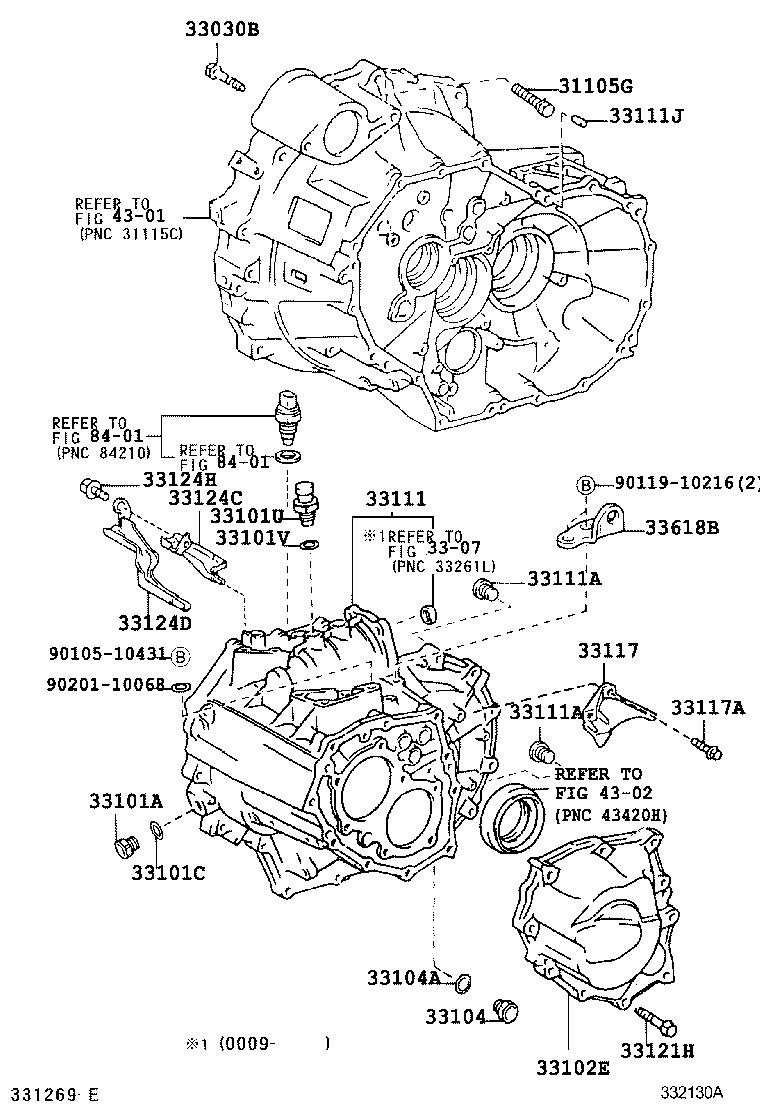

Click highlighted areas on diagram

E353

diagram 31105G 33030B 3307 33101A 33101C 33101U 33101V 33102E 33104 33104A 33111 33111A 33111A 33111J 33117 33117A 33121H 33124C 33124D 33124H 33618B 4301 4302 8401 8401 9010510431 9011910216 9020110068
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

CLR30

*10-1.25PX43-26

 1
90119-12168

CLR30..08S

*12-1.25PX55-30

 3
90119-12168

CLR30

*12-1.25PX55-30

 3
90105-10077

CLR30..08S

*10-1.25PX43-26

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08126

ACR30,CLR30..MTM

*8-1.25PX45-27.5

 17
90105-08126

ACR30,CLR30..08S..MTM

*8-1.25PX45-27.5

 17
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

ACR30,CLR30..08S..MTM

 1
90341-18033

ACR30,CLR30..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

ACR30,CLR30..MTM

 1
90430-18008

ACR30,CLR30..08S..MTM

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03148

ACR30,CLR30..MTM

 1
90930-03148

ACR30,CLR30..08S..MTM

 1
33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)
90430-18008

ACR30,CLR30..08S..MTM

 1
90430-18008

ACR30,CLR30..MTM

 1
33102E - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12041

ACR30,CLR30..08S..MTM

 1
33102-12041

ACR30,CLR30..MTM

 1
33102-12042

ACR30,CLR30..08S..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

ACR30,CLR30..MTM

 1
90341-18006

ACR30,CLR30..08S..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

ACR30,CLR30..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-28052

CLR30

 1
33101-28060

CLR30

 1
33101-28060

CLR30..08S

 1
33101-28051

CLR30

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-12004

ACR30,CLR30..08S..MTM

 2
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-12004

ACR30,CLR30..08S..MTM

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

ACR30,CLR30..MTM

L=23,OD=8

 4
90250-08054

ACR30,CLR30..08S..MTM

L=23,OD=8

 4
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-20020

ACR30,CLR30..MTM

 1
33117-20020

ACR30,CLR30..08S..MTM

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

ACR30,CLR30..MTM

 2
91641-H0820

ACR30,CLR30..08S..MTM

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08630

ACR30,CLR30..MTM

 10
90119-08630

ACR30,CLR30..08S..MTM

 10
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-28050

ACR30,CLR30..08S..MTM

 1
33124-28050

ACR30,CLR30..MTM

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-28060

ACR30,CLR30..08S..MTM

 1
33124-28060

ACR30,CLR30..MTM

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
90119-08648

ACR30,CLR30..MTM

 2
90119-08830

ACR30,CLR30..08S..MTM

 2
33618B - SUPPORT, SELECTING BELLCRANK
33618-44010

CLR30

 1
33618-44010

CLR30..08S

 1
Common parts
90105-10431
90119-10216
90201-10068
Linked diagrams
3307
4301
4302
8401
