CLR30R-MRMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Apr 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

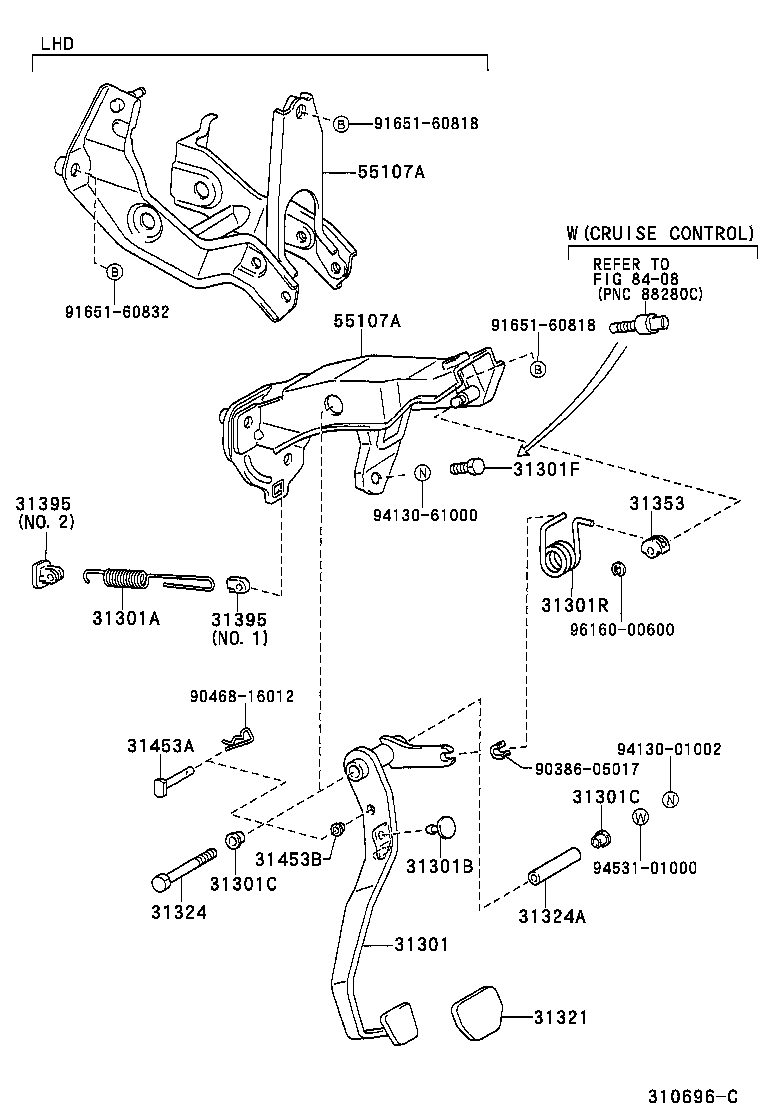

ILLUST NO. 1 OF 2(0002-0601)MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301R 31321 31324 31324A 31353 31395 31395 31453A 31453B 55107A 55107A 8408 9038605017 9046816012 9165160818 9165160818 9165160832 9413001002 9413061000 9453101000 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-28140

ACR30,CLR30..RHD..MTM

 1
31301-28140

ACR30,CLR30..RHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-07033

ACR30,CLR30..MTM

 1
90905-07033

ACR30,CLR30..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ACR30,CLR30..MTM

 1
90541-06036

ACR30,CLR30..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ACR30,CLR30..MTM

 2
90386-13015

ACR30,CLR30..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ACR30,CLR30..MTM

 2
90386-13015

ACR30,CLR30..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

ACR30,CLR30..MTM

 1
90101-10369

ACR30,CLR30..LHD..06S..MTM;ACR30,CLR30..(07S,08S)..MTM

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90959-03267

ACR30,CLR30..RHD..MTM

 1
90959-03267

ACR30,CLR30..RHD..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

ACR30,CLR30..MTM

 1
31321-52010

ACR30,CLR30..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10081

ACR30,CLR30..MTM

 1
90101-10081

ACR30,CLR30..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10105

ACR30,CLR30..MTM

 1
90387-10105

ACR30,CLR30..MTM

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-35010

ACR30,CLR30..MTM

 1
31353-35010

ACR30,CLR30..MTM

 1
31395 - HOOK, PEDAL SPRING
31395-33020

ACR30,CLR30..MTM

NO.2

 1
31395-33010

ACR30,CLR30..MTM

NO.1

 1
31395-33010

ACR30,CLR30..MTM

NO.1

 1
31395-33020

ACR30,CLR30..MTM

NO.2

 1
31395 - HOOK, PEDAL SPRING
31395-33020

ACR30,CLR30..MTM

NO.2

 1
31395-33010

ACR30,CLR30..MTM

NO.1

 1
31395-33010

ACR30,CLR30..MTM

NO.1

 1
31395-33020

ACR30,CLR30..MTM

NO.2

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-35030

ACR30,CLR30..MTM

L=28.5

 1
47148-35030

ACR30,CLR30..MTM

L=28.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08036

ACR30,CLR30..MTM

 1
90386-08036

ACR30,CLR30..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-28060

ACR30,CLR30..RHD..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-28060

ACR30,CLR30..RHD..MTM

 1
Common parts
90386-05017
90468-16012
91651-60818
91651-60832
94130-01002
94130-61000
94531-01000
96160-00600
Linked diagrams
8408
