CLR30R-MRMDTW (2001)
Toyota Previa/Tarago
Production
Feb 2001
-
Apr 2004
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0102- )1CDFTV

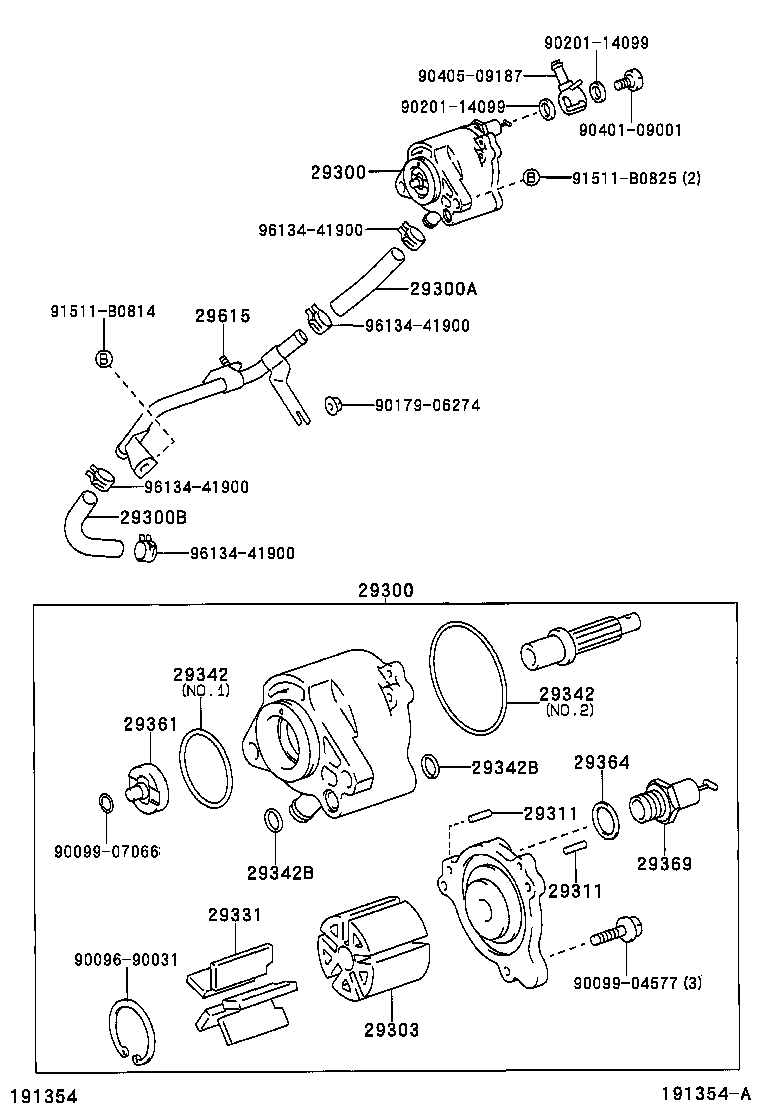

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-27020 |
1CDFTV..CLR30 |
1 | ||
| 29300-27020 |
1CDFTV..CLR30 |
1 | ||
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-27020 |
1CDFTV..CLR30 |
1 | ||
| 29300-27020 |
1CDFTV..CLR30 |
1 | ||
| 29300A - HOSE, VACUUM PUMP OIL INLET | ||||
| 29611-27020 |
1CDFTV..CLR30 |
1 | ||
| 29611-27020 |
1CDFTV..CLR30 |
1 | ||
| 29300B - HOSE, VACUUM PUMP OIL OUTLET | ||||
| 29613-27020 |
1CDFTV..CLR30 |
1 | ||
| 29613-27020 |
1CDFTV..CLR30 |
1 | ||
| 29303 - ROTOR SUB-ASSY, VACUUM PUMP | ||||
| 29337-27010 |
1CDFTV..CLR30 |
1 | ||
| 29337-27010 |
1CDFTV..CLR30 |
1 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 29311-76010 |
1CDFTV..CLR30 |
2 | ||
| 29311-76010 |
1CDFTV..CLR30 |
2 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 29311-76010 |
1CDFTV..CLR30 |
2 | ||
| 29311-76010 |
1CDFTV..CLR30 |
2 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-27010 |
1CDFTV..CLR30 |
5 | ||
| 29331-27010 |
1CDFTV..CLR30 |
5 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-27010 |
1CDFTV..CLR30 NO.1 |
1 | ||
| 29342-27010 |
1CDFTV..CLR30 NO.1 |
1 | ||
| 29342-48010 |
1CDFTV..CLR30 NO.2 |
1 | ||
| 29342-48010 |
1CDFTV..CLR30 NO.2 |
1 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-27010 |
1CDFTV..CLR30 NO.1 |
1 | ||
| 29342-27010 |
1CDFTV..CLR30 NO.1 |
1 | ||
| 29342-48010 |
1CDFTV..CLR30 NO.2 |
1 | ||
| 29342-48010 |
1CDFTV..CLR30 NO.2 |
1 | ||
| 29342B - RING, O | ||||
| 29342-48020 |
1CDFTV..CLR30 |
2 | ||
| 29342-48020 |
1CDFTV..CLR30 |
2 | ||
| 29342B - RING, O | ||||
| 29342-48020 |
1CDFTV..CLR30 |
2 | ||
| 29342-48020 |
1CDFTV..CLR30 |
2 | ||
| 29361 - COUPLING, VACUUM PUMP | ||||
| 29361-27010 |
1CDFTV..CLR30 |
1 | ||
| 29361-27010 |
1CDFTV..CLR30 |
1 | ||
| 29364 - WASHER, VACUUM PUMP | ||||
| 29364-66010 |
1CDFTV..CLR30 |
1 | ||
| 29364-66010 |
1CDFTV..CLR30 |
1 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| 29369-64030 |
1CDFTV..CLR30 |
1 | ||
| 29369-64030 |
1CDFTV..CLR30 |
1 | ||
| 29615 - PIPE, VACUUM PUMP OIL | ||||
| 29615-27020 |
1CDFTV..CLR30 |
1 | ||
| 29615-27020 |
1CDFTV..CLR30 |
1 | ||
| Common parts | ||||
| 90096-90031 | ||||
| 90099-04577 | ||||
| 90099-07066 | ||||
| 90179-06274 | ||||
| 90201-14099 | ||||
| 90401-09001 | ||||
| 90405-09187 | ||||
| 91511-B0814 | ||||
| 91511-B0825 | ||||
| 96134-41900 | ||||
