CLR30R-MRMDTW (2001)
Toyota Previa/Tarago

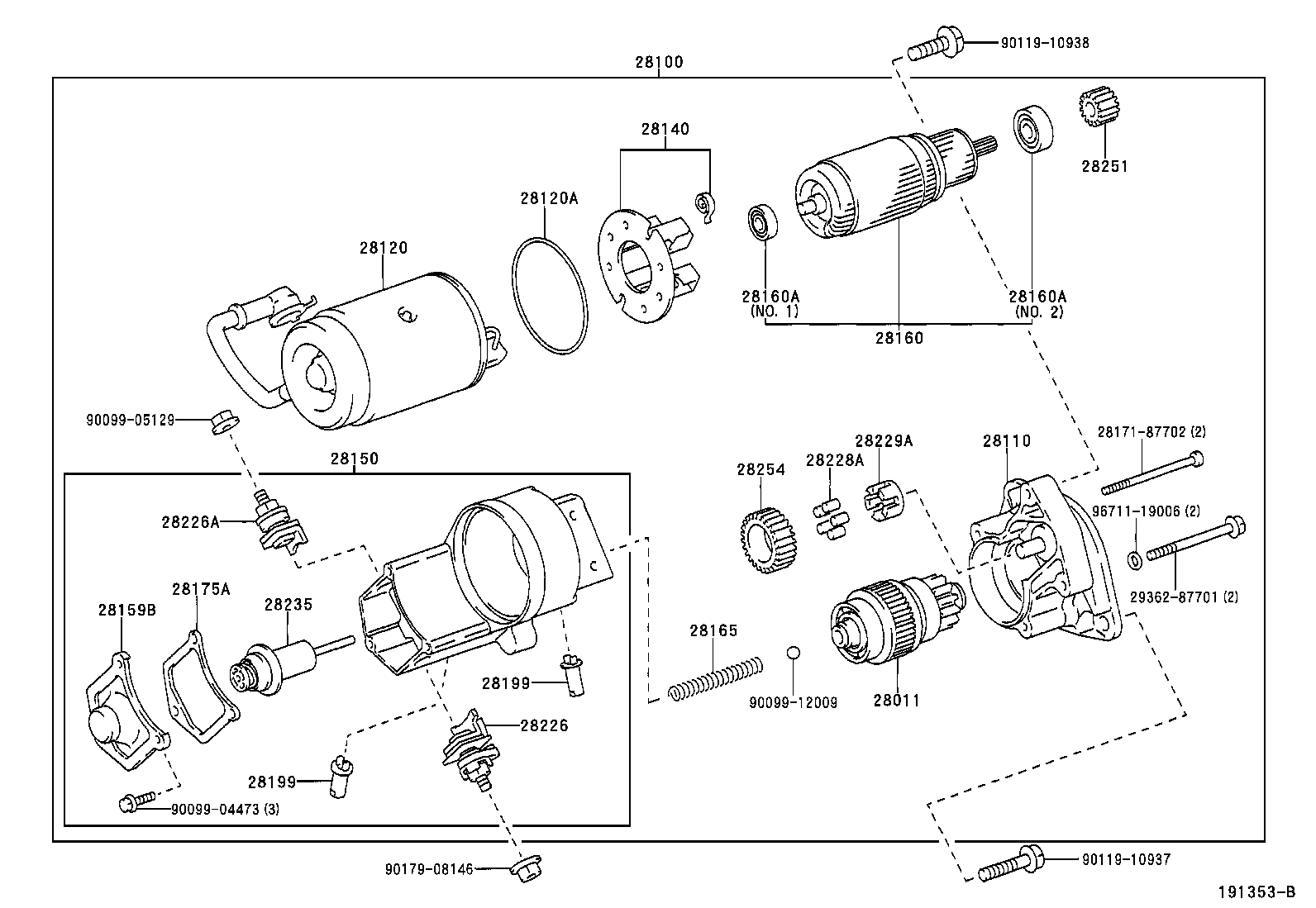

(0102-0304)1CDFTV
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64020 |
1CDFTV..CLR30 |
1 | ||
| 28011-64020 |
1CDFTV..CLR30..08S |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64430 |
1CDFTV..CLR30 12V 2.2KW |
1 | ||
| 28100-64430 |
1CDFTV..CLR30..08S 12V 2.2KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-64430 |
1CDFTV..CLR30 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64040 |
1CDFTV..CLR30 |
1 | ||
| 28120-64040 |
1CDFTV..CLR30..08S |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-64040 |
1CDFTV..CLR30 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-64040 |
1CDFTV..CLR30 |
1 | ||
| 28140-64040 |
1CDFTV..CLR30..08S |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64430 |
1CDFTV..CLR30..08S |
1 | ||
| 28150-64430 |
1CDFTV..CLR30 |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
1CDFTV..CLR30 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-64041 |
1CDFTV..CLR30 |
1 | ||
| 28160-64041 |
1CDFTV..CLR30..08S |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
1CDFTV..CLR30 NO.1 |
1 | ||
| 90099-10143 |
1CDFTV..CLR30 NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
1CDFTV..CLR30 NO.1 |
1 | ||
| 90099-10143 |
1CDFTV..CLR30 NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
1CDFTV..CLR30 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
1CDFTV..CLR30 |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
1CDFTV..CLR30 |
2 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
1CDFTV..CLR30 |
2 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-74300 |
1CDFTV..CLR30 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
1CDFTV..CLR30 |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
1CDFTV..CLR30 |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
1CDFTV..CLR30 |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1CDFTV..CLR30 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
1CDFTV..CLR30 |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-64040 |
1CDFTV..CLR30 |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-10937 | ||||
| 90119-10938 | ||||
| 90179-08146 | ||||
| 96711-19006 | ||||

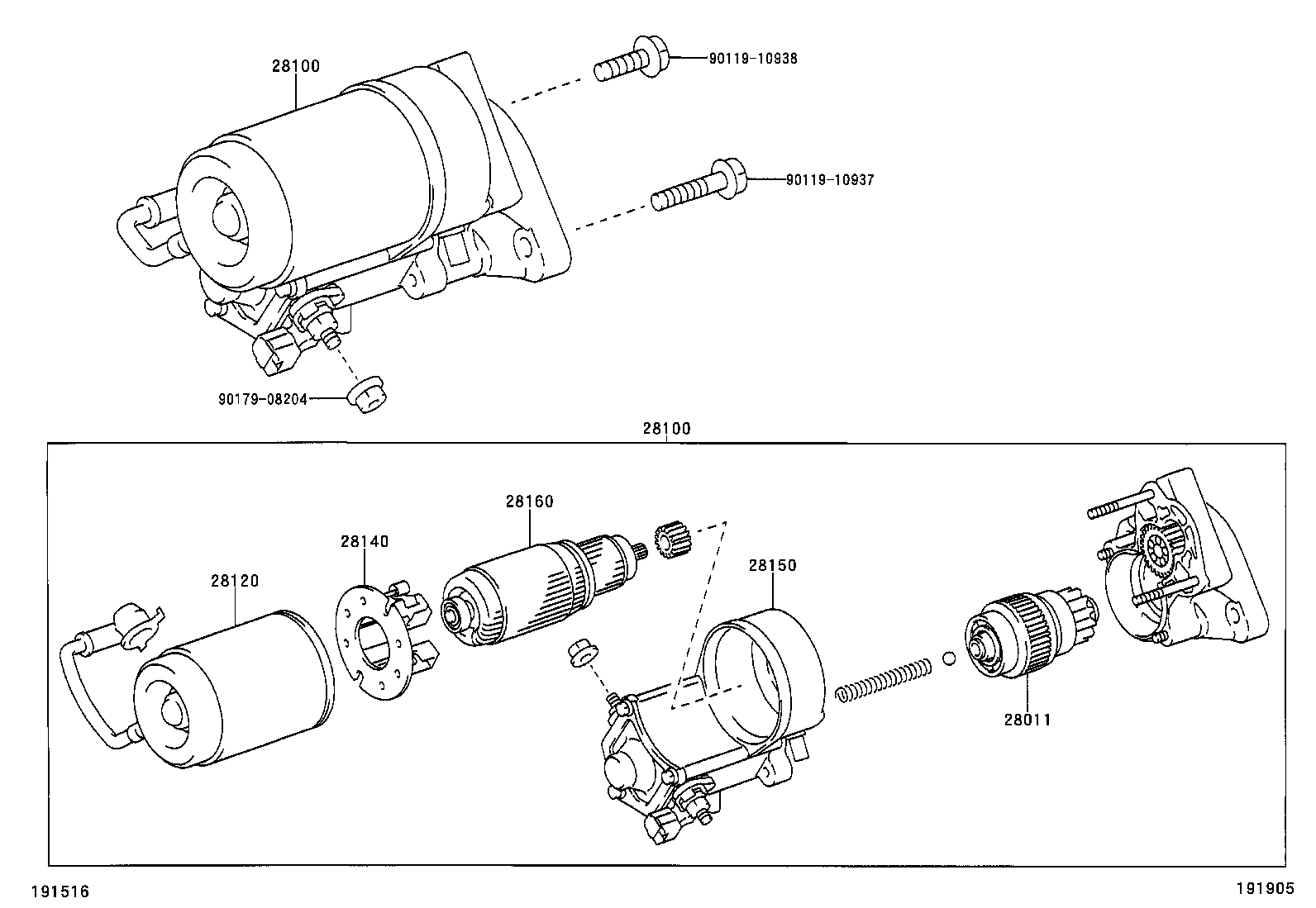

(0304- )1CDFTV
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64020 |
1CDFTV..CLR30 |
1 | ||
| 28011-64020 |
1CDFTV..CLR30..08S |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64430 |
1CDFTV..CLR30 12V 2.2KW |
1 | ||
| 28100-64430 |
1CDFTV..CLR30..08S 12V 2.2KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64430 |
1CDFTV..CLR30 12V 2.2KW |
1 | ||
| 28100-64430 |
1CDFTV..CLR30..08S 12V 2.2KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64040 |
1CDFTV..CLR30 |
1 | ||
| 28120-64040 |
1CDFTV..CLR30..08S |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-64040 |
1CDFTV..CLR30 |
1 | ||
| 28140-64040 |
1CDFTV..CLR30..08S |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64430 |
1CDFTV..CLR30..08S |
1 | ||
| 28150-64430 |
1CDFTV..CLR30 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-64041 |
1CDFTV..CLR30 |
1 | ||
| 28160-64041 |
1CDFTV..CLR30..08S |
1 | ||
| Common parts | ||||
| 90119-10937 | ||||
| 90119-10938 | ||||
| 90179-08204 | ||||
