CLR30R-MRMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Apr 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0102- )1CDFTV

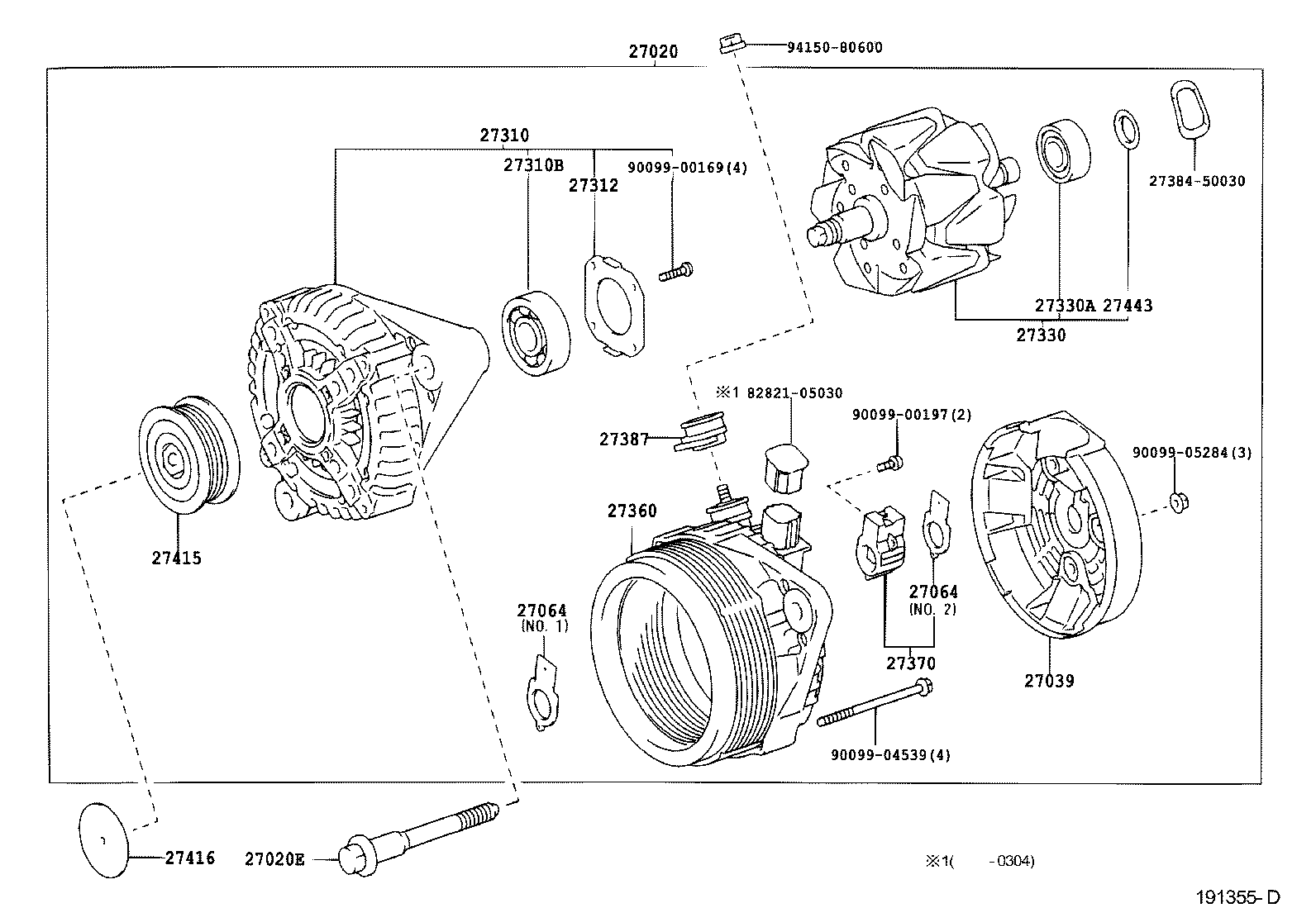

Click highlighted areas on diagram

12V 130A

diagram 27020 27020E 27039 27064 27064 27310 27310B 27312 27330 27330A 27360 27370 2738450030 27387 27415 27416 27443 8282105030 9009900169 9009900197 9009904539 9009905284 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-27040

1CDFTV..CLR30..08S

12V 130A

 1
27060-27040

1CDFTV..CLR30

12V 130A

 1
27020E - BOLT(FOR ALTERNATOR)
90901-05004

1CDFTV..CLR30

 1
90901-05004

1CDFTV..CLR30

 1
27039 - COVER, ALTERNATOR REAR END
27039-27020

1CDFTV..CLR30

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1CDFTV..CLR30

NO.1

 1
27064-20130

1CDFTV..CLR30

NO.2

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1CDFTV..CLR30

NO.1

 1
27064-20130

1CDFTV..CLR30

NO.2

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-27020

1CDFTV..CLR30

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

1CDFTV..CLR30

 1
27312 - PLATE, RETAINER
27312-72100

1CDFTV..CLR30

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-20130

1CDFTV..CLR30

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

2AZFE,1CDFTV..ACR30,CLR30

 1
27360 - COIL ASSY, ALTERNATOR
27360-27020

1CDFTV..CLR30

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-20130

1CDFTV..CLR30

 1
27387 - INSULATOR, TERMINAL
27387-20130

1CDFTV..CLR30

 1
27387-20130

2AZFE,1CDFTV..ACR30,CLR30

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-27011

1CDFTV..CLR30

 1
27415-27011

1CDFTV..CLR30

 1
27416 - CAP, ALTERNATOR PULLEY
27416-27010

1CDFTV..CLR30

 1
27416-27010

1CDFTV..CLR30..08S

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

2AZFE,1CDFTV..ACR30,CLR30

 1
Common parts
27384-50030
82821-05030
90099-00169
90099-00197
90099-04539
90099-05284
94150-80600
