CLR30R-MRMDTW (2001)
Toyota Previa/Tarago
Production
Feb 2001
-
Apr 2004
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0102- )1CDFTV

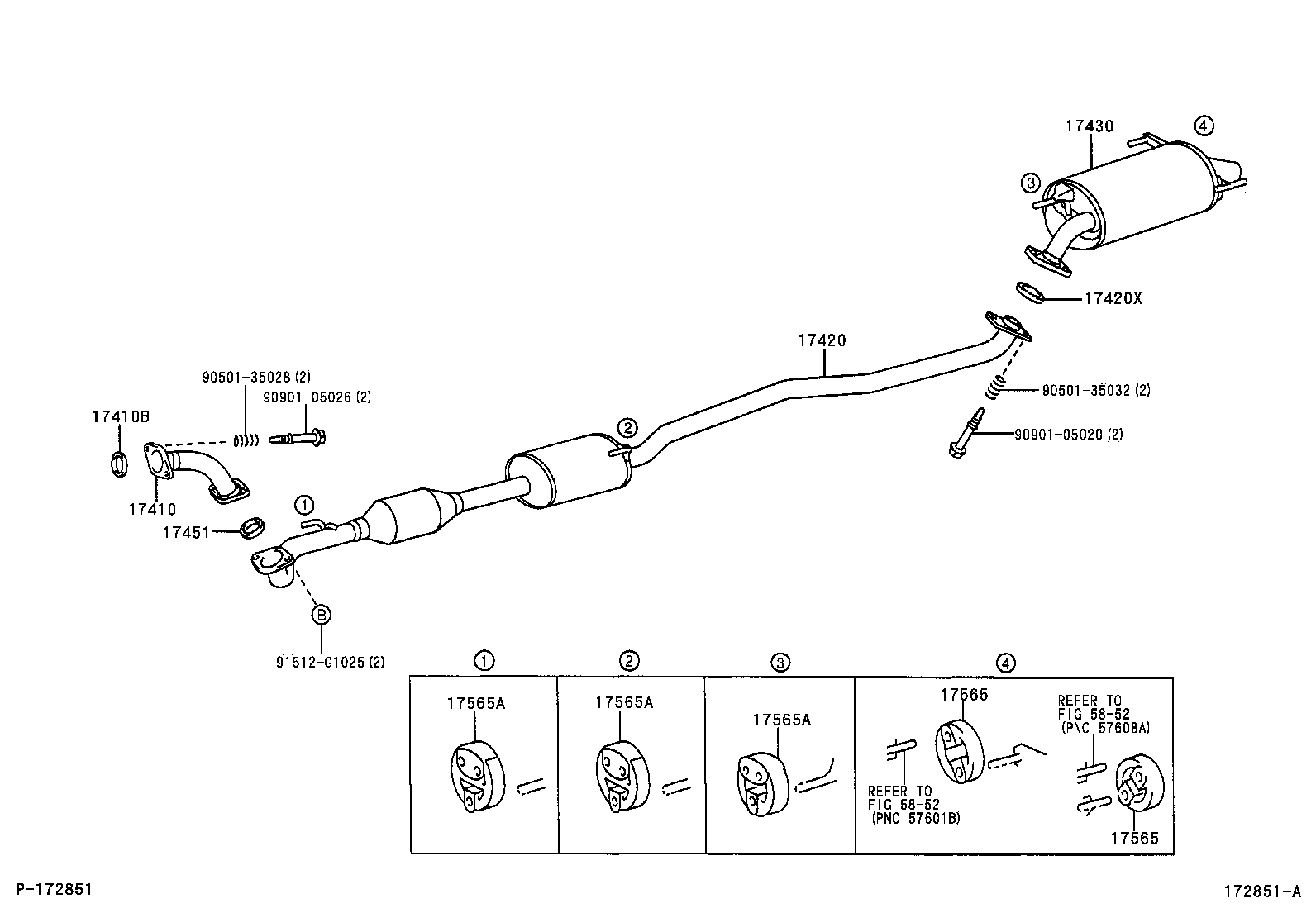

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-27060 |
1CDFTV..CLR30 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-74051 |
1CDFTV..CLR30 |
1 | ||
| 17451-74051 |
1CDFTV..CLR30 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-27010 |
1CDFTV..CLR30 *115=TOYOTA/01-03/N |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 17451-20010 |
2AZFE,1CDFTV..ACR30,CLR30 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-27050 |
1CDFTV..CLR30 |
1 | ||
| 17405-27050 |
1CDFTV..CLR30 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06078 |
1CDFTV..CLR30 |
1 | ||
| 90917-06078 |
1CDFTV..CLR30 |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-15140 |
2AZFE,1CDFTV..ACR30,CLR30 |
2 | ||
| 17565-15140 |
2AZFE,1CDFTV..ACR30,CLR30 |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-15140 |
2AZFE,1CDFTV..ACR30,CLR30 |
2 | ||
| 17565-15140 |
2AZFE,1CDFTV..ACR30,CLR30 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-74320 |
2AZFE,1CDFTV..ACR30,CLR30 |
3 | ||
| 17565-74320 |
2AZFE,1CDFTV..ACR30,CLR30 |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-74320 |
2AZFE,1CDFTV..ACR30,CLR30 |
3 | ||
| 17565-74320 |
2AZFE,1CDFTV..ACR30,CLR30 |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-74320 |
2AZFE,1CDFTV..ACR30,CLR30 |
3 | ||
| 17565-74320 |
2AZFE,1CDFTV..ACR30,CLR30 |
3 | ||
| Common parts | ||||
| 90501-35028 | ||||
| 90501-35032 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
| 91512-G1025 | ||||
| Linked diagrams | ||||
| 5852 | ||||
