CLR30R-MRMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Apr 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0102- )1CDFTV

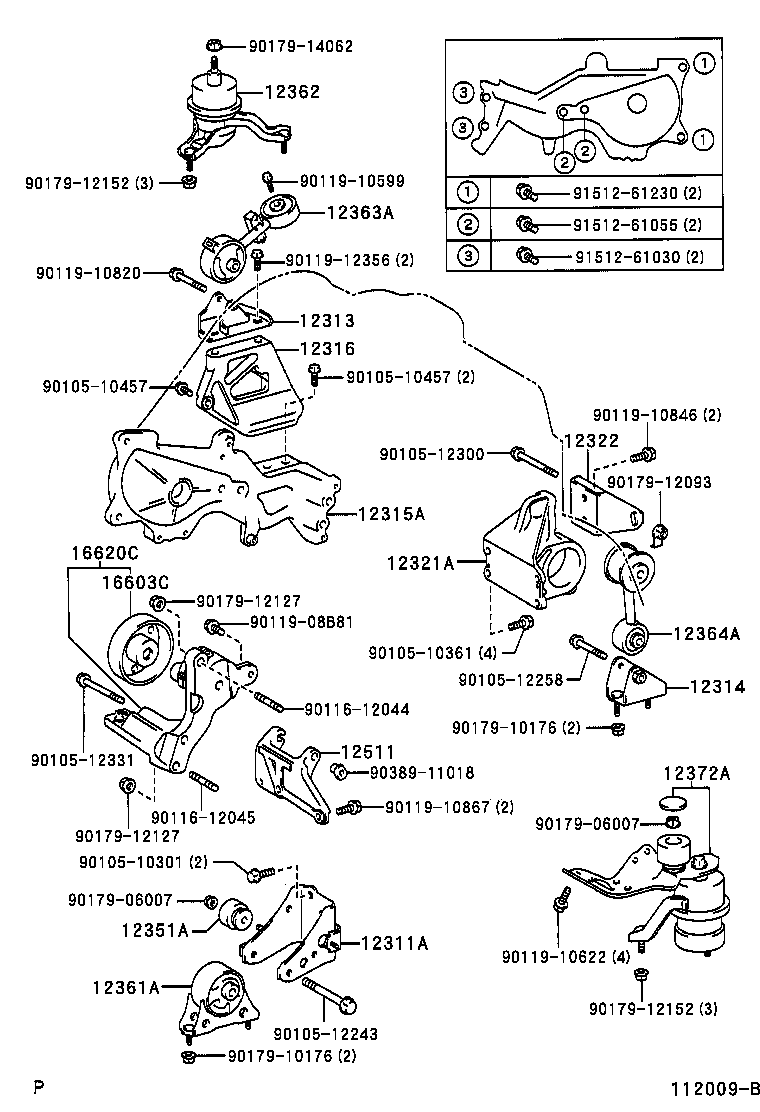

Click highlighted areas on diagram

diagram 12311A 12313 12314 12315A 12316 12321A 12322 12351A 12361A 12362 12363A 12364A 12372A 12511 16603C 16620C 9010510301 9010510361 9010510457 9010510457 9010512243 9010512258 9010512300 9010512331 9011612044 9011612045 9011908B81 9011910599 9011910622 9011910820 9011910846 9011910867 9011912356 9017906007 9017906007 9017910176 9017910176 9017912093 9017912127 9017912127 9017912152 9017912152 9017914062 9038911018 9151261030 9151261055 9151261230
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-27030

1CDFTV..CLR30

 1
12311-27030

1CDFTV..CLR30

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-28010

1CDFTV..CLR30

 1
12313-28010

1CDFTV..CLR30

 1
12314 - BRACKET, ENGINE LATERAL CONTROL ROD
12314-28010

1CDFTV..CLR30

 1
12314-28010

1CDFTV..CLR30

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-27020

1CDFTV..CLR30..08S

 1
12315-27020

1CDFTV..CLR30

 1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-27020

1CDFTV..CLR30

 1
12316-27020

1CDFTV..CLR30

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-27020

1CDFTV..CLR30

 1
12321-27020

1CDFTV..CLR30

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-28010

1CDFTV..CLR30

 1
12322-28010

1CDFTV..CLR30

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-27020

1CDFTV..CLR30

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-28090

1CDFTV..CLR30

 1
12361-28090

1CDFTV..CLR30

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-20010

1CDFTV..CLR30

 1
12362-20010

1CDFTV..CLR30

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-27010

1CDFTV..CLR30

 1
12363-27010

1CDFTV..CLR30

 1
12364A - ROD, ENGINE LATERAL CONTROL
12364-27010

1CDFTV..CLR30

 1
12364-27010

1CDFTV..CLR30

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12306-27010

1CDFTV..CLR30

 1
12306-27010

1CDFTV..CLR30

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-27010

1CDFTV..CLR30

 1
12511-27010

1CDFTV..CLR30..08S

 1
16603C - PULLEY SUB-ASSY, IDLER
16603-27010

1CDFTV..CLR30

 1
16603-27010

1CDFTV..CLR30

 1
16603-27011

1CDFTV..CLR30..08S

 1
16620C - TENSIONER ASSY, V-RIBBED BELT
16620-27010

1CDFTV..CLR30

 1
16620-27010

1CDFTV..CLR30..08S

 1
Common parts
90105-10301
90105-10361
90105-10457
90105-12243
90105-12258
90105-12300
90105-12331
90116-12044
90116-12045
90119-08B81
90119-10599
90119-10622
90119-10820
90119-10846
90119-10867
90119-12356
90179-06007
90179-10176
90179-12093
90179-12127
90179-12152
90179-14062
90389-11018
91512-61030
91512-61055
91512-61230
