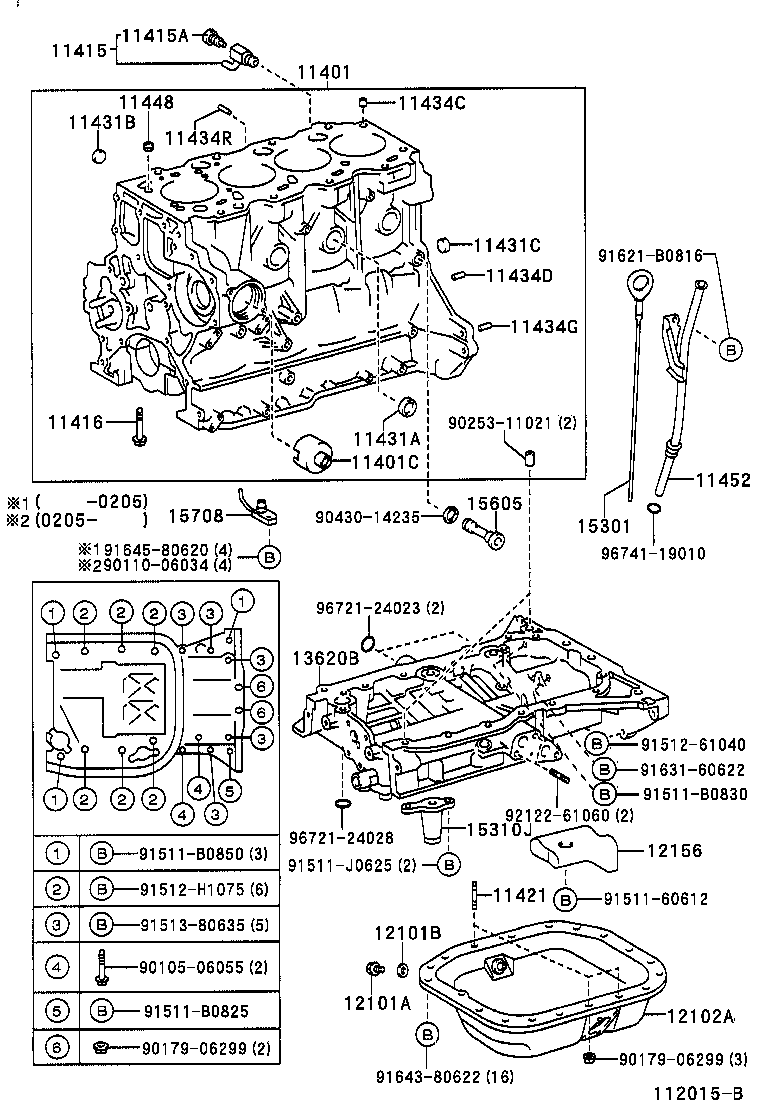

Toyota Previa/tarago CLR30 CYLINDER BLOCK

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-29695	1CDFTV..CLR30	04/2003 - 12/2999	1
11401-29695	1CDFTV..CLR30	02/2001 - 04/2003	1
11401C - FLANGE(FOR WATER BY-PASS)
16353-27010	1CDFTV..CLR30	02/2001 - 04/2003	1
16353-27010	1CDFTV..CLR30	04/2003 - 05/2003	1
16353-27011	1CDFTV..CLR30..08S	05/2003 - 04/2004	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075	1CDFTV..CLR30	02/2001 - 04/2003	1
90910-09075	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
90910-09087	1CDFTV..CLR30	02/2001 - 04/2003	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02135	1CDFTV..CLR30	02/2001 - 04/2003	10
90910-02135	1CDFTV..CLR30..08S	04/2003 - 04/2004	10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06164	1CDFTV..CLR30..08S	04/2003 - 04/2004	3
90116-06164	1CDFTV..CLR30	02/2001 - 04/2003	3
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500	1CDFTV..CLR30	02/2001 - 04/2003	4
96411-63500	1CDFTV..CLR30..08S	04/2003 - 04/2004	4
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63000	1CDFTV..CLR30..08S	04/2003 - 04/2004	3
96411-63000	1CDFTV..CLR30	02/2001 - 04/2003	3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-41800	1CDFTV..CLR30..08S	04/2003 - 04/2004	4
96411-41800	1CDFTV..CLR30	02/2001 - 04/2003	4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-14004	1CDFTV..CLR30 L=20,OD=14	02/2001 - 04/2003	2
90253-14004	1CDFTV..CLR30..08S L=20,OD=14	04/2003 - 04/2004	2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068	1CDFTV..CLR30..08S L=11,OD=6	04/2003 - 04/2004	2
90250-06068	1CDFTV..CLR30 L=11,OD=6	02/2001 - 04/2003	2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113	1CDFTV..CLR30..08S	04/2003 - 04/2004	2
90250-10113	1CDFTV..CLR30	02/2001 - 04/2003	2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003	1CDFTV..CLR30	02/2001 - 04/2003	2
90250-06003	1CDFTV..CLR30..08S	04/2003 - 04/2004	2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-64010	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
11448-64010	1CDFTV..CLR30	02/2001 - 04/2003	1
11452 - GUIDE, OIL LEVEL GAGE
11452-27030	1CDFTV..CLR30	02/2001 - 04/2003	1
11452-27030	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
90341-12012	1CDFTV..CLR30	10/2002 - 04/2003	1
90341-12026	1CDFTV..CLR30	02/2001 - 10/2002	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	1CDFTV..CLR30	02/2001 - 04/2003	1
90430-12031	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-27020	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
12102-27020	1CDFTV..CLR30	02/2001 - 04/2003	1
12156 - INSULATOR, OIL PAN
12156-27020	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
12156-27020	1CDFTV..CLR30	02/2001 - 04/2003	1
13620B - BALANCER ASSY, ENGINE
13620-27010	1CDFTV..CLR30	02/2001 - 04/2003	1
13620-27010	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-27030	1CDFTV..CLR30	02/2001 - 04/2003	1
15301-27030	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
15310J - REGULATOR ASSY, OIL
15310-27010	1CDFTV..CLR30	02/2001 - 04/2003	1
15310-27010	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
15605 - VALVE SUB-ASSY, OIL CHECK
15703-27010	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
15703-27010	1CDFTV..CLR30	02/2001 - 04/2003	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15790-27020	1CDFTV..CLR30	05/2002 - 04/2003	4
15790-27020	1CDFTV..CLR30..08S	04/2003 - 04/2004	4
15790-27010	1CDFTV..CLR30	02/2001 - 05/2002	4
Common parts
90105-06055
90110-06034
90179-06299
90253-11021
90430-14235
91511-60612
91511-B0825
91511-B0830
91511-B0850
91511-J0625
91512-61040
91512-H1075
91513-80635
91621-B0816
91631-60622
91643-80622
91645-80620
92122-61060
96721-24023
96721-24028
96741-19010

CLR30R-MRMDTW (2001)

(0102- )1CDFTV
