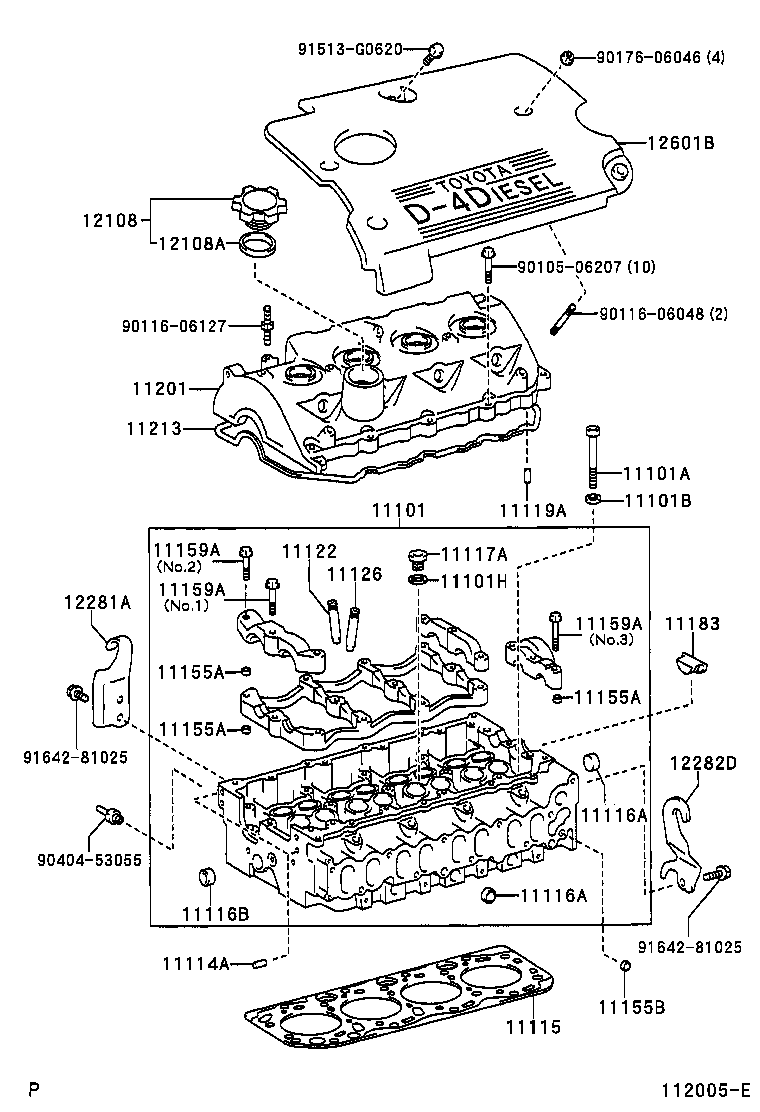

Toyota Previa/tarago CLR30 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-27040	1CDFTV..CLR30	02/2001 - 04/2003	1
11101-27040	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02139	1CDFTV..CLR30 *11-1.25PX104-63	02/2001 - 04/2003	10
90910-02136	1CDFTV..CLR30..08S *11-1.25PX160-60	04/2003 - 04/2004	8
90910-02136	1CDFTV..CLR30 *11-1.25PX160-60	02/2001 - 04/2003	8
90910-02139	1CDFTV..CLR30..08S *11-1.25PX104-63	04/2003 - 04/2004	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11016	1CDFTV..CLR30	02/2001 - 04/2003	18
90201-11016	1CDFTV..CLR30..08S	04/2003 - 04/2004	18
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-14008	1CDFTV..CLR30..08S	04/2003 - 04/2004	3
90430-14008	1CDFTV..CLR30	02/2001 - 04/2003	3
11114A - PIN, STRAIGHT
90250-06068	1CDFTV..CLR30..08S L=11,OD=6	04/2003 - 04/2004	2
90250-06068	1CDFTV..CLR30 L=11,OD=6	02/2001 - 04/2003	2
11115 - GASKET, CYLINDER HEAD
11115-27010A0	1CDFTV..CLR30 MARK A,MARK A	02/2001 - 04/2003	1
11115-27010E0	1CDFTV..CLR30 MARK E,MARK E	02/2001 - 04/2003	1
11115-27010B0	1CDFTV..CLR30 MARK B,MARK B	02/2001 - 04/2003	1
11115-27010C0	1CDFTV..CLR30 MARK C,MARK C	02/2001 - 04/2003	1
11115-27011B0	1CDFTV..CLR30..08S MARK B	04/2003 - 04/2004	1
11115-27011D0	1CDFTV..CLR30..08S MARK D	04/2003 - 04/2004	1
11115-27011C0	1CDFTV..CLR30..08S MARK C	04/2003 - 04/2004	1
11115-27011A0	1CDFTV..CLR30..08S MARK A	04/2003 - 04/2004	1
11115-27010D0	1CDFTV..CLR30 MARK D,MARK D	02/2001 - 04/2003	1
11115-27011E0	1CDFTV..CLR30..08S MARK E	04/2003 - 04/2004	1
11116A - PLUG, TIGHT, NO.1
96411-62000	1CDFTV..CLR30	02/2001 - 04/2003	4
96411-62000	1CDFTV..CLR30..08S	04/2003 - 04/2004	4
11116A - PLUG, TIGHT, NO.1
96411-62000	1CDFTV..CLR30	02/2001 - 04/2003	4
96411-62000	1CDFTV..CLR30..08S	04/2003 - 04/2004	4
11116B - PLUG, TIGHT, NO.2
96411-63000	1CDFTV..CLR30	02/2001 - 04/2003	1
96411-63000	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14008	1CDFTV..CLR30	02/2001 - 04/2003	3
90341-14008	1CDFTV..CLR30..08S	04/2003 - 04/2004	3
11119A - PIN, STRAIGHT, NO.1
90250-06013	1CDFTV..CLR30..08S L=16,OD=6	04/2003 - 04/2004	2
90250-06013	1CDFTV..CLR30 L=16,OD=6	02/2001 - 04/2003	2
11122 - BUSH, INTAKE VALVE GUIDE
11122-27010	1CDFTV..CLR30 STD	04/2003 - 12/2999	8
11122-27010	1CDFTV..CLR30 STD	02/2001 - 04/2003	8
11123-27010	1CDFTV..CLR30 O/S 0.05	04/2003 - 12/2999	8
11123-27010	1CDFTV..CLR30 O/S 0.05	02/2001 - 04/2003	8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-27010	1CDFTV..CLR30 STD	04/2003 - 12/2999	8
11123-27010	1CDFTV..CLR30 O/S 0.05	02/2001 - 04/2003	8
11122-27010	1CDFTV..CLR30 STD	02/2001 - 04/2003	8
11123-27010	1CDFTV..CLR30 O/S 0.05	04/2003 - 12/2999	8
11155A - PIN, RING W/HEAD
90253-11021	1CDFTV..CLR30..08S	04/2003 - 04/2004	12
90253-11021	1CDFTV..CLR30	02/2001 - 04/2003	12
11155A - PIN, RING W/HEAD
90253-11021	1CDFTV..CLR30..08S	04/2003 - 04/2004	12
90253-11021	1CDFTV..CLR30	02/2001 - 04/2003	12
11155A - PIN, RING W/HEAD
90253-11021	1CDFTV..CLR30..08S	04/2003 - 04/2004	12
90253-11021	1CDFTV..CLR30	02/2001 - 04/2003	12
11155B - PIN, RING
90253-13008	1CDFTV..CLR30..08S	04/2003 - 04/2004	2
90253-13008	1CDFTV..CLR30	02/2001 - 04/2003	2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08B76	1CDFTV..CLR30..08S NO.1	04/2003 - 04/2004	4
91511-80835	1CDFTV..CLR30 NO.3	02/2001 - 04/2003	3
91511-C0835	1CDFTV..CLR30..08S NO.3	04/2003 - 04/2004	3
91511-80860	1CDFTV..CLR30 NO.2	02/2001 - 04/2003	8
91511-80860	1CDFTV..CLR30..08S NO.2	04/2003 - 04/2004	8
90119-08B76	1CDFTV..CLR30 NO.1	02/2001 - 04/2003	4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08B76	1CDFTV..CLR30..08S NO.1	04/2003 - 04/2004	4
91511-80835	1CDFTV..CLR30 NO.3	02/2001 - 04/2003	3
91511-C0835	1CDFTV..CLR30..08S NO.3	04/2003 - 04/2004	3
91511-80860	1CDFTV..CLR30 NO.2	02/2001 - 04/2003	8
91511-80860	1CDFTV..CLR30..08S NO.2	04/2003 - 04/2004	8
90119-08B76	1CDFTV..CLR30 NO.1	02/2001 - 04/2003	4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08B76	1CDFTV..CLR30..08S NO.1	04/2003 - 04/2004	4
91511-80835	1CDFTV..CLR30 NO.3	02/2001 - 04/2003	3
91511-C0835	1CDFTV..CLR30..08S NO.3	04/2003 - 04/2004	3
91511-80860	1CDFTV..CLR30 NO.2	02/2001 - 04/2003	8
91511-80860	1CDFTV..CLR30..08S NO.2	04/2003 - 04/2004	8
90119-08B76	1CDFTV..CLR30 NO.1	02/2001 - 04/2003	4
11183 - PLUG, SEMICIRCULAR
11183-64010	1CDFTV..CLR30	02/2001 - 04/2003	1
11183-64010	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-27031	1CDFTV..CLR30	08/2002 - 04/2003	1
11201-27031	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
11201-27030	1CDFTV..CLR30	02/2001 - 08/2002	1
11213 - GASKET, CYLINDER HEAD COVER
11213-27010	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
11213-27010	1CDFTV..CLR30	02/2001 - 04/2003	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010	1CDFTV..CLR30	02/2001 - 04/2003	1
12180-55010	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	1CDFTV..CLR30	02/2001 - 04/2003	1
90430-37140	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
12281A - HANGER, ENGINE, NO.1
12281-27021	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
12282D - HANGER, ENGINE, NO.2
12282-27021	1CDFTV..CLR30..08S	04/2003 - 04/2004	1
12601B - COVER SUB-ASSY, ENGINE, NO.1
12611-27040	1CDFTV..CLR30	02/2001 - 04/2003	1
Common parts
90105-06207
90116-06048
90116-06127
90176-06046
90404-53055
91513-G0620
91642-81025

CLR30R-MRMDTW (2001)

(0102- )1CDFTV
