CLR30R-MFMDTW (2001)
Toyota Previa/Tarago

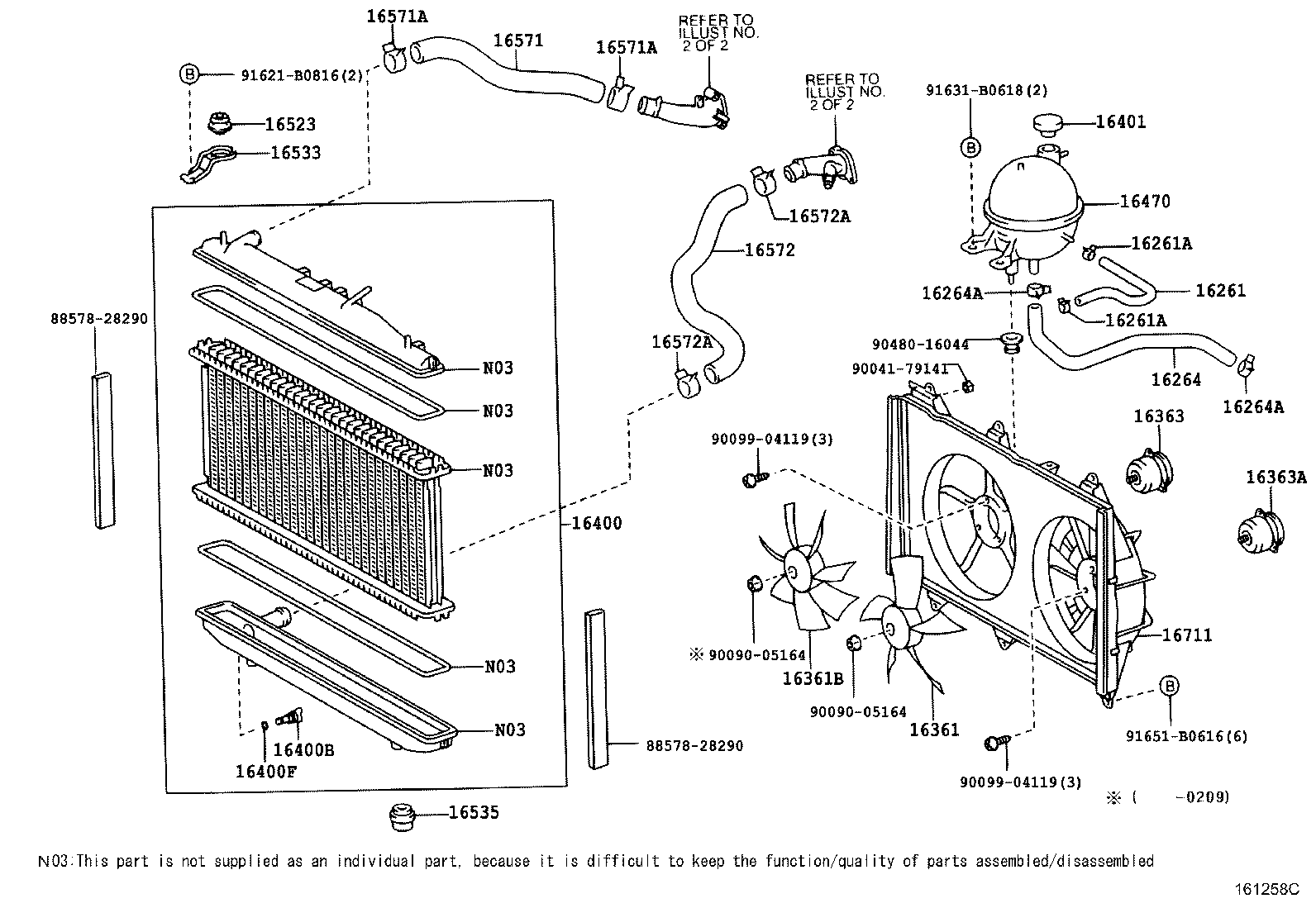

ILLUST NO. 1 OF 2(0102- )1CDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-27040 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16261-27040 |
1CDFTV..CLR30 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
1CDFTV..CLR30 |
2 | ||
| 96135-51300 |
1CDFTV..CLR30 |
2 | ||
| 96135-51300 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
1CDFTV..CLR30 |
2 | ||
| 96135-51300 |
1CDFTV..CLR30 |
2 | ||
| 96135-51300 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-27030 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16264-27030 |
1CDFTV..CLR30 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22006 |
1CDFTV..CLR30 |
2 | ||
| 90467-21010 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22006 |
1CDFTV..CLR30 |
2 | ||
| 90467-21010 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16361 - FAN | ||||
| 16361-23050 |
1CDFTV..CLR30 |
1 | ||
| 16361-23050 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-28050 |
1CDFTV..CLR30 |
1 | ||
| 16361-28050 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28030 |
1CDFTV..CLR30 |
1 | ||
| 16363-28030 |
1CDFTV..CLR30 |
1 | ||
| 16363-28170 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-23030 |
1CDFTV..CLR30 |
1 | ||
| 16363-23030 |
1CDFTV..CLR30 |
1 | ||
| 16363-28160 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-27030 |
1CDFTV..CLR30 |
1 | ||
| 16400-27030 |
1CDFTV..CLR30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1CDFTV..CLR30 |
1 | ||
| 16417-15210 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1CDFTV..CLR30 |
1 | ||
| 16418-15520 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-53010 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16401-53010 |
1CDFTV..CLR30 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-27030 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16470-27030 |
1CDFTV..CLR30 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-74010 |
1CDFTV..CLR30 |
2 | ||
| 16523-74010 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-20021 |
1CDFTV..CLR30 |
2 | ||
| 16533-20021 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74210 |
1CDFTV..CLR30 |
2 | ||
| 16535-74210 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-27040 |
1CDFTV..CLR30 |
1 | ||
| 16571-27040 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41001 |
1CDFTV..CLR30 |
2 | ||
| 90466-41007 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 90466-41007 |
1CDFTV..CLR30 |
2 | ||
| 90467-41002 |
1CDFTV..CLR30 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41001 |
1CDFTV..CLR30 |
2 | ||
| 90466-41007 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 90466-41007 |
1CDFTV..CLR30 |
2 | ||
| 90467-41002 |
1CDFTV..CLR30 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-27030 |
1CDFTV..CLR30 |
1 | ||
| 16572-27030 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
1CDFTV..CLR30 |
2 | ||
| 90467-41002 |
1CDFTV..CLR30 |
2 | ||
| 90466-41007 |
1CDFTV..CLR30 |
2 | ||
| 90466-41007 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
1CDFTV..CLR30 |
2 | ||
| 90467-41002 |
1CDFTV..CLR30 |
2 | ||
| 90466-41007 |
1CDFTV..CLR30 |
2 | ||
| 90466-41007 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-27100 |
1CDFTV..CLR30 |
1 | ||
| 16711-27100 |
1CDFTV..CLR30..06S,07S |
1 | ||
| Common parts | ||||
| 88578-28290 | ||||
| 90041-79141 | ||||
| 90090-05164 | ||||
| 90099-04119 | ||||
| 90480-16044 | ||||
| 91621-B0816 | ||||
| 91631-B0618 | ||||
| 91651-B0616 | ||||

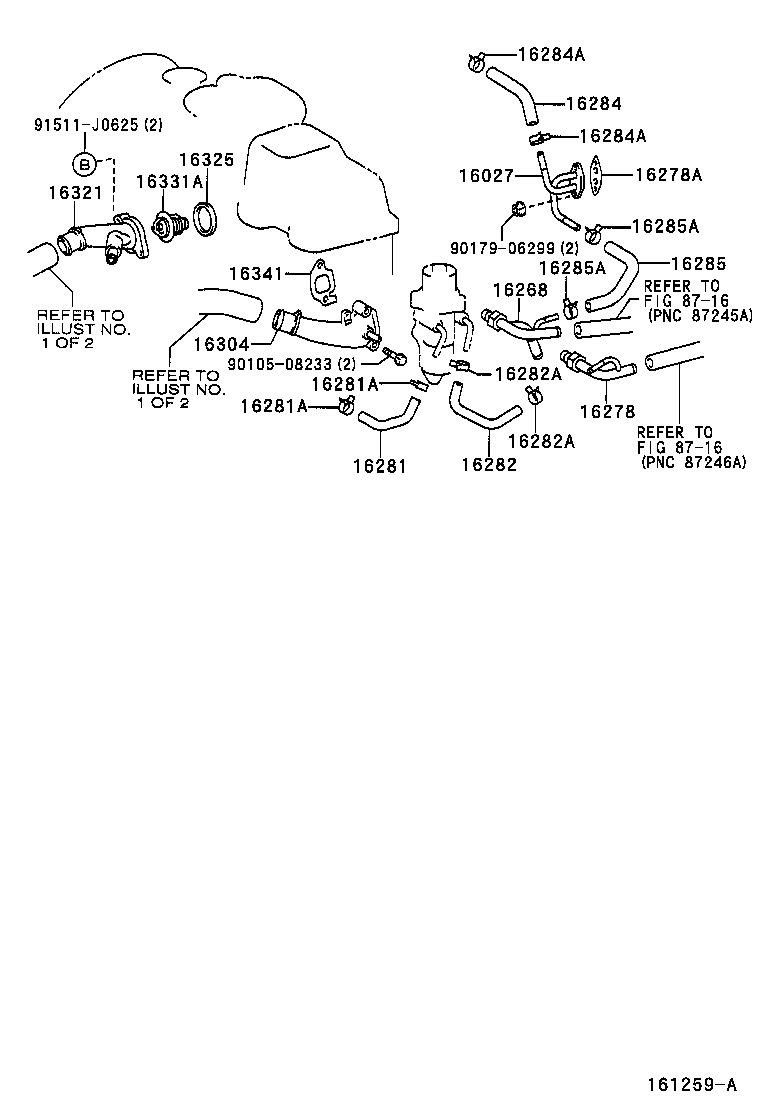

ILLUST NO. 2 OF 2(0102- )1CDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-27020 |
1CDFTV..CLR30 |
1 | ||
| 16027-27020 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-27030 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16268-27030 |
1CDFTV..CLR30 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-27030 |
1CDFTV..CLR30 |
1 | ||
| 16278-27030 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-27020 |
1CDFTV..CLR30 |
1 | ||
| 16347-27020 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-27010 |
1CDFTV..CLR30 |
1 | ||
| 16281-27010 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13073 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 90467-13073 |
1CDFTV..CLR30 |
2 | ||
| 90467-13128 |
1CDFTV..CLR30 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13073 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 90467-13073 |
1CDFTV..CLR30 |
2 | ||
| 90467-13128 |
1CDFTV..CLR30 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-27010 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16282-27010 |
1CDFTV..CLR30 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13128 |
1CDFTV..CLR30 |
2 | ||
| 90467-13073 |
1CDFTV..CLR30 |
2 | ||
| 90467-13073 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13128 |
1CDFTV..CLR30 |
2 | ||
| 90467-13073 |
1CDFTV..CLR30 |
2 | ||
| 90467-13073 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-27020 |
1CDFTV..CLR30 |
1 | ||
| 16284-27020 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
1CDFTV..CLR30 |
2 | ||
| 90467-15022 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
1CDFTV..CLR30 |
2 | ||
| 90467-15022 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-27020 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16285-27020 |
1CDFTV..CLR30 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 90467-15022 |
1CDFTV..CLR30 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1CDFTV..CLR30..06S,07S |
2 | ||
| 90467-15022 |
1CDFTV..CLR30 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-27010 |
1CDFTV..CLR30 |
1 | ||
| 16304-27010 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16321 - INLET, WATER | ||||
| 16031-27010 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16031-27010 |
1CDFTV..CLR30 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-27010 |
1CDFTV..CLR30 |
1 | ||
| 16325-27010 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03123 |
1CDFTV..CLR30 |
1 | ||
| 90916-03123 |
1CDFTV..CLR30..06S,07S |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-27010 |
1CDFTV..CLR30 |
1 | ||
| 16341-27010 |
1CDFTV..CLR30..06S,07S |
1 | ||
| Common parts | ||||
| 90105-08233 | ||||
| 90179-06299 | ||||
| 91511-J0625 | ||||
| Linked diagrams | ||||
| 8716 | ||||
