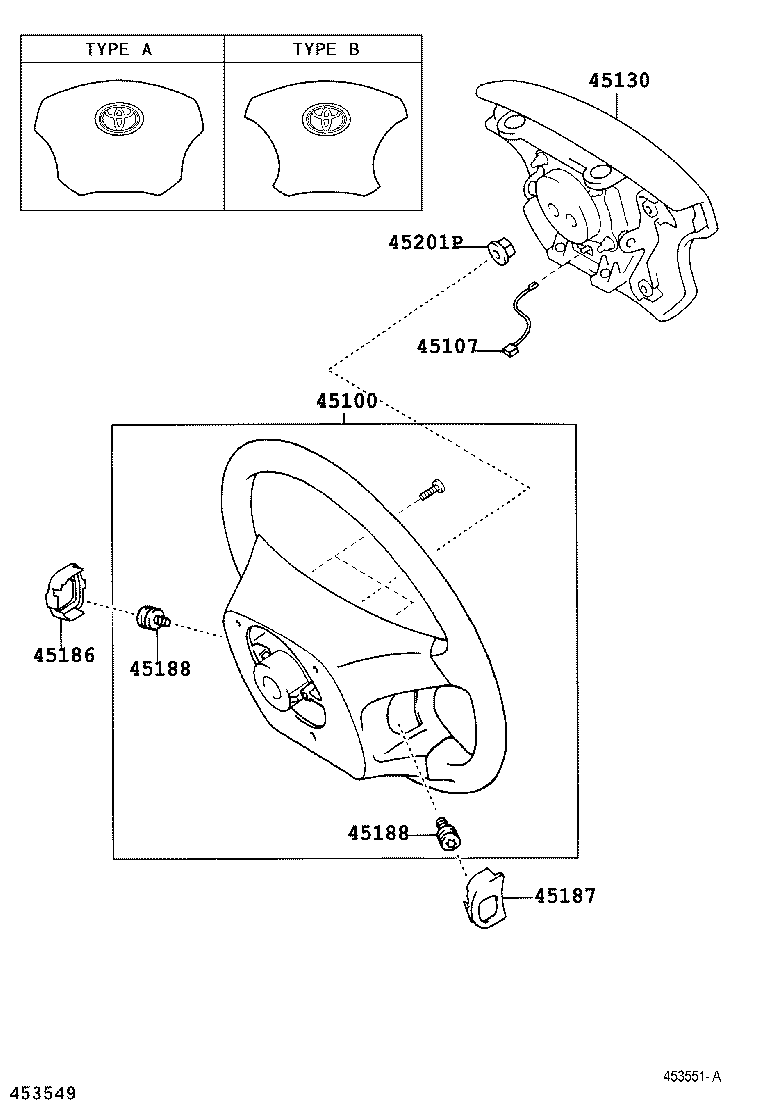

CLR30L-MRMDTW (2001)
Toyota Previa/Tarago
(0002-0304)
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-28190B0 |
ACR30..GL..GEN;ACR30,CLR30..ARL,EUR,GCC 4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUISH GRAY,TRIM11 |
1 | ||
| 45100-28190B1 |
ACR30..GL..GEN;ACR30,CLR30..ARL,EUR,GCC 4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM12 |
1 | ||
| 45100-28260B1 |
ACR30..GL..GCC;ACR30,CLR30..LHD..06S;ACR30,CLR30..(07S,08S)..DX..(EUR,GCC,GEN) 4-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM12 |
1 | ||
| 45100-28270B1 |
ACR30,CLR30..EUR,GCC;ACR30..GL..(ARL,GEN) 4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),DK.CHARCOAL,TRIM12 |
1 | ||
| 45100-28250B0 |
ACR30..GL..GCC;ACR30,CLR30..LHD..06S;ACR30,CLR30..(07S,08S)..DX 4-SPOKE,URETHANE,BLUISH GRAY,TRIM11 |
1 | ||
| 45100-28250B1 |
ACR30..GL..GCC;ACR30,CLR30..LHD..06S;ACR30,CLR30..(07S,08S)..DX 4-SPOKE,URETHANE,DK.CHARCOAL,TRIM12 |
1 | ||
| 45100-28270B0 |
ACR30,CLR30..EUR,GCC;ACR30..GL..(ARL,GEN) 4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLUISH GRAY,TRIM11 |
1 | ||
| 45100-28260B0 |
ACR30..GL..GCC;ACR30,CLR30..LHD..06S;ACR30,CLR30..(07S,08S)..DX..(EUR,GCC,GEN) 4-SPOKE,WOOD&LEATHER,BLUISH GRAY,TRIM11 |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-28420B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 45130-28420B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-28120B1 |
ACR30..GL..GEN;ACR30,CLR30..ARL,EUR,GCC W(CRUISE CONTROL),DK.CHARCOAL,TRIM12 |
1 | ||
| 45184-28120B0 |
ACR30..GL..GEN;ACR30,CLR30..ARL,EUR,GCC W(CRUISE CONTROL),BLUISH GRAY,TRIM11 |
1 | ||
| 45184-28110B1 |
ACR30..GL..GCC;ACR30,CLR30..LHD..06S;ACR30,CLR30..(07S,08S)..DX DK.CHARCOAL,TRIM12 |
1 | ||
| 45184-28110B0 |
ACR30..GL..GCC;ACR30,CLR30..LHD..06S;ACR30,CLR30..(07S,08S)..DX BLUISH GRAY,TRIM11 |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-33050B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 45186-33050B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45186-33050B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 45186-33050B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ACR30,CLR30 L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ACR30,CLR30 L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90168-40113 | ||||
| Linked diagrams | ||||
| 8408 | ||||

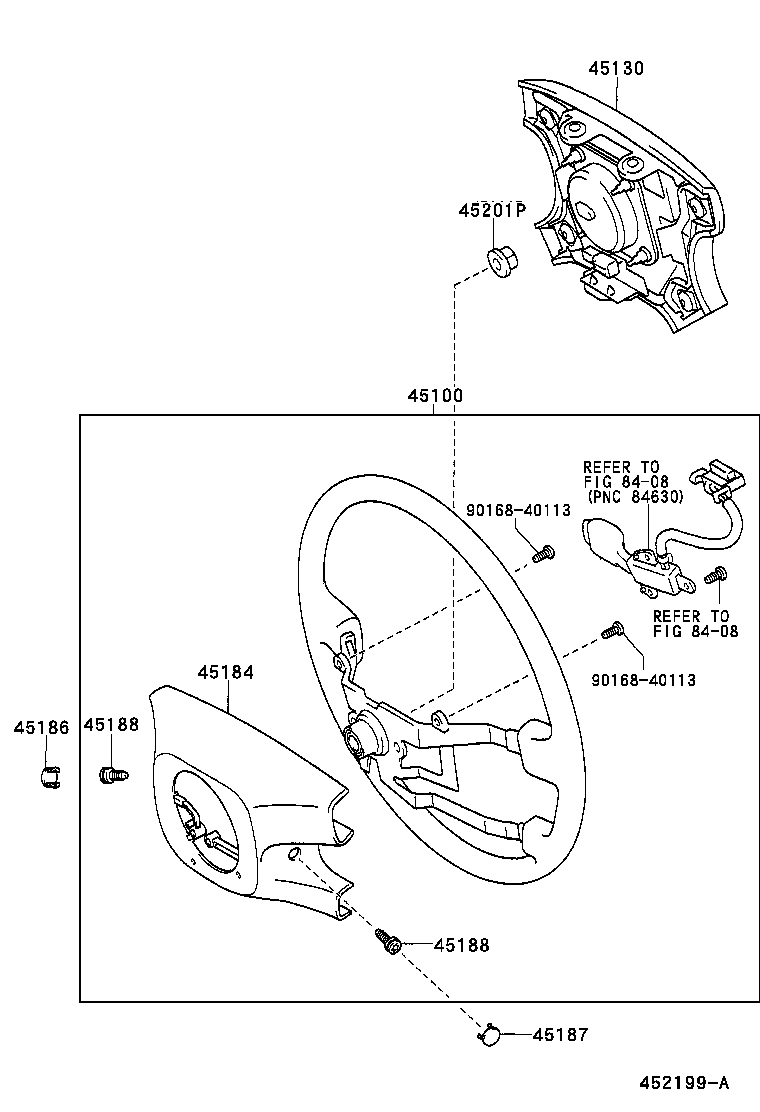

(0304- )
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-28190B0 |
ACR30..GL..GEN;ACR30,CLR30..ARL,EUR,GCC 4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUISH GRAY,TRIM11 |
1 | ||
| 45100-28190B1 |
ACR30..GL..GEN;ACR30,CLR30..ARL,EUR,GCC 4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM12 |
1 | ||
| 45100-28260B1 |
ACR30..GL..GCC;ACR30,CLR30..LHD..06S;ACR30,CLR30..(07S,08S)..DX..(EUR,GCC,GEN) 4-SPOKE,WOOD&LEATHER,DK.CHARCOAL,TRIM12 |
1 | ||
| 45100-28270B1 |
ACR30,CLR30..EUR,GCC;ACR30..GL..(ARL,GEN) 4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),DK.CHARCOAL,TRIM12 |
1 | ||
| 45100-28250B0 |
ACR30..GL..GCC;ACR30,CLR30..LHD..06S;ACR30,CLR30..(07S,08S)..DX 4-SPOKE,URETHANE,BLUISH GRAY,TRIM11 |
1 | ||
| 45100-28250B1 |
ACR30..GL..GCC;ACR30,CLR30..LHD..06S;ACR30,CLR30..(07S,08S)..DX 4-SPOKE,URETHANE,DK.CHARCOAL,TRIM12 |
1 | ||
| 45100-28270B0 |
ACR30,CLR30..EUR,GCC;ACR30..GL..(ARL,GEN) 4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLUISH GRAY,TRIM11 |
1 | ||
| 45100-28260B0 |
ACR30..GL..GCC;ACR30,CLR30..LHD..06S;ACR30,CLR30..(07S,08S)..DX..(EUR,GCC,GEN) 4-SPOKE,WOOD&LEATHER,BLUISH GRAY,TRIM11 |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-28420B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 45130-28420B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-33050B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 45186-33050B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45186-33050B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 45186-33050B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ACR30,CLR30 L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ACR30,CLR30 L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ACR30,CLR30 |
1 | ||
