Toyota Previa/tarago CLR30 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
EU
PREVIA/TARAGO
CLR30L-MFMDTW (2001)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

CLR30L-MFMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Jan 2006

Engine 1CDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

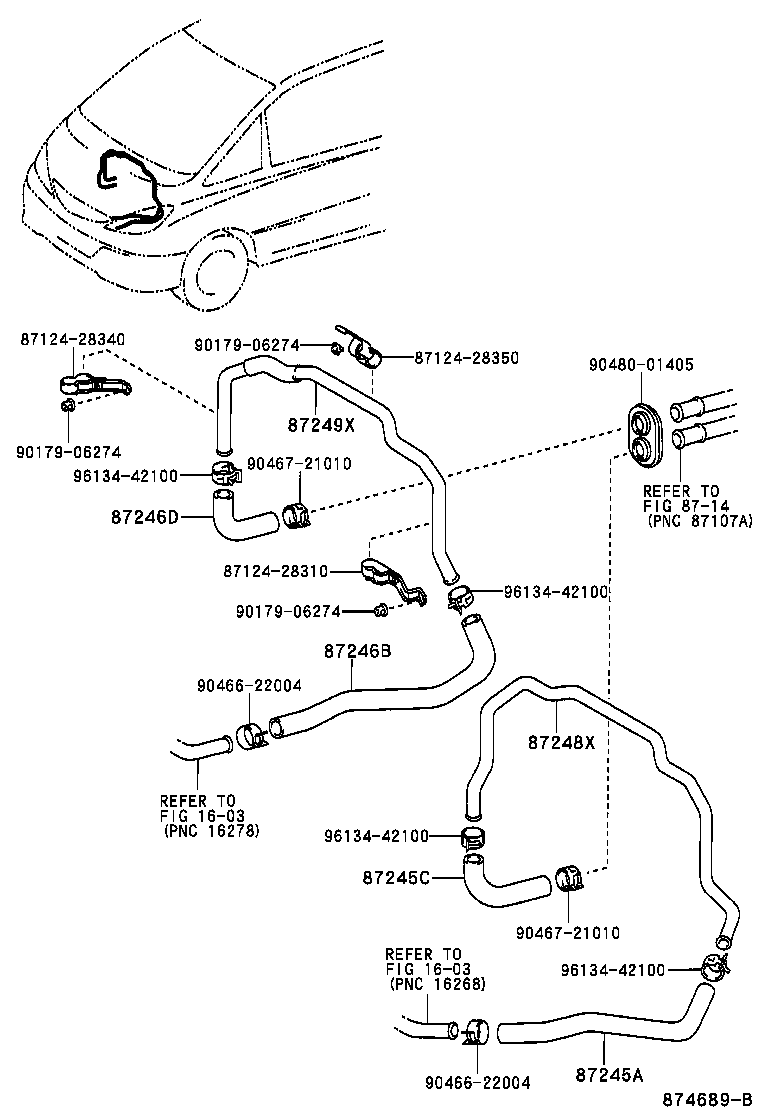

ILLUST NO. 1 OF 2(0102- )CLR30..LHD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-2J450	CLR30 W(REAR HEATER)	02/2001 - 04/2003	1
87245-2J570	CLR30..LHD	04/2003 - 01/2006	1
87245-2J450	CLR30 W(REAR HEATER)	04/2003 - 01/2006	1
87245-2J570	CLR30..LHD	02/2001 - 04/2003	1
87245C - HOSE, HEATER WATER ,INLET C
87245-2J540	CLR30..LHD	02/2001 - 04/2003	1
87245-2J540	CLR30..LHD	04/2003 - 01/2006	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2J580	CLR30..LHD	02/2001 - 04/2003	1
87245-2J480	CLR30 W(REAR HEATER)	04/2003 - 01/2006	1
87245-2J480	CLR30 W(REAR HEATER)	02/2001 - 04/2003	1
87245-2J580	CLR30..LHD	04/2003 - 01/2006	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-2J560	CLR30..LHD	02/2001 - 04/2003	1
87245-2J560	CLR30..LHD	04/2003 - 01/2006	1
87248X - PIPE, HEATER WATER
87248-28210	CLR30..LHD	04/2003 - 01/2006	1
87248-28210	CLR30..LHD	02/2001 - 04/2003	1
87249X - PIPE, WATER
87248-28220	CLR30..LHD	04/2003 - 01/2006	1
87248-28220	CLR30..LHD	02/2001 - 04/2003	1
Common parts
87124-28310
87124-28340
87124-28350
90179-06274
90466-22004
90467-21010
90480-01405
96134-42100
Linked diagrams
1603
8714

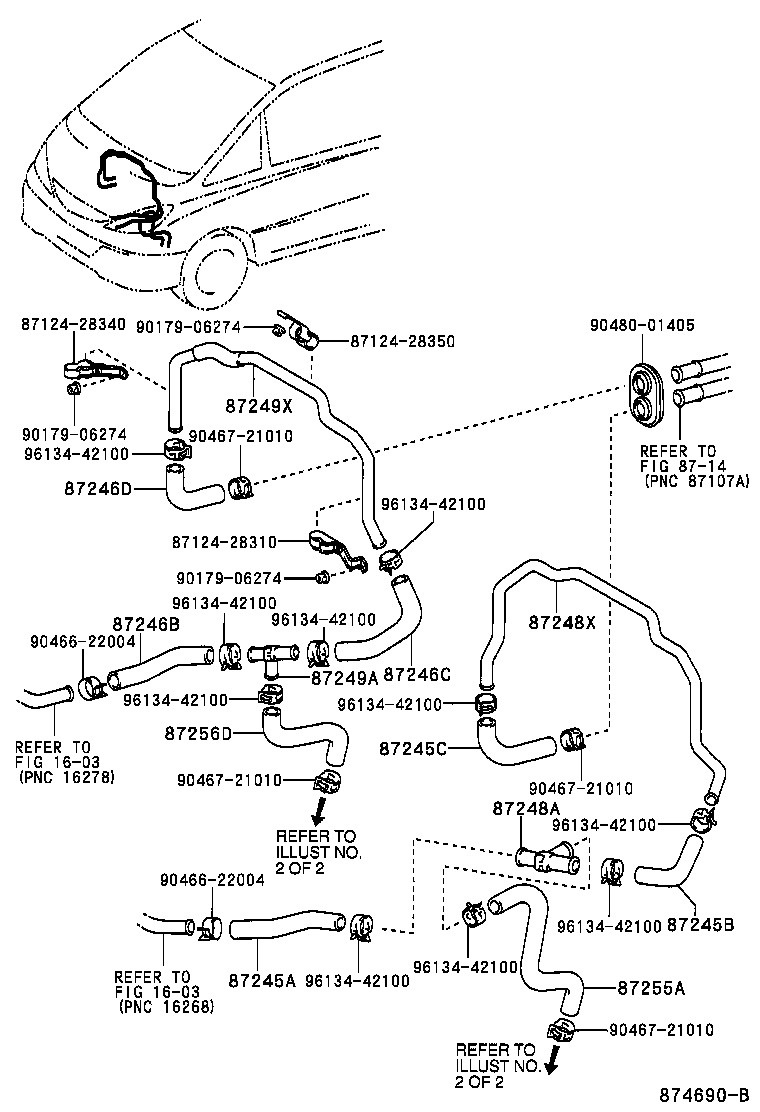

ILLUST NO. 1 OF 2(0102- )CLR30..LHD

Click highlighted areas on diagram

FRONT--W(REAR HEATER)

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-2J450	CLR30 W(REAR HEATER)	02/2001 - 04/2003	1
87245-2J570	CLR30..LHD	04/2003 - 01/2006	1
87245-2J450	CLR30 W(REAR HEATER)	04/2003 - 01/2006	1
87245-2J570	CLR30..LHD	02/2001 - 04/2003	1
87245B - HOSE, HEATER WATER, INLET B
87245-2J530	CLR30..LHD	02/2001 - 04/2003	1
87245-2J530	CLR30..LHD	04/2003 - 01/2006	1
87245C - HOSE, HEATER WATER ,INLET C
87245-2J540	CLR30..LHD	02/2001 - 04/2003	1
87245-2J540	CLR30..LHD	04/2003 - 01/2006	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2J580	CLR30..LHD	02/2001 - 04/2003	1
87245-2J480	CLR30 W(REAR HEATER)	04/2003 - 01/2006	1
87245-2J480	CLR30 W(REAR HEATER)	02/2001 - 04/2003	1
87245-2J580	CLR30..LHD	04/2003 - 01/2006	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-2J550	CLR30..LHD	02/2001 - 04/2003	1
87245-2J550	CLR30..LHD	04/2003 - 01/2006	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-2J560	CLR30..LHD	02/2001 - 04/2003	1
87245-2J560	CLR30..LHD	04/2003 - 01/2006	1
87248A - PIPE, HEATER WATER INLET, A
87248-08030	CLR30	04/2003 - 01/2006	1
87248-08030	ACR30,CLR30..EUR,GEN	02/2000 - 04/2003	1
87248X - PIPE, HEATER WATER
87248-28210	CLR30..LHD	04/2003 - 01/2006	1
87248-28210	CLR30..LHD	02/2001 - 04/2003	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-08030	CLR30	04/2003 - 12/2999	1
87248-08030	ACR30,CLR30..EUR,GEN	02/2000 - 04/2003	1
87249X - PIPE, WATER
87248-28220	CLR30..LHD	04/2003 - 01/2006	1
87248-28220	CLR30..LHD	02/2001 - 04/2003	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-2J470	CLR30	02/2001 - 04/2003	1
87245-2J470	CLR30	04/2003 - 01/2006	1
87256D - HOSE, REAR HEATER WATER OUTLET, D
87245-2J500	CLR30	02/2001 - 04/2003	1
87245-2J500	CLR30	04/2003 - 01/2006	1
Common parts
87124-28310
87124-28340
87124-28350
90179-06274
90466-22004
90467-21010
90480-01405
96134-42100
Linked diagrams
1603
8714

CLR30L-MFMDTW (2001)

ILLUST NO. 1 OF 2(0102- )CLR30..LHD

ILLUST NO. 1 OF 2(0102- )CLR30..LHD
