CLR30L-MFMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Jan 2006

Engine 1CDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

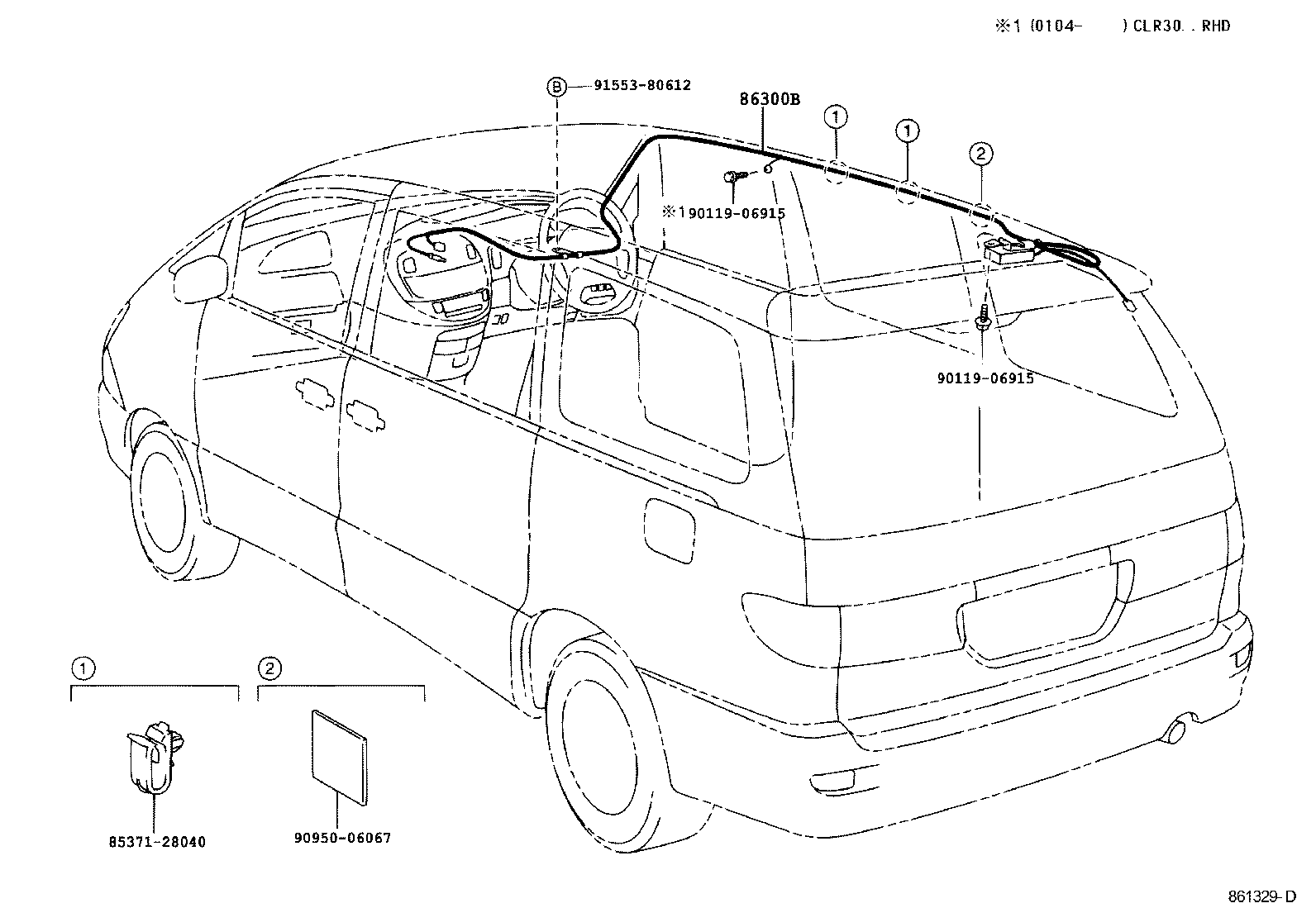

Click highlighted areas on diagram

Part #	Description	Period	Qty
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-28270	ACR30,CLR30..LHD W(REAR COOLER)	02/2001 - 04/2001	1
86300-28310	ACR30,CLR30..LHD	02/2001 - 04/2001	1
86300-28370	CLR30..LHD	04/2001 - 04/2003	1
86300-28350	CLR30..LHD W(REAR COOLER)	04/2001 - 04/2003	1
86300-28350	CLR30..LHD W(REAR COOLER)	04/2003 - 01/2006	1
86300-28370	CLR30..LHD	04/2003 - 01/2006	1
Common parts
85371-28040
90119-06915
90950-06067
91553-80612
