CLR30L-MFMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Jan 2006
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )EUR,GEN

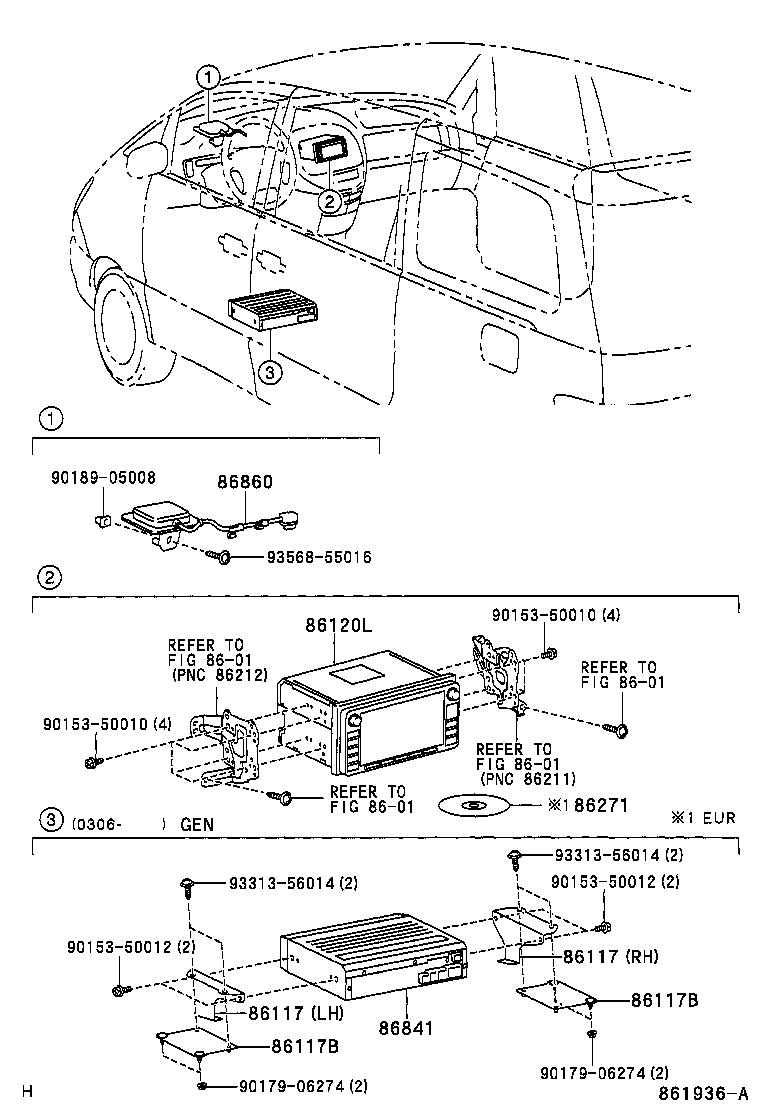

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86117 86117 86117B 86117B 86120L 86271 86841 86860 9015350010 9015350010 9015350012 9015350012 9017906274 9017906274 9018905008 9331356014 9331356014 9356855016
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-33610

ACR30,CLR30..EUR

AISIN AW

 1
86120-33610

ACR30,CLR30..EUR

AISIN AW

 1
86120-33610

ACR30,CLR30..EUR

AISIN AW

 1
86271 - DISC, DISC PLAYER
86271-64010

ACR30,CLR30..EUR

 1
86271-53030

ACR30,CLR30..EUR

 1
86271-64012

ACR30,CLR30..EUR

 1
86271-64011

ACR30,CLR30..EUR

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-28120

ACR30,CLR30..LHD..(06S,07S)..EUR

 1
Common parts
90153-50010
90153-50012
90179-06274
90189-05008
93313-56014
93568-55016
Linked diagrams
8601
