Toyota Previa/tarago CLR30 WINDSHIELD WASHER

CLR30L-MFMDTW (2001)

Toyota Previa/Tarago

Production Feb 2001 - Jan 2006

Engine 1CDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

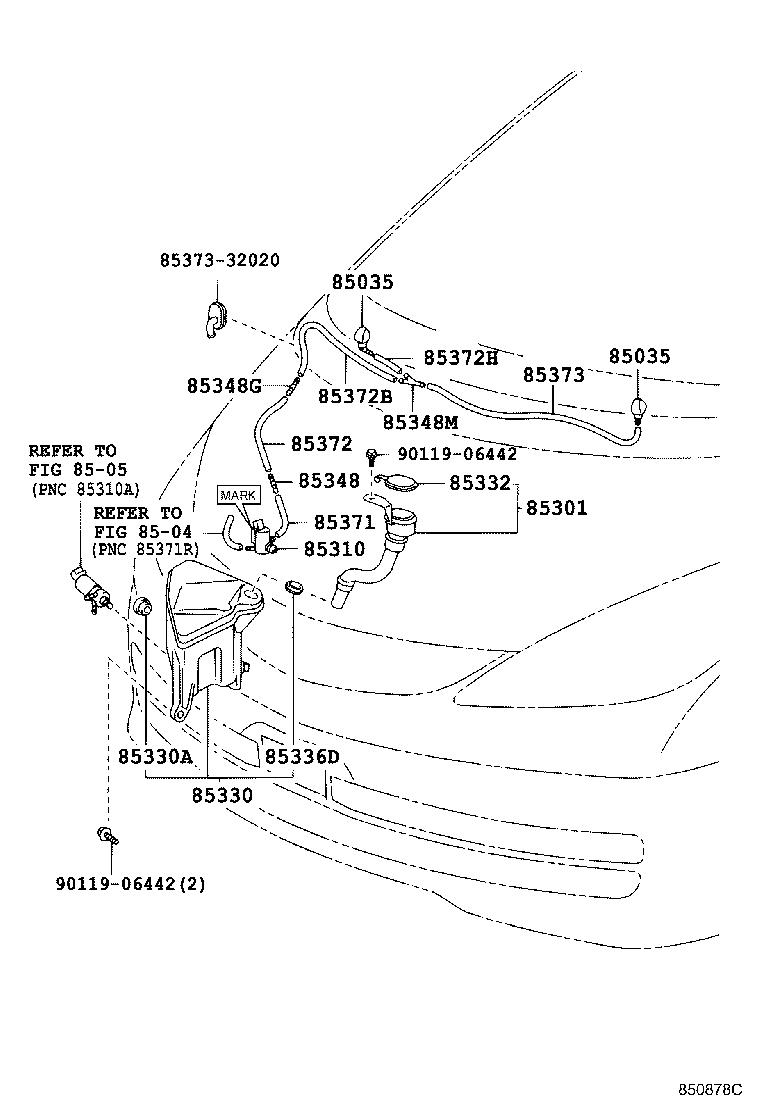

(0002-0304)EUR,GCC,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-28140	ACR30,CLR30..LHD LH	02/2000 - 04/2003	1
85381-28160	ACR30,CLR30..LHD RH	04/2003 - 12/2999	1
85381-28160	ACR30,CLR30..LHD RH	02/2000 - 04/2003	1
85381-28140	ACR30,CLR30..LHD LH	04/2003 - 12/2999	1
85035 - NOZZLE SUB-ASSY, WASHER
85381-28140	ACR30,CLR30..LHD LH	02/2000 - 04/2003	1
85381-28160	ACR30,CLR30..LHD RH	04/2003 - 12/2999	1
85381-28160	ACR30,CLR30..LHD RH	02/2000 - 04/2003	1
85381-28140	ACR30,CLR30..LHD LH	04/2003 - 12/2999	1
85301 - INLET SUB-ASSY, WASHER
85301-28070	ACR30,CLR30..ARL,EUR,GCC	04/2003 - 12/2999	1
85301-28080	ACR30,CLR30..LHD..(EUR,GEN) W(HEADLAMP CLEANER)	04/2003 - 12/2999	1
85301-28030	ACR30,CLR30..LHD..EUR W(HEADLAMP CLEANER)	02/2000 - 04/2003	1
85301-28020	ACR30,CLR30	02/2000 - 04/2003	1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190	ACR30,CLR30	04/2003 - 12/2999	1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-28030	ACR30,CLR30..LHD..(EUR,GEN) W(HEADLAMP CLEANER)	04/2003 - 12/2999	1
85315-28110	ACR30,CLR30	02/2000 - 04/2003	1
85355-28020	ACR30,CLR30..LHD..EUR W(HEADLAMP CLEANER)	02/2000 - 04/2003	1
85315-28200	ACR30,CLR30..ARL,EUR,GCC	04/2003 - 12/2999	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	ACR30,CLR30	02/2000 - 04/2003	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-26060	ACR30,CLR30	02/2000 - 04/2003	1
85316-28060	ACR30,CLR30	04/2003 - 12/2999	1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160	ACR30,CLR30	04/2003 - 12/2999	1
85336-30160	ACR30,CLR30	02/2000 - 04/2003	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22470	ACR30,CLR30	02/2000 - 04/2003	1
85349-89122	ACR30,CLR30	04/2003 - 01/2006	1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122	ACR30,CLR30	02/2000 - 04/2003	1
85349-89122	ACR30,CLR30	04/2003 - 12/2999	1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85348-14390	ACR30,CLR30	04/2003 - 12/2999	1
85348-14390	ACR30,CLR30	02/2000 - 04/2003	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075	ACR30,CLR30 *H,L=30	02/2000 - 04/2003	1
90099-33082	ACR30,CLR30 *H,L=310	04/2003 - 01/2006	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	ACR30,CLR30 *H,L=440	04/2003 - 08/2003	1
90099-33080	ACR30,CLR30 *H,L=460	08/2003 - 01/2006	1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080	ACR30,CLR30..LHD *H,L=580	04/2003 - 12/2999	1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080	ACR30,CLR30..LHD *H,L=180	04/2003 - 12/2999	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	ACR30,CLR30..LHD *H,L=630	02/2000 - 04/2003	1
90099-33080	ACR30,CLR30..LHD *H,L=630	04/2003 - 12/2999	1
Common parts
85373-32020
90119-06442
Linked diagrams
8504
8505

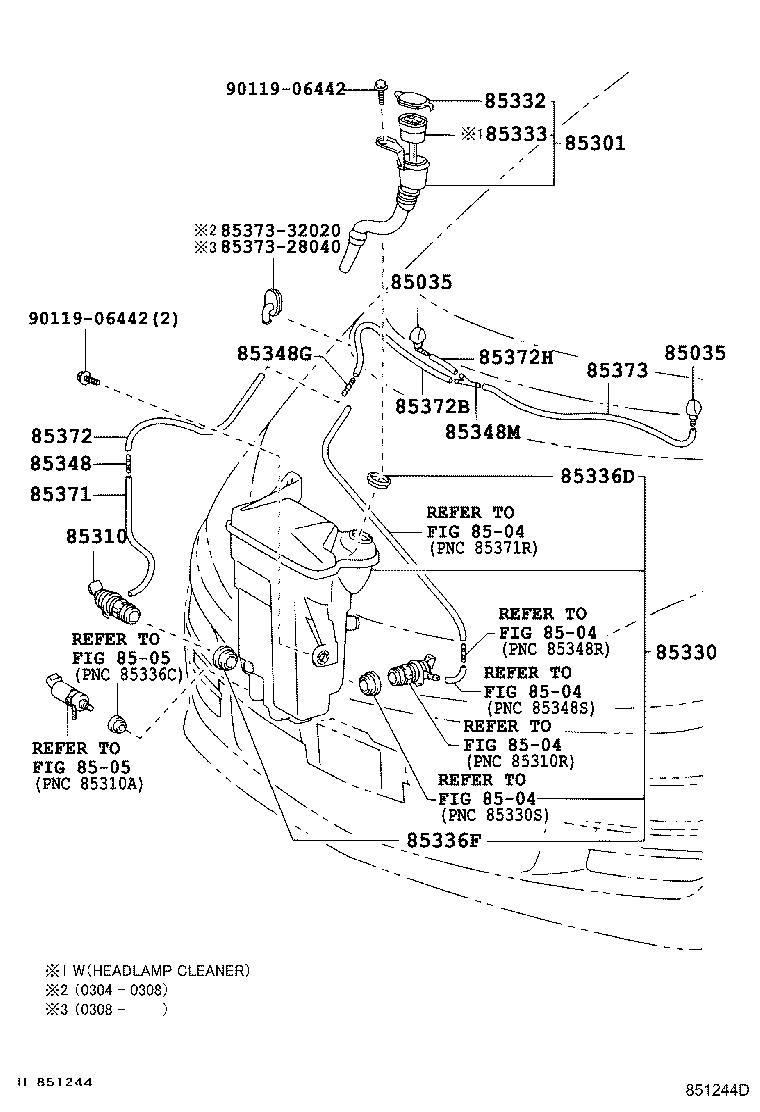

(0304- )EUR,GCC,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-28140	ACR30,CLR30..LHD LH	02/2000 - 04/2003	1
85381-28160	ACR30,CLR30..LHD RH	04/2003 - 12/2999	1
85381-28160	ACR30,CLR30..LHD RH	02/2000 - 04/2003	1
85381-28140	ACR30,CLR30..LHD LH	04/2003 - 12/2999	1
85035 - NOZZLE SUB-ASSY, WASHER
85381-28140	ACR30,CLR30..LHD LH	02/2000 - 04/2003	1
85381-28160	ACR30,CLR30..LHD RH	04/2003 - 12/2999	1
85381-28160	ACR30,CLR30..LHD RH	02/2000 - 04/2003	1
85381-28140	ACR30,CLR30..LHD LH	04/2003 - 12/2999	1
85301 - INLET SUB-ASSY, WASHER
85301-28070	ACR30,CLR30..ARL,EUR,GCC	04/2003 - 12/2999	1
85301-28080	ACR30,CLR30..LHD..(EUR,GEN) W(HEADLAMP CLEANER)	04/2003 - 12/2999	1
85301-28030	ACR30,CLR30..LHD..EUR W(HEADLAMP CLEANER)	02/2000 - 04/2003	1
85301-28020	ACR30,CLR30	02/2000 - 04/2003	1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190	ACR30,CLR30	04/2003 - 12/2999	1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-28030	ACR30,CLR30..LHD..(EUR,GEN) W(HEADLAMP CLEANER)	04/2003 - 12/2999	1
85315-28110	ACR30,CLR30	02/2000 - 04/2003	1
85355-28020	ACR30,CLR30..LHD..EUR W(HEADLAMP CLEANER)	02/2000 - 04/2003	1
85315-28200	ACR30,CLR30..ARL,EUR,GCC	04/2003 - 12/2999	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-26060	ACR30,CLR30	02/2000 - 04/2003	1
85316-28060	ACR30,CLR30	04/2003 - 12/2999	1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-44020	ACR30,CLR30..LHD..(EUR,GEN)	04/2003 - 12/2999	1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160	ACR30,CLR30	04/2003 - 12/2999	1
85336-30160	ACR30,CLR30	02/2000 - 04/2003	1
85336F - PACKING, WINDSHIELD WASHER JAR
85336-60300	ACR30,CLR30	04/2003 - 12/2999	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22470	ACR30,CLR30	02/2000 - 04/2003	1
85349-89122	ACR30,CLR30	04/2003 - 01/2006	1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122	ACR30,CLR30	02/2000 - 04/2003	1
85349-89122	ACR30,CLR30	04/2003 - 12/2999	1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85348-14390	ACR30,CLR30	04/2003 - 12/2999	1
85348-14390	ACR30,CLR30	02/2000 - 04/2003	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075	ACR30,CLR30 *H,L=30	02/2000 - 04/2003	1
90099-33082	ACR30,CLR30 *H,L=310	04/2003 - 01/2006	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	ACR30,CLR30 *H,L=440	04/2003 - 08/2003	1
90099-33080	ACR30,CLR30 *H,L=460	08/2003 - 01/2006	1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080	ACR30,CLR30..LHD *H,L=580	04/2003 - 12/2999	1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080	ACR30,CLR30..LHD *H,L=180	04/2003 - 12/2999	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080	ACR30,CLR30..LHD *H,L=630	02/2000 - 04/2003	1
90099-33080	ACR30,CLR30..LHD *H,L=630	04/2003 - 12/2999	1
Common parts
85373-28040
85373-32020
90119-06442
Linked diagrams
8504
8505

CLR30L-MFMDTW (2001)

(0002-0304)EUR,GCC,GEN

(0304- )EUR,GCC,GEN
