ACR30R-MRSDKW (2000)
Toyota Previa/Tarago

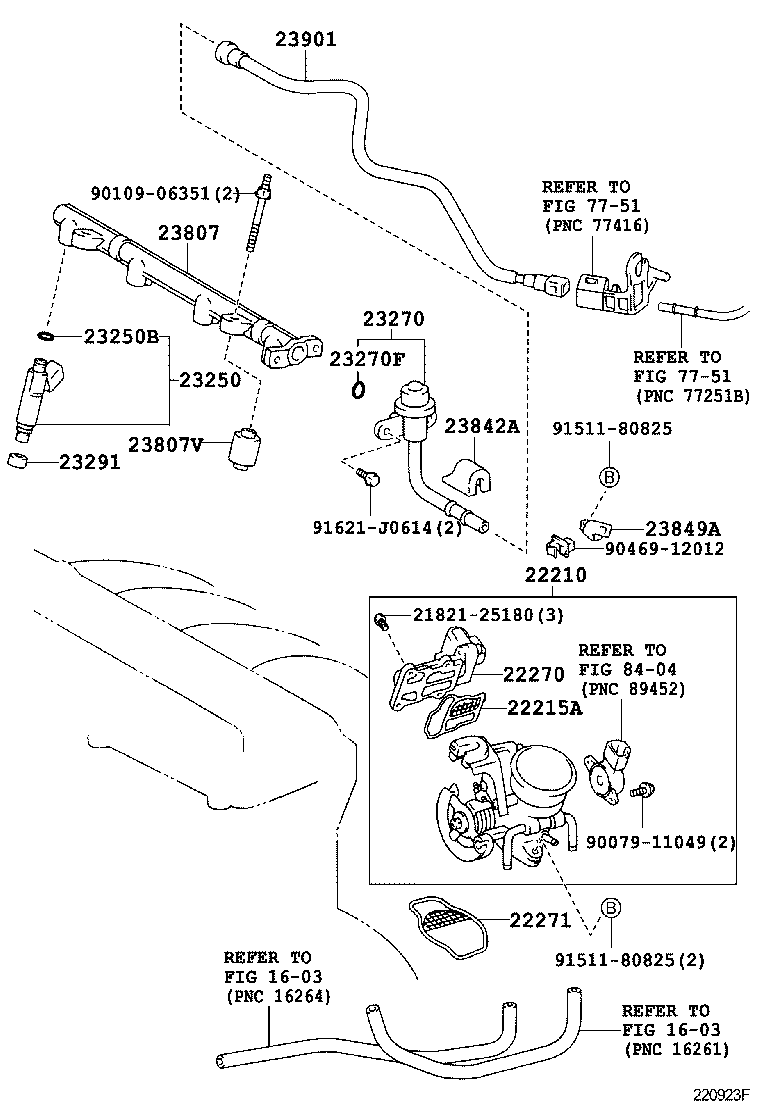

ILLUST NO. 1 OF 2(0002-0304)2AZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-28040 |
2AZFE..ACR30..ATM |
1 | ||
| 22215A - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22215-28040 |
2AZFE..ACR30 |
1 | ||
| 22215-28042 |
2AZFE..ACR30 |
1 | ||
| 22215-28041 |
2AZFE..ACR30 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-28010 |
2AZFE..ACR30 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-28020 |
2AZFE..ACR30 |
1 | ||
| 22271-28020 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-28020 |
2AZFE..ACR30 |
4 | ||
| 23209-28080 |
2AZFE..ACR30 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
2AZFE..ACR30 |
4 | ||
| 90301-07024 |
2AZFE..ACR30 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-28020 |
2AZFE..ACR30 |
1 | ||
| 23270-28020 |
2AZFE..ACR30 |
1 | ||
| 23270F - RING, O(FOR PULSATION DAMPER) | ||||
| 90301-07037 |
2AZFE..ACR30 |
1 | ||
| 90301-07037 |
2AZFE..ACR30 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
2AZFE..ACR30 |
4 | ||
| 23291-41010 |
2AZFE..ACR30 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-28030 |
2AZFE..ACR30 |
1 | ||
| 23814-28030 |
2AZFE..ACR30 |
1 | ||
| 23814-28031 |
2AZFE..ACR30 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08053 |
2AZFE..ACR30 |
2 | ||
| 90561-08053 |
2AZFE..ACR30 |
2 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
2AZFE..ACR30 |
1 | ||
| 23842-22020 |
2AZFE..ACR30 |
1 | ||
| 23849A - SUPPORT, FUEL PIPE | ||||
| 23849-28030 |
2AZFE..ACR30 |
1 | ||
| 23849-28010 |
2AZFE..ACR30 |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-28190 |
2AZFE..ACR30 |
1 | ||
| 23901-28010 |
2AZFE..ACR30 |
1 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11049 | ||||
| 90109-06351 | ||||
| 90469-12012 | ||||
| 91511-80825 | ||||
| 91621-J0614 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7751 | ||||
| 8404 | ||||

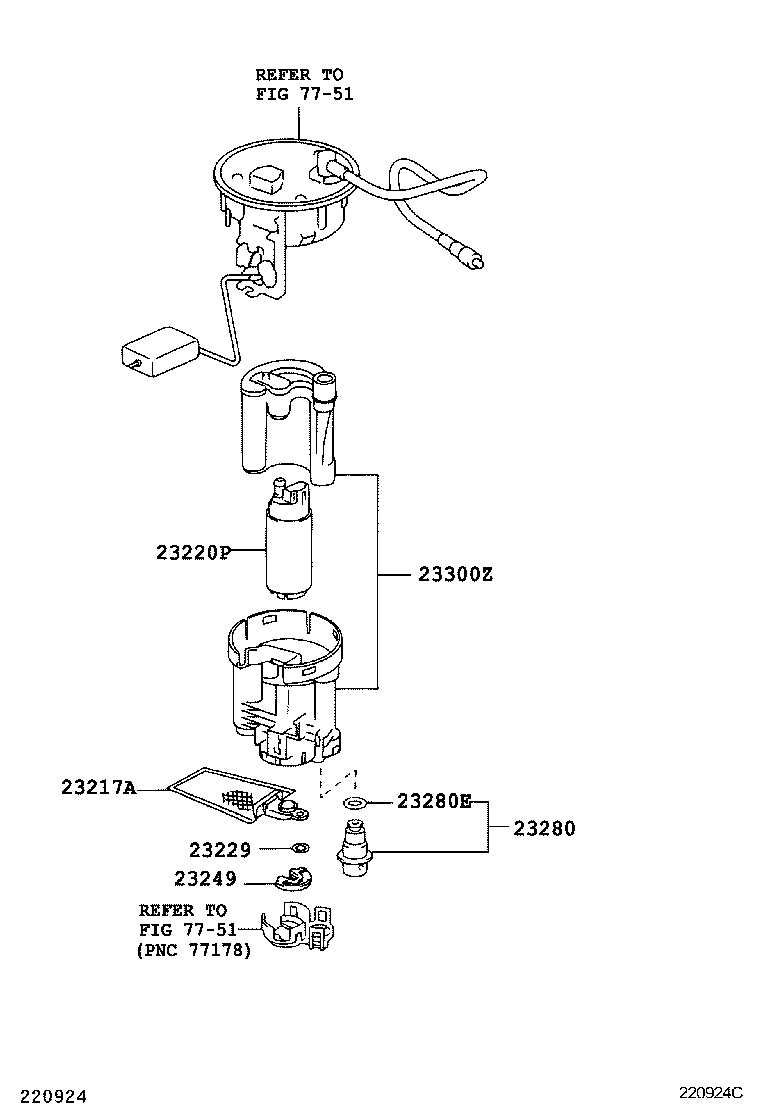

ILLUST NO. 2 OF 2(0002- )2AZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-76040 |
2AZFE..ACR30 |
1 | ||
| 23217-76040 |
2AZFE..ACR30 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-28020 |
2AZFE..ACR30 |
1 | ||
| 23221-28020 |
2AZFE..ACR30 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2AZFE..ACR30 |
1 | ||
| 23229-16010 |
2AZFE..ACR30 |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
2AZFE..ACR30 |
1 | ||
| 23249-46180 |
2AZFE..ACR30 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
2AZFE..ACR30 |
1 | ||
| 23280-22010 |
2AZFE..ACR30 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
2AZFE..ACR30 |
1 | ||
| 90301-07020 |
2AZFE..ACR30 |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23300-21010 |
2AZFE..ACR30 |
1 | ||
| 23300-21010 |
2AZFE..ACR30 |
1 | ||
| Linked diagrams | ||||
| 7751 | ||||

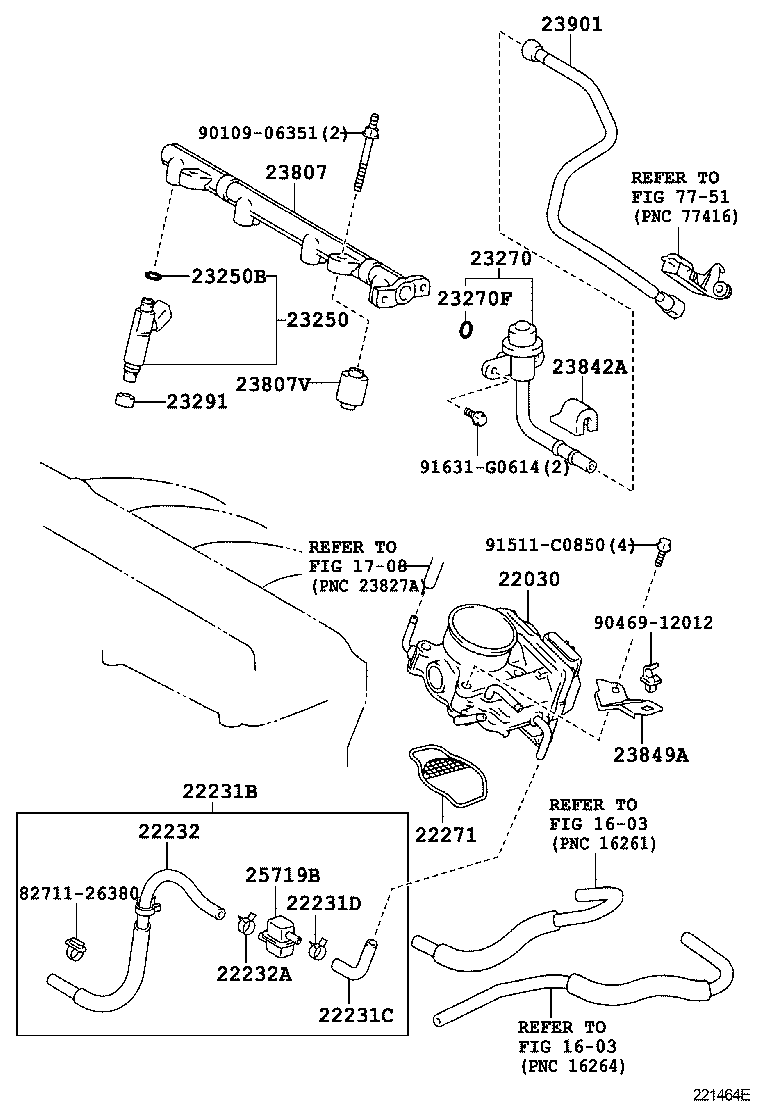

ILLUST NO. 1 OF 2(0304- )2AZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-28060 |
2AZFE..ACR30 |
1 | ||
| 22231B - HOSE, THROTTLE BODY | ||||
| 22231-28030 |
2AZFE..ACR30 |
1 | ||
| 22231C - HOSE, THROTTLE BODY, NO.1 | ||||
| 22231-28040 |
2AZFE..ACR30 |
1 | ||
| 22231D - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 90467-12056 |
2AZFE..ACR30 |
1 | ||
| 22232 - HOSE, THROTTLE BODY, NO.2 | ||||
| 22232-28010 |
2AZFE..ACR30 |
1 | ||
| 22232A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 90467-12056 |
2AZFE..ACR30 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-28020 |
2AZFE..ACR30 |
1 | ||
| 22271-28020 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-28020 |
2AZFE..ACR30 |
4 | ||
| 23209-28080 |
2AZFE..ACR30 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
2AZFE..ACR30 |
4 | ||
| 90301-07024 |
2AZFE..ACR30 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-28020 |
2AZFE..ACR30 |
1 | ||
| 23270-28020 |
2AZFE..ACR30 |
1 | ||
| 23270F - RING, O(FOR PULSATION DAMPER) | ||||
| 90301-07037 |
2AZFE..ACR30 |
1 | ||
| 90301-07037 |
2AZFE..ACR30 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
2AZFE..ACR30 |
4 | ||
| 23291-41010 |
2AZFE..ACR30 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-28030 |
2AZFE..ACR30 |
1 | ||
| 23814-28030 |
2AZFE..ACR30 |
1 | ||
| 23814-28031 |
2AZFE..ACR30 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08053 |
2AZFE..ACR30 |
2 | ||
| 90561-08053 |
2AZFE..ACR30 |
2 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
2AZFE..ACR30 |
1 | ||
| 23842-22020 |
2AZFE..ACR30 |
1 | ||
| 23849A - SUPPORT, FUEL PIPE | ||||
| 23849-28030 |
2AZFE..ACR30 |
1 | ||
| 23849-28010 |
2AZFE..ACR30 |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-28190 |
2AZFE..ACR30 |
1 | ||
| 23901-28010 |
2AZFE..ACR30 |
1 | ||
| 25719B - TANK, VACUUM SURGE | ||||
| 25719-28040 |
2AZFE..ACR30 |
1 | ||
| 25719-62050 |
2AZFE..ACR30 |
1 | ||
| Common parts | ||||
| 82711-26380 | ||||
| 90109-06351 | ||||
| 90469-12012 | ||||
| 91511-C0850 | ||||
| 91631-G0614 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1708 | ||||
| 7751 | ||||
