ACR30R-MRSDKQ (2000)
Toyota Previa/Tarago

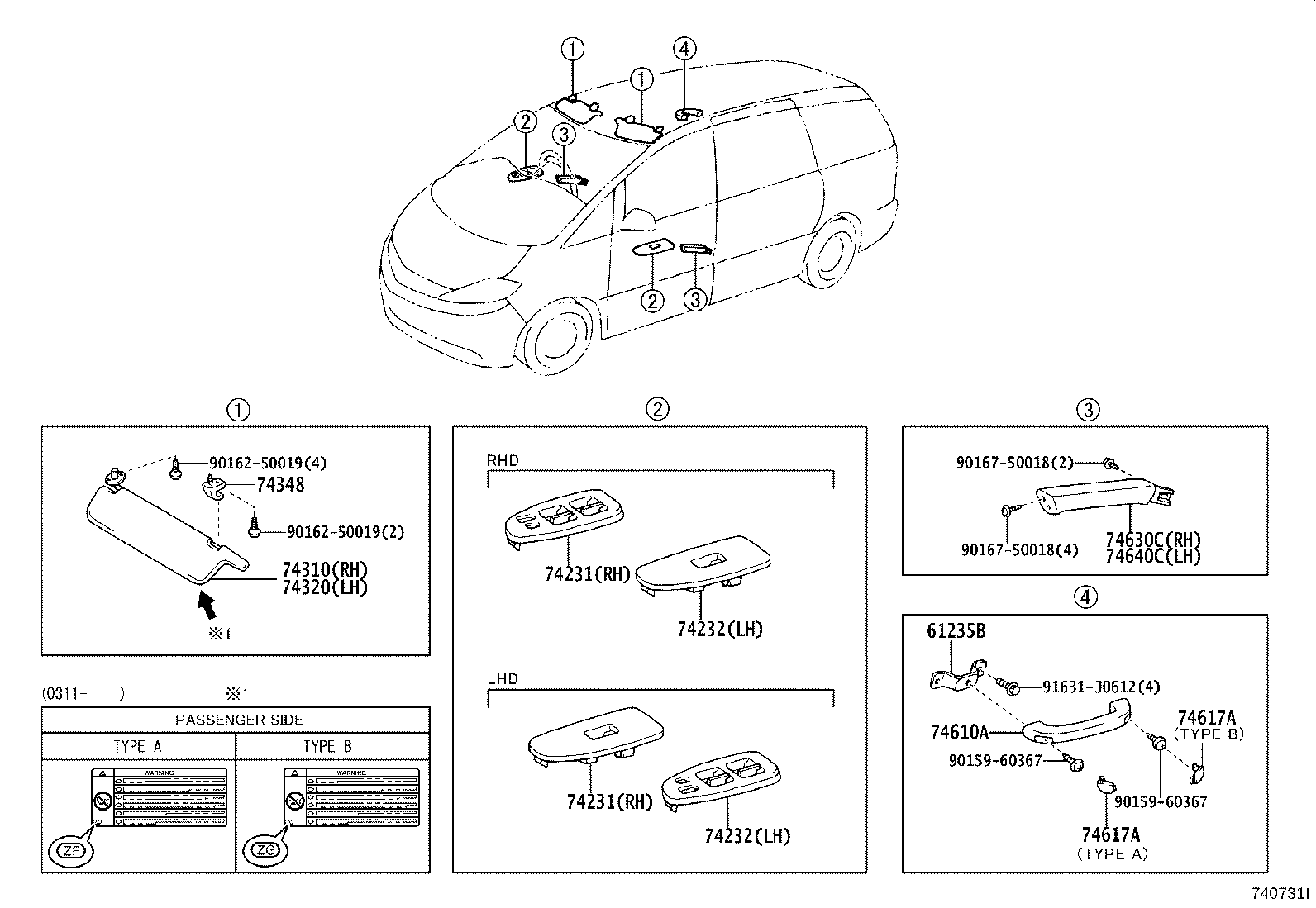

ILLUST NO. 1 OF 2(0002- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61235B - BRACKET, ASSIST GRIP | ||||
| 61235-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 61235-28030 |
ACR30,CLR30 |
2 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-28250B0 |
ACR30,CLR30..RHD W(TWIN MOON ROOF & POWER WINDOW--FRONT & REAR),BLUISH GRAY,TRIM11 |
1 | ||
| 74231-28250B1 |
ACR30,CLR30..RHD W(TWIN MOON ROOF & POWER WINDOW--FRONT & REAR),DK. CHARCOAL,TRIM12 |
1 | ||
| 74231-28480B0 |
ACR30,CLR30..RHD..(07S,08S)..DX BLUISH GRAY,TRIM11 |
1 | ||
| 74231-28470B0 |
ACR30,CLR30..RHD..(07S,08S)..DX W(TWIN MOON ROOF),BLUISH GRAY,TRIM11 |
1 | ||
| 74231-28260B1 |
ACR30,CLR30..RHD W(POWER WINDOW---FRONT & REAR),DK. CHARCOAL,TRIM12 |
1 | ||
| 74231-28260B0 |
ACR30,CLR30..RHD W(POWER WINDOW---FRONT & REAR),BLUISH GRAY,TRIM11 |
1 | ||
| 74231-28480B1 |
ACR30,CLR30..RHD..(07S,08S)..DX DK.CHARCOAL,TRIM12 |
1 | ||
| 74231-28260B2 |
ACR30,CLR30..RHD DK.GRAY,TRIM1# |
1 | ||
| 74231-28470B1 |
ACR30,CLR30..RHD..(07S,08S)..DX W(TWIN MOON ROOF),DK.CHARCOAL,TRIM12 |
1 | ||
| 74231-28250B2 |
ACR30,CLR30..RHD W(TWIN MOON ROOF),DK.GRAY,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-28250B0 |
ACR30,CLR30..RHD W(TWIN MOON ROOF & POWER WINDOW--FRONT & REAR),BLUISH GRAY,TRIM11 |
1 | ||
| 74231-28250B1 |
ACR30,CLR30..RHD W(TWIN MOON ROOF & POWER WINDOW--FRONT & REAR),DK. CHARCOAL,TRIM12 |
1 | ||
| 74231-28480B0 |
ACR30,CLR30..RHD..(07S,08S)..DX BLUISH GRAY,TRIM11 |
1 | ||
| 74231-28470B0 |
ACR30,CLR30..RHD..(07S,08S)..DX W(TWIN MOON ROOF),BLUISH GRAY,TRIM11 |
1 | ||
| 74231-28260B1 |
ACR30,CLR30..RHD W(POWER WINDOW---FRONT & REAR),DK. CHARCOAL,TRIM12 |
1 | ||
| 74231-28260B0 |
ACR30,CLR30..RHD W(POWER WINDOW---FRONT & REAR),BLUISH GRAY,TRIM11 |
1 | ||
| 74231-28480B1 |
ACR30,CLR30..RHD..(07S,08S)..DX DK.CHARCOAL,TRIM12 |
1 | ||
| 74231-28260B2 |
ACR30,CLR30..RHD DK.GRAY,TRIM1# |
1 | ||
| 74231-28470B1 |
ACR30,CLR30..RHD..(07S,08S)..DX W(TWIN MOON ROOF),DK.CHARCOAL,TRIM12 |
1 | ||
| 74231-28250B2 |
ACR30,CLR30..RHD W(TWIN MOON ROOF),DK.GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-28300B1 |
ACR30,CLR30..RHD DK. CHARCOAL,TRIM12 |
1 | ||
| 74232-28300B0 |
ACR30,CLR30..RHD BLUISH GRAY,TRIM11 |
1 | ||
| 74232-28300B2 |
ACR30,CLR30..RHD DK.GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-28300B1 |
ACR30,CLR30..RHD DK. CHARCOAL,TRIM12 |
1 | ||
| 74232-28300B0 |
ACR30,CLR30..RHD BLUISH GRAY,TRIM11 |
1 | ||
| 74232-28300B2 |
ACR30,CLR30..RHD DK.GRAY,TRIM1# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-2J100B3 |
ACR30..DX..ARL LT. BL. GRAY,TRIM11 |
1 | ||
| 74310-2J100B2 |
ACR30..DX..ARL ME. CHARCOAL,TRIM12 |
1 | ||
| 74310-2J180B2 |
ACR30..ARL LT. GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-28530B5 |
ACR30..ARL MD.CHARCOAL,TRIM12 |
1 | ||
| 74320-28530B4 |
ACR30..ARL LT. BLUISH GRAY,TRIM11 |
1 | ||
| 74320-28530B5 |
ACR30..DX..ARL MD.CHARCOAL,TRIM12 |
1 | ||
| 74320-28530B4 |
ACR30..DX..ARL LT. BLUISH GRAY,TRIM11 |
1 | ||
| 74320-28600B2 |
ACR30..ARL LT.GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-26020B5 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 74348-26020B3 |
ACR30,CLR30..06S,07S;ACR30..DX..(ARL,GCC) LT.GRAY,TRIM1# |
2 | ||
| 74348-26020B0 |
ACR30,CLR30 LT.BLUISH GRAY,TRIM11 |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74603-44020B2 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 74603-44020B6 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LT.GRAY,TRIM1# |
3 | ||
| 74603-44020B1 |
ACR30,CLR30 LT.BLUISH GRAY,TRIM11 |
1 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-28010C0 |
ACR30..GL;ACR30,CLR30..08S BLACK,TRIM11,12 |
1 | ||
| 74630-28010C0 |
ACR30..GL..GCC;ACR30..DX..(ARL,GCC) BLACK,TRIM15 |
1 | ||
| 74630-28010B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 74630-28010B2 |
ACR30..GL..GCC;ACR30..08S..ATM DK.GRAY,TRIM15 |
1 | ||
| 74630-28010B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 74630-28010B2 |
ACR30..DX..ARL;ACR30..LHD..ATM..EUR;ACR30,CLR30..(06S,07S)..MTM DK.GRAY,TRIM1# |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-28010B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 74640-28010B2 |
ACR30..DX..ARL;ACR30..LHD..ATM..EUR;ACR30,CLR30..(06S,07S)..MTM DK.GRAY,TRIM1# |
1 | ||
| 74640-28010B2 |
ACR30..GL..GCC;ACR30..08S..ATM DK.GRAY,TRIM15 |
1 | ||
| 74640-28010B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 74640-28010C0 |
ACR30..GL;ACR30,CLR30..08S BLACK,TRIM11,12 |
1 | ||
| 74640-28010C0 |
ACR30..GL..GCC;ACR30..DX..(ARL,GCC) BLACK,TRIM15 |
1 | ||
| Common parts | ||||
| 90159-60367 | ||||
| 90162-50019 | ||||
| 90167-50018 | ||||
| 91631-J0612 | ||||

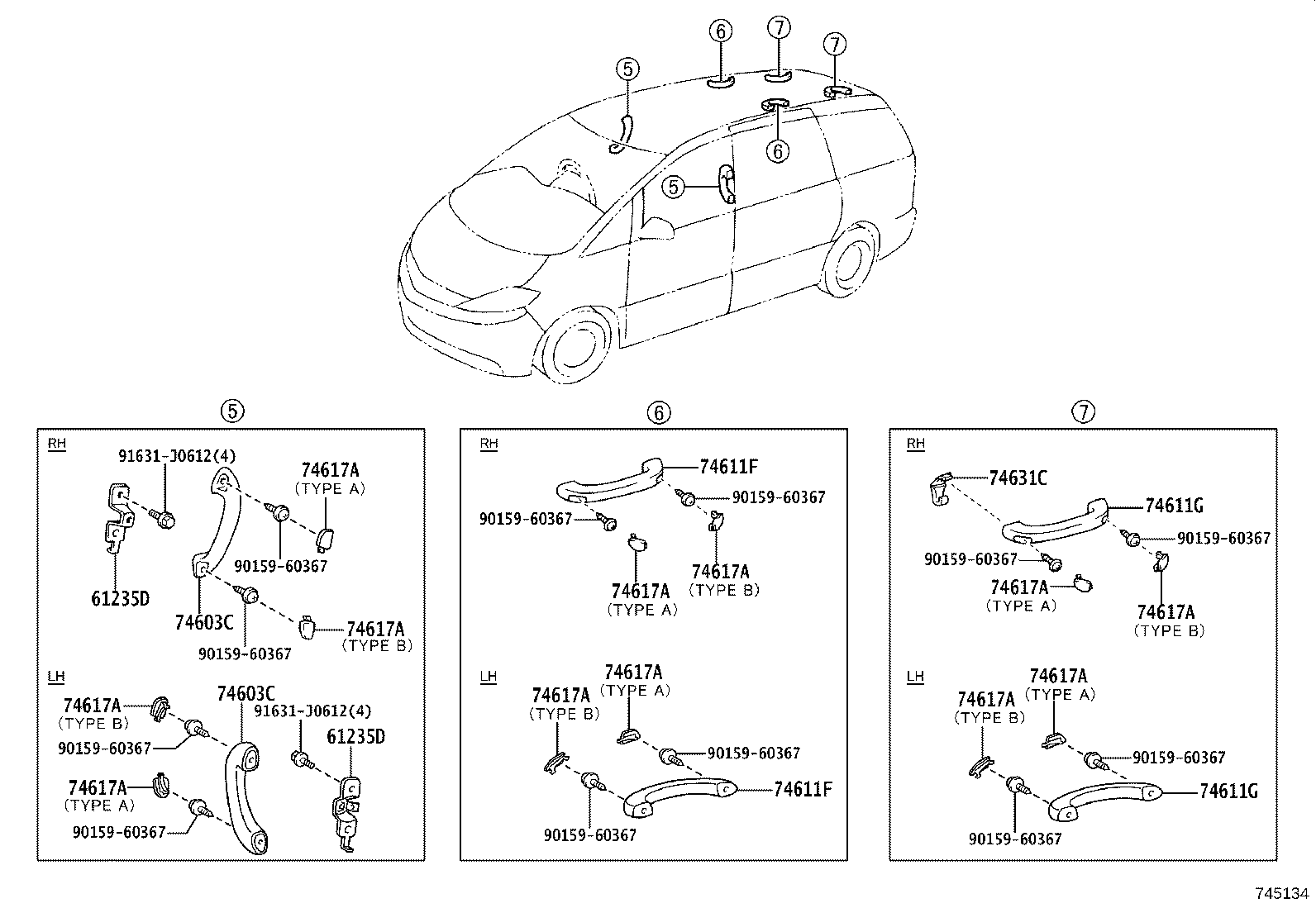

ILLUST NO. 2 OF 2(0002- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61235D - BRACKET, ASSIST GRIP | ||||
| 61235-28070 |
ACR30,CLR30 |
4 | ||
| 61235-28070 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
4 | ||
| 61235D - BRACKET, ASSIST GRIP | ||||
| 61235-28070 |
ACR30,CLR30 |
4 | ||
| 61235-28070 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
4 | ||
| 74603C - GRIP SUB-ASSY, ASSIST | ||||
| 74603-44020B1 |
ACR30,CLR30 LT.BLUISH GRAY,TRIM11 |
2 | ||
| 74603-44020B6 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LT.GRAY,TRIM1# |
6 | ||
| 74603-44020B2 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 74603C - GRIP SUB-ASSY, ASSIST | ||||
| 74603-44020B1 |
ACR30,CLR30 LT.BLUISH GRAY,TRIM11 |
2 | ||
| 74603-44020B6 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LT.GRAY,TRIM1# |
6 | ||
| 74603-44020B2 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 74611F - GRIP, ASSIST, NO.1 | ||||
| 74603-44020B2 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 74603-44020B1 |
ACR30,CLR30 LT.BLUISH GRAY,TRIM11 |
2 | ||
| 74603-44020B6 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LT.GRAY,TRIM1# |
6 | ||
| 74611F - GRIP, ASSIST, NO.1 | ||||
| 74603-44020B2 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 74603-44020B1 |
ACR30,CLR30 LT.BLUISH GRAY,TRIM11 |
2 | ||
| 74603-44020B6 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LT.GRAY,TRIM1# |
6 | ||
| 74611G - GRIP, ASSIST, NO.2 | ||||
| 74603-44020B2 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 74603-44020B6 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LT.GRAY,TRIM1# |
6 | ||
| 74603-44020B1 |
ACR30,CLR30 LT.BLUISH GRAY,TRIM11 |
2 | ||
| 74611G - GRIP, ASSIST, NO.2 | ||||
| 74603-44020B2 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 74603-44020B6 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LT.GRAY,TRIM1# |
6 | ||
| 74603-44020B1 |
ACR30,CLR30 LT.BLUISH GRAY,TRIM11 |
2 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010B2 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44020B2 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12 |
7 | ||
| 74617-44010B1 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44010B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE A:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74617-44020B1 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION,LT.BLUISH GRAY,TRIM11 |
7 | ||
| 74617-44020B5 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S TYPE B:REFER TO ILLUSTRATION,LT.GRAY,TRIM1# |
7 | ||
| 74631C - HOOK, COAT | ||||
| 74606-28010B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12,LH |
1 | ||
| 74605-28010B2 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LT.GRAY,TRIM1#,RH |
1 | ||
| 74606-28010B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11,LH |
1 | ||
| 74605-28010B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12,RH |
1 | ||
| 74605-28010B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11,RH |
1 | ||
| 74606-28010B2 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LT.GRAY,TRIM1#,LH |
1 | ||
| Common parts | ||||
| 90159-60367 | ||||
| 91631-J0612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
