ACR30R-MRMDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Apr 2004

Engine 2AZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0002- )

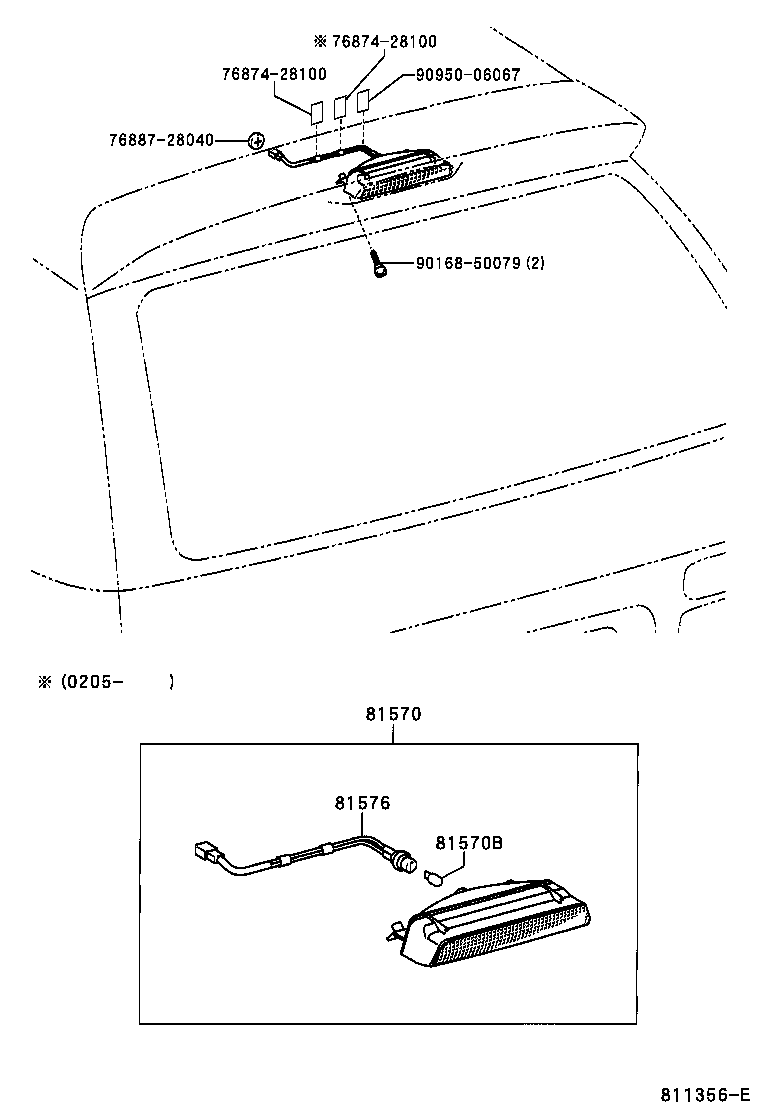

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81570 - LAMP ASSY, CENTER STOP
81570-28180	ACR30,CLR30..08S..MTM	04/2003 - 04/2004	1
81570-28180	ACR30,CLR30	02/2000 - 04/2003	1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059	ACR30,CLR30..08S..MTM 12V 16W	04/2003 - 04/2004	1
90981-11055	ACR30,CLR30 12V 16W	02/2000 - 04/2003	1
81576 - SOCKET & WIRE, CENTER STOP LAMP
81576-28180	ACR30,CLR30	02/2000 - 04/2003	1
81576-28180	ACR30,CLR30..08S..MTM	04/2003 - 04/2004	1
Common parts
76874-28100
76887-28040
90168-50079
90950-06067
