ACR30R-MRMDKW (2000)
Toyota Previa/Tarago
Production
Feb 2000
-
Apr 2004
Engine
2AZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0002- )ARL,EUR,GEN

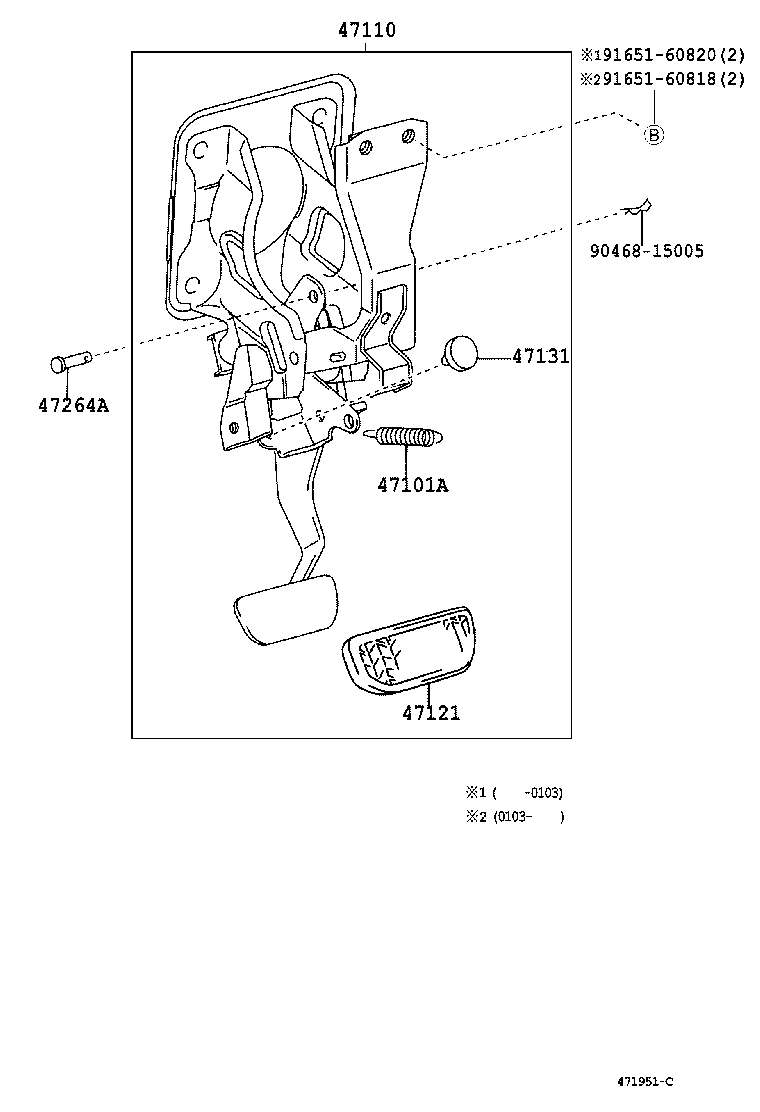

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90506-18083 |
ACR30,CLR30..ARL,EUR,GEN |
1 | ||
| 90506-18083 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..(EUR,GEN) |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-28030 |
ACR30,CLR30..RHD..MTM |
1 | ||
| 47110-28031 |
ACR30,CLR30..RHD..MTM |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-52010 |
ACR30,CLR30..MTM |
1 | ||
| 31321-52010 |
ACR30,CLR30..MTM |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06049 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..(EUR,GEN) |
1 | ||
| 90541-06049 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..(EUR,GEN) |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-06023 |
ACR30,CLR30 |
1 | ||
| 90240-06023 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90468-15005 | ||||
| 91651-60818 | ||||
| 91651-60820 | ||||
