ACR30R-MFSEKQ (2000)
Toyota Previa/Tarago

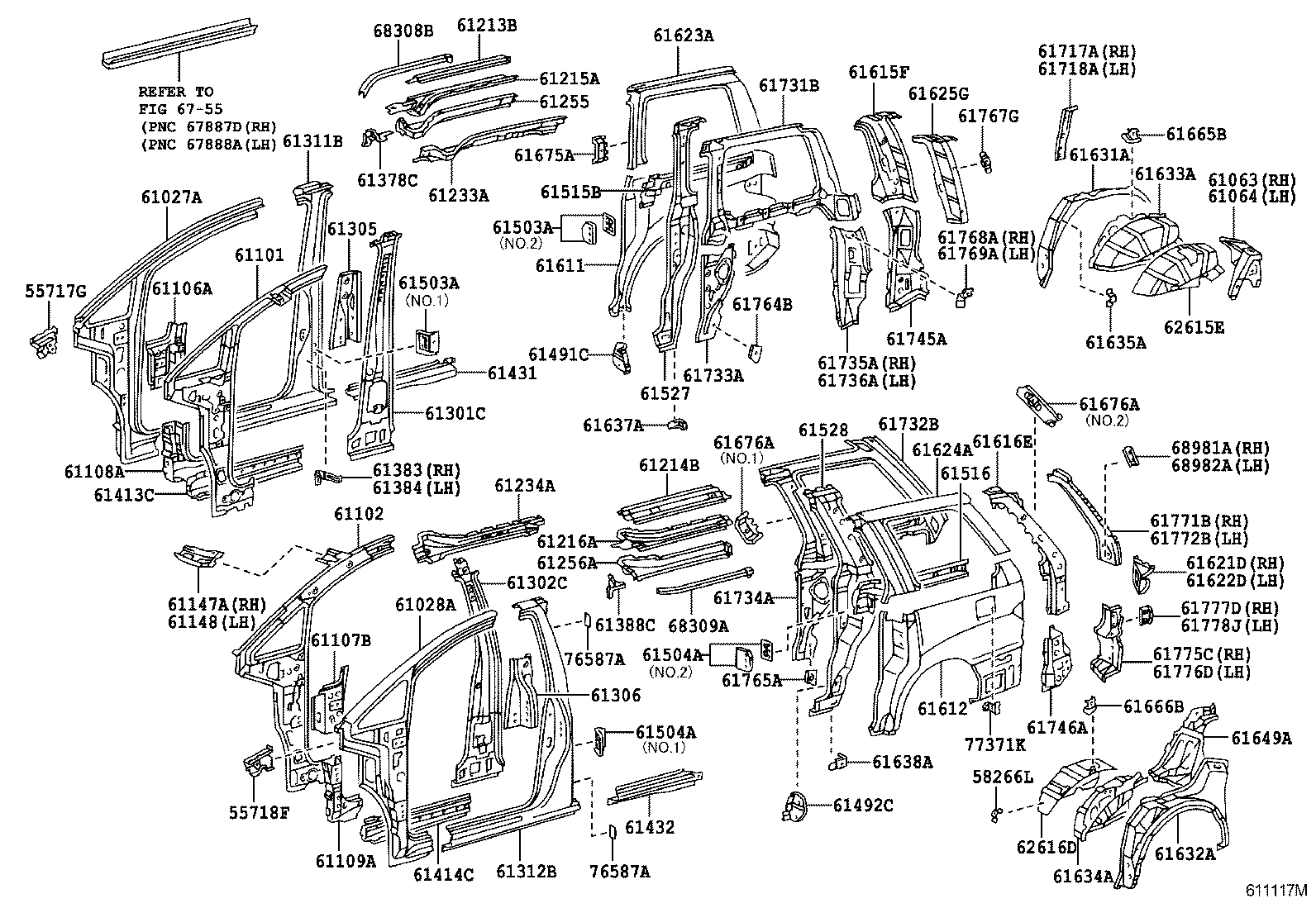

ILLUST NO. 1 OF 2(0002- )
SIDE MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55717G - PANEL, COWL TOP SIDE, INNER RH | ||||
| 55717-28010 |
ACR30,CLR30 |
1 | ||
| 55717-28010 |
ACR30,CLR30 |
1 | ||
| 55718F - PANEL, COWL TOP SIDE, INNER LH | ||||
| 55718-28010 |
ACR30,CLR30 |
1 | ||
| 55718-28010 |
ACR30,CLR30 |
1 | ||
| 58266L - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-14050 |
ACR30,CLR30 |
1 | ||
| 58266-14050 |
ACR30,CLR30 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-28090 |
ACR30,CLR30 |
1 | ||
| 61027-28100 |
ACR30 |
1 | ||
| 61027-28090 |
ACR30,CLR30 |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-28180 |
ACR30,CLR30 |
1 | ||
| 61028-28190 |
ACR30 |
1 | ||
| 61028-28180 |
ACR30,CLR30 |
1 | ||
| 61063 - BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH | ||||
| 61063-28010 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM W(REAR NO.2 BENCH SEAT) |
1 | ||
| 61063-28010 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM W(BENCH SEAT) |
1 | ||
| 61063-28070 |
ACR30..(07S,08S)..ATM W(REAR NO.2 BENCH SEAT) |
1 | ||
| 61064 - BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, LH | ||||
| 61064-28060 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM W(REAR NO.2 BENCH SEAT) |
1 | ||
| 61064-28010 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM W(BENCH SEAT) |
1 | ||
| 61064-28010 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM W(REAR NO.2 BENCH SEAT) |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61013-28010 |
ACR30,CLR30 |
1 | ||
| 61013-28010 |
ACR30,CLR30 |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61014-28010 |
ACR30,CLR30 |
1 | ||
| 61014-28010 |
ACR30,CLR30 |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-28010 |
ACR30,CLR30..RHD |
1 | ||
| 61106-28010 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-28010 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S |
1 | ||
| 61107-28010 |
ACR30,CLR30..RHD |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-28020 |
ACR30,CLR30 |
1 | ||
| 61108-28020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-28020 |
ACR30,CLR30 |
1 | ||
| 61109-28020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61147A - EXTENSION, FRONT BODY PILLAR, UPPER OUTER | ||||
| 61147-28010 |
ACR30,CLR30 |
1 | ||
| 61147-28010 |
ACR30,CLR30 |
1 | ||
| 61148 - EXTENSION, FRONT BODY PILLAR, OUTER LH | ||||
| 61148-28010 |
ACR30,CLR30 |
1 | ||
| 61148-28010 |
ACR30,CLR30 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-28030 |
ACR30,CLR30 |
1 | ||
| 61213-28030 |
ACR30,CLR30 |
1 | ||
| 61213-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-28030 |
ACR30,CLR30 |
1 | ||
| 61214-28030 |
ACR30,CLR30 |
1 | ||
| 61214-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61215A - RAIL, ROOF SIDE, OUTER NO.3 RH | ||||
| 61215-28020 |
ACR30,CLR30 |
1 | ||
| 61215-28020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61215-28020 |
ACR30,CLR30 |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-28020 |
ACR30,CLR30 |
1 | ||
| 61216-28020 |
ACR30,CLR30 |
1 | ||
| 61216-28020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-28070 |
ACR30,CLR30 |
1 | ||
| 61233-28070 |
ACR30,CLR30 |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-28100 |
ACR30,CLR30 |
1 | ||
| 61234-28100 |
ACR30,CLR30 |
1 | ||
| 61255 - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61255-28010 |
ACR30,CLR30 |
1 | ||
| 61255-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61255-28010 |
ACR30,CLR30 |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61256-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61256-28010 |
ACR30,CLR30 |
1 | ||
| 61256-28010 |
ACR30,CLR30 |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-28180 |
ACR30,CLR30..RHD |
1 | ||
| 61301-28180 |
ACR30,CLR30..RHD |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-28180 |
ACR30,CLR30..RHD |
1 | ||
| 61302-28180 |
ACR30,CLR30..RHD |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-28020 |
ACR30,CLR30 |
1 | ||
| 61305-28020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-28050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61306-28050 |
ACR30,CLR30 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-28110 |
ACR30,CLR30 |
1 | ||
| 61311-28110 |
ACR30,CLR30 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-28110 |
ACR30,CLR30 |
1 | ||
| 61312-28110 |
ACR30,CLR30 |
1 | ||
| 61378C - RETAINER, SLIDE DOOR DOWN STOP MALE, UPPER RH | ||||
| 61378-28030 |
ACR30,CLR30 |
1 | ||
| 61378-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61378-28030 |
ACR30,CLR30 |
1 | ||
| 61383 - EXTENSION, CENTER BODY PILLAR, OUTER RH | ||||
| 61383-28020 |
ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..(ARL,EUR,GEN) |
1 | ||
| 61384 - EXTENSION, CENTER BODY PILLAR, OUTER LH | ||||
| 61384-28010 |
ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..(ARL,EUR,GEN) |
1 | ||
| 61388C - RETAINER, SLIDE DOOR DOWN STOP MALE, UPPER LH | ||||
| 61388-28020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61388-28020 |
ACR30,CLR30 |
1 | ||
| 61388-28020 |
ACR30,CLR30 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-28020 |
ACR30,CLR30 |
1 | ||
| 61413-28020 |
ACR30,CLR30 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-28020 |
ACR30,CLR30 |
1 | ||
| 61414-28020 |
ACR30,CLR30 |
1 | ||
| 61431 - PANEL, ROCKER, OUTER REAR RH | ||||
| 61431-28020 |
ACR30,CLR30 |
1 | ||
| 61431-28020 |
ACR30,CLR30 |
1 | ||
| 61432 - PANEL, ROCKER, OUTER REAR LH | ||||
| 61432-28030 |
ACR30,CLR30 |
1 | ||
| 61432-28030 |
ACR30,CLR30 |
1 | ||
| 61491C - PLATE, NO.3 LOWER RAIL, INNER RH | ||||
| 61491-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61491-28010 |
ACR30,CLR30 |
1 | ||
| 61492C - PLATE, NO.3 LOWER RAIL, INNER LH | ||||
| 61492-28010 |
ACR30,CLR30 |
1 | ||
| 61492-28010 |
ACR30,CLR30 |
1 | ||
| 61503A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH | ||||
| 61503-26010 |
ACR30,CLR30 NO.2 |
1 | ||
| 61503-28070 |
ACR30,CLR30 NO.1 |
1 | ||
| 61503-26010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S NO.2 |
1 | ||
| 61503-28070 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S NO.1 |
1 | ||
| 61503A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH | ||||
| 61503-26010 |
ACR30,CLR30 NO.2 |
1 | ||
| 61503-28070 |
ACR30,CLR30 NO.1 |
1 | ||
| 61503-26010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S NO.2 |
1 | ||
| 61503-28070 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S NO.1 |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61504-28090 |
ACR30,CLR30 NO.1 |
1 | ||
| 61504-28090 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S NO.1 |
1 | ||
| 61503-26010 |
ACR30,CLR30 NO.2 |
1 | ||
| 61503-26010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S NO.2 |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61504-28090 |
ACR30,CLR30 NO.1 |
1 | ||
| 61504-28090 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S NO.1 |
1 | ||
| 61503-26010 |
ACR30,CLR30 NO.2 |
1 | ||
| 61503-26010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S NO.2 |
1 | ||
| 61515B - EXTENSION, QUARTER LOCK PILLAR, RH | ||||
| 61515-28030 |
ACR30,CLR30 |
1 | ||
| 61515-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61516 - EXTENSION, QUARTER LOCK PILLAR, LH | ||||
| 61516-28010 |
ACR30,CLR30 |
1 | ||
| 61516-28010 |
ACR30,CLR30 |
1 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-28010 |
ACR30,CLR30 |
1 | ||
| 61527-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61528 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH | ||||
| 61528-28010 |
ACR30,CLR30 |
1 | ||
| 61528-28010 |
ACR30,CLR30 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-28160 |
ACR30,CLR30 W(CLEARANCE & BACK SONER) |
1 | ||
| 61611-28180 |
ACR30,CLR30 |
1 | ||
| 61611-28160 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S W(CLEARANCE & BACK SONER) |
1 | ||
| 61611-28180 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-28180 |
ACR30,CLR30 |
1 | ||
| 61612-28180 |
ACR30,CLR30 |
1 | ||
| 61615F - REINFORCEMENT, QUARTER PANEL, OUTER RH | ||||
| 61615-28030 |
ACR30,CLR30 |
1 | ||
| 61615-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61616E - REINFORCEMENT, QUARTER PANEL, OUTER LH | ||||
| 61616-28050 |
ACR30,CLR30 |
1 | ||
| 61616-28050 |
ACR30,CLR30 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-28030 |
ACR30,CLR30 |
1 | ||
| 61621-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-28020 |
ACR30,CLR30 |
1 | ||
| 61622-28020 |
ACR30,CLR30 |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-28080 |
ACR30,CLR30 |
1 | ||
| 61623-28080 |
ACR30,CLR30 |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-28080 |
ACR30,CLR30 |
1 | ||
| 61624-28080 |
ACR30,CLR30 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-28070 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61625-28070 |
ACR30,CLR30 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-28050 |
ACR30,CLR30..ARL,EUR,GCC |
1 | ||
| 61631-28050 |
ACR30..08S..ATM;ACR30,CLR30..(06S,07S)..(ARL,EUR,GCC) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-28040 |
ACR30,CLR30 |
1 | ||
| 61632-28040 |
ACR30,CLR30 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-28040 |
ACR30,CLR30..ARL,EUR,GEN W(REAR AIR CONDITIONER) |
1 | ||
| 61633-28070 |
ACR30,CLR30..ARL,EUR,GEN |
1 | ||
| 61633-28040 |
ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..(ARL,EUR,GEN) W(REAR AIR CONDITIONER) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-28060 |
ACR30,CLR30 |
1 | ||
| 61634-28060 |
ACR30,CLR30 |
1 | ||
| 61635A - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61635-28290 |
ACR30,CLR30 |
1 | ||
| 61635-28290 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61637A - BRACE, QUARTER PANEL, RH | ||||
| 61637-28030 |
ACR30,CLR30 |
1 | ||
| 61637-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61638A - BRACE, QUARTER PANEL, LH | ||||
| 61637-28030 |
ACR30,CLR30 |
1 | ||
| 61637-28030 |
ACR30,CLR30 |
1 | ||
| 61649A - PLATE, QUARTER WHEEL HOUSE | ||||
| 61649-28020 |
ACR30,CLR30..ARL,EUR,GCC |
1 | ||
| 61649-28020 |
ACR30,CLR30..ARL,EUR,GCC |
1 | ||
| 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-28020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61665-28020 |
ACR30,CLR30 |
1 | ||
| 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61666-28010 |
ACR30,CLR30 |
1 | ||
| 61666-28010 |
ACR30,CLR30 |
1 | ||
| 61675A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH | ||||
| 61077-28040 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61077-28040 |
ACR30,CLR30 |
1 | ||
| 61676A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH | ||||
| 61078-28070 |
ACR30,CLR30 NO.1 |
1 | ||
| 61709-28050 |
ACR30,CLR30 NO.2 |
1 | ||
| 61709-28050 |
ACR30,CLR30 NO.2 |
1 | ||
| 61078-28070 |
ACR30,CLR30 NO.1 |
1 | ||
| 61676A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH | ||||
| 61078-28070 |
ACR30,CLR30 NO.1 |
1 | ||
| 61709-28050 |
ACR30,CLR30 NO.2 |
1 | ||
| 61709-28050 |
ACR30,CLR30 NO.2 |
1 | ||
| 61078-28070 |
ACR30,CLR30 NO.1 |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61717-28010 |
ACR30,CLR30 |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-28010 |
ACR30,CLR30 |
1 | ||
| 61718-28010 |
ACR30,CLR30 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-28010 |
ACR30,CLR30 |
1 | ||
| 61731-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-28010 |
ACR30,CLR30 |
1 | ||
| 61732-28010 |
ACR30,CLR30 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-28010 |
ACR30,CLR30 |
1 | ||
| 61733-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-28010 |
ACR30,CLR30 |
1 | ||
| 61734-28010 |
ACR30,CLR30 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-28010 |
ACR30,CLR30 |
1 | ||
| 61735-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-28010 |
ACR30,CLR30 |
1 | ||
| 61736-28010 |
ACR30,CLR30 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-28040 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61745-28040 |
ACR30,CLR30 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-28050 |
ACR30,CLR30 |
1 | ||
| 61746-28050 |
ACR30,CLR30 |
1 | ||
| 61764B - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH | ||||
| 61764-28050 |
ACR30,CLR30 |
1 | ||
| 61764-28050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61765A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61765-28070 |
ACR30,CLR30 |
1 | ||
| 61765-28070 |
ACR30,CLR30 |
1 | ||
| 61767G - RETAINER, SEAT BELT ANCHOR, NO.2 | ||||
| 61767-44010 |
ACR30,CLR30 |
1 | ||
| 61767-44010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61768A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH | ||||
| 61768-28050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61768-28050 |
ACR30,CLR30 |
1 | ||
| 61769A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61769-28020 |
ACR30,CLR30 |
1 | ||
| 61769-28020 |
ACR30,CLR30 |
1 | ||
| 61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH | ||||
| 61771-28050 |
ACR30,CLR30 |
1 | ||
| 61771-28050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61772B - FRAME, BACK DOOR OPENING UPPER CORNER, LH | ||||
| 61772-28040 |
ACR30,CLR30 |
1 | ||
| 61772-28040 |
ACR30,CLR30 |
1 | ||
| 61775C - FRAME, BACK DOOR OPENING SIDE, RH | ||||
| 61775-28020 |
ACR30,CLR30 |
1 | ||
| 61775-28020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61776D - FRAME, BACK DOOR OPENING SIDE, LH | ||||
| 61776-28080 |
ACR30,CLR30 |
1 | ||
| 61776-28080 |
ACR30,CLR30 |
1 | ||
| 61777D - RETAINER, BACK DOOR SIDE STOPPER, RH | ||||
| 61777-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 61777-28030 |
ACR30,CLR30 |
1 | ||
| 61778J - RETAINER, BACK DOOR SIDE STOPPER, LH | ||||
| 61777-28030 |
ACR30,CLR30 |
1 | ||
| 61777-28030 |
ACR30,CLR30 |
1 | ||
| 62615E - COVER, QUARTER WHEEL HOUSE, INNER RH | ||||
| 62603-28330 |
ACR30,CLR30 |
1 | ||
| 62603-28330 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 62616D - COVER, QUARTER WHEEL HOUSE, INNER LH | ||||
| 62604-28390 |
ACR30,CLR30 |
1 | ||
| 62604-28390 |
ACR30,CLR30 |
1 | ||
| 68308B - RAIL SUB-ASSY, SLIDE DOOR, UPPER RH | ||||
| 68308-28031 |
ACR30,CLR30 |
1 | ||
| 68308-28032 |
ACR30,CLR30 |
1 | ||
| 68308-28031 |
ACR30,CLR30 |
1 | ||
| 68308-28030 |
ACR30,CLR30 |
1 | ||
| 68309A - RAIL SUB-ASSY, SLIDE DOOR, UPPER LH | ||||
| 68309-28031 |
ACR30,CLR30 |
1 | ||
| 68309-28030 |
ACR30,CLR30 |
1 | ||
| 68309-28032 |
ACR30,CLR30 |
1 | ||
| 68309-28031 |
ACR30,CLR30 |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-95D00 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 68981-95D00 |
ACR30,CLR30 |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68981-95D00 |
ACR30,CLR30 |
1 | ||
| 68981-95D00 |
ACR30,CLR30 |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28010 |
ACR30,CLR30 |
4 | ||
| 76587-28010 |
ACR30,CLR30 |
4 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28010 |
ACR30,CLR30 |
4 | ||
| 76587-28010 |
ACR30,CLR30 |
4 | ||
| 77371K - BRACKET, FUEL FILLER OPENING LID LOCK | ||||
| 77371-28010 |
ACR30,CLR30 |
1 | ||
| 77371-28010 |
ACR30,CLR30 |
1 | ||
| Linked diagrams | ||||
| 6755 | ||||

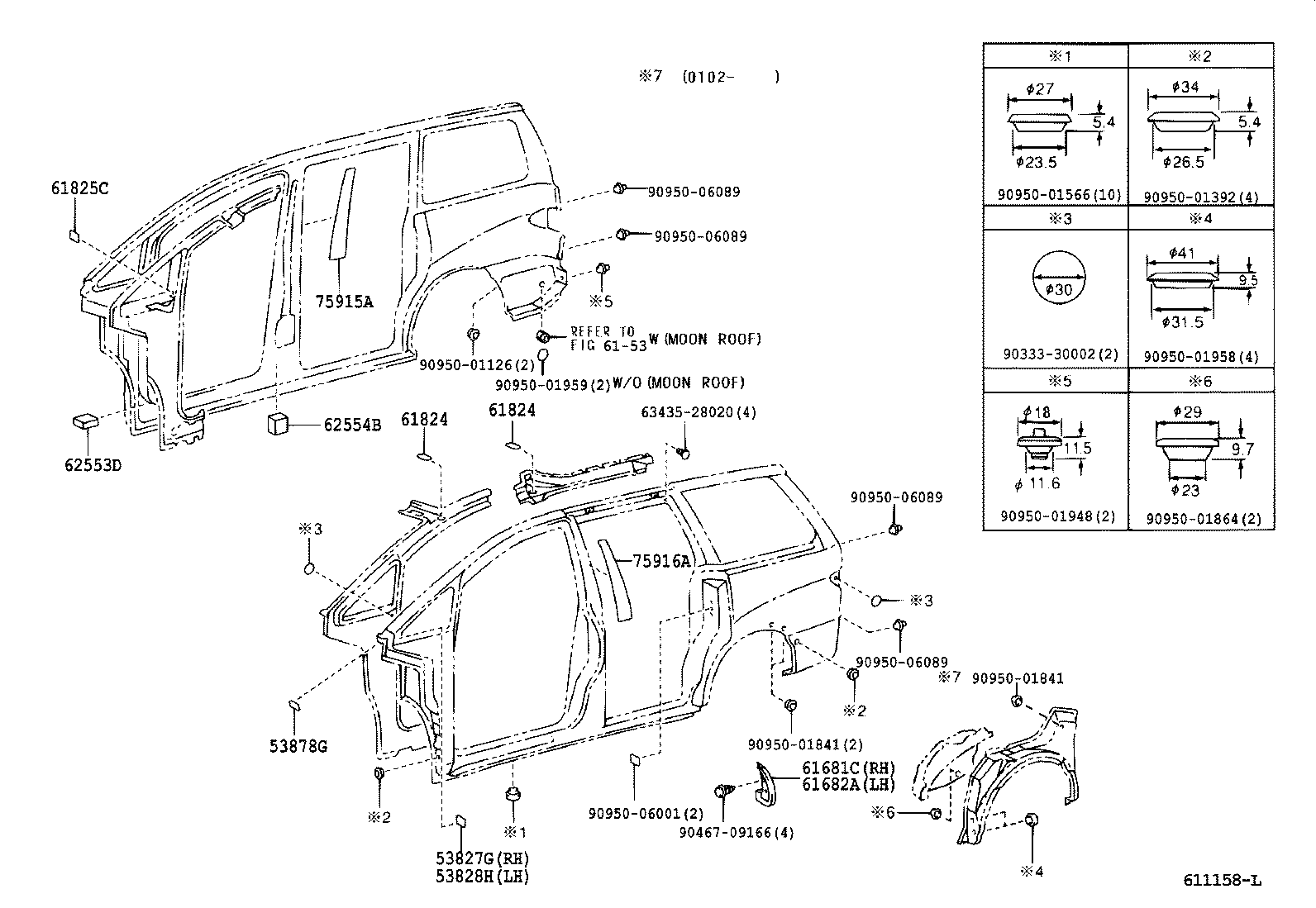

ILLUST NO. 2 OF 2(0002- )
PLUG,HOLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53878-28050 |
ACR30,CLR30 |
1 | ||
| 53878-28050 |
ACR30,CLR30 |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53878-28050 |
ACR30,CLR30 |
1 | ||
| 53878-28050 |
ACR30,CLR30 |
1 | ||
| 53878G - SPACER, FRONT FENDER | ||||
| 53878-28070 |
ACR30,CLR30 |
1 | ||
| 53878-28070 |
ACR30,CLR30 |
1 | ||
| 61681C - EXTENSION, REAR WHEEL OPENING, RH | ||||
| 61681-28030 |
ACR30,CLR30 |
1 | ||
| 61681-28030 |
ACR30,CLR30 |
1 | ||
| 61682A - EXTENSION, REAR WHEEL OPENING, LH | ||||
| 61682-28020 |
ACR30,CLR30 |
1 | ||
| 61682-28020 |
ACR30,CLR30 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-44010 |
ACR30,CLR30 |
4 | ||
| 61824-44010 |
ACR30,CLR30 |
4 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-44010 |
ACR30,CLR30 |
4 | ||
| 61824-44010 |
ACR30,CLR30 |
4 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-28010 |
ACR30,CLR30 |
2 | ||
| 61825-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 61824-28010 |
ACR30,CLR30 |
2 | ||
| 61825-28010 |
ACR30,CLR30 W(MOON ROOF) |
2 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62553-28020 |
ACR30,CLR30 |
2 | ||
| 62553-28020 |
ACR30,CLR30 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-28010 |
ACR30,CLR30 |
2 | ||
| 62554-28010 |
ACR30,CLR30 |
2 | ||
| 75915A - TAPE, BLACK OUT CENTER PILLAR, RH | ||||
| 75915-28010 |
ACR30,CLR30 |
1 | ||
| 75915-28010 |
ACR30,CLR30 |
1 | ||
| 75916A - TAPE, BLACK OUT CENTER PILLAR, LH | ||||
| 75916-28010 |
ACR30,CLR30 |
1 | ||
| 75916-28010 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 63435-28020 | ||||
| 90333-30002 | ||||
| 90467-09166 | ||||
| 90950-01126 | ||||
| 90950-01392 | ||||
| 90950-01566 | ||||
| 90950-01841 | ||||
| 90950-01864 | ||||
| 90950-01948 | ||||
| 90950-01958 | ||||
| 90950-01959 | ||||
| 90950-06001 | ||||
| 90950-06089 | ||||
| Linked diagrams | ||||
| 6153 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
