ACR30R-MFSDKW (2000)
Toyota Previa/Tarago

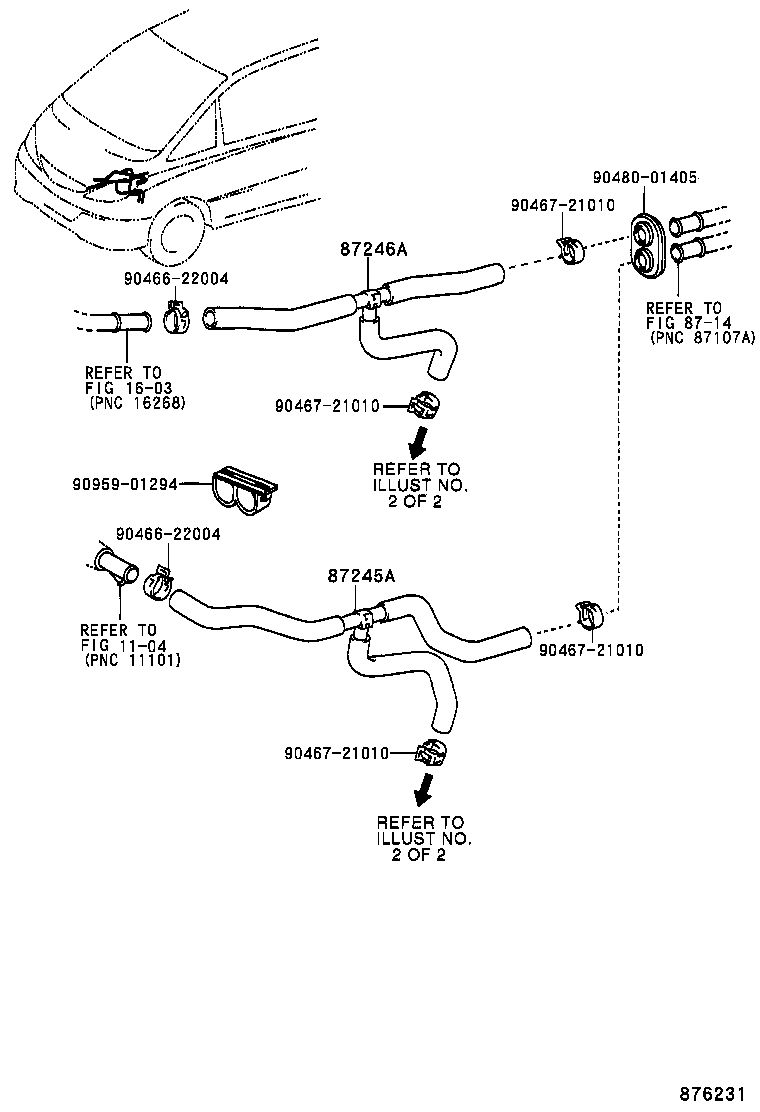

ILLUST NO. 1 OF 2(0002- )ACR30..RHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2J180 |
ACR30..EUR,GEN W(REAR HEATER) |
1 | ||
| 87245-2J130 |
ACR30..RHD |
1 | ||
| 87207-28440 |
ACR30..08S..MTM;ACR30..RHD..07S..EUR W(REAR HEATER) |
1 | ||
| 87245-2J810 |
ACR30..RHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2J220 |
ACR30..RHD..EUR W(REAR HEATER) |
1 | ||
| 87245-2J820 |
ACR30..RHD |
1 | ||
| 87207-28450 |
ACR30..08S..MTM;ACR30..RHD..07S..EUR W(REAR HEATER) |
1 | ||
| 87245-2J150 |
ACR30..RHD |
1 | ||
| Common parts | ||||
| 90466-22004 | ||||
| 90467-21010 | ||||
| 90480-01405 | ||||
| 90959-01294 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||

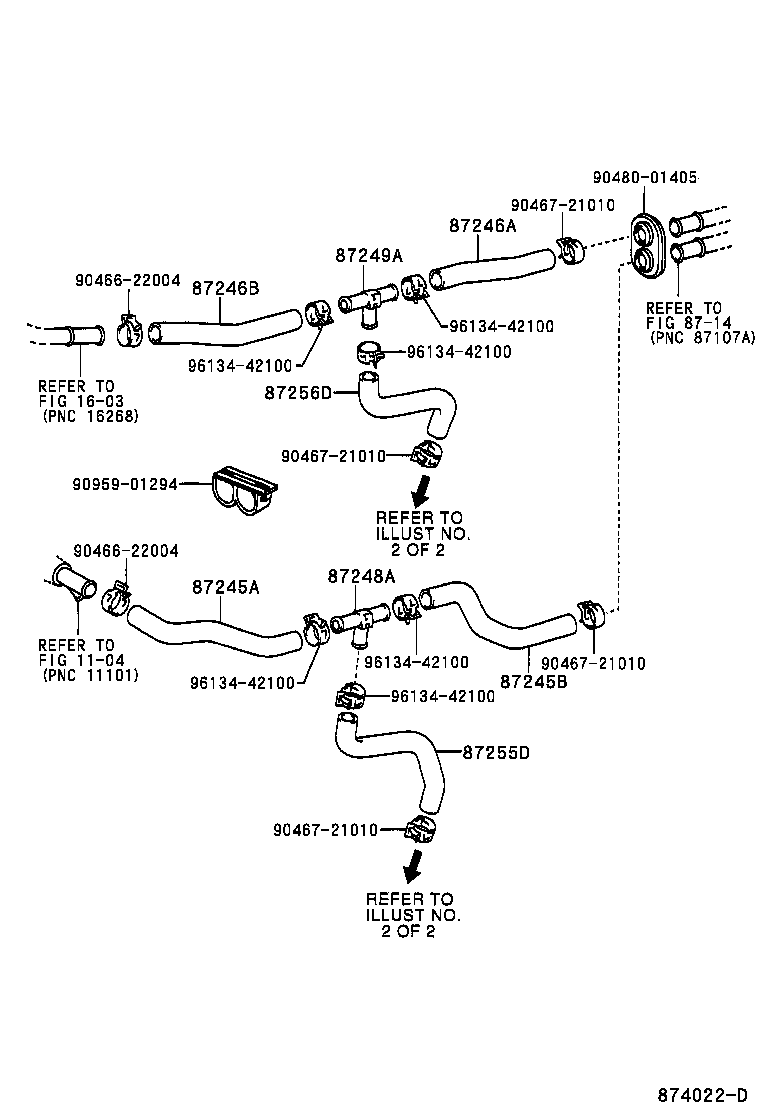

ILLUST NO. 1 OF 2(0002-0304)ACR30..RHD
FRONT--W(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2J180 |
ACR30..EUR,GEN W(REAR HEATER) |
1 | ||
| 87245-2J130 |
ACR30..RHD |
1 | ||
| 87207-28440 |
ACR30..08S..MTM;ACR30..RHD..07S..EUR W(REAR HEATER) |
1 | ||
| 87245-2J810 |
ACR30..RHD |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-2J190 |
ACR30..RHD..EUR |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2J220 |
ACR30..RHD..EUR W(REAR HEATER) |
1 | ||
| 87245-2J820 |
ACR30..RHD |
1 | ||
| 87207-28450 |
ACR30..08S..MTM;ACR30..RHD..07S..EUR W(REAR HEATER) |
1 | ||
| 87245-2J150 |
ACR30..RHD |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-2J210 |
ACR30..RHD..EUR |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-08030 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-08030 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-2J200 |
ACR30..EUR,GEN |
1 | ||
| 87256D - HOSE, REAR HEATER WATER OUTLET, D | ||||
| 87245-2J230 |
ACR30..EUR,GEN |
1 | ||
| Common parts | ||||
| 90466-22004 | ||||
| 90467-21010 | ||||
| 90480-01405 | ||||
| 90959-01294 | ||||
| 96134-42100 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||

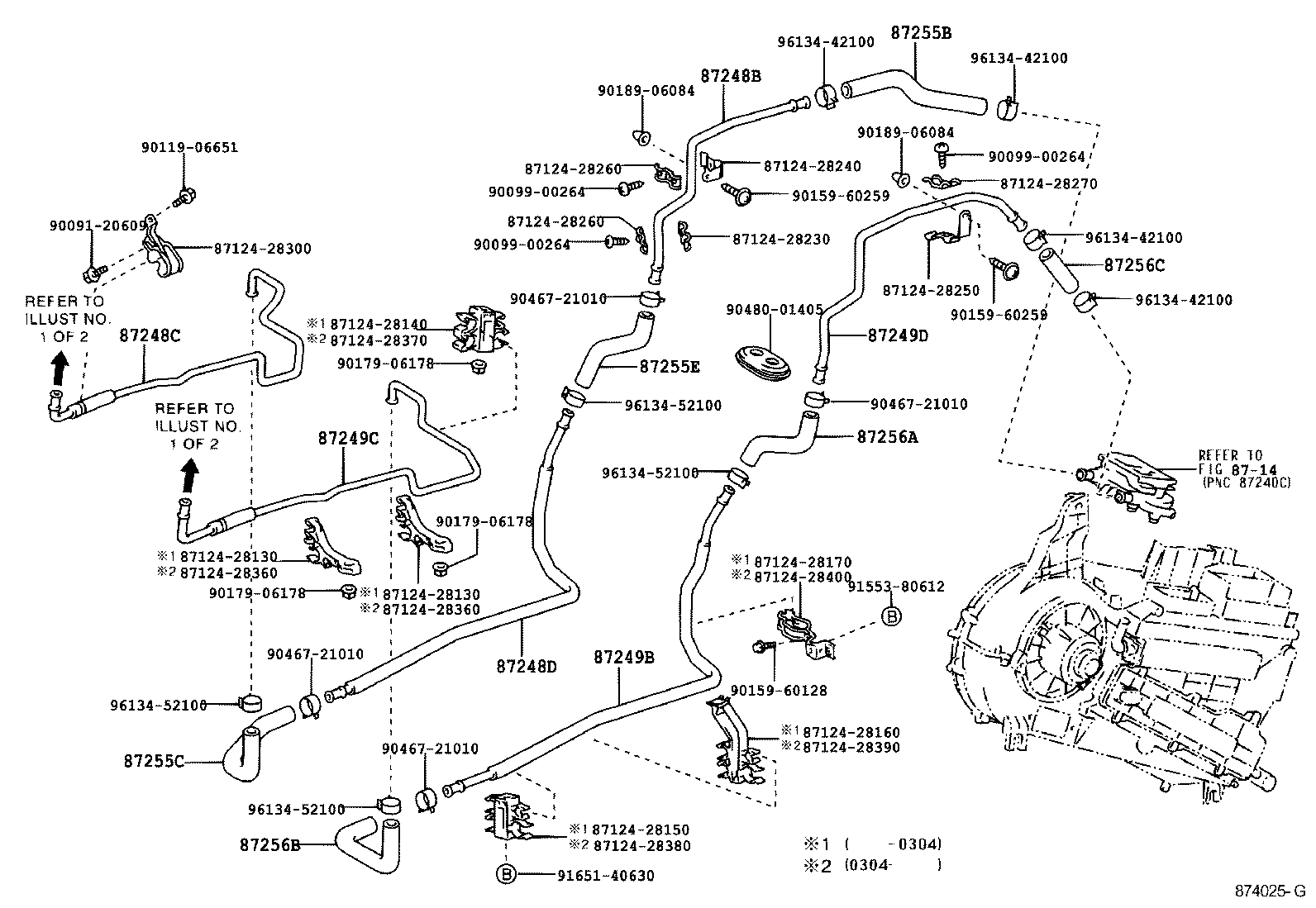

ILLUST NO. 2 OF 2(0002- )RHD
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-28190 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87248-28190 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN) |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-28130 |
ACR30..EUR,GEN |
1 | ||
| 87248-28130 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87248-28130 |
ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN) |
1 | ||
| 87248D - PIPE, HEATER WATER INLET, D | ||||
| 87248-28150 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 87248-28150 |
CLR30..RHD;ACR30..08S..MTM;ACR30..RHD..07S..EUR |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-28160 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 87248-28160 |
CLR30..RHD;ACR30..08S..MTM;ACR30..RHD..07S..EUR |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-28140 |
ACR30..EUR,GEN |
1 | ||
| 87248-28140 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87248-28140 |
ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN) |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-28350 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN) |
1 | ||
| 87248-28200 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-2J420 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87245-2J420 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN) |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 87245-2J360 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 87245-2J360 |
CLR30..RHD;ACR30..08S..MTM;ACR30..RHD..07S..EUR |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-2J380 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN) |
1 | ||
| 87245-2J380 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-2J390 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 87245-2J390 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN) |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-2J370 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 87245-2J370 |
CLR30..RHD;ACR30..08S..MTM;ACR30..RHD..07S..EUR |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 99556-30100 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN) *H,L=90 |
1 | ||
| 99556-30100 |
ACR30,CLR30..EUR,GEN *H,L=90 |
1 | ||
| Common parts | ||||
| 87124-28130 | ||||
| 87124-28140 | ||||
| 87124-28150 | ||||
| 87124-28160 | ||||
| 87124-28170 | ||||
| 87124-28230 | ||||
| 87124-28240 | ||||
| 87124-28250 | ||||
| 87124-28260 | ||||
| 87124-28270 | ||||
| 87124-28300 | ||||
| 87124-28360 | ||||
| 87124-28370 | ||||
| 87124-28380 | ||||
| 87124-28390 | ||||
| 87124-28400 | ||||
| 90091-20609 | ||||
| 90099-00264 | ||||
| 90119-06651 | ||||
| 90159-60128 | ||||
| 90159-60259 | ||||
| 90179-06178 | ||||
| 90189-06084 | ||||
| 90467-21010 | ||||
| 90480-01405 | ||||
| 91553-80612 | ||||
| 91651-40630 | ||||
| 96134-42100 | ||||
| 96134-52100 | ||||
| Linked diagrams | ||||
| 8714 | ||||

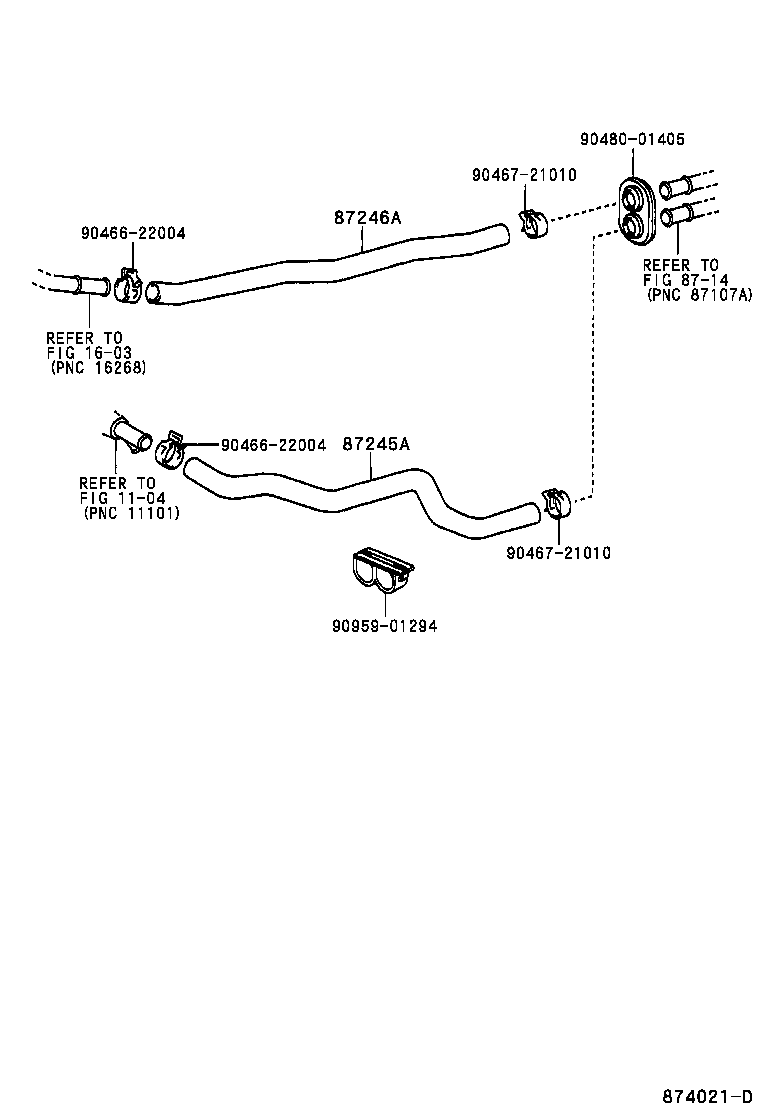

ILLUST NO. 1 OF 2(0304- )ACR30..RHD
FRONT--W(REAR HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2J180 |
ACR30..EUR,GEN W(REAR HEATER) |
1 | ||
| 87245-2J130 |
ACR30..RHD |
1 | ||
| 87207-28440 |
ACR30..08S..MTM;ACR30..RHD..07S..EUR W(REAR HEATER) |
1 | ||
| 87245-2J810 |
ACR30..RHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2J220 |
ACR30..RHD..EUR W(REAR HEATER) |
1 | ||
| 87245-2J820 |
ACR30..RHD |
1 | ||
| 87207-28450 |
ACR30..08S..MTM;ACR30..RHD..07S..EUR W(REAR HEATER) |
1 | ||
| 87245-2J150 |
ACR30..RHD |
1 | ||
| Common parts | ||||
| 90466-22004 | ||||
| 90467-21010 | ||||
| 90480-01405 | ||||
| 90959-01294 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
