ACR30R-MFSDKW (2000)
Toyota Previa/Tarago

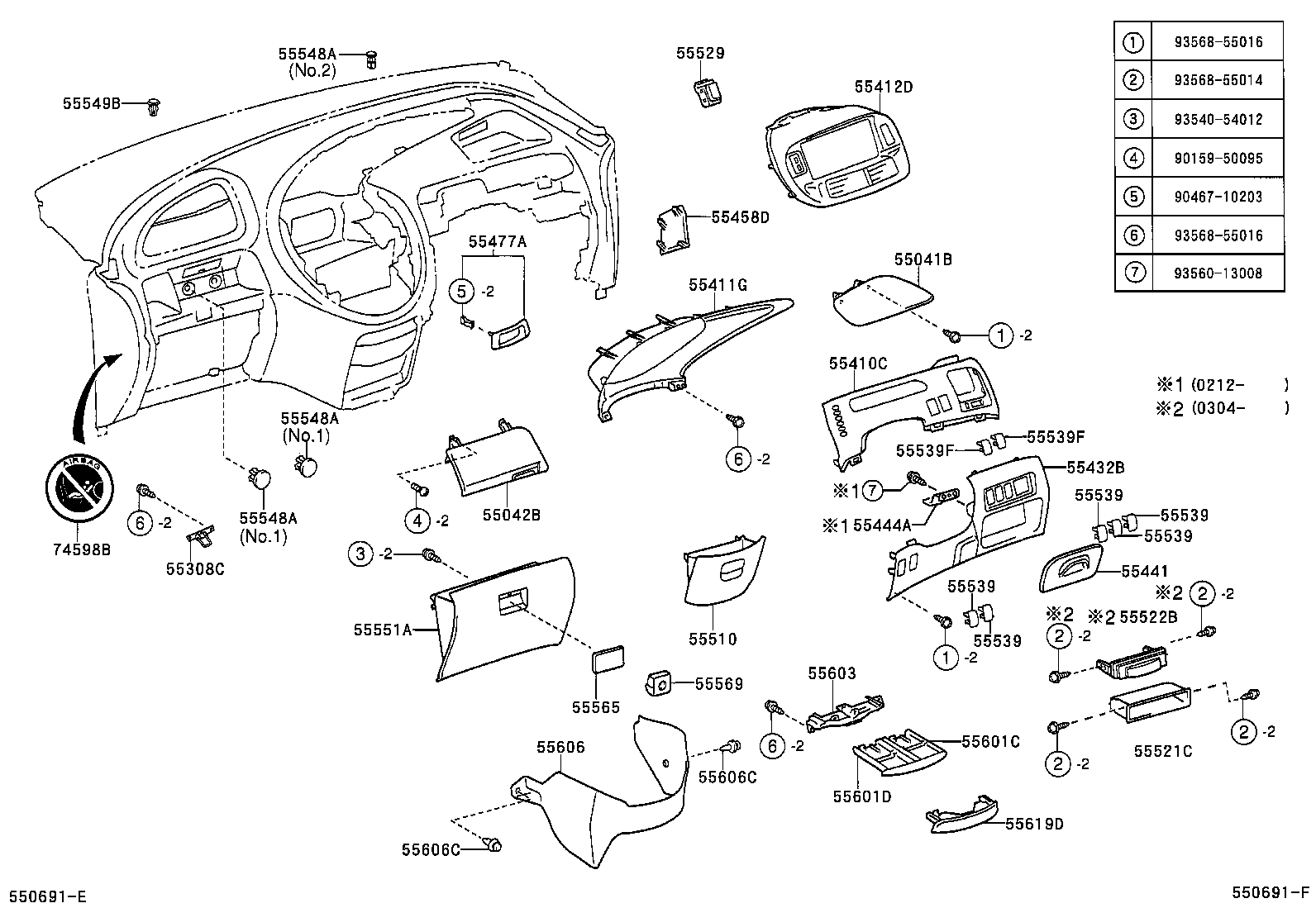

ILLUST NO. 2 OF 2(0002- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-28010B1 |
ACR30,CLR30..RHD DK.CHARCOAL,TRIM12 |
1 | ||
| 55041-28010B2 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S DK.GRAY,TRIM1# |
1 | ||
| 55041-28010B0 |
ACR30,CLR30..RHD BLUISH GRAY,TRIM11 |
1 | ||
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-28010B2 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S DK.GRAY,TRIM1# |
1 | ||
| 55042-28010B1 |
ACR30,CLR30..RHD DK.CHARCOAL,TRIM12 |
1 | ||
| 55042-28010B0 |
ACR30,CLR30..RHD BLUISH GRAY,TRIM11 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-28090 |
ACR30,CLR30 |
1 | ||
| 55308-28090 |
ACR30,CLR30 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-28190B1 |
ACR30..RHD..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 55410-28190B0 |
ACR30..RHD..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 55410-28130B0 |
ACR30..RHD..ATM DK.GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-28190 |
ACR30,CLR30..RHD |
1 | ||
| 55411-28190 |
ACR30,CLR30..RHD |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-28310 |
ACR30,CLR30..RHD |
1 | ||
| 55405-28530B0 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S GRAY METALLIC,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-28080B0 |
ACR30,CLR30..RHD LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55432-28120B0 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S MD.GRAY,TRIM1# |
1 | ||
| 55432-28080B1 |
ACR30,CLR30..RHD MD.CHARCOAL,TRIM12 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-28050B0 |
ACR30,CLR30..RHD LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55441-28050B2 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S MD.GRAY,TRIM1# |
1 | ||
| 55441-28050B1 |
ACR30,CLR30..RHD MD.CHARCOAL,TRIM12 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-28090 |
ACR30,CLR30..RHD |
1 | ||
| 55444-28090 |
ACR30,CLR30..RHD |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-28060B0 |
ACR30,CLR30..RHD LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55477-28060B2 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S MD.GRAY,TRIM1# |
1 | ||
| 55477-28060B1 |
ACR30,CLR30..RHD MD.CHARCOAL,TRIM12 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-28030B1 |
ACR30,CLR30..RHD MD.CHARCOAL,TRIM12 |
1 | ||
| 55550-28030B0 |
ACR30,CLR30..RHD LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55550-28030B2 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S MD.GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
ACR30..GCC,GEN;ACR30..RHD..(07S,08S)..ATM |
1 | ||
| 55521-16030 |
ACR30,CLR30 W/O(RADIO) |
2 | ||
| 55521-16030 |
ACR30,CLR30 W/O(RADIO) |
2 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-26020 |
ACR30..GCC,GEN;ACR30..RHD..ATM |
1 | ||
| 55529 - COVER, WARNING LAMP HOLE | ||||
| 55529-28010 |
ACR30,CLR30..RHD |
1 | ||
| 55529-28010 |
ACR30,CLR30..RHD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020B1 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55539-60020B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 55539-60020B7 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S MD.GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020B1 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55539-60020B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 55539-60020B7 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S MD.GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020B1 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55539-60020B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 55539-60020B7 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S MD.GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020B1 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55539-60020B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 55539-60020B7 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S MD.GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020B1 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55539-60020B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 55539-60020B7 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S MD.GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-28120B2 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S DK.GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-28120B2 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S DK.GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-12070B0 |
ACR30,CLR30..EUR,GCC,GEN DK.CHARCOAL,TRIM12,NO.2 |
1 | ||
| 55548-28040B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12,NO.1 |
2 | ||
| 55548-28040B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11,NO.1 |
2 | ||
| 55548-12070B3 |
ACR30,CLR30..EUR,GCC,GEN BLUISH GRAY,TRIM11,NO.2 |
1 | ||
| 55548-28040B2 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S DK.GRAY,TRIM1#,NO.1 |
2 | ||
| 55548-12070B4 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) DK.GRAY,TRIM1#,NO.2 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-12070B0 |
ACR30,CLR30..EUR,GCC,GEN DK.CHARCOAL,TRIM12,NO.2 |
1 | ||
| 55548-28040B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12,NO.1 |
2 | ||
| 55548-28040B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11,NO.1 |
2 | ||
| 55548-12070B3 |
ACR30,CLR30..EUR,GCC,GEN BLUISH GRAY,TRIM11,NO.2 |
1 | ||
| 55548-28040B2 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S DK.GRAY,TRIM1#,NO.1 |
2 | ||
| 55548-12070B4 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) DK.GRAY,TRIM1#,NO.2 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-12070B0 |
ACR30,CLR30..EUR,GCC,GEN DK.CHARCOAL,TRIM12,NO.2 |
1 | ||
| 55548-28040B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12,NO.1 |
2 | ||
| 55548-28040B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11,NO.1 |
2 | ||
| 55548-12070B3 |
ACR30,CLR30..EUR,GCC,GEN BLUISH GRAY,TRIM11,NO.2 |
1 | ||
| 55548-28040B2 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S DK.GRAY,TRIM1#,NO.1 |
2 | ||
| 55548-12070B4 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) DK.GRAY,TRIM1#,NO.2 |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-28010B0 |
ACR30,CLR30..ARL,EUR,GEN BLUISH GRAY,TRIM11 |
1 | ||
| 55549-28010B1 |
ACR30,CLR30..ARL,EUR,GEN DK.CHARCOAL,TRIM12 |
1 | ||
| 55551A - DOOR, GLOVE COMPARTMENT, OUTER | ||||
| 55551-28060B0 |
ACR30,CLR30..RHD LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55551-28060B2 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S MD.GRAY,TRIM1# |
1 | ||
| 55551-28060B1 |
ACR30,CLR30..RHD MD.CHARCOAL,TRIM12 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-89101B1 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55565-89101B4 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S MD.GRAY,TRIM1# |
1 | ||
| 55565-89101B2 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-89101B2 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 55569-89101B4 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S MD.GRAY,TRIM1# |
1 | ||
| 55569-89101B1 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55601C - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-28020B0 |
ACR30..ATM LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55601-28020B1 |
ACR30..ATM MD.CHARCOAL,TRIM12 |
1 | ||
| 55601-28040B0 |
ACR30..ATM MD.GRAY,TRIM1# |
1 | ||
| 55601D - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER, LH | ||||
| 55601-28010B1 |
ACR30..ATM MD.CHARCOAL,TRIM12 |
1 | ||
| 55601-28030B0 |
ACR30..ATM MD.GRAY,TRIM1# |
1 | ||
| 55601-28010B0 |
ACR30..ATM LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55603 - CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER | ||||
| 55603-28030 |
ACR30,CLR30..RHD |
1 | ||
| 55603-28030 |
ACR30,CLR30..RHD |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-28020B0 |
ACR30,CLR30..RHD LT. BLUISH GRAY,TRIM11 |
1 | ||
| 55641-28020B1 |
ACR30,CLR30..RHD MD.CHARCOAL,TRIM12 |
1 | ||
| 55641-28020B2 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S MD.GRAY,TRIM1# |
1 | ||
| 55606C - CLIP(FOR INSTRUMENT PANEL UNDER COVER) | ||||
| 90467-07090B3 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S DK.GRAY,TRIM15 |
2 | ||
| 90467-07090B4 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
2 | ||
| 90467-07207B0 |
ACR30,CLR30 DK.GRAY,TRIM1# |
2 | ||
| 90467-07090B8 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S MD.GRAY,TRIM1# |
2 | ||
| 90467-07090B5 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 55606C - CLIP(FOR INSTRUMENT PANEL UNDER COVER) | ||||
| 90467-07090B3 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S DK.GRAY,TRIM15 |
2 | ||
| 90467-07090B4 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
2 | ||
| 90467-07207B0 |
ACR30,CLR30 DK.GRAY,TRIM1# |
2 | ||
| 90467-07090B8 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S MD.GRAY,TRIM1# |
2 | ||
| 90467-07090B5 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
ACR30,CLR30 |
1 | ||
| 74598-20010 |
ACR30,CLR30..06S,07S;ACR30..DX..(ARL,GCC) |
1 | ||
| Common parts | ||||
| 90159-50095 | ||||
| 90467-10203 | ||||
| 93540-54012 | ||||
| 93560-13008 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||

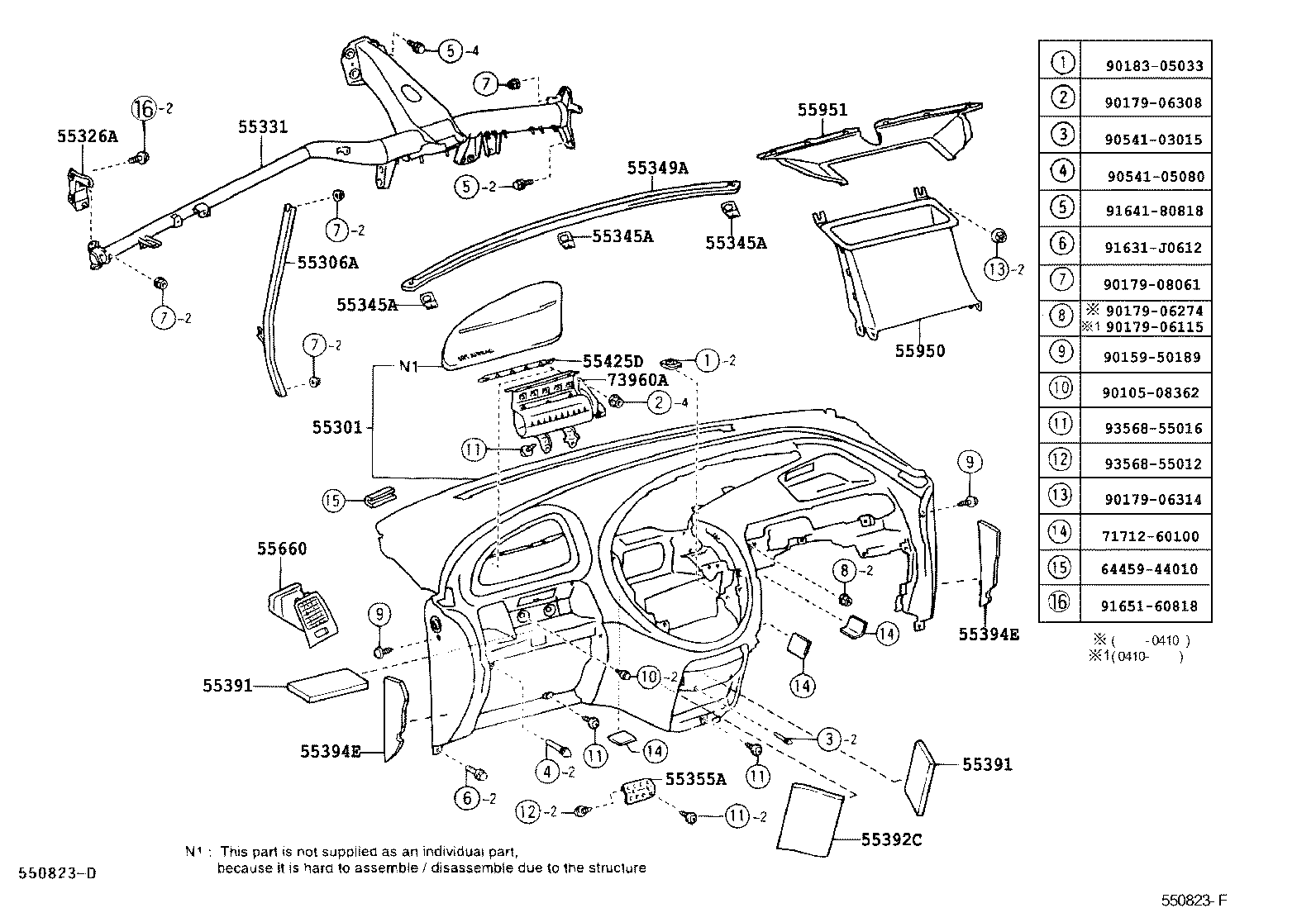

ILLUST NO. 1 OF 2(0002- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-28010B0 |
ACR30,CLR30..RHD BLUISH GRAY,TRIM11 |
1 | ||
| 55300-28010B1 |
ACR30,CLR30..RHD DK.CHARCOAL,TRIM12 |
1 | ||
| 55300-28010B2 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S DK.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-28160 |
ACR30,CLR30..RHD |
1 | ||
| 55306-28160 |
ACR30,CLR30..RHD |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-28090 |
ACR30,CLR30..RHD |
1 | ||
| 55326-28090 |
ACR30,CLR30..RHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-28110 |
ACR30,CLR30..RHD |
1 | ||
| 55330-28150 |
ACR30,CLR30..RHD |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-28030 |
ACR30,CLR30 |
3 | ||
| 55345-28030 |
ACR30,CLR30 |
3 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-28030 |
ACR30,CLR30 |
3 | ||
| 55345-28030 |
ACR30,CLR30 |
3 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-28030 |
ACR30,CLR30 |
3 | ||
| 55345-28030 |
ACR30,CLR30 |
3 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-28110 |
ACR30,CLR30 |
1 | ||
| 55349-28110 |
ACR30,CLR30 |
1 | ||
| 55355A - PLATE, INSTRUMENT PANEL | ||||
| 55355-28050 |
ACR30,CLR30 |
1 | ||
| 55355-28050 |
ACR30,CLR30 |
1 | ||
| 55425D - BASE, AIR BAG PASSENGER MOUNTING | ||||
| 55425-28010 |
ACR30,CLR30 |
1 | ||
| 55425-28010 |
ACR30,CLR30 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-28100B1 |
ACR30,CLR30..RHD DK.CHARCOAL,TRIM12 |
1 | ||
| 55660-28170B0 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S DK.GRAY,TRIM1# |
1 | ||
| 55660-28100B0 |
ACR30,CLR30..RHD BLUISH GRAY,TRIM11 |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-28100 |
ACR30..RHD |
1 | ||
| 55950-28100 |
ACR30..RHD |
1 | ||
| 55951 - NOZZLE, DEFROSTER, FRONT | ||||
| 55951-28050 |
ACR30,CLR30..RHD |
1 | ||
| 55951-28050 |
ACR30,CLR30..RHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-28050 |
ACR30,CLR30..RHD |
1 | ||
| 73960-28030 |
ACR30,CLR30..RHD |
1 | ||
| Common parts | ||||
| 64459-44010 | ||||
| 71712-60100 | ||||
| 90105-08362 | ||||
| 90159-50189 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 90179-06308 | ||||
| 90179-06314 | ||||
| 90179-08061 | ||||
| 90183-05033 | ||||
| 90541-03015 | ||||
| 90541-05080 | ||||
| 91631-J0612 | ||||
| 91641-80818 | ||||
| 91651-60818 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
