ACR30R-MFMDKW (2000)
Toyota Previa/Tarago

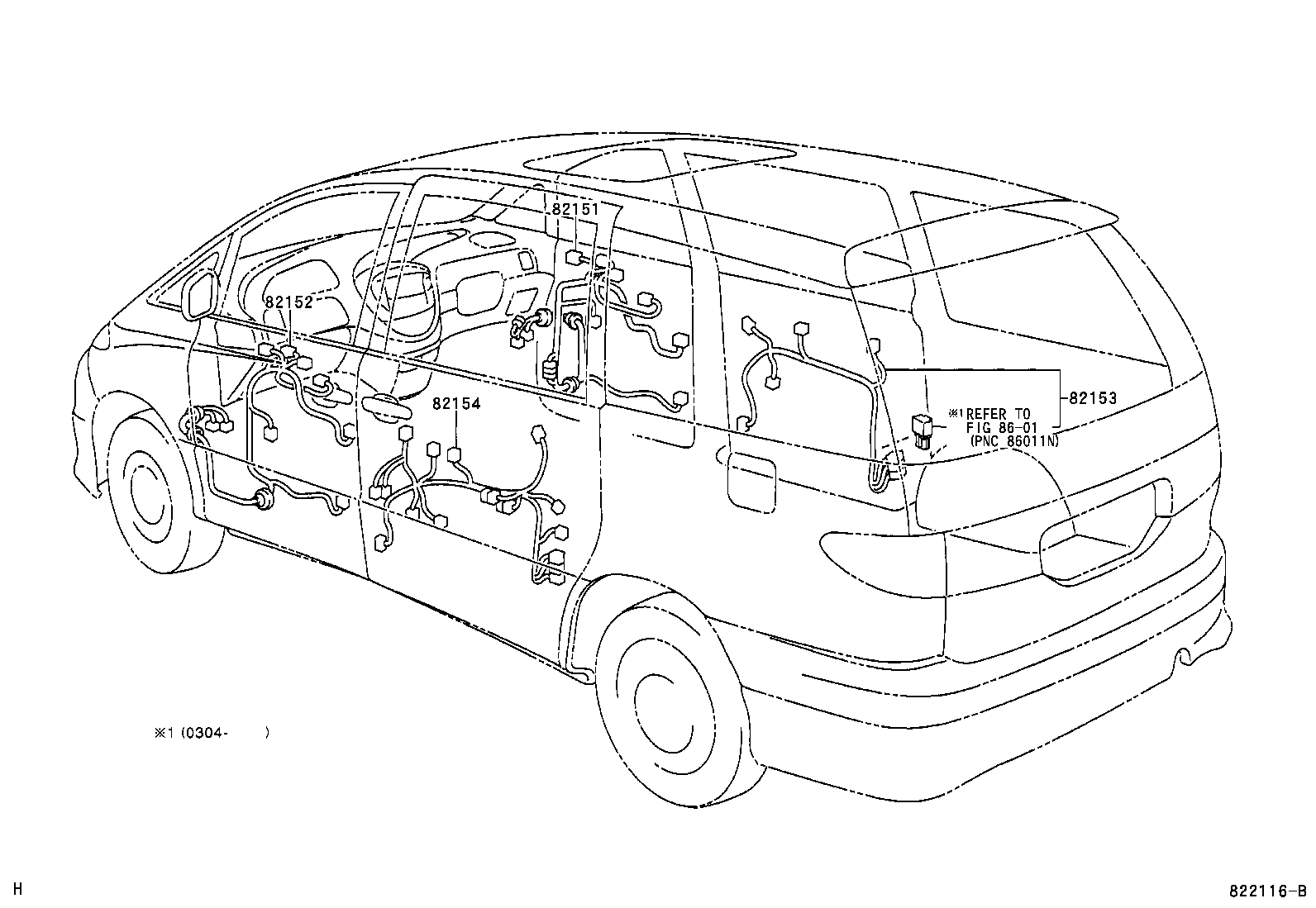

ILLUST NO. 5 OF10(0002- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-28770 |
ACR30..RHD..EUR |
1 | ||
| 82151-2J010 |
ACR30,CLR30..RHD..EUR W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82151-28771 |
ACR30,CLR30..RHD..EUR W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-28710 |
ACR30..RHD..EUR |
1 | ||
| 82152-28711 |
ACR30,CLR30..RHD..EUR W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82152-28870 |
ACR30,CLR30..RHD..EUR W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-28110 |
ACR30,CLR30..RHD..EUR W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW) |
1 | ||
| 82153-28100 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82153-28110 |
ACR30,CLR30..RHD..EUR W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-28100 |
ACR30,CLR30..RHD..EUR W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW) |
1 | ||
| 82154-28090 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82154-28100 |
ACR30,CLR30..RHD..EUR W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW) |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||

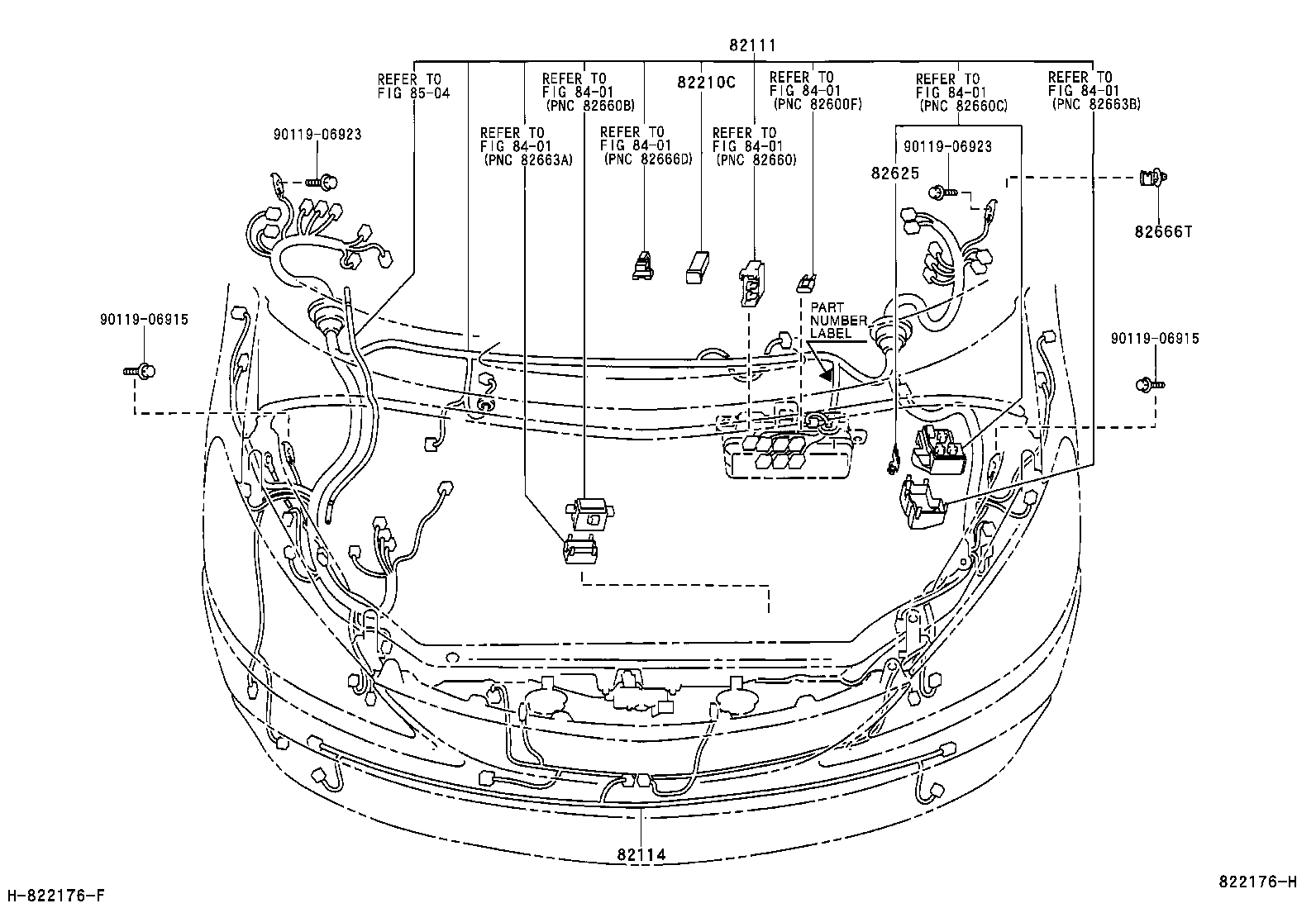

ILLUST NO. 1 OF10(0002- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-28270 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28270 |
1 | ||
| 82115-28260 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28260 |
1 | ||
| 82115-28310 |
ACR30..DX..ARL;ACR30..07S..EUR;ACR30..RHD..08S..MTM;ACR30..LHD..(06S,08S)..EUR PART NUMBER LABEL=82115-28310 |
1 | ||
| 82115-28261 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28261 |
1 | ||
| 82115-28271 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28271 |
1 | ||
| 82115-28262 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28262 |
1 | ||
| 82115-28272 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28272 |
1 | ||
| 82115-28273 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28273 |
1 | ||
| 82115-28263 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28263 |
1 | ||
| 82115-28820 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28820 |
1 | ||
| 82115-28810 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28810 |
1 | ||
| 82115-28840 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28840 |
1 | ||
| 82115-28830 |
ACR30..RHD..EUR PART NUMBER LABEL=82115-28830 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-28070 |
ACR30,CLR30 |
1 | ||
| 82114-28010 |
ACR30,CLR30 |
1 | ||
| 82114-28080 |
ACR30,CLR30 W(CLEARANCE & BACK SONAR) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
ACR30,CLR30 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08246 |
ACR30,CLR30 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
ACR30,CLR30 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
ACR30,CLR30 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
ACR30,CLR30..EUR,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
ACR30,CLR30 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
ACR30,CLR30 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08286 |
ACR30,CLR30 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08282 |
ACR30,CLR30..EUR,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
ACR30,CLR30 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08203 |
ACR30,CLR30 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08286 |
ACR30,CLR30 140A,TERM.:MALE,RBR |
1 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-28020 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 82625-28020 |
ACR30,CLR30..EUR,GEN |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8504 | ||||

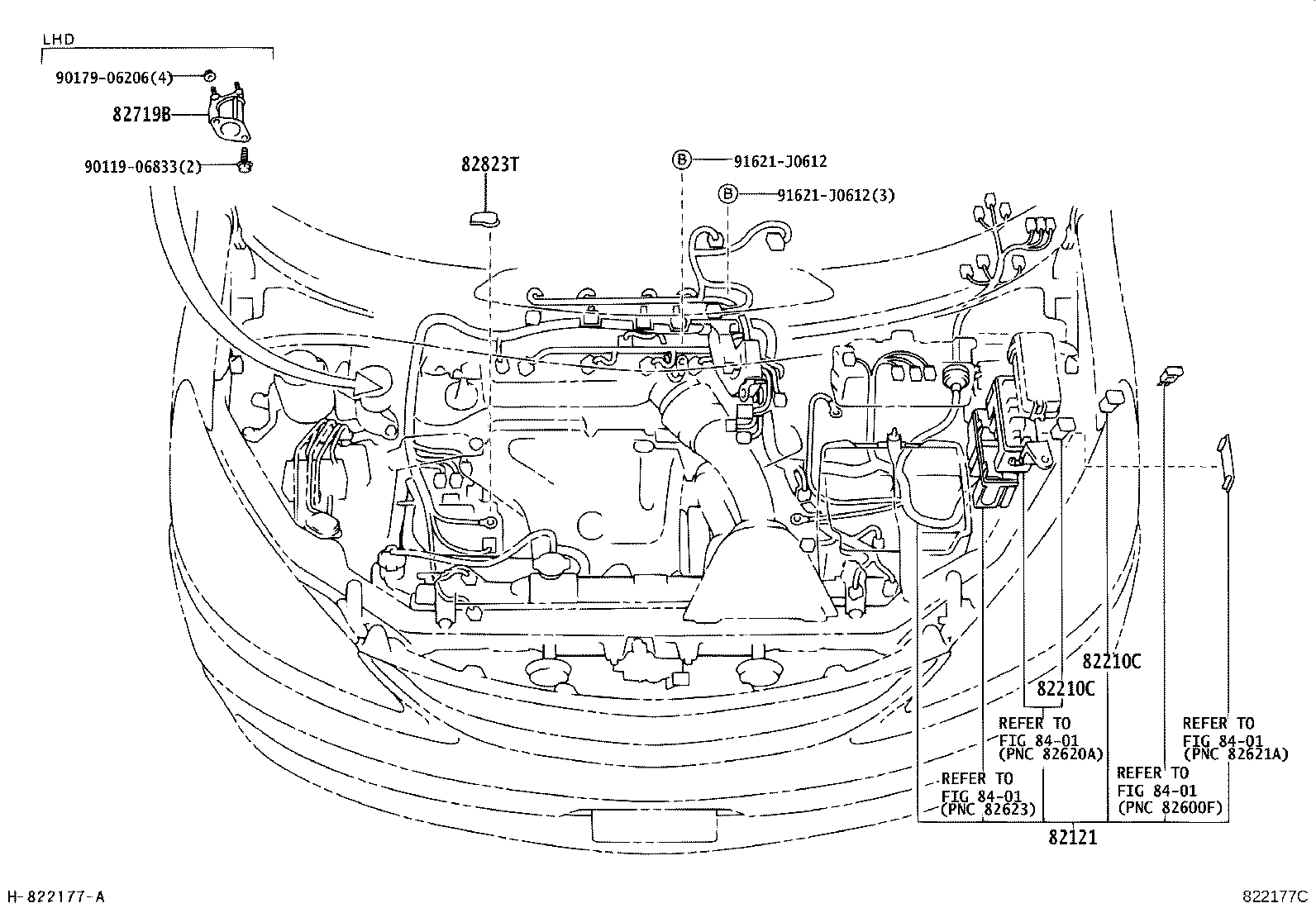

ILLUST NO. 2 OF10(0002- )ACR30
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28620 |
ACR30..RHD..MTM |
1 | ||
| 82121-28880 |
ACR30..RHD..MTM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
ACR30,CLR30 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08246 |
ACR30,CLR30 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
ACR30,CLR30 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
ACR30,CLR30 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
ACR30,CLR30..EUR,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
ACR30,CLR30 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
ACR30,CLR30 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08286 |
ACR30,CLR30 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08282 |
ACR30,CLR30..EUR,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
ACR30,CLR30 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08203 |
ACR30,CLR30 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08286 |
ACR30,CLR30 140A,TERM.:MALE,RBR |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
ACR30,CLR30 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08246 |
ACR30,CLR30 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
ACR30,CLR30 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
ACR30,CLR30 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
ACR30,CLR30..EUR,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
ACR30,CLR30 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
ACR30,CLR30 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08286 |
ACR30,CLR30 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08282 |
ACR30,CLR30..EUR,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
ACR30,CLR30 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08203 |
ACR30,CLR30 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08286 |
ACR30,CLR30 140A,TERM.:MALE,RBR |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ACR30,CLR30 |
1 | ||
| 82823-22050 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90119-06833 | ||||
| 90179-06206 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 8401 | ||||

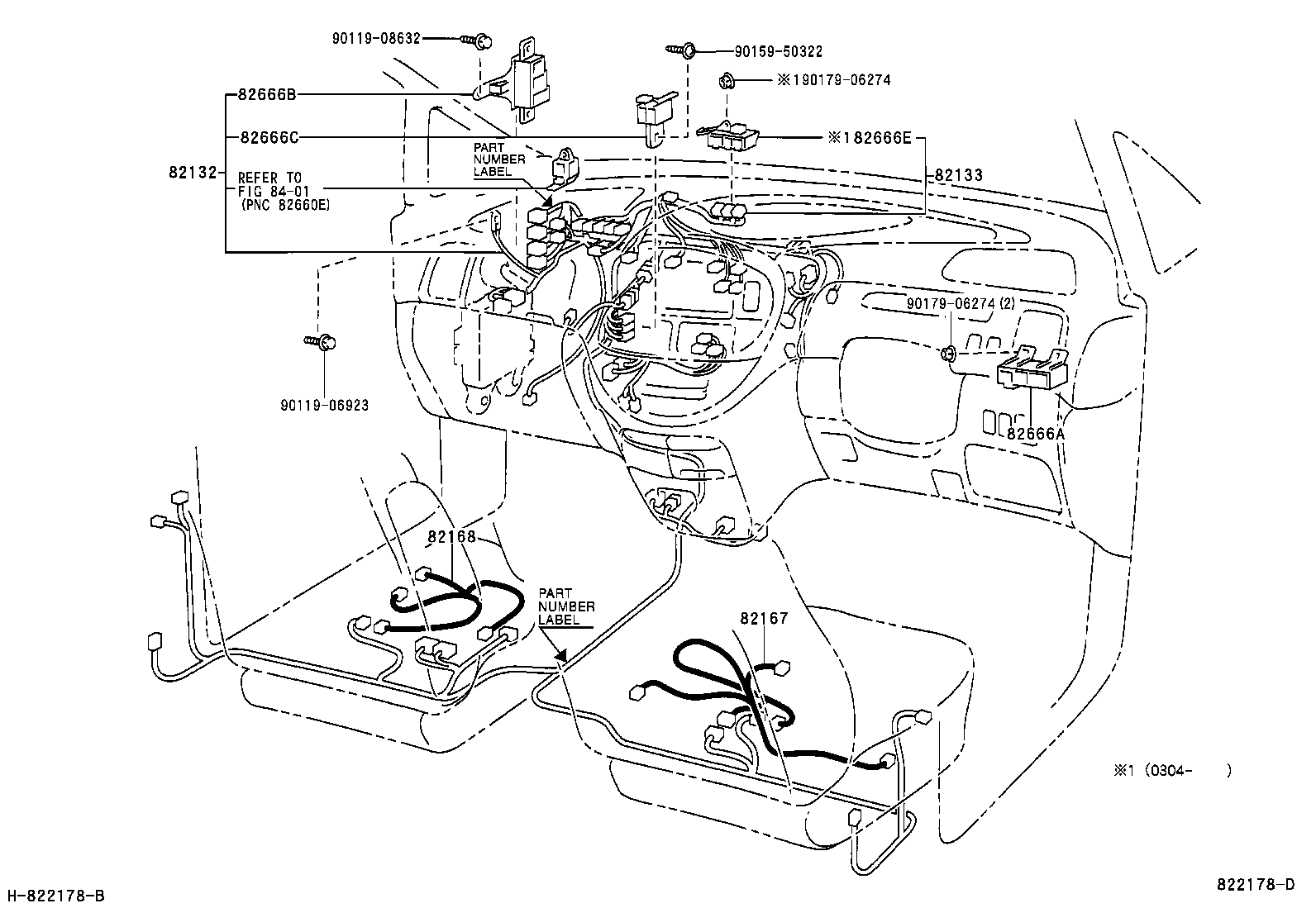

ILLUST NO. 3 OF10(0002- )
COWL & SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-28650 |
ACR30..RHD..DX PART NUMBER LABEL=82132-28650 |
1 | ||
| 82132-28640 |
ACR30..RHD PART NUMBER LABEL=82132-28640 |
1 | ||
| 82132-28620 |
ACR30..GL..ARL;ACR30..RHD..EUR PART NUMBER LABEL=82132-28620 |
1 | ||
| 82132-28630 |
ACR30..RHD..EUR PART NUMBER LABEL=82132-28630 |
1 | ||
| 82132-2J060 |
ACR30..GL..ARL;ACR30..RHD..EUR PART NUMBER LABEL=82132-2J060 |
1 | ||
| 82132-28660 |
ACR30..RHD..EUR PART NUMBER LABEL=82132-28660 |
1 | ||
| 82132-2J070 |
ACR30..RHD..EUR PART NUMBER LABEL=82132-2J070 |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-28100 |
ACR30..RHD..EUR PART NUMBER LABEL=82133-28100 |
1 | ||
| 82133-28500 |
ACR30,CLR30..RHD PART NUMBER LABEL=82133-28500 |
1 | ||
| 82133-28101 |
ACR30,CLR30..RHD..EUR PART NUMBER LABEL=82133-28101 |
1 | ||
| 82133-28490 |
ACR30,CLR30..RHD..EUR PART NUMBER LABEL=82133-28490 |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-28070 |
CLR30..RHD;ACR30..08S..MTM;ACR30..RHD..07S..EUR |
1 | ||
| 82167-28090 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(*80,SIDE) |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-28070 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(*80,SIDE) |
1 | ||
| 82168-28130 |
CLR30..RHD;ACR30..08S..MTM;ACR30..RHD..07S..EUR |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-28160 |
ACR30,CLR30 |
1 | ||
| 82666-28160 |
ACR30,CLR30 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-28140 |
ACR30,CLR30 |
1 | ||
| 82666-28140 |
ACR30,CLR30 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-28200 |
ACR30,CLR30 |
1 | ||
| 82666-28200 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90119-08632 | ||||
| 90159-50322 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||

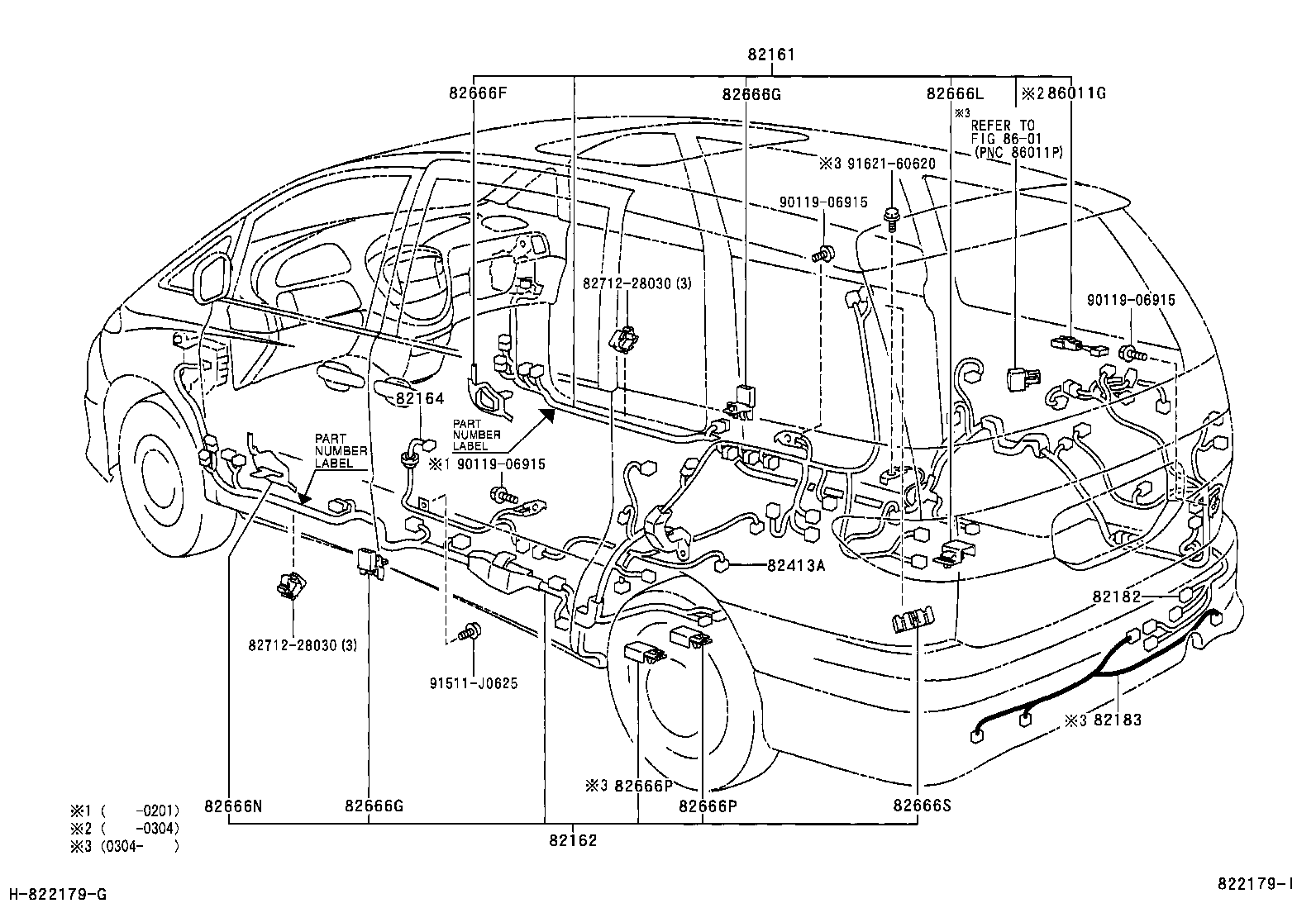

ILLUST NO. 6 OF10(0002- )
FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-28820 |
ACR30..RHD..(06S,07S)..EUR PART NUMBER LABEL=82161-28820 |
1 | ||
| 82161-28830 |
ACR30..RHD..(06S,07S)..EUR PART NUMBER LABEL=82161-28830 |
1 | ||
| 82161-2J170 |
ACR30..RHD..(06S,07S)..EUR PART NUMBER LABEL=82161-2J170 |
1 | ||
| 82161-2J171 |
ACR30,CLR30..RHD..(06S,07S)..EUR PART NUMBER LABEL=82161-2J171 |
1 | ||
| 82161-2J770 |
ACR30,CLR30..RHD..07S..EUR PART NUMBER LABEL=82161-2J770 |
1 | ||
| 82161-2J790 |
ACR30,CLR30..RHD..07S..EUR PART NUMBER LABEL=82161-2J790 |
1 | ||
| 82161-28821 |
ACR30,CLR30..RHD..(06S,07S)..EUR PART NUMBER LABEL=82161-28821 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-2J050 |
ACR30,CLR30..RHD..07S..EUR PART NUMBER LABEL=82162-2J050 |
1 | ||
| 82162-28680 |
ACR30,CLR30..RHD..(06S,07S)..EUR PART NUMBER LABEL=82162-28680 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-28031 |
ACR30,CLR30 |
1 | ||
| 82164-28030 |
ACR30,CLR30 |
1 | ||
| 82164-28090 |
ACR30,CLR30 |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-28210 |
ACR30,CLR30 |
1 | ||
| 82182-28200 |
ACR30,CLR30 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-28040 |
ACR30,CLR30 |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-28030 |
ACR30,CLR30 |
1 | ||
| 82413-28010 |
ACR30,CLR30 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-28240 |
ACR30,CLR30 |
1 | ||
| 82666-28240 |
ACR30,CLR30 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-28250 |
ACR30,CLR30 |
1 | ||
| 82666-28250 |
ACR30,CLR30 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-28250 |
ACR30,CLR30 |
1 | ||
| 82666-28250 |
ACR30,CLR30 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-28260 |
ACR30,CLR30 |
1 | ||
| 82666-28260 |
ACR30,CLR30 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-28270 |
ACR30,CLR30 |
1 | ||
| 82666-28270 |
ACR30,CLR30 |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-28280 |
ACR30,CLR30 |
1 | ||
| 82666-28280 |
ACR30,CLR30 |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-28280 |
ACR30,CLR30 |
1 | ||
| 82666-28280 |
ACR30,CLR30 |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-22070 |
ACR30,CLR30 |
1 | ||
| 82666-22070 |
ACR30,CLR30 |
1 | ||
| 86011G - CONDENSER | ||||
| 90980-04146 |
ACR30,CLR30..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 82712-28030 | ||||
| 90119-06915 | ||||
| 91511-J0625 | ||||
| 91621-60620 | ||||
| Linked diagrams | ||||
| 8601 | ||||

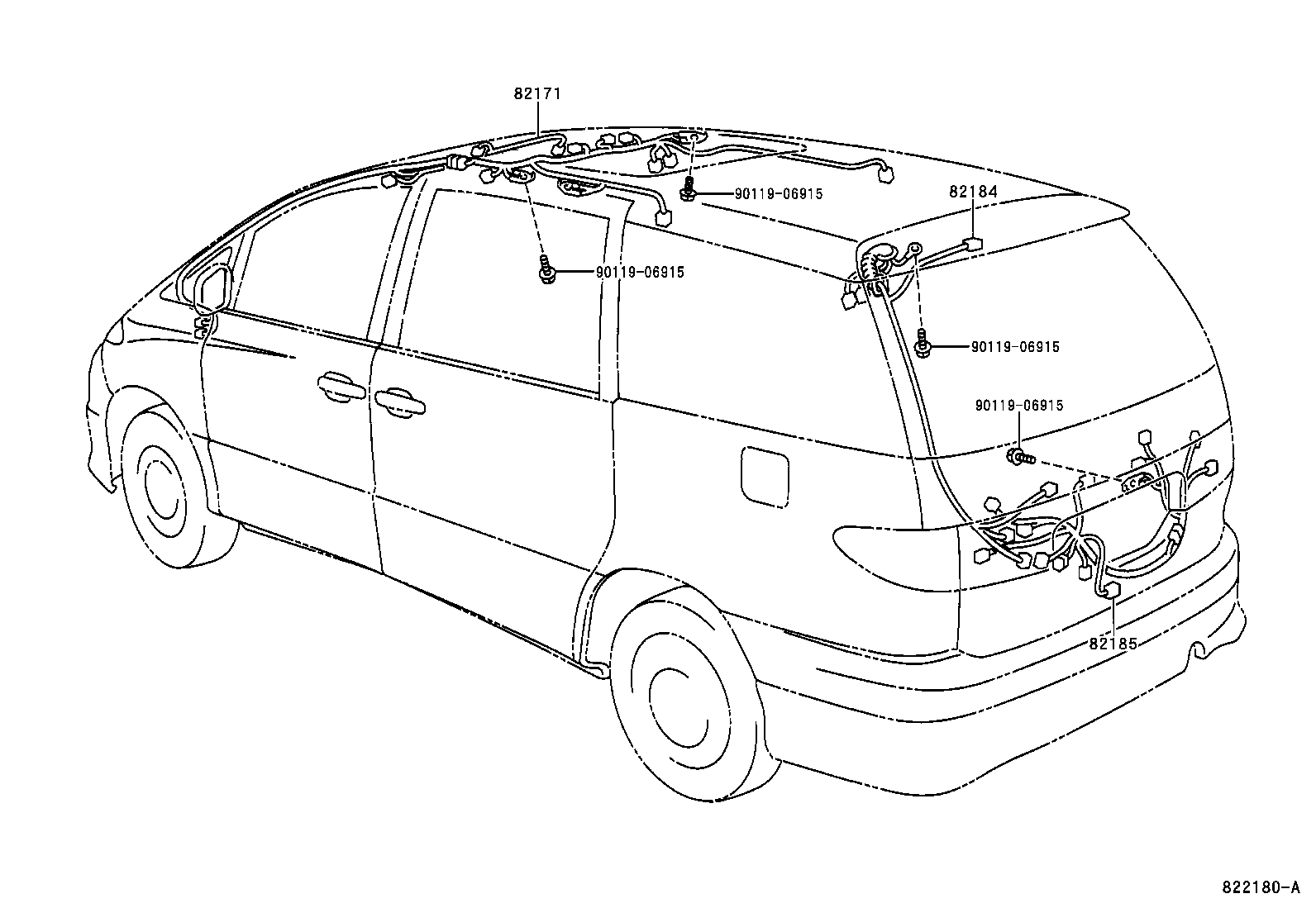

ILLUST NO. 7 OF10(0002- )
ROOF & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-2J370 |
ACR30..ARL,EUR W(REAR AIR CONDITIONER & TWIN MOON ROOF) |
1 | ||
| 82171-2J190 |
ACR30,CLR30..EUR |
1 | ||
| 82171-2J720 |
ACR30..(07S,08S)..(ARL,EUR) |
1 | ||
| 82171-2J230 |
ACR30,CLR30..EUR,GEN W(REAR HEATER) |
1 | ||
| 82171-2J360 |
ACR30,CLR30..EUR,GEN W(REAR HEATER & TWIN MOON ROOF) |
1 | ||
| 82171-2J380 |
ACR30,CLR30..EUR,GEN W(REAR COOLER & REAR HEATER & TWIN MOON ROOF) |
1 | ||
| 82171-2J730 |
ACR30..(07S,08S)..(ARL,EUR) W(REAR AIR CONDITIONER) |
1 | ||
| 82171-2J350 |
ACR30,CLR30..ARL,EUR W(TWIN MOON ROOF) |
1 | ||
| 82171-2J340 |
ACR30,CLR30..EUR,GEN W(REAR COOLER & REAR HEATER) |
1 | ||
| 82171-2J190 |
ACR30..GL..ARL;ACR30,CLR30..EUR |
1 | ||
| 82171-2J230 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(REAR HEATER) |
1 | ||
| 82171-2J360 |
ACR30,CLR30..MTM;ACR30..LHD..ATM..EUR W(REAR HEATER & TWIN MOON ROOF) |
1 | ||
| 82171-2J830 |
ACR30,CLR30..EUR,GEN W(REAR COOLER & REAR HEATER) |
1 | ||
| 82171-2J190 |
ACR30,CLR30..EUR |
1 | ||
| 82171-2J380 |
ACR30,CLR30..EUR,GEN W(REAR COOLER & REAR HEATER & TWIN MOON ROOF) |
1 | ||
| 82171-2J350 |
ACR30,CLR30..EUR W(TWIN MOON ROOF) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-28190 |
ACR30,CLR30 |
1 | ||
| 82184-28270 |
ACR30,CLR30..RHD..EUR ENGLAND SPEC |
1 | ||
| 82184-28410 |
ACR30,CLR30..RHD..EUR ENGLAND SPEC & W(BACK MONITOR) |
1 | ||
| 82184-28270 |
ACR30,CLR30..RHD..EUR ENGLAND SPEC |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-28670 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 82185-28670 |
ACR30,CLR30..EUR,GEN |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

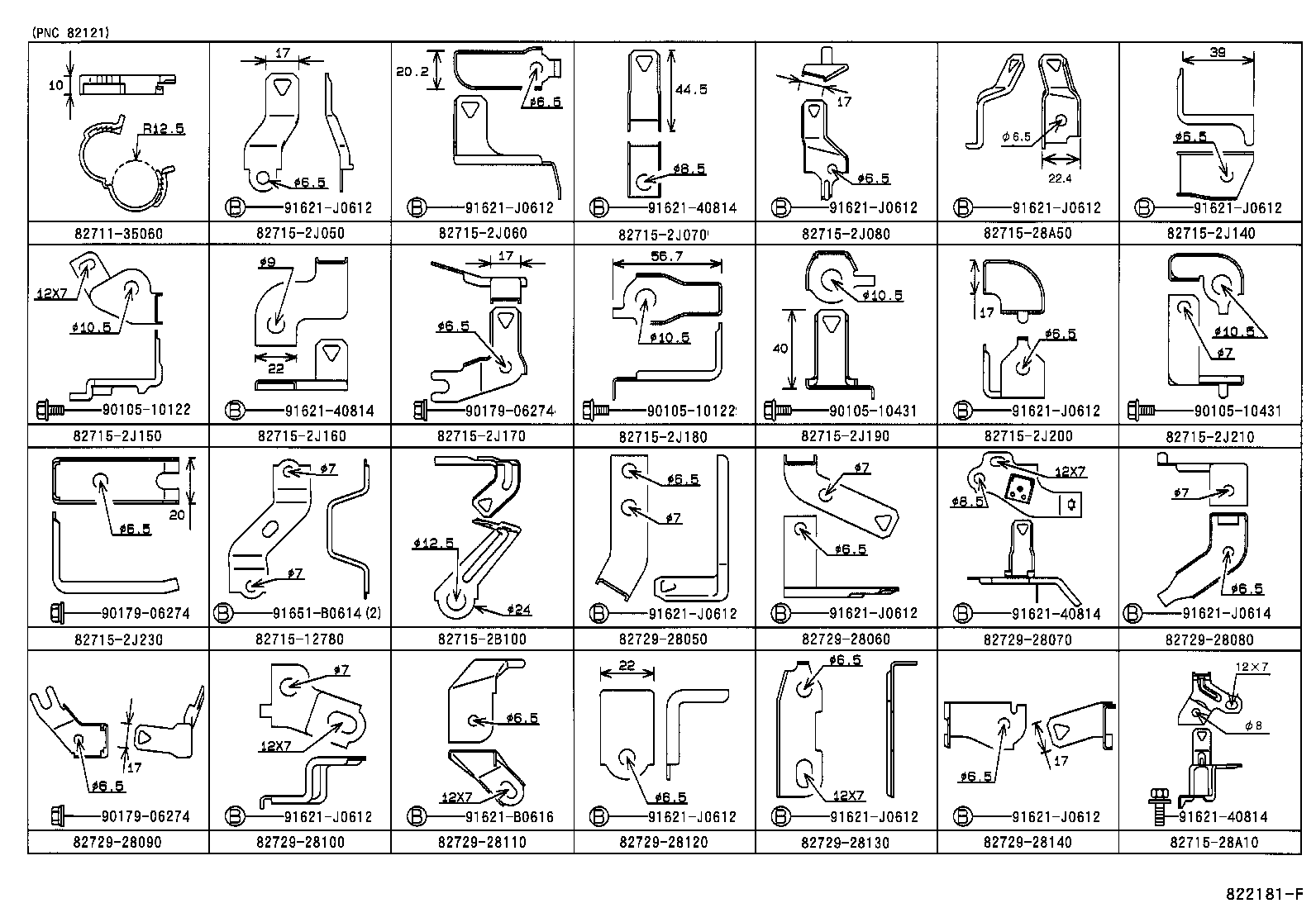

ILLUST NO. 8 OF10(0002- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35060 | ||||
| 82715-12780 | ||||
| 82715-28A10 | ||||
| 82715-28A50 | ||||
| 82715-2B100 | ||||
| 82715-2J050 | ||||
| 82715-2J060 | ||||
| 82715-2J070 | ||||
| 82715-2J080 | ||||
| 82715-2J140 | ||||
| 82715-2J150 | ||||
| 82715-2J160 | ||||
| 82715-2J170 | ||||
| 82715-2J180 | ||||
| 82715-2J190 | ||||
| 82715-2J200 | ||||
| 82715-2J210 | ||||
| 82715-2J230 | ||||
| 82729-28050 | ||||
| 82729-28060 | ||||
| 82729-28070 | ||||
| 82729-28080 | ||||
| 82729-28090 | ||||
| 82729-28100 | ||||
| 82729-28110 | ||||
| 82729-28120 | ||||
| 82729-28130 | ||||
| 82729-28140 | ||||
| 90105-10122 | ||||
| 90105-10431 | ||||
| 90179-06274 | ||||
| 91621-40814 | ||||
| 91621-B0616 | ||||
| 91621-J0612 | ||||
| 91621-J0614 | ||||
| 91651-B0614 | ||||

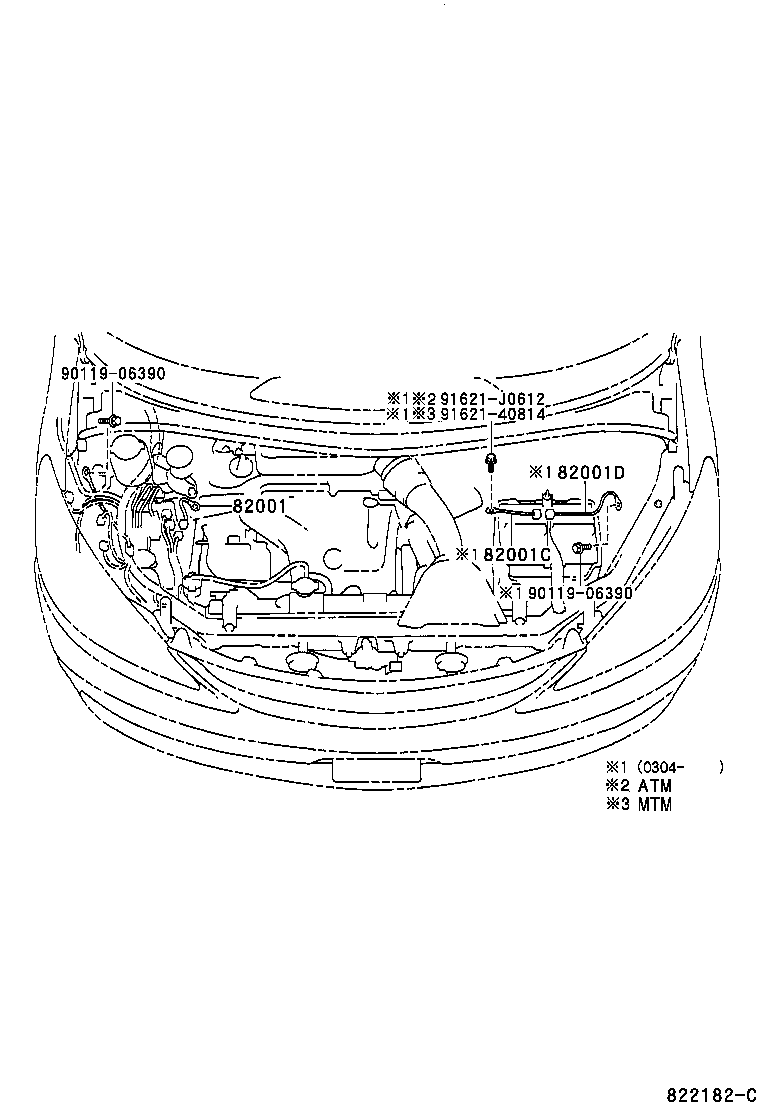

ILLUST NO. 9 OF10(0002- )ACR30
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07280 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 90980-07280 |
ACR30 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07280 |
ACR30..(06S,07S)..MTM |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07353 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91621-40814 | ||||
| 91621-J0612 | ||||

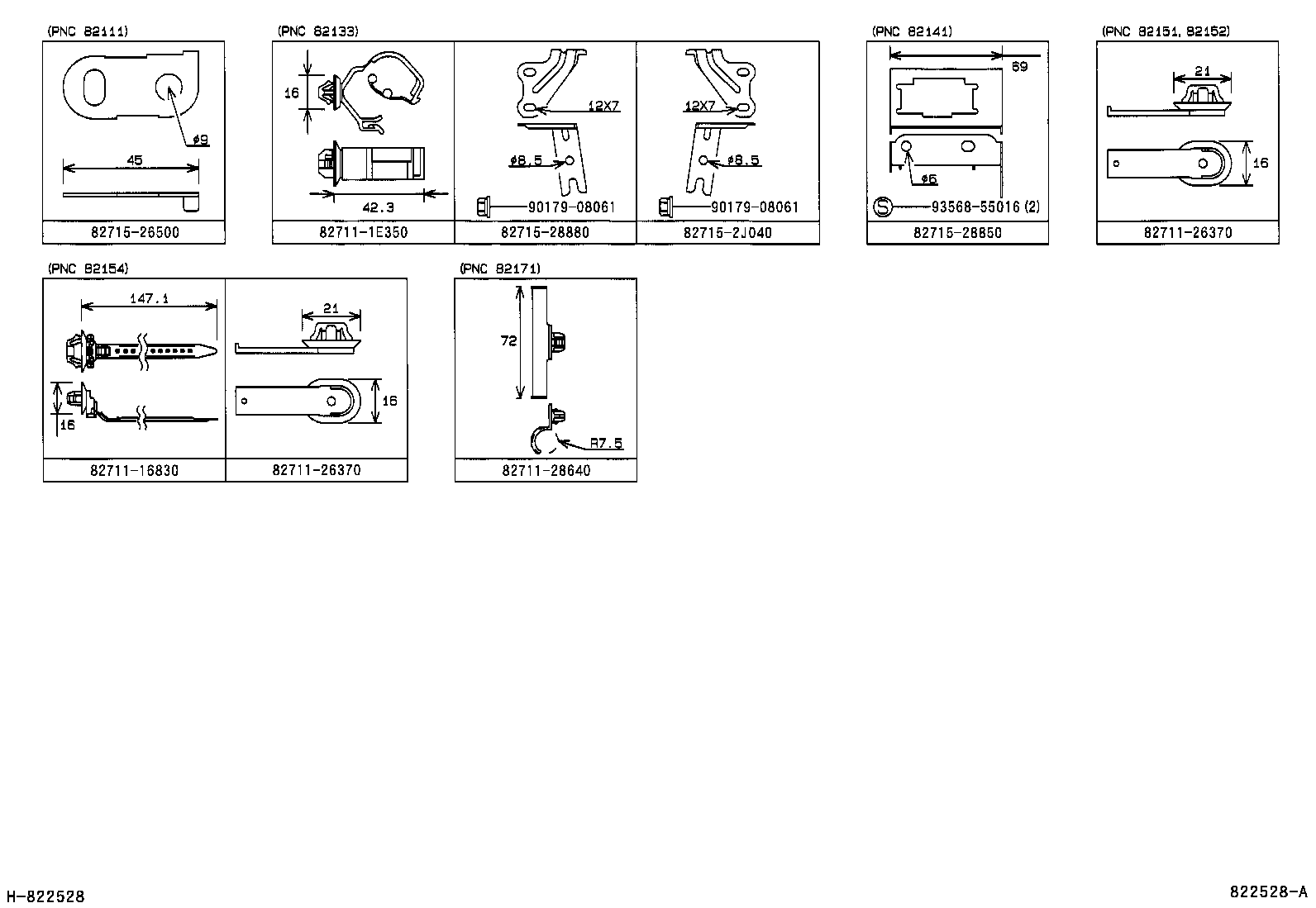

ILLUST NO. 8 OF10(0002- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16830 | ||||
| 82711-1E350 | ||||
| 82711-26370 | ||||
| 82711-28640 | ||||
| 82715-26500 | ||||
| 82715-28850 | ||||
| 82715-28880 | ||||
| 82715-2J040 | ||||
| 90179-08061 | ||||
| 93568-55016 | ||||

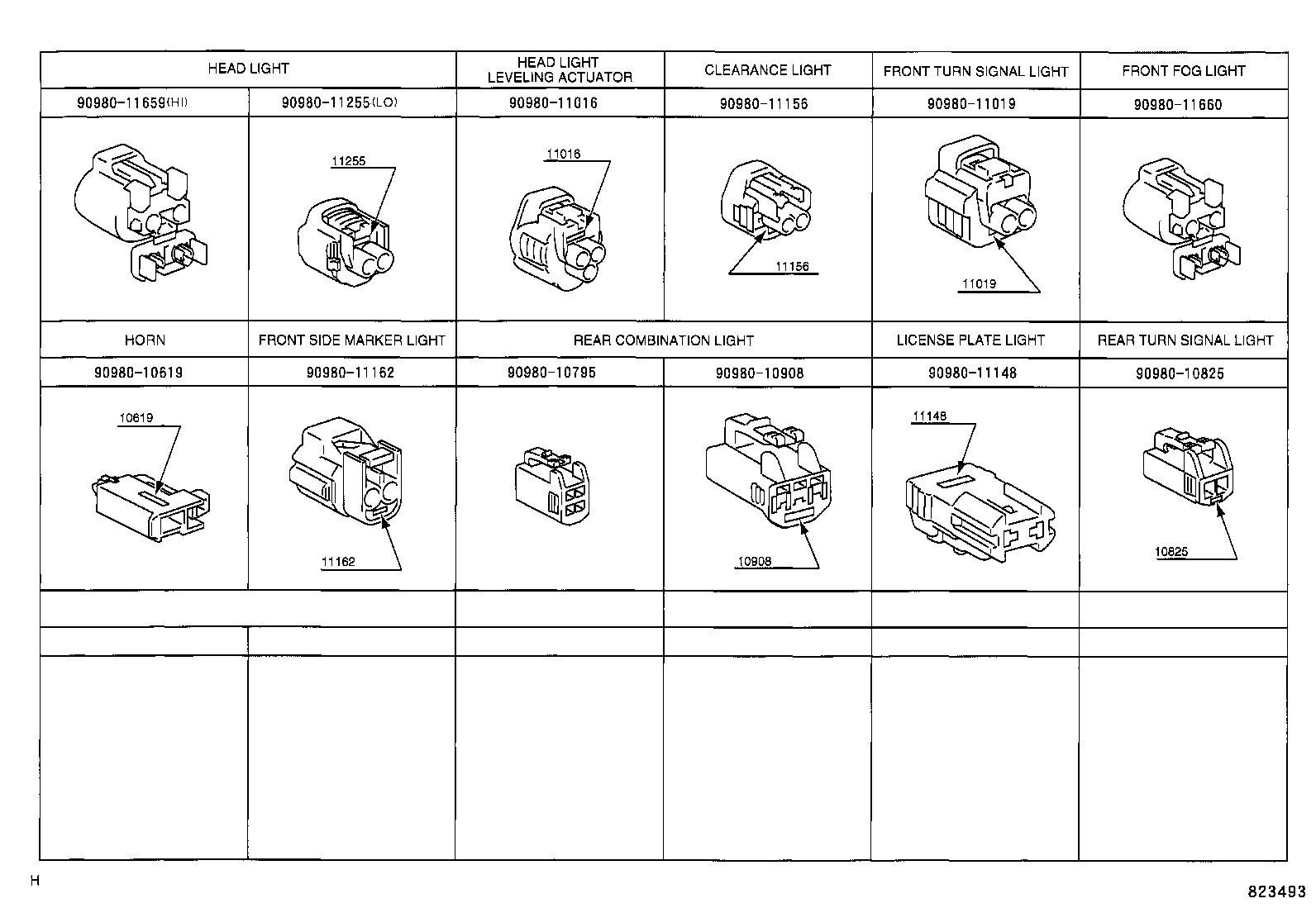

ILLUST NO.10 OF10(0002- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10908 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||

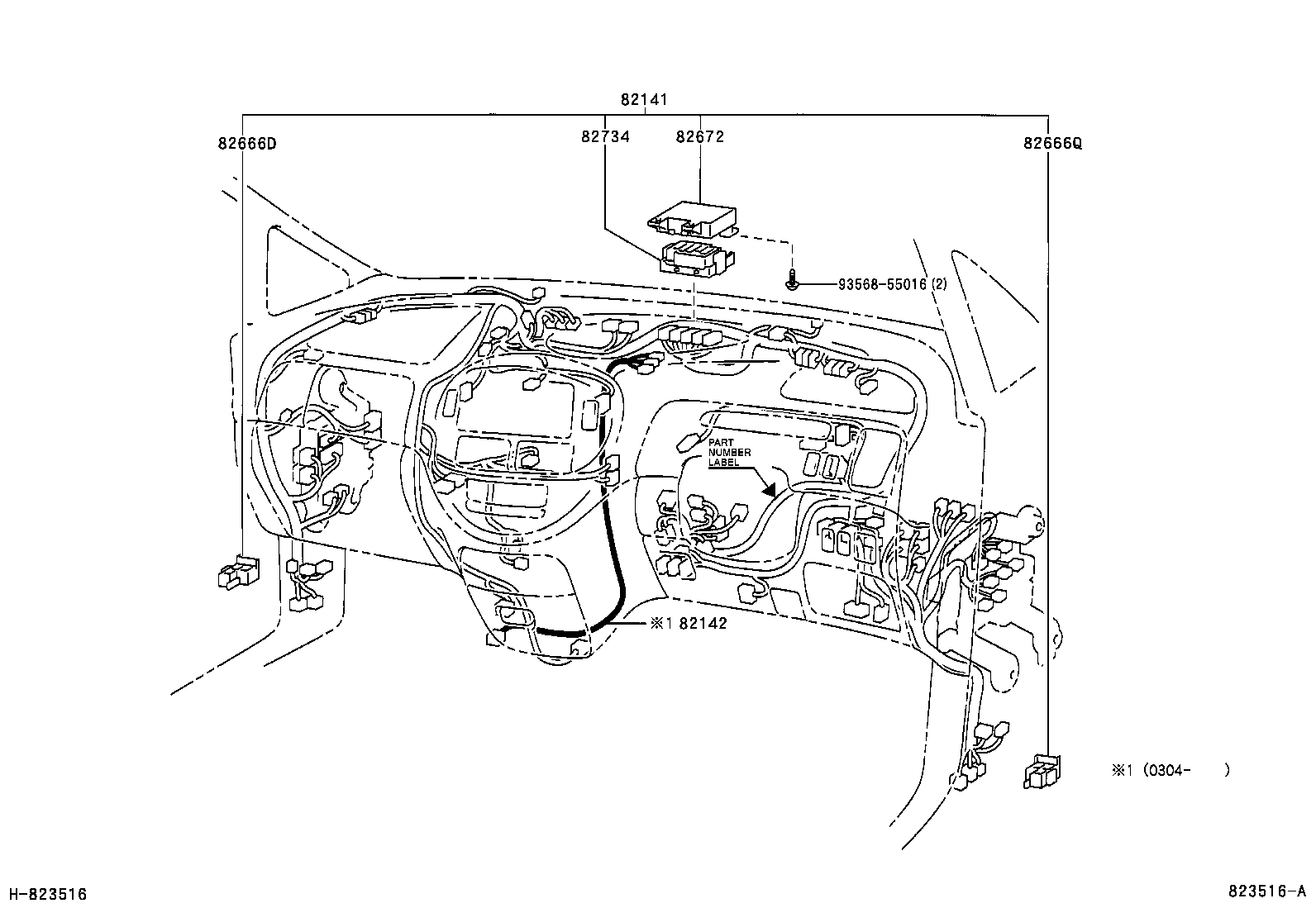

ILLUST NO. 4 OF10(0002- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-28120 |
ACR30..RHD..MTM PART NUMBER LABEL=82141-28120 |
1 | ||
| 82141-28121 |
ACR30..RHD..MTM PART NUMBER LABEL=82141-28121 |
1 | ||
| 82141-28122 |
ACR30..RHD..MTM PART NUMBER LABEL=82141-28122 |
1 | ||
| 82141-28540 |
ACR30..RHD..MTM PART NUMBER LABEL=82141-28540 |
1 | ||
| 82141-2J610 |
ACR30..RHD..MTM PART NUMBER LABEL=82141-2J610 |
1 | ||
| 82141-2J600 |
ACR30..RHD..MTM PART NUMBER LABEL=82141-2J600 |
1 | ||
| 82141-2J611 |
ACR30..RHD..MTM PART NUMBER LABEL=82141-2J611 |
1 | ||
| 82141-2J601 |
ACR30..RHD..MTM PART NUMBER LABEL=82141-2J601 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-28030 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-28210 |
ACR30,CLR30 |
1 | ||
| 82666-28210 |
ACR30,CLR30 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-28220 |
ACR30,CLR30 |
1 | ||
| 82666-28220 |
ACR30,CLR30 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-28050 |
ACR30,CLR30 |
1 | ||
| 82672-28050 |
ACR30,CLR30 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-28010 |
ACR30,CLR30 |
1 | ||
| 82734-28010 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
