ACR30R-MDSDKW (2000)
Toyota Previa/Tarago

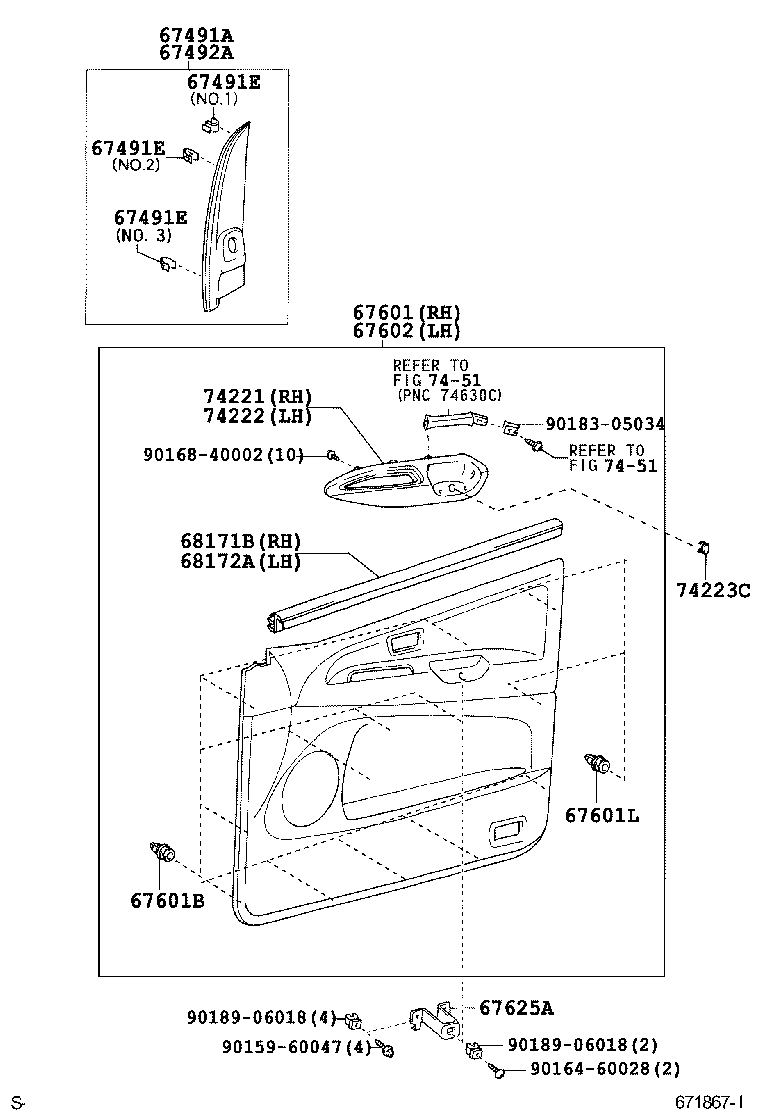

ILLUST NO. 1 OF 3(0002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-28040 |
ACR30,CLR30 |
1 | ||
| 67491E - RETAINER, DOOR TRIM | ||||
| 67771-28080 |
ACR30,CLR30 NO.3 |
2 | ||
| 67771-28090 |
ACR30,CLR30 NO.1 |
2 | ||
| 67771-44010 |
ACR30,CLR30 NO.2 |
2 | ||
| 67491E - RETAINER, DOOR TRIM | ||||
| 67771-28080 |
ACR30,CLR30 NO.3 |
2 | ||
| 67771-28090 |
ACR30,CLR30 NO.1 |
2 | ||
| 67771-44010 |
ACR30,CLR30 NO.2 |
2 | ||
| 67491E - RETAINER, DOOR TRIM | ||||
| 67771-28080 |
ACR30,CLR30 NO.3 |
2 | ||
| 67771-28090 |
ACR30,CLR30 NO.1 |
2 | ||
| 67771-44010 |
ACR30,CLR30 NO.2 |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-28040 |
ACR30,CLR30 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2J010B0 |
ACR30..DX DOOR TRIM=TYPE A-*104,LT.BLUISH GRAY,TRIM11 |
1 | ||
| 67610-2J060B2 |
ACR30,CLR30..DX..(EUR,GEN) DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 67610-2J010B2 |
ACR30,CLR30..DX..(ARL,EUR,GEN) DOOR TRIM=TYPE A-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 67610-2J050B0 |
ACR30,CLR30..(06S,07S)..EUR DOOR TRIM=TYPE G-*104,LT. BLUISH GRAY,TRIM1# |
1 | ||
| 67610-2J060B3 |
ACR30,CLR30..DX..(EUR,GEN) DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),CHARCOAL,TRIM12 |
1 | ||
| 67610-2J080B1 |
ACR30,CLR30..(06S,07S)..EUR DOOR TRIM=TYPE G-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67610-2J010B5 |
ACR30,CLR30..DX..(ARL,EUR,GEN) DOOR TRIM=TYPE A-*104,LT. BLUISH GRAY,TRIM11 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ACR30,CLR30 |
26 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2J010B0 |
ACR30..DX DOOR TRIM=TYPE A-*104,LT.BLUISH GRAY,TRIM11 |
1 | ||
| 67620-2J010B2 |
ACR30,CLR30..DX..(ARL,EUR,GEN) DOOR TRIM=TYPE A-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 67620-2J050B0 |
ACR30,CLR30..(06S,07S)..EUR DOOR TRIM=TYPE G-*104,LT. BLUISH GRAY,TRIM1# |
1 | ||
| 67620-2J060B2 |
ACR30,CLR30..DX..(EUR,GEN) DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 67620-2J080B1 |
ACR30,CLR30..(06S,07S)..EUR DOOR TRIM=TYPE G-*104 & W(WOOD GRAIN),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67620-2J060B3 |
ACR30,CLR30..DX..(EUR,GEN) DOOR TRIM=TYPE A-*104 & W(WOOD GRAIN),CHARCOAL,TRIM12 |
1 | ||
| 67620-2J010B5 |
ACR30,CLR30..DX..(ARL,EUR,GEN) DOOR TRIM=TYPE A-*104,LT. BLUISH GRAY,TRIM11 |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-28040 |
ACR30,CLR30 |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-28050 |
ACR30,CLR30 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-28040 |
ACR30,CLR30 |
1 | ||
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-28030 |
ACR30..GL..ARL;ACR30,CLR30..EUR,GCC,GEN W(WOOD GRAIN) |
1 | ||
| 74221-28010B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 74221-28010B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74222-28010B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 74222-28030 |
ACR30..GL..ARL;ACR30,CLR30..EUR,GCC,GEN W(WOOD GRAIN) |
1 | ||
| 74222-28010B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 74223C - CAP, DOOR ARMREST | ||||
| 74223-28020B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
2 | ||
| 74223-28040 |
ACR30..GL..ARL;ACR30,CLR30..EUR,GCC,GEN W(WOOD GRAIN) |
2 | ||
| 74223-28020B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
2 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90164-60028 | ||||
| 90168-40002 | ||||
| 90183-05034 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7451 | ||||

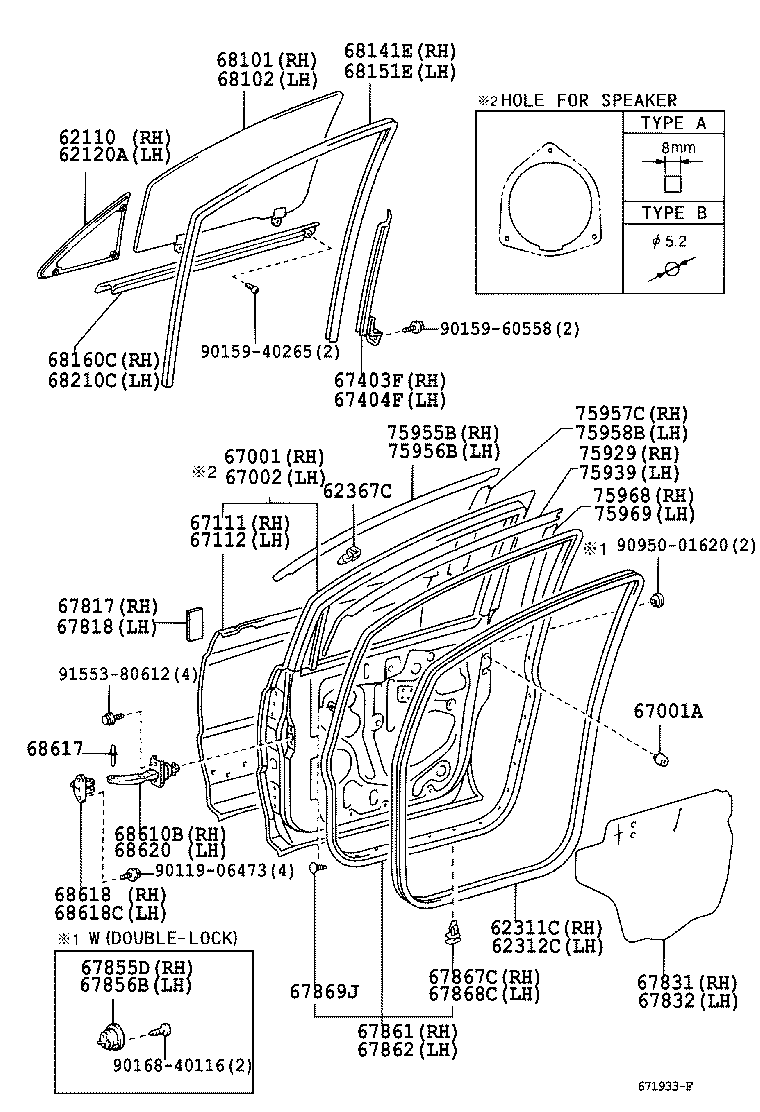

ILLUST NO. 2 OF 3(0002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62110 - WINDOW ASSY, FRONT SIDE FIX, RH | ||||
| 62110-28020 |
ACR30 *TEM,T=3.5,GREEN |
1 | ||
| 62110-28022 |
ACR30,CLR30 *TEM,T=3.5,GREEN |
1 | ||
| 62110-28021 |
ACR30,CLR30 *TEM,T=3.5,GREEN |
1 | ||
| 62120A - WINDOW ASSY, FRONT SIDE FIX, LH | ||||
| 62120-28140 |
ACR30 *TEM,T=3.5,GREEN |
1 | ||
| 62120-28141 |
ACR30,CLR30 *TEM,T=3.5,GREEN |
1 | ||
| 62120-28142 |
ACR30,CLR30 *TEM,T=3.5,GREEN |
1 | ||
| 62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-28090B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 62311-28090B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 62312C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-28090B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 62312-28090B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 62367C - CLIP, DOOR WINDOW GLASS | ||||
| 62367-60030 |
ACR30,CLR30 |
2 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-28121 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 67001-28120 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09065 |
ACR30 |
4 | ||
| 90541-09109 |
ACR30,CLR30 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-28141 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 67002-28140 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-28040 |
ACR30,CLR30 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-28050 |
ACR30,CLR30 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-28070 |
ACR30..RHD..EUR W(DOUBLE-LOCK) |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-28070 |
ACR30..RHD..EUR W(DOUBLE-LOCK) |
1 | ||
| 67817 - PACKING, FRONT DOOR PROTECTOR, RH | ||||
| 67817-28010 |
ACR30,CLR30 |
2 | ||
| 67818 - PACKING, FRONT DOOR PROTECTOR, LH | ||||
| 67817-28010 |
ACR30,CLR30 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-28100 |
ACR30,CLR30 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-28100 |
ACR30,CLR30 |
1 | ||
| 67855D - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-53010 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67855-53010 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-28050 |
ACR30,CLR30 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-28050 |
ACR30,CLR30 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ACR30,CLR30 |
18 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ACR30,CLR30 |
18 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
ACR30,CLR30 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-28210 |
ACR30,CLR30 *TT,T=5.0,GREEN |
1 | ||
| 68101-28211 |
ACR30,CLR30 *TT,T=5.0,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-28211 |
ACR30,CLR30 *TT,T=5.0,GREEN |
1 | ||
| 68102-28210 |
ACR30,CLR30 *TT,T=5.0,GREEN |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-28081 |
ACR30,CLR30 |
1 | ||
| 68141-28080 |
ACR30 |
1 | ||
| 68151E - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-28050 |
ACR30 |
1 | ||
| 68151-28051 |
ACR30,CLR30 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-28040 |
ACR30,CLR30 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-28040 |
ACR30,CLR30 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-28040 |
ACR30,CLR30 |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-53010 |
ACR30,CLR30 |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-20030 |
ACR30,CLR30 |
1 | ||
| 68618C - BRACKET, FRONT DOOR CHECK ARM, LH | ||||
| 68618-20030 |
ACR30,CLR30 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-28040 |
ACR30,CLR30 |
1 | ||
| 75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH | ||||
| 75929-28010 |
ACR30,CLR30 |
1 | ||
| 75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH | ||||
| 75939-28010 |
ACR30,CLR30 |
1 | ||
| 75955B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH | ||||
| 75955-28010 |
ACR30,CLR30 |
1 | ||
| 75956B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH | ||||
| 75956-28010 |
ACR30,CLR30 |
1 | ||
| 75957C - TAPE, BLACK OUT FRONT DOOR, OUTER REAR RH | ||||
| 75957-28010 |
ACR30,CLR30 |
1 | ||
| 75958B - TAPE, BLACK OUT FRONT DOOR, OUTER REAR LH | ||||
| 75958-28010 |
ACR30,CLR30 |
1 | ||
| 75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH | ||||
| 75968-28010 |
ACR30,CLR30 |
1 | ||
| 75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH | ||||
| 75969-28010 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90119-06473 | ||||
| 90159-40265 | ||||
| 90159-60558 | ||||
| 90168-40116 | ||||
| 90950-01620 | ||||
| 91553-80612 | ||||
ILLUST NO. 3 OF 3(0002-0304)
| Part # | Description | Qty | Price |
|---|
