ACR30L-MRSDK (2000)

Toyota Previa/Tarago

Production Feb 2000 - Apr 2003
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

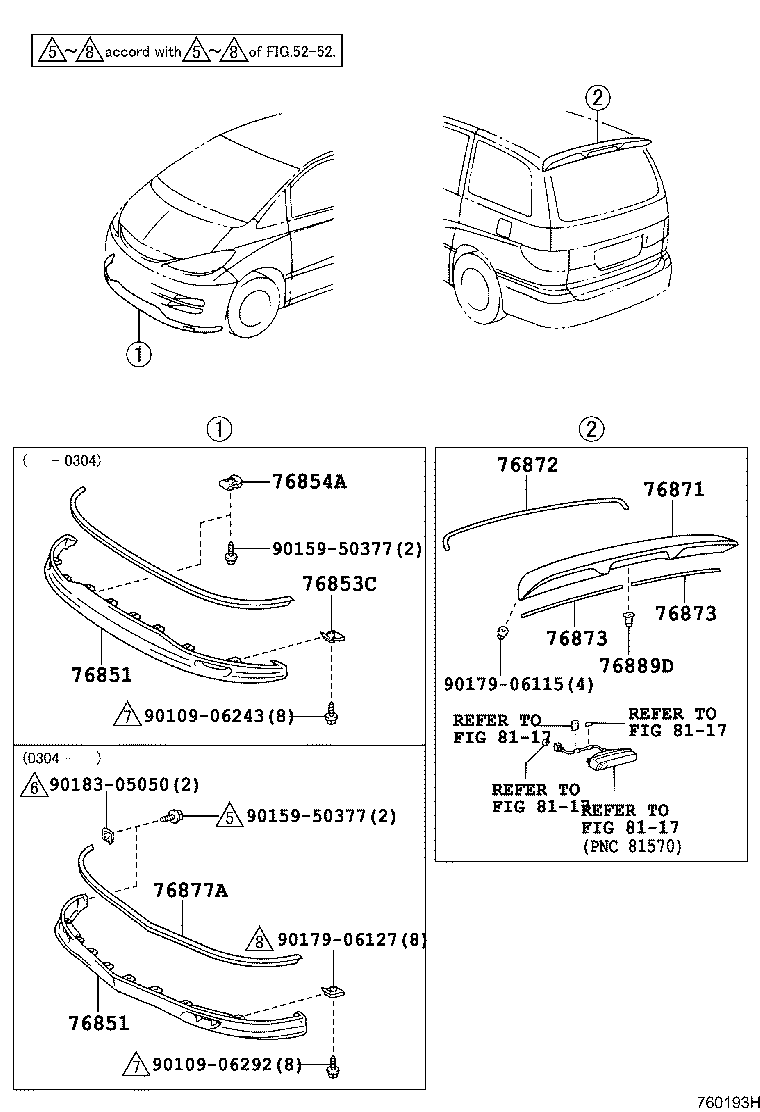

Click highlighted areas on diagram

diagram 76851 76851 76853C 76854A 76871 76872 76873 76873 76877A 76889D 8117 8117 8117 8117 9010906243 9010906292 9015950377 9015950377 9017906115 9017906127 9018305050
Part # Description Qty Price
76871 - SPOILER, REAR
76871-28902

ACR30,CLR30

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-28090

ACR30,CLR30

 1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-28110

ACR30,CLR30

 2
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-28110

ACR30,CLR30

 2
76889D - CLIP, REAR SPOILER, NO.2
76889-44020

ACR30,CLR30

 1
Common parts
90109-06243
90109-06292
90159-50377
90179-06115
90179-06127
90183-05050
Linked diagrams
8117
