ACR30L-MRSDK (2000)
Toyota Previa/Tarago
Production
Feb 2000
-
Apr 2003
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0002- )

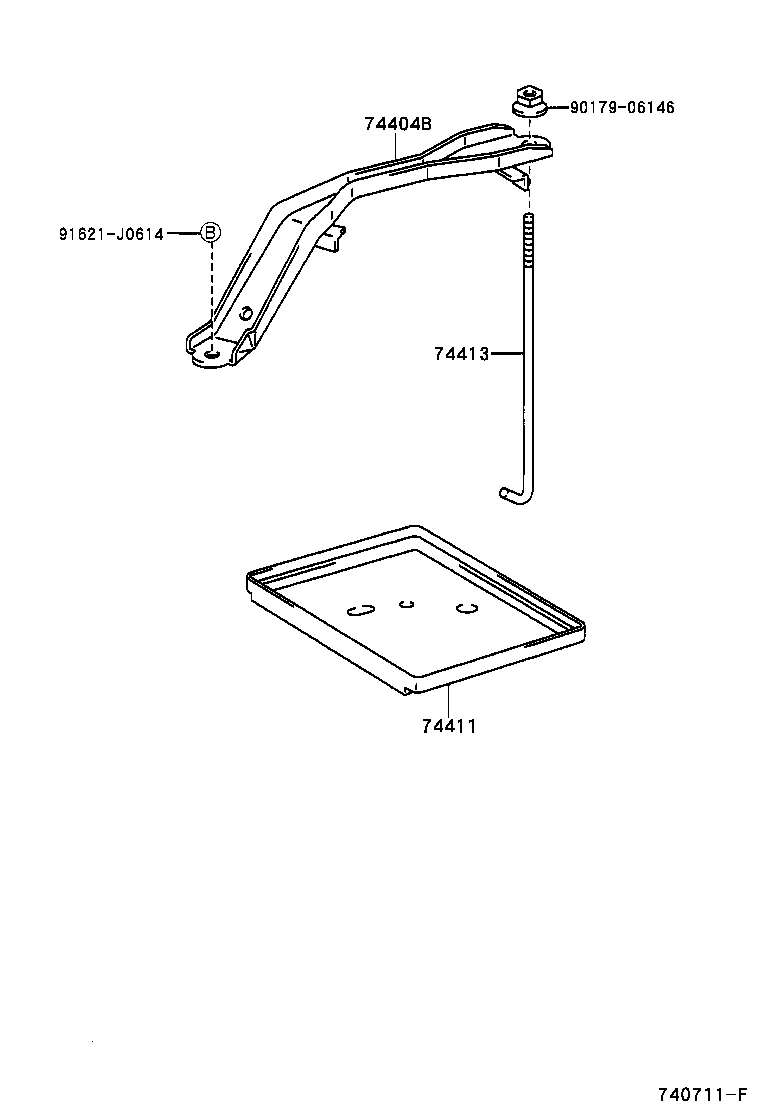

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74404B - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-28110 |
ACR30..ARL,EUR,GEN W(55D23L BATTERY) |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74431-28010 |
ACR30..ARL,EUR,GEN W(55D23L BATTERY) |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-10060 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90179-06146 | ||||
| 91621-J0614 | ||||
