ACR30L-MRSDK (2000)
Toyota Previa/Tarago
Production
Feb 2000
-
Apr 2003
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0002- )2AZFE

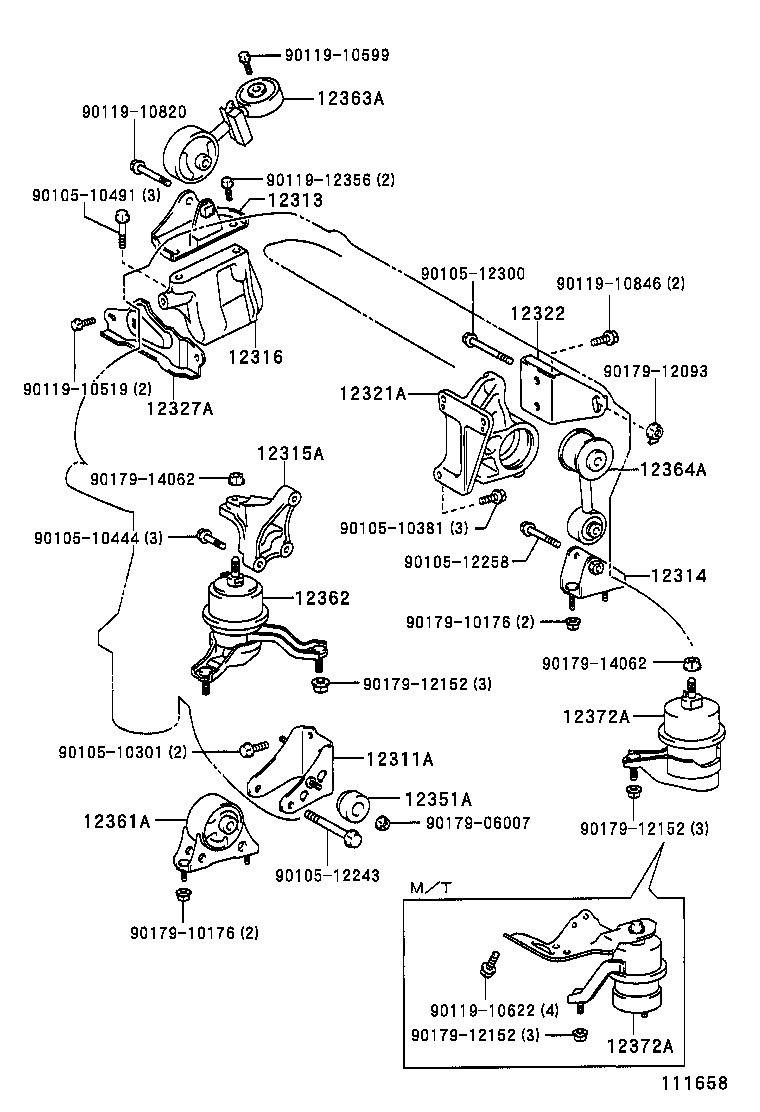

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-28020 |
2AZFE..ACR30 |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-28010 |
2AZFE..ACR30 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-28010 |
2AZFE..ACR30 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-28020 |
2AZFE..ACR30 |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-28010 |
2AZFE..ACR30 |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-28010 |
2AZFE..ACR30 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-28100 |
2AZFE..ACR30..ATM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-28020 |
2AZFE..ACR30 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-28010 |
2AZFE..ACR30 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-28020 |
2AZFE..ACR30..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-28020 |
2AZFE..ACR30..ATM |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10381 | ||||
| 90105-10444 | ||||
| 90105-10491 | ||||
| 90105-12243 | ||||
| 90105-12258 | ||||
| 90105-12300 | ||||
| 90119-10519 | ||||
| 90119-10599 | ||||
| 90119-10622 | ||||
| 90119-10820 | ||||
| 90119-10846 | ||||
| 90119-12356 | ||||
| 90179-06007 | ||||
| 90179-10176 | ||||
| 90179-12093 | ||||
| 90179-12152 | ||||
| 90179-14062 | ||||
