ACR30L-MFSEK (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

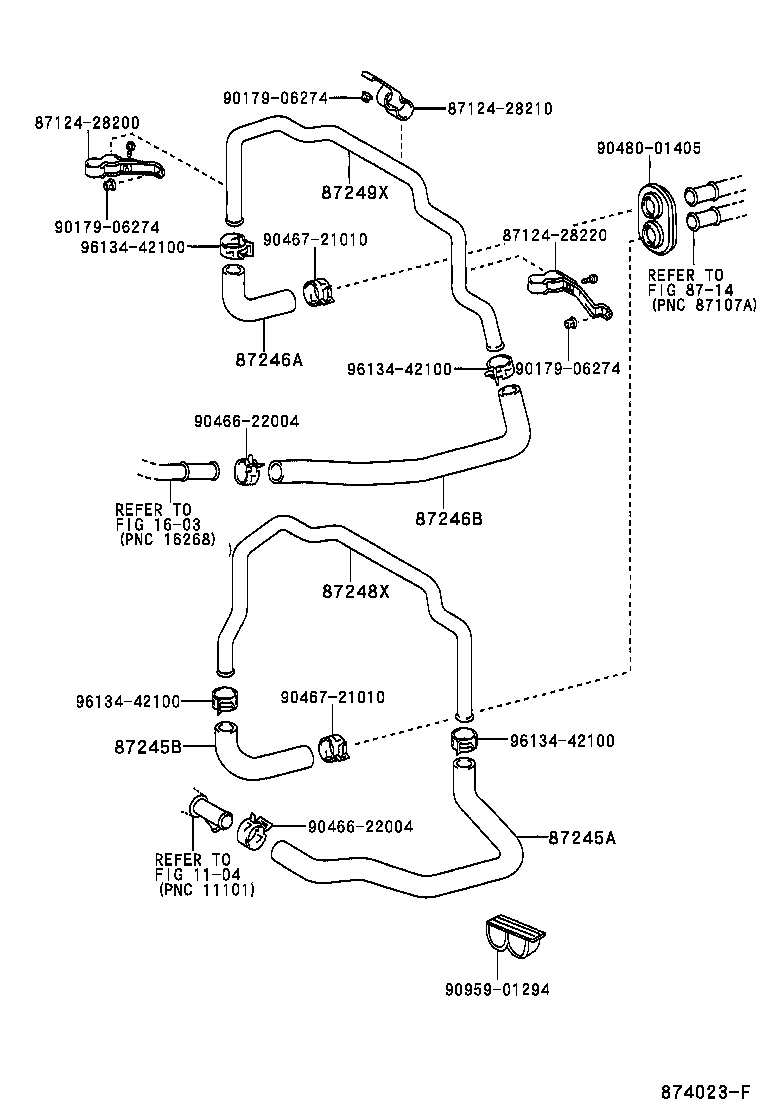

ILLUST NO. 1 OF 2(0002- )ACR30..LHD

Click highlighted areas on diagram

FRONT

diagram 1104 1603 8712428200 8712428210 8712428220 8714 87245A 87245B 87246A 87246B 87248X 87249X 9017906274 9017906274 9017906274 9046622004 9046622004 9046721010 9046721010 9048001405 9095901294 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-2J180

ACR30..EUR,GEN

W(REAR HEATER)

 1
87207-28480

ACR30..LHD..(EUR,GEN)

W(REAR HEATER)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-2J240

ACR30..LHD..(EUR,GEN)

W(REAR HEATER)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J270

ACR30..LHD

 1
87245-2J270

ACR30..LHD

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2J260

ACR30..LHD..(EUR,GEN)

W(REAR HEATER)

 1
87248X - PIPE, HEATER WATER
87248-28030

ACR30..LHD

 1
87248-28330

ACR30..LHD

 1
87249X - PIPE, WATER
87248-28120

ACR30..LHD

 1
87248-28340

ACR30..LHD

 1
Common parts
87124-28200
87124-28210
87124-28220
90179-06274
90466-22004
90467-21010
90480-01405
90959-01294
96134-42100
Linked diagrams
1104
1603
8714

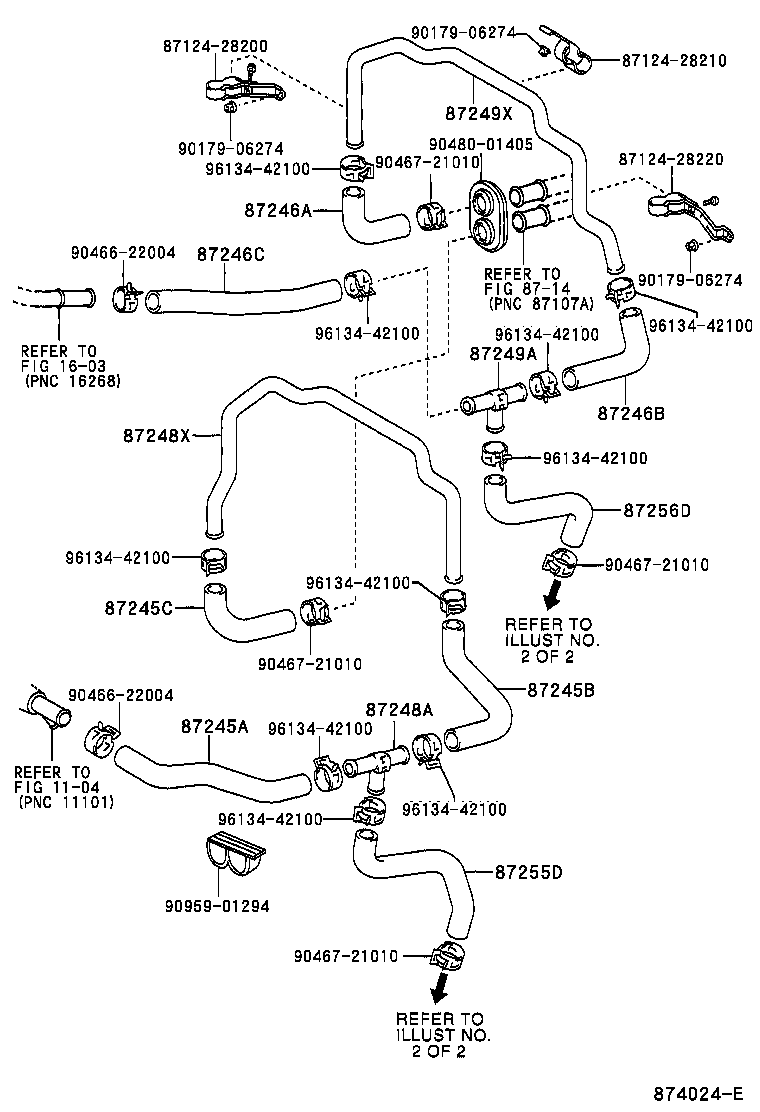

ILLUST NO. 1 OF 2(0002-0304)ACR30..LHD

Click highlighted areas on diagram

FRONT--W(REAR HEATER)

diagram 1104 1603 8712428200 8712428210 8712428220 8714 87245A 87245B 87245C 87246A 87246B 87246C 87248A 87248X 87249A 87249X 87255D 87256D 9017906274 9017906274 9017906274 9046622004 9046622004 9046721010 9046721010 9046721010 9046721010 9048001405 9095901294 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-2J180

ACR30..EUR,GEN

W(REAR HEATER)

 1
87207-28480

ACR30..LHD..(EUR,GEN)

W(REAR HEATER)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-2J240

ACR30..LHD..(EUR,GEN)

W(REAR HEATER)

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-2J250

ACR30..LHD..(EUR,GEN)

 1
87245-2J250

ACR30..LHD..(EUR,GEN)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J270

ACR30..LHD

 1
87245-2J270

ACR30..LHD

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2J260

ACR30..LHD..(EUR,GEN)

W(REAR HEATER)

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-2J210

ACR30..LHD..(EUR,GEN)

 1
87207-28490

ACR30..LHD..(EUR,GEN)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-08030

ACR30,CLR30..EUR,GEN

 1
87248X - PIPE, HEATER WATER
87248-28030

ACR30..LHD

 1
87248-28330

ACR30..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-08030

ACR30,CLR30..EUR,GEN

 1
87249X - PIPE, WATER
87248-28120

ACR30..LHD

 1
87248-28340

ACR30..LHD

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-2J200

ACR30..EUR,GEN

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
87245-2J230

ACR30..EUR,GEN

 1
Common parts
87124-28200
87124-28210
87124-28220
90179-06274
90466-22004
90467-21010
90480-01405
90959-01294
96134-42100
Linked diagrams
1104
1603
8714

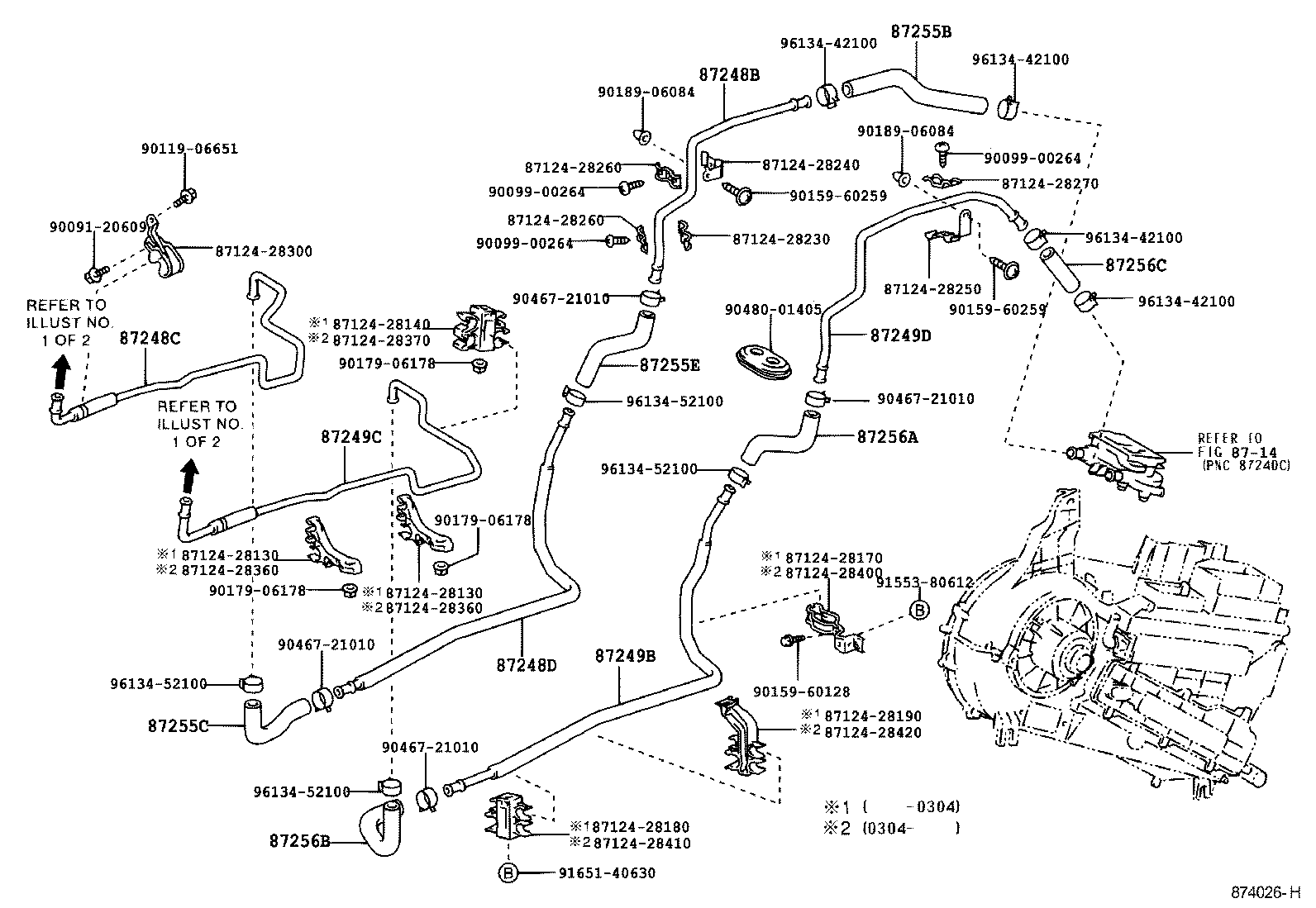

ILLUST NO. 2 OF 2(0002- )LHD

Click highlighted areas on diagram

REAR

diagram 8712428130 8712428130 8712428140 8712428170 8712428180 8712428190 8712428230 8712428240 8712428250 8712428260 8712428260 8712428270 8712428300 8712428360 8712428360 8712428370 8712428400 8712428410 8712428420 8714 87248B 87248C 87248D 87249B 87249C 87249D 87255B 87255C 87255E 87256A 87256B 87256C 9009120609 9009900264 9009900264 9009900264 9011906651 9015960128 9015960259 9015960259 9017906178 9017906178 9017906178 9018906084 9018906084 9046721010 9046721010 9046721010 9046721010 9048001405 9155380612 9165140630 9613442100 9613442100 9613442100 9613442100 9613452100 9613452100 9613452100 9613452100
Part # Description Qty Price
87248B - PIPE, HEATER WATER INLET, B
87248-28190

ACR30,CLR30..EUR,GEN

 1
87248-28190

CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN)

 1
87248C - PIPE, HEATER WATER INLET, C
87248-28130

ACR30..EUR,GEN

 1
87248-28130

ACR30,CLR30..EUR,GEN

 1
87248-28130

ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN)

 1
87248D - PIPE, HEATER WATER INLET, D
87248-28170

ACR30,CLR30..LHD..(EUR,GEN)

 1
87248-28170

ACR30,CLR30..LHD..(EUR,GEN)

 1
87248-28380

ACR30..GEN

W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH)

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-28180

ACR30,CLR30..LHD..(EUR,GEN)

 1
87248-28390

ACR30..GEN

W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH)

 1
87248-28180

ACR30,CLR30..LHD..(EUR,GEN)

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-28140

ACR30..EUR,GEN

 1
87248-28140

ACR30,CLR30..EUR,GEN

 1
87248-28140

ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN)

 1
87249D - PIPE, HEATER WATER OUTLET, D
87248-28350

CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN)

 1
87248-28200

ACR30,CLR30..EUR,GEN

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-2J420

ACR30,CLR30..EUR,GEN

 1
87245-2J420

CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN)

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-2J400

ACR30,CLR30..LHD..(EUR,GEN)

 1
87245-2J400

ACR30,CLR30..LHD..(EUR,GEN)

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-2J380

CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN)

 1
87245-2J380

ACR30,CLR30..EUR,GEN

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-2J390

ACR30,CLR30..EUR,GEN

 1
87245-2J390

CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-2J410

ACR30,CLR30..LHD..(EUR,GEN)

 1
87245-2J410

ACR30,CLR30..LHD..(EUR,GEN)

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-30100

CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN)

*H,L=90

 1
99556-30100

ACR30,CLR30..EUR,GEN

*H,L=90

 1
Common parts
87124-28130
87124-28140
87124-28170
87124-28180
87124-28190
87124-28230
87124-28240
87124-28250
87124-28260
87124-28270
87124-28300
87124-28360
87124-28370
87124-28400
87124-28410
87124-28420
90091-20609
90099-00264
90119-06651
90159-60128
90159-60259
90179-06178
90189-06084
90467-21010
90480-01405
91553-80612
91651-40630
96134-42100
96134-52100
Linked diagrams
8714

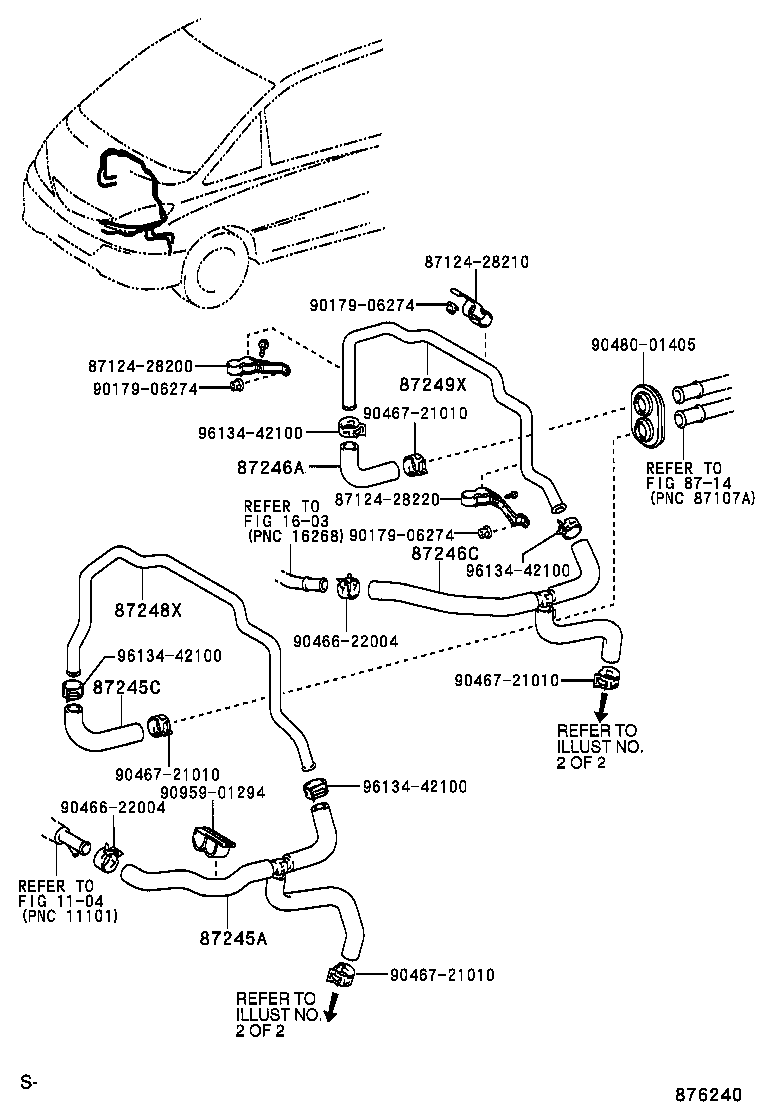

ILLUST NO. 1 OF 2(0304- )ACR30..LHD

Click highlighted areas on diagram

FRONT--W(REAR HEATER)

diagram 1104 1603 8712428200 8712428210 8712428220 8714 87245A 87245C 87246A 87246C 87248X 87249X 9017906274 9017906274 9017906274 9046622004 9046622004 9046721010 9046721010 9046721010 9046721010 9048001405 9095901294 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-2J180

ACR30..EUR,GEN

W(REAR HEATER)

 1
87207-28480

ACR30..LHD..(EUR,GEN)

W(REAR HEATER)

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-2J250

ACR30..LHD..(EUR,GEN)

 1
87245-2J250

ACR30..LHD..(EUR,GEN)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2J270

ACR30..LHD

 1
87245-2J270

ACR30..LHD

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-2J210

ACR30..LHD..(EUR,GEN)

 1
87207-28490

ACR30..LHD..(EUR,GEN)

 1
87248X - PIPE, HEATER WATER
87248-28030

ACR30..LHD

 1
87248-28330

ACR30..LHD

 1
87249X - PIPE, WATER
87248-28120

ACR30..LHD

 1
87248-28340

ACR30..LHD

 1
Common parts
87124-28200
87124-28210
87124-28220
90179-06274
90466-22004
90467-21010
90480-01405
90959-01294
96134-42100
Linked diagrams
1104
1603
8714
