Toyota Previa/Tarago

Production Feb 2000 - Jan 2006

Engine 2AZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0102-0304)

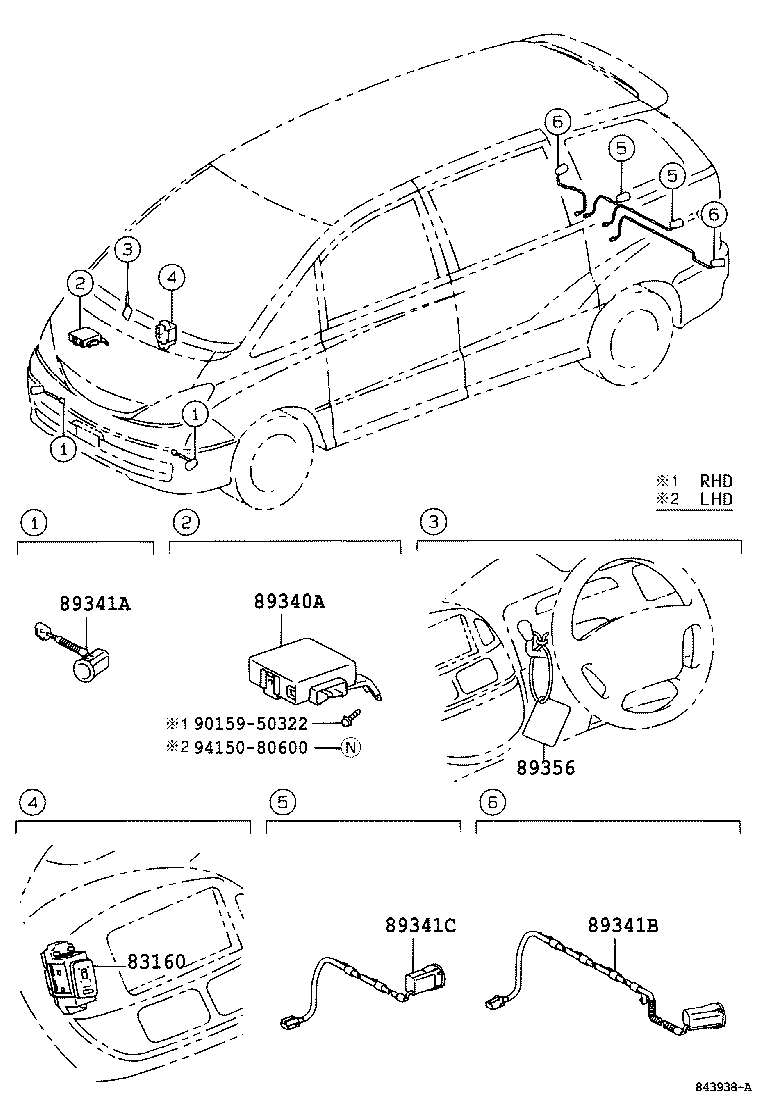

Click highlighted areas on diagram

Part #	Description	Period	Qty
83160 - INDICATOR ASSY, CLEARANCE WARNING
83160-28030	ACR30,CLR30..LHD	02/2001 - 04/2003	1
83160-28030	ACR30..LHD;CLR30..LHD..(06S,07S)	04/2003 - 12/2999	1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-28120	ACR30,CLR30..LHD	02/2001 - 04/2003	1
89340-28150	ACR30,CLR30..LHD	04/2003 - 01/2006	1
89341A - SENSOR, ULTRASONIC, NO.1
89341-28300	ACR30,CLR30	02/2001 - 06/2002	2
89341-28301	ACR30,CLR30	06/2002 - 04/2003	2
89341B - SENSOR, ULTRASONIC, NO.2
89341-28321	ACR30,CLR30 LH	06/2002 - 04/2003	1
89341-28310	ACR30,CLR30 RH	02/2001 - 06/2002	1
89341-28320	ACR30,CLR30 LH	02/2001 - 06/2002	1
89341-28390D0	ACR30,CLR30 SUPER RED MC.,3J7	04/2003 - 01/2006	4
89341-28311	ACR30,CLR30 RH	06/2002 - 04/2003	1
89341-28390B1	ACR30,CLR30 GRAY ME.,1D2	04/2003 - 01/2006	4
89341-28390B0	ACR30,CLR30 SILVER ME.,1C0	04/2003 - 01/2006	4
89341-28390G0	ACR30,CLR30 DK.GREEN MC.,6Q7	04/2003 - 01/2006	4
89341-28390E0	ACR30,CLR30 BEIGE ME.,4R4	04/2003 - 01/2006	4
89341-28390C0	ACR30,CLR30 BLACK,202	04/2003 - 01/2006	4
89341-28390J0	ACR30,CLR30 DK.BLUE M.M.,8P4	04/2003 - 01/2006	4
89341-28390A1	ACR30,CLR30 WHITE,056	04/2003 - 01/2006	4
89341C - SENSOR, ULTRASONIC, NO.3
89341-28340	ACR30,CLR30 LH	02/2001 - 04/2003	1
89341-28410C0	ACR30,CLR30 BLACK,202	04/2003 - 01/2006	2
89341-28330	ACR30,CLR30 RH	02/2001 - 04/2003	1
89341-28410B0	ACR30,CLR30 SILVER ME.,1C0	04/2003 - 01/2006	2
89341-28410G0	ACR30,CLR30 DK.GREEN MC.,6Q7	04/2003 - 01/2006	2
89341-28410E0	ACR30,CLR30 BEIGE ME.,4R4	04/2003 - 01/2006	2
89341-28410J0	ACR30,CLR30 DK.BLUE M.M.,8P4	04/2003 - 01/2006	2
89341-28410B1	ACR30,CLR30 GRAY ME.,1D2	04/2003 - 01/2006	2
89341-28410A1	ACR30,CLR30 WHITE,056	04/2003 - 01/2006	2
89341-28410D0	ACR30,CLR30 SUPER RED MC.,3J7	04/2003 - 01/2006	2
89356 - LABEL, CLEARANCE WARNING INFORMATION
89356-28040	ACR30,CLR30	02/2001 - 04/2003	1
Common parts
90159-50322
94150-80600

(0304- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
83160 - INDICATOR ASSY, CLEARANCE WARNING
83160-28030	ACR30,CLR30..LHD	02/2001 - 04/2003	1
83160-28030	ACR30..LHD;CLR30..LHD..(06S,07S)	04/2003 - 12/2999	1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-28120	ACR30,CLR30..LHD	02/2001 - 04/2003	1
89340-28150	ACR30,CLR30..LHD	04/2003 - 01/2006	1
89341B - SENSOR, ULTRASONIC, NO.2
89341-28321	ACR30,CLR30 LH	06/2002 - 04/2003	1
89341-28310	ACR30,CLR30 RH	02/2001 - 06/2002	1
89341-28320	ACR30,CLR30 LH	02/2001 - 06/2002	1
89341-28390D0	ACR30,CLR30 SUPER RED MC.,3J7	04/2003 - 01/2006	4
89341-28311	ACR30,CLR30 RH	06/2002 - 04/2003	1
89341-28390B1	ACR30,CLR30 GRAY ME.,1D2	04/2003 - 01/2006	4
89341-28390B0	ACR30,CLR30 SILVER ME.,1C0	04/2003 - 01/2006	4
89341-28390G0	ACR30,CLR30 DK.GREEN MC.,6Q7	04/2003 - 01/2006	4
89341-28390E0	ACR30,CLR30 BEIGE ME.,4R4	04/2003 - 01/2006	4
89341-28390C0	ACR30,CLR30 BLACK,202	04/2003 - 01/2006	4
89341-28390J0	ACR30,CLR30 DK.BLUE M.M.,8P4	04/2003 - 01/2006	4
89341-28390A1	ACR30,CLR30 WHITE,056	04/2003 - 01/2006	4
89341C - SENSOR, ULTRASONIC, NO.3
89341-28340	ACR30,CLR30 LH	02/2001 - 04/2003	1
89341-28410C0	ACR30,CLR30 BLACK,202	04/2003 - 01/2006	2
89341-28330	ACR30,CLR30 RH	02/2001 - 04/2003	1
89341-28410B0	ACR30,CLR30 SILVER ME.,1C0	04/2003 - 01/2006	2
89341-28410G0	ACR30,CLR30 DK.GREEN MC.,6Q7	04/2003 - 01/2006	2
89341-28410E0	ACR30,CLR30 BEIGE ME.,4R4	04/2003 - 01/2006	2
89341-28410J0	ACR30,CLR30 DK.BLUE M.M.,8P4	04/2003 - 01/2006	2
89341-28410B1	ACR30,CLR30 GRAY ME.,1D2	04/2003 - 01/2006	2
89341-28410A1	ACR30,CLR30 WHITE,056	04/2003 - 01/2006	2
89341-28410D0	ACR30,CLR30 SUPER RED MC.,3J7	04/2003 - 01/2006	2
Common parts
94150-80600
