ACR30L-MFSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002-0304)GL..GEN ; (0002-0304)LHD..EUR,GCC

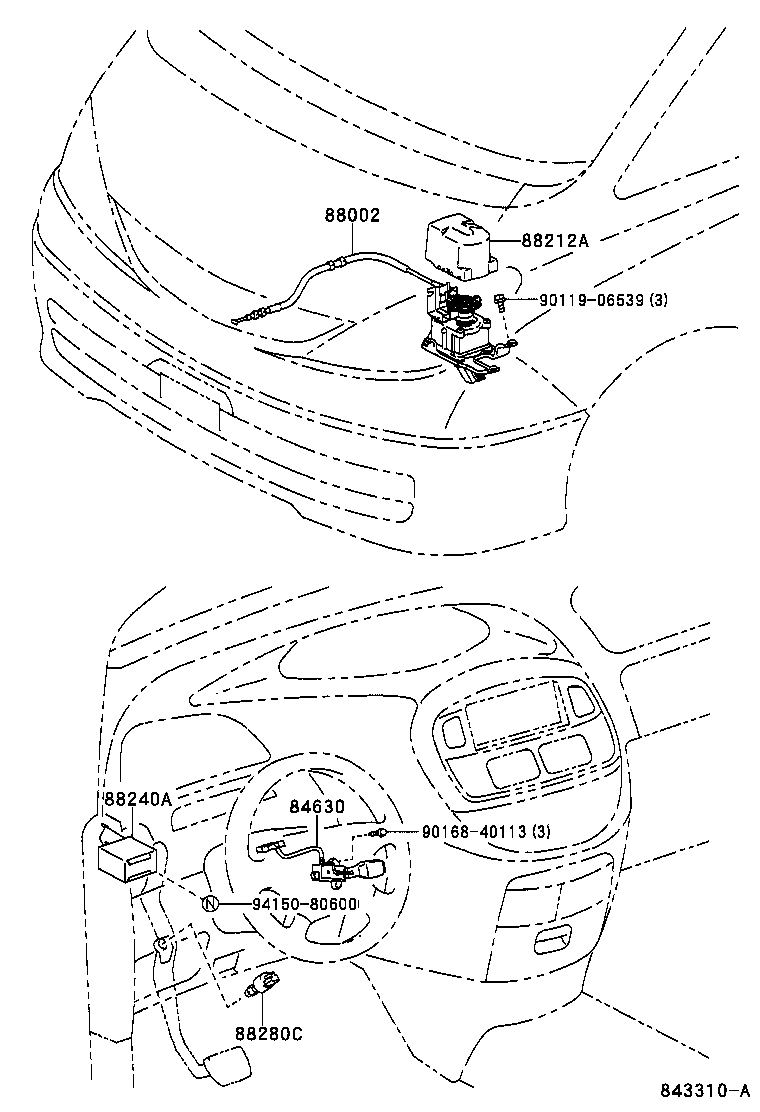

Click highlighted areas on diagram

diagram 84630 88002 88212A 88240A 88280C 9011906539 9016840113 9415080600
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-28070

ACR30..GL..GEN;ACR30,CLR30..ARL,EUR,GCC

 1
84632-34010

ACR30,CLR30

 1
84632-34011

ACR30,CLR30

 1
88002 - CRUISE CONTROL(AUTO DRIVE) SET
88002-28110

ACR30..GL..GEN;ACR30..ARL,EUR,GCC

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-33010

ACR30..GL..GEN;ACR30..ARL,EUR,GCC

 1
88240A - COMPUTER ASSY, DISTANCE CONTROL
88240-28210

ACR30..GL..GEN;ACR30..LHD..(EUR,GCC)

 1
Common parts
90119-06539
90168-40113
94150-80600

(0304- )LHD

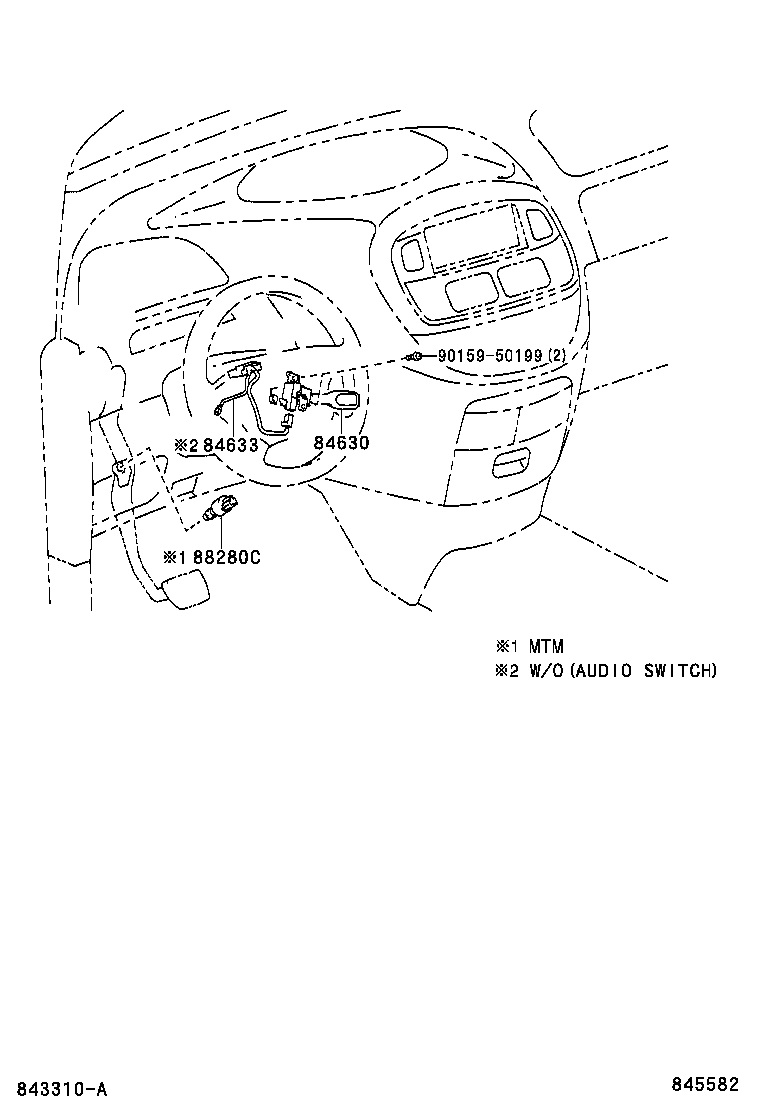

Click highlighted areas on diagram

diagram 84630 84633 88280C 9015950199
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-28070

ACR30..GL..GEN;ACR30,CLR30..ARL,EUR,GCC

 1
84632-34010

ACR30,CLR30

 1
84632-34011

ACR30,CLR30

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-34010

ACR30,CLR30

 1
Common parts
90159-50199
