ACR30L-MFSDKW (2000)
Toyota Previa/Tarago
ILLUST NO. 1 OF 2(0002- )ACR30

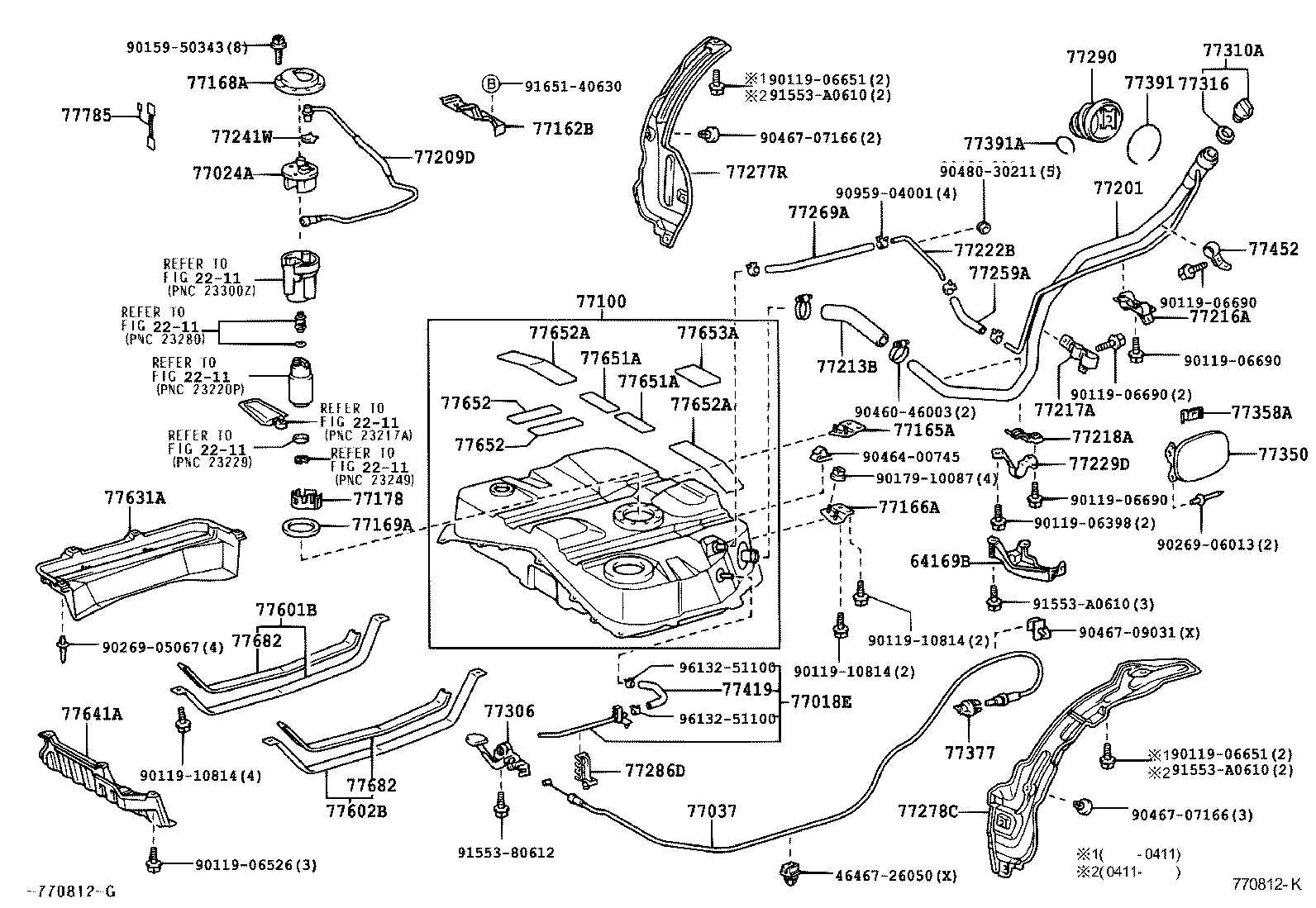

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64169B - PROTECTOR, FUEL INLET | ||||
| 64169-28010 |
ACR30,CLR30 |
1 | ||
| 64169-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-28100 |
ACR30 |
1 | ||
| 77018-28101 |
ACR30 |
1 | ||
| 77018-28101 |
ACR30 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-30070 |
ACR30 |
1 | ||
| 77024-30070 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-28030 |
ACR30..LHD..(07S,08S)..ATM |
1 | ||
| 77037-28030 |
ACR30..LHD..(07S,08S)..ATM;ACR30,CLR30..LHD..08S..MTM |
1 | ||
| 77037-28050 |
ACR30..LHD..07S..EUR W(REAR DETACHABLE SEAT) |
1 | ||
| 77037-28050 |
ACR30..LHD..07S..EUR W(REAR DETACHABLE SEAT) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-28500 |
ACR30,CLR30..EUR |
1 | ||
| 77001-28502 |
ACR30,CLR30 |
1 | ||
| 77001-28502 |
ACR30,CLR30 |
1 | ||
| 77001-28501 |
ACR30,CLR30 |
1 | ||
| 77162B - BRACKET, FUEL TANK REAR PROTECTOR | ||||
| 77162-28010 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..EUR |
1 | ||
| 77162-28010 |
ACR30,CLR30..ARL,EUR |
1 | ||
| 77165A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 RH | ||||
| 77165-28020 |
ACR30,CLR30 |
1 | ||
| 77165-28020 |
ACR30,CLR30 |
1 | ||
| 77166A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 LH | ||||
| 77166-28040 |
ACR30,CLR30 |
1 | ||
| 77166-28040 |
ACR30,CLR30 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
ACR30,CLR30 |
1 | ||
| 77168-33050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77168-12240 |
ACR30,CLR30 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 77169-33020 |
ACR30 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77175-47010 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 77175-47010 |
ACR30 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-28210 |
ACR30 |
1 | ||
| 77201-28210 |
ACR30..ARL,EUR |
1 | ||
| 77201-28211 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 77201-28211 |
ACR30..ARL,EUR,GEN |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-28021 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77209-28021 |
ACR30,CLR30 |
1 | ||
| 77209-28020 |
ACR30,CLR30 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-28030 |
ACR30,CLR30 MARK=NBR+PVC |
1 | ||
| 77213-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S MARK=NBR+PVC |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-28070 |
ACR30,CLR30 |
1 | ||
| 77216-28070 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-28080 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77217-28080 |
ACR30,CLR30 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-28030 |
ACR30,CLR30 |
1 | ||
| 77218-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77222B - TUBE, FUEL TANK BREATHER, NO.2 | ||||
| 77222-28060 |
ACR30,CLR30 |
1 | ||
| 77222-28060 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4 | ||||
| 77229-28050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77229-28050 |
ACR30,CLR30 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ACR30 |
1 | ||
| 77241-33011 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-28060 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S L=104 |
1 | ||
| 77259-28060 |
ACR30,CLR30 L=104 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77269-28010 |
ACR30,CLR30 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-28030 |
ACR30,CLR30 |
1 | ||
| 77277-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-28010 |
ACR30,CLR30 |
1 | ||
| 77278-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-28020 |
ACR30,CLR30 |
1 | ||
| 77286-28020 |
ACR30,CLR30 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-28020 |
ACR30,CLR30 |
1 | ||
| 77291-28020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-28040 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
ACR30..08S..ATM..EUR;ACR30..(06S,07S)..EUR |
1 | ||
| 77300-28010 |
ACR30..EUR |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77316-16010 |
ACR30,CLR30 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-28010 |
ACR30,CLR30 |
1 | ||
| 77350-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-30060 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77358-48010 |
ACR30 |
1 | ||
| 77358-30060 |
ACR30,CLR30 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-28010 |
ACR30,CLR30 |
1 | ||
| 77391-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-28020 |
ACR30,CLR30 |
1 | ||
| 77391-28020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 77419-28010 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 77419-28010 |
ACR30 |
1 | ||
| 77452 - SUPPORT, FUEL INLET HOSE PROTECTOR, NO.1 | ||||
| 77452-28010 |
ACR30,CLR30 |
1 | ||
| 77452-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-28080 |
ACR30,CLR30 |
1 | ||
| 77601-28080 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77602-28010 |
ACR30,CLR30 |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77631-28010 |
ACR30,CLR30 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-28080 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77641-28080 |
ACR30,CLR30 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-44010 |
ACR30,CLR30 |
2 | ||
| 77651-44010 |
ACR30,CLR30 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-44010 |
ACR30,CLR30 |
2 | ||
| 77651-44010 |
ACR30,CLR30 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77653-26040 |
ACR30,CLR30 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77653-26040 |
ACR30,CLR30 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-28020 |
ACR30,CLR30 |
2 | ||
| 77652-28020 |
ACR30,CLR30 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-28020 |
ACR30,CLR30 |
2 | ||
| 77652-28020 |
ACR30,CLR30 |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-60060 |
ACR30,CLR30 |
1 | ||
| 77653-60060 |
ACR30,CLR30 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-16010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 77682-16010 |
ACR30,CLR30 |
2 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-16010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 77682-16010 |
ACR30,CLR30 |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 77785-52020 |
ACR30 |
1 | ||
| Common parts | ||||
| 46467-26050 | ||||
| 90119-06398 | ||||
| 90119-06526 | ||||
| 90119-06651 | ||||
| 90119-06690 | ||||
| 90119-10814 | ||||
| 90159-50343 | ||||
| 90179-10087 | ||||
| 90269-05067 | ||||
| 90269-06013 | ||||
| 90460-46003 | ||||
| 90464-00745 | ||||
| 90467-07166 | ||||
| 90467-09031 | ||||
| 90480-30211 | ||||
| 90959-04001 | ||||
| 91553-80612 | ||||
| 91553-A0610 | ||||
| 91651-40630 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 2 OF 2(0002- )ACR30

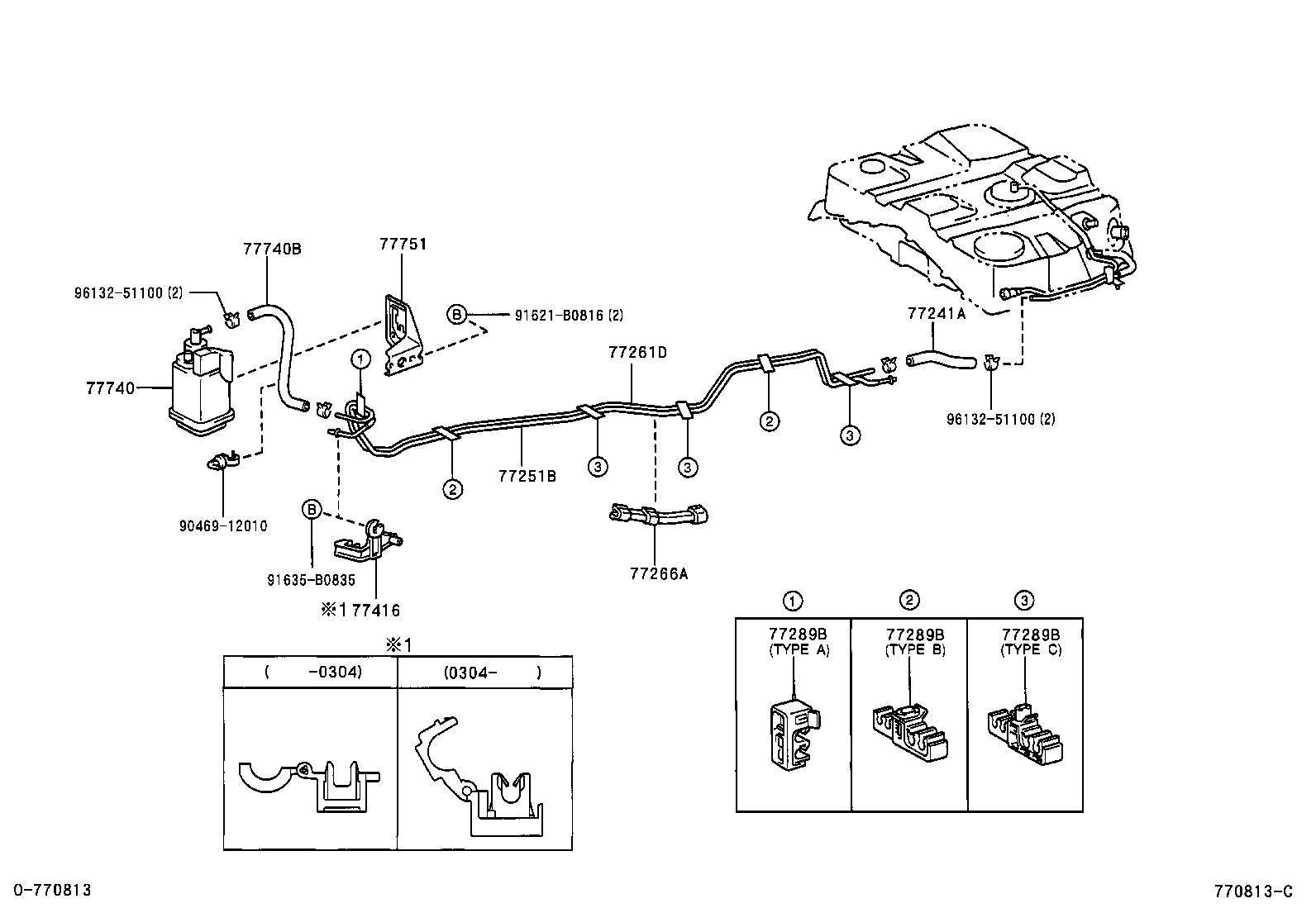

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95337-06020 |
ACR30..06S,07S;ACR30..08S..ATM L=190 |
1 | ||
| 95337-06020 |
ACR30 L=190 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-28170 |
ACR30 |
1 | ||
| 77251-28170 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-28030 |
ACR30 |
1 | ||
| 77261-28030 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-28010 |
ACR30,CLR30 |
1 | ||
| 77266-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77298-28010 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 77298-28010 |
ACR30..ATM;ACR30,CLR30..06S..MTM TYPE B:REFER ILLUST. |
2 | ||
| 77289-28010 |
ACR30..DX..(ARL,GCC);ACR30,CLR30..07S..(ARL,EUR,GCC) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-28010 |
ACR30..DX..(ARL,GCC);ACR30,CLR30..07S..(ARL,EUR,GCC) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 77299-28010 |
ACR30,CLR30 TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77289-28010 |
ACR30..ATM;ACR30,CLR30..06S..MTM TYPE A:REFER ILLUST. |
1 | ||
| 77299-28010 |
ACR30..ATM;ACR30,CLR30..06S..MTM TYPE C:REFER ILLUST. |
3 | ||
| 77289-28010 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77299-28010 |
ACR30..DX..(ARL,GCC);ACR30,CLR30..07S..(ARL,EUR,GCC) TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77298-28010 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 77298-28010 |
ACR30..ATM;ACR30,CLR30..06S..MTM TYPE B:REFER ILLUST. |
2 | ||
| 77289-28010 |
ACR30..DX..(ARL,GCC);ACR30,CLR30..07S..(ARL,EUR,GCC) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-28010 |
ACR30..DX..(ARL,GCC);ACR30,CLR30..07S..(ARL,EUR,GCC) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 77299-28010 |
ACR30,CLR30 TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77289-28010 |
ACR30..ATM;ACR30,CLR30..06S..MTM TYPE A:REFER ILLUST. |
1 | ||
| 77299-28010 |
ACR30..ATM;ACR30,CLR30..06S..MTM TYPE C:REFER ILLUST. |
3 | ||
| 77289-28010 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77299-28010 |
ACR30..DX..(ARL,GCC);ACR30,CLR30..07S..(ARL,EUR,GCC) TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77298-28010 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 77298-28010 |
ACR30..ATM;ACR30,CLR30..06S..MTM TYPE B:REFER ILLUST. |
2 | ||
| 77289-28010 |
ACR30..DX..(ARL,GCC);ACR30,CLR30..07S..(ARL,EUR,GCC) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-28010 |
ACR30..DX..(ARL,GCC);ACR30,CLR30..07S..(ARL,EUR,GCC) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 77299-28010 |
ACR30,CLR30 TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77289-28010 |
ACR30..ATM;ACR30,CLR30..06S..MTM TYPE A:REFER ILLUST. |
1 | ||
| 77299-28010 |
ACR30..ATM;ACR30,CLR30..06S..MTM TYPE C:REFER ILLUST. |
3 | ||
| 77289-28010 |
ACR30,CLR30 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77299-28010 |
ACR30..DX..(ARL,GCC);ACR30,CLR30..07S..(ARL,EUR,GCC) TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 | ||||
| 77416-28030 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 77416-28010 |
ACR30 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-28190 |
ACR30 |
1 | ||
| 77740-28192 |
ACR30 |
1 | ||
| 77740-28192 |
ACR30 |
1 | ||
| 77740-28191 |
ACR30 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95337-06034 |
ACR30..06S,07S;ACR30..08S..ATM L=340 |
1 | ||
| 95337-06034 |
ACR30 L=340 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-28150 |
ACR30 |
1 | ||
| 77751-28150 |
ACR30 |
1 | ||
| Common parts | ||||
| 90469-12010 | ||||
| 91621-B0816 | ||||
| 91635-B0835 | ||||
| 96132-51100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
