ACR30L-MFSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

Click highlighted areas on diagram

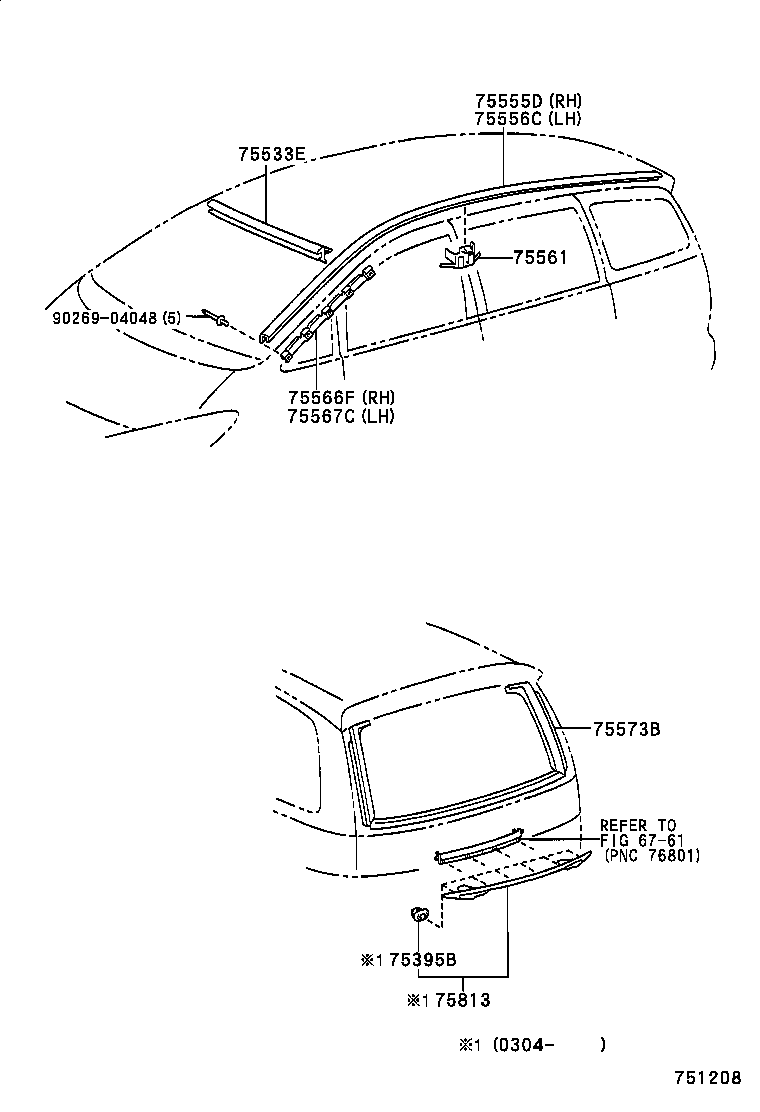

diagram 6761 75395B 75533E 75555D 75556C 75561 75566F 75567C 75573B 75813 9026904048
Part # Description Qty Price
75395B - CLIP, BACK DOOR MOULDING, NO.1
75395-28020

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 6
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-28020

ACR30,CLR30

 1
75533-28020

ACR30,CLR30

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-28021

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
75555-28020

ACR30,CLR30

 1
75555-28020

ACR30,CLR30

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-28020

ACR30,CLR30

 1
75556-28021

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
75556-28020

ACR30,CLR30

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-28060

ACR30,CLR30

 16
75561-28060

ACR30,CLR30

 16
75566F - RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.4 RH
75566-28040

ACR30,CLR30

 1
75566-28040

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
75567C - RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.4 LH
75567-28040

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
75567-28040

ACR30,CLR30

 1
75573B - MOULDING, BACK WINDOW, OUTSIDE
75573-28010

ACR30,CLR30

 1
75573-28010

ACR30,CLR30

 1
75813 - MOULDING, BACK DOOR
75813-28040

ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..EUR

 1
Common parts
90269-04048
Linked diagrams
6761
