ACR30L-MFSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

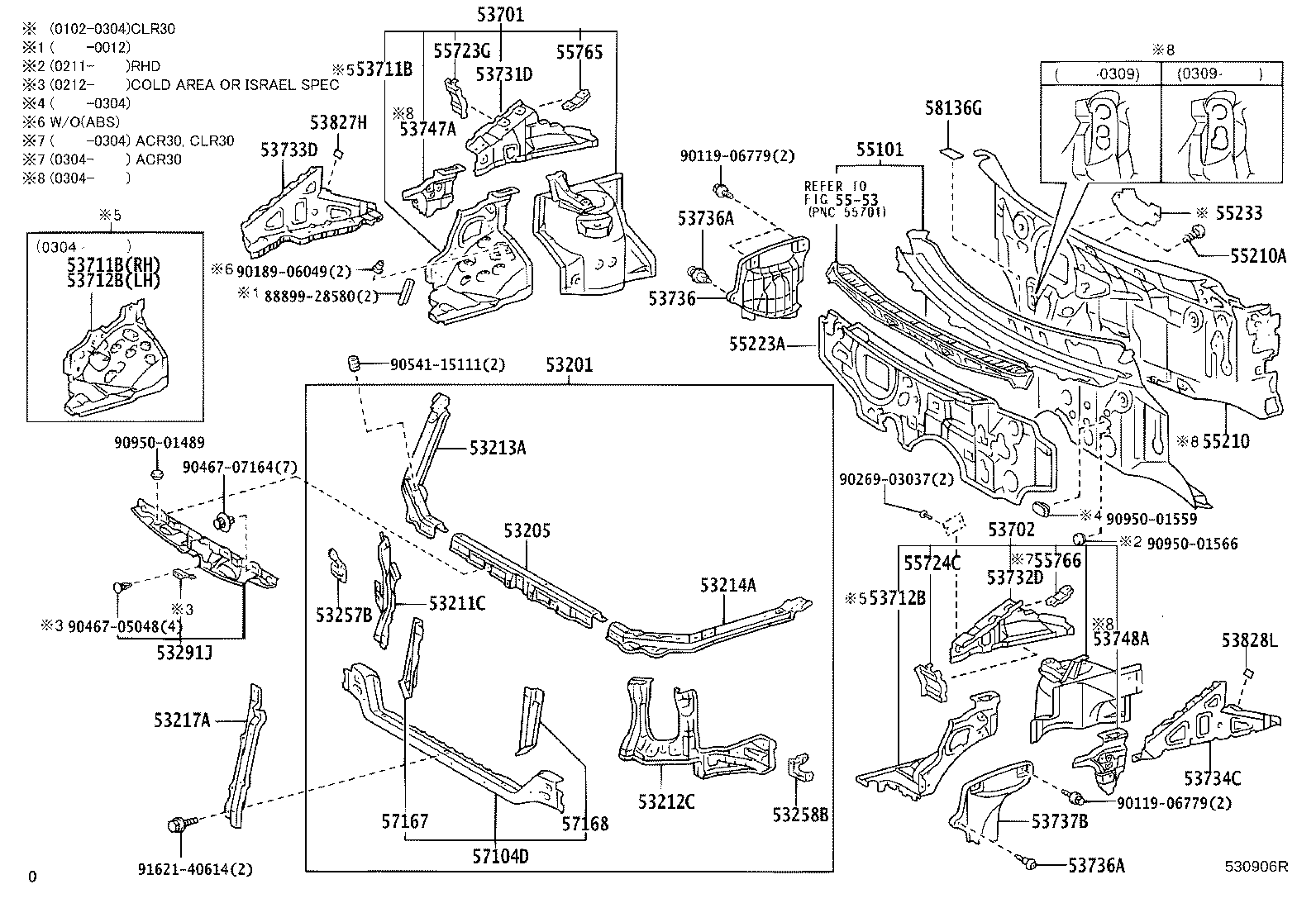

Click highlighted areas on diagram

diagram 53201 53205 53211C 53212C 53213A 53214A 53217A 53257B 53258B 53291J 53701 53702 53711B 53711B 53712B 53712B 53731D 53732D 53733D 53734C 53736 53736A 53736A 53737B 53747A 53748A 53827H 53828L 55101 55210 55210A 55223A 55233 5553 55723G 55724C 55765 55766 57104D 57167 57168 58136G 8889928580 9011906779 9011906779 9018906049 9026903037 9046705048 9046707164 9054115111 9095001489 9095001559 9095001566 9162140614
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-28130

ACR30,CLR30

 1
53201-28130

ACR30,CLR30

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-28160

ACR30,CLR30

 1
53205-28160

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
53211C - SUPPORT, RADIATOR, RH
53211-28090

ACR30,CLR30

 1
53211-28090

ACR30,CLR30

 1
53212C - SUPPORT, RADIATOR, LH
53212-28080

ACR30,CLR30

 1
53212-28080

ACR30,CLR30

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-28020

ACR30,CLR30

 1
53213-28020

ACR30,CLR30

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-28010

ACR30,CLR30

 1
53214-28010

ACR30,CLR30

 1
53217A - BRACE, HOOD LOCK SUPPORT
53209-28040

ACR30,CLR30

 1
53209-28040

ACR30,CLR30

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-28020

ACR30,CLR30

 1
53257-28020

ACR30,CLR30

 1
53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53258-28010

ACR30,CLR30

 1
53258-28010

ACR30,CLR30

 1
53291J - SEAL, RADIATOR SUPPORT
53292-28030

ACR30,CLR30..ARL,EUR,GEN

COLD SPEC

 1
53039-28010

ACR30,CLR30

COLD AREA OR ISRAEL SPEC

 1
53292-28020

ACR30,CLR30..EUR

 1
53292-28020

ACR30,CLR30..EUR

 1
53039-28010

CLR30;ACR30..06S,07S;ACR30..08S..MTM;ACR30..DX..(ARL,GCC)

COLD AREA OR ISRAEL SPEC

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-28800

ACR30,CLR30

 1
53701-28830

ACR30,CLR30

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-28670

ACR30

 1
53702-28670

ACR30..ATM

 1
53702-28710

ACR30..ATM

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-28080

ACR30,CLR30

 1
53711-28080

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
53711-28070

ACR30,CLR30

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-28080

ACR30,CLR30

 1
53711-28080

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
53711-28070

ACR30,CLR30

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-28070

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
53712-28060

ACR30,CLR30

 1
53712-28070

ACR30,CLR30

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-28070

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
53712-28060

ACR30,CLR30

 1
53712-28070

ACR30,CLR30

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-28030

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
53731-28030

ACR30,CLR30

 1
53731-28030

ACR30,CLR30

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-28020

ACR30,CLR30

 1
53732-28020

ACR30,CLR30

 1
53732-28020

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-28010

ACR30,CLR30

 1
53733-28010

ACR30,CLR30

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-28010

ACR30,CLR30

 1
53734-28010

ACR30,CLR30

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-28020

ACR30,CLR30

 1
53736-33030

ACR30,CLR30

 1
53736-33030

ACR30,CLR30

 1
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-07166

ACR30,CLR30

 2
90467-07166

ACR30,CLR30

 2
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-07166

ACR30,CLR30

 2
90467-07166

ACR30,CLR30

 2
53737B - SEAL, FRONT FENDER APRON, LH
53737-28020

ACR30,CLR30

 1
53737-28020

ACR30,CLR30

 1
53747A - EXTENSION, APRON FENDER SIDE, RH
53747-28010

ACR30,CLR30

 1
53747-28010

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
53748A - EXTENSION, APRON FENDER SIDE, LH
53748-28010

ACR30,CLR30

 1
53748-28010

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
53827H - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53878-28060

ACR30,CLR30

 1
53878-28060

ACR30,CLR30

 1
53828L - PROTECTOR, FRONT FENDER SIDE PANEL
53878-28060

ACR30,CLR30

 1
53878-28060

ACR30,CLR30

 1
55101 - PANEL SUB-ASSY, DASH
55110-28060

ACR30..LHD..ATM

 1
55110-28060

ACR30..LHD..ATM

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-28170

ACR30,CLR30..LHD

 1
55210-28130

ACR30,CLR30..LHD

 1
55210A - CLIP
90467-07049C0

ACR30,CLR30

BLACK,TRIM1#

 2
90467-07049C0

ACR30,CLR30

BLACK,TRIM11,12

 2
55223A - INSULATOR, DASH PANEL, OUTER
55223-28030

ACR30..LHD..EUR

 1
55223-28050

ACR30,CLR30..LHD..(EUR,GCC)

 1
55223-28050

ACR30,CLR30..LHD..(EUR,GCC)

 1
55723G - GUSSET, FRONT PANEL, RH
55723-28010

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
55723-28010

ACR30,CLR30

 1
55723-28010

ACR30,CLR30

 1
55724C - GUSSET, FRONT PANEL, LH
55724-28010

ACR30,CLR30

 1
55724-28010

ACR30,CLR30

 1
55724-28010

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
55765 - BRACKET, HOOD DAMPER MOUNTING
55765-28010

ACR30,CLR30

 1
55765-28010

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
55765-28010

ACR30,CLR30

 1
55766 - BRACKET, HOOD DANPER MOUNTING, LH
55765-28010

ACR30,CLR30

 1
55765-28010

ACR30..08S..ATM;ACR30,CLR30..06S,07S

 1
55765-28010

ACR30,CLR30

 1
57104D - MEMBER SUB-ASSY, FRONT CROSS
57104-28110

ACR30,CLR30

 1
57104-28110

ACR30,CLR30

 1
57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH
57167-28030

ACR30,CLR30

 1
57167-28030

ACR30,CLR30

 1
57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH
57168-28030

ACR30,CLR30

 1
57168-28030

ACR30,CLR30

 1
58136G - COVER, FRONT FLOOR HOLE
58136-28030

ACR30,CLR30

 2
58136-28030

ACR30,CLR30

 2
Common parts
88899-28580
90119-06779
90189-06049
90269-03037
90467-05048
90467-07164
90541-15111
90950-01489
90950-01559
90950-01566
91621-40614
Linked diagrams
5553
