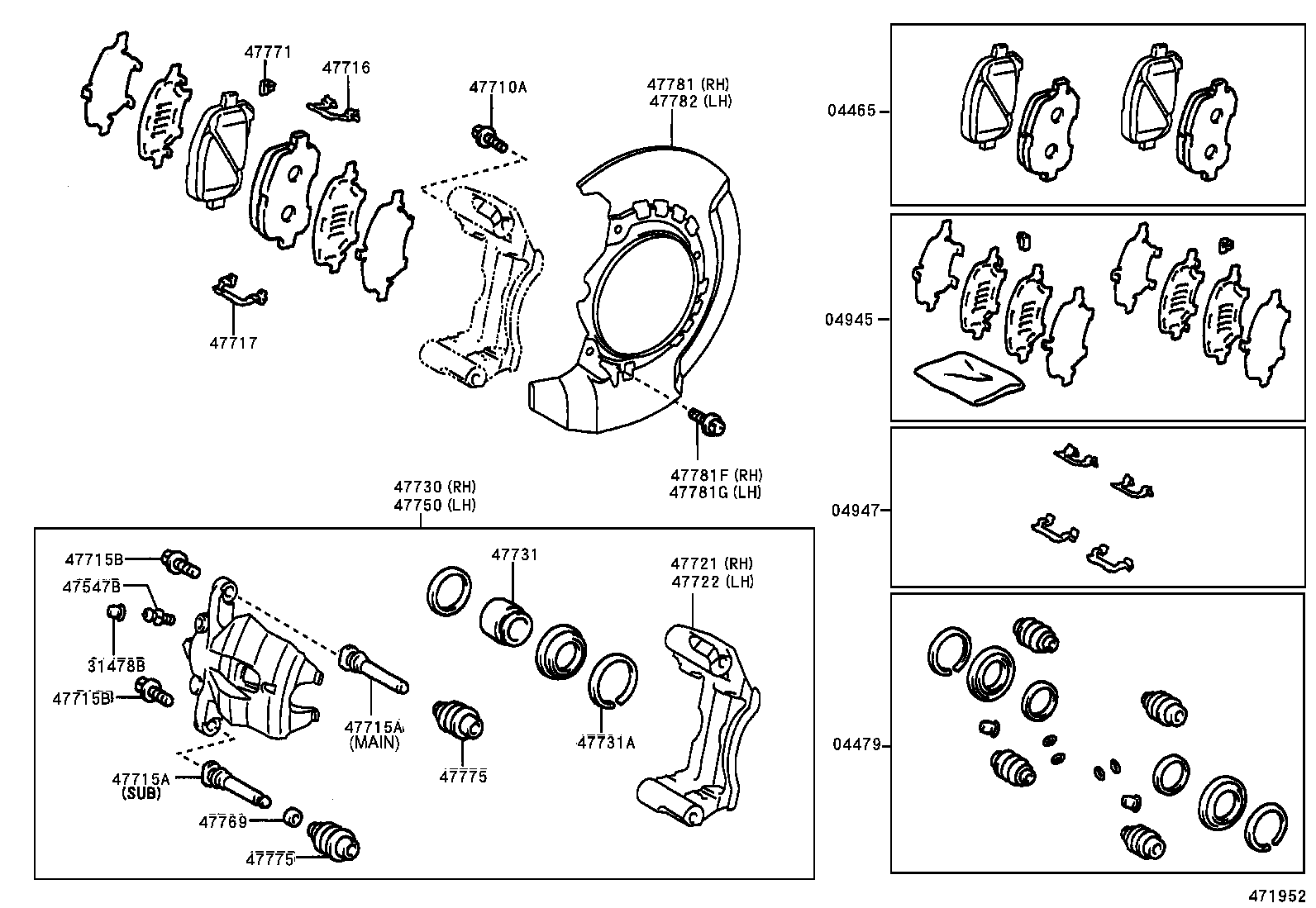

ACR30L-MFSDKW (2000)
Toyota Previa/Tarago
(0002-0304)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-28460 |
ACR30,CLR30..EUR MARK NBK PN532H |
1 | ||
| 04465-28490 |
ACR30,CLR30..EUR,GEN MARK PAGID 660,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-28140 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04479-28110 |
ACR30,CLR30 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-33040 |
ACR30,CLR30 |
1 | ||
| 04945-28170 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-33160 |
ACR30,CLR30 |
1 | ||
| 04947-28060 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
ACR30,CLR30 |
2 | ||
| 31478-30010 |
ACR30,CLR30 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ACR30,CLR30 |
2 | ||
| 47547-20010 |
ACR30,CLR30 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
ACR30,CLR30 *12-1.25PX29.5-23 |
4 | ||
| 90105-12208 |
ACR30,CLR30 *12-1.25PX29.5-23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-48010 |
ACR30,CLR30 SUB PIN SIDE L=72 |
2 | ||
| 47715-48020 |
ACR30,CLR30 MAIN PIN SIDE L=72 |
2 | ||
| 47714-48050 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-48010 |
ACR30,CLR30 SUB PIN SIDE L=72 |
2 | ||
| 47715-48020 |
ACR30,CLR30 MAIN PIN SIDE L=72 |
2 | ||
| 47714-48050 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACR30,CLR30 |
4 | ||
| 90105-08346 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACR30,CLR30 |
4 | ||
| 90105-08346 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-28540 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47716-33080 |
ACR30,CLR30 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-33070 |
ACR30,CLR30 |
2 | ||
| 47717-28540 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-33080 |
ACR30,CLR30 |
1 | ||
| 47721-28030 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-33080 |
ACR30,CLR30 |
1 | ||
| 47721-28030 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-28540 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47730-28260 |
ACR30,CLR30 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-28080 |
ACR30,CLR30 |
2 | ||
| 47731-28540 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-67001 |
ACR30,CLR30 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-28540 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47750-28260 |
ACR30,CLR30 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-33020 |
ACR30,CLR30 |
2 | ||
| 47769-33020 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-33010 |
ACR30,CLR30 |
2 | ||
| 47771-48010 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-33020 |
ACR30,CLR30 |
4 | ||
| 47775-48010 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-33020 |
ACR30,CLR30 |
4 | ||
| 47775-48010 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-28200 |
ACR30,CLR30 |
1 | ||
| 47781-48020 |
ACR30,CLR30 |
1 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90119-06227 |
ACR30,CLR30 |
4 | ||
| 90119-06227 |
ACR30,CLR30 |
4 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90119-06227 |
ACR30,CLR30 |
4 | ||
| 90119-06227 |
ACR30,CLR30 |
4 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-48020 |
ACR30,CLR30 |
1 | ||
| 47782-28200 |
ACR30,CLR30 |
1 | ||

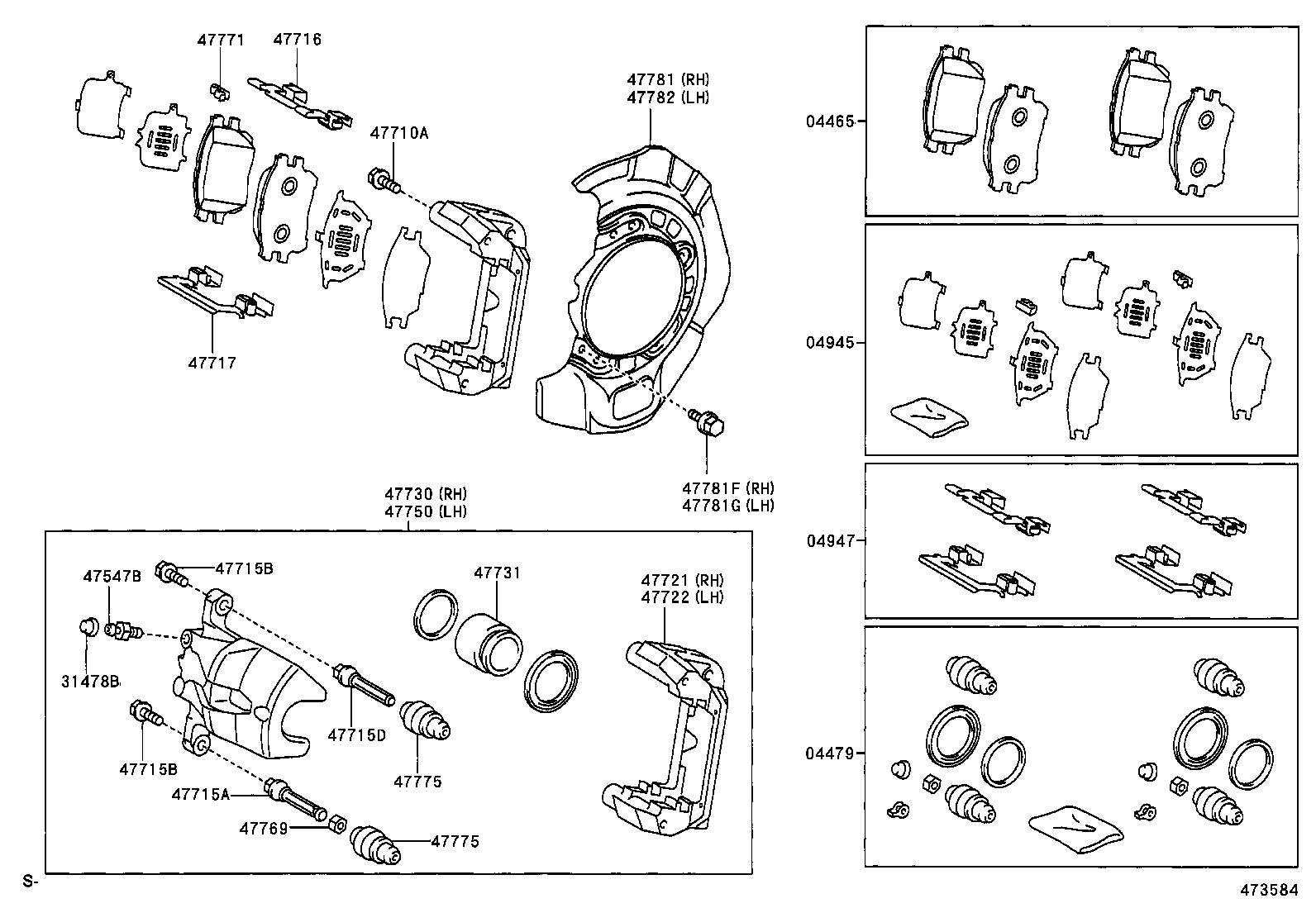

(0304- )EUR,GEN
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-28460 |
ACR30,CLR30..EUR MARK NBK PN532H |
1 | ||
| 04465-28490 |
ACR30,CLR30..EUR,GEN MARK PAGID 660,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-28140 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04479-28110 |
ACR30,CLR30 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-33040 |
ACR30,CLR30 |
1 | ||
| 04945-28170 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-33160 |
ACR30,CLR30 |
1 | ||
| 04947-28060 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
ACR30,CLR30 |
2 | ||
| 31478-30010 |
ACR30,CLR30 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ACR30,CLR30 |
2 | ||
| 47547-20010 |
ACR30,CLR30 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
ACR30,CLR30 *12-1.25PX29.5-23 |
4 | ||
| 90105-12208 |
ACR30,CLR30 *12-1.25PX29.5-23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-48010 |
ACR30,CLR30 SUB PIN SIDE L=72 |
2 | ||
| 47715-48020 |
ACR30,CLR30 MAIN PIN SIDE L=72 |
2 | ||
| 47714-48050 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACR30,CLR30 |
4 | ||
| 90105-08346 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
ACR30,CLR30 |
4 | ||
| 90105-08346 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-48050 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-28540 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47716-33080 |
ACR30,CLR30 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-33070 |
ACR30,CLR30 |
2 | ||
| 47717-28540 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-33080 |
ACR30,CLR30 |
1 | ||
| 47721-28030 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-33080 |
ACR30,CLR30 |
1 | ||
| 47721-28030 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-28540 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47730-28260 |
ACR30,CLR30 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-28080 |
ACR30,CLR30 |
2 | ||
| 47731-28540 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-28540 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 47750-28260 |
ACR30,CLR30 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-33020 |
ACR30,CLR30 |
2 | ||
| 47769-33020 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-33010 |
ACR30,CLR30 |
2 | ||
| 47771-48010 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-33020 |
ACR30,CLR30 |
4 | ||
| 47775-48010 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-33020 |
ACR30,CLR30 |
4 | ||
| 47775-48010 |
ACR30,CLR30..EUR,GEN TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-28200 |
ACR30,CLR30 |
1 | ||
| 47781-48020 |
ACR30,CLR30 |
1 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90119-06227 |
ACR30,CLR30 |
4 | ||
| 90119-06227 |
ACR30,CLR30 |
4 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90119-06227 |
ACR30,CLR30 |
4 | ||
| 90119-06227 |
ACR30,CLR30 |
4 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-48020 |
ACR30,CLR30 |
1 | ||
| 47782-28200 |
ACR30,CLR30 |
1 | ||
