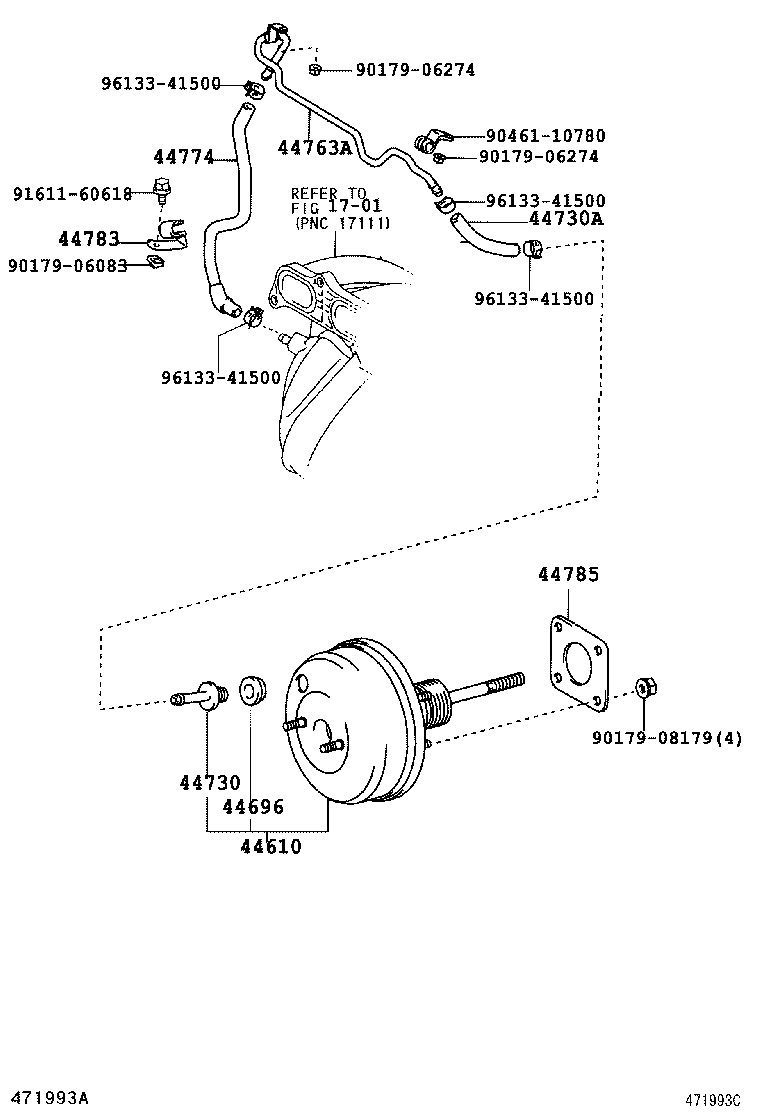

Toyota Previa/tarago ACR30 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-2J070	ACR30..LHD..EUR	03/2000 - 04/2003	1
44610-2J070	ACR30..LHD	02/2000 - 03/2000	1
44610-2J200	ACR30..LHD..EUR	04/2003 - 12/2999	1
44610-2J190	ACR30..LHD..EUR W(VSC)	04/2003 - 12/2999	1
44696 - GROMMET, CHECK VALVE
90480-24015	ACR30	02/2000 - 04/2003	1
90480-24015	ACR30	04/2003 - 12/2999	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010	ACR30	02/2000 - 04/2000	1
44730-28030	ACR30..ARL,EUR,GCC	04/2000 - 04/2003	1
44730-28030	ACR30..ARL,EUR,GCC	04/2003 - 12/2999	1
44730A - HOSE, VACUUM, NO.1
95446-09270	ACR30..LHD	02/2000 - 04/2003	1
44774-28250	ACR30..LHD	04/2003 - 12/2999	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-28100	ACR30..LHD	02/2000 - 04/2003	1
44763-28100	ACR30..LHD	04/2003 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-28230	ACR30..LHD	02/2000 - 04/2003	1
44774-28230	ACR30..LHD	04/2003 - 12/2999	1
44783 - CLAMP, VACUUM HOSE
44783-28010	ACR30	02/2000 - 04/2003	1
44783-28010	ACR30	04/2003 - 12/2999	1
44785 - GASKET, BRAKE BOOSTER
44785-32010	ACR30,CLR30	02/2000 - 04/2003	1
44785-32010	ACR30,CLR30	04/2003 - 12/2999	1
Common parts
90179-06083
90179-06274
90179-08179
90461-10780
91611-60618
96133-41500
Linked diagrams
1701

ACR30L-MFSDKW (2000)
