ACR30L-MFSDKW (2000)
Toyota Previa/Tarago

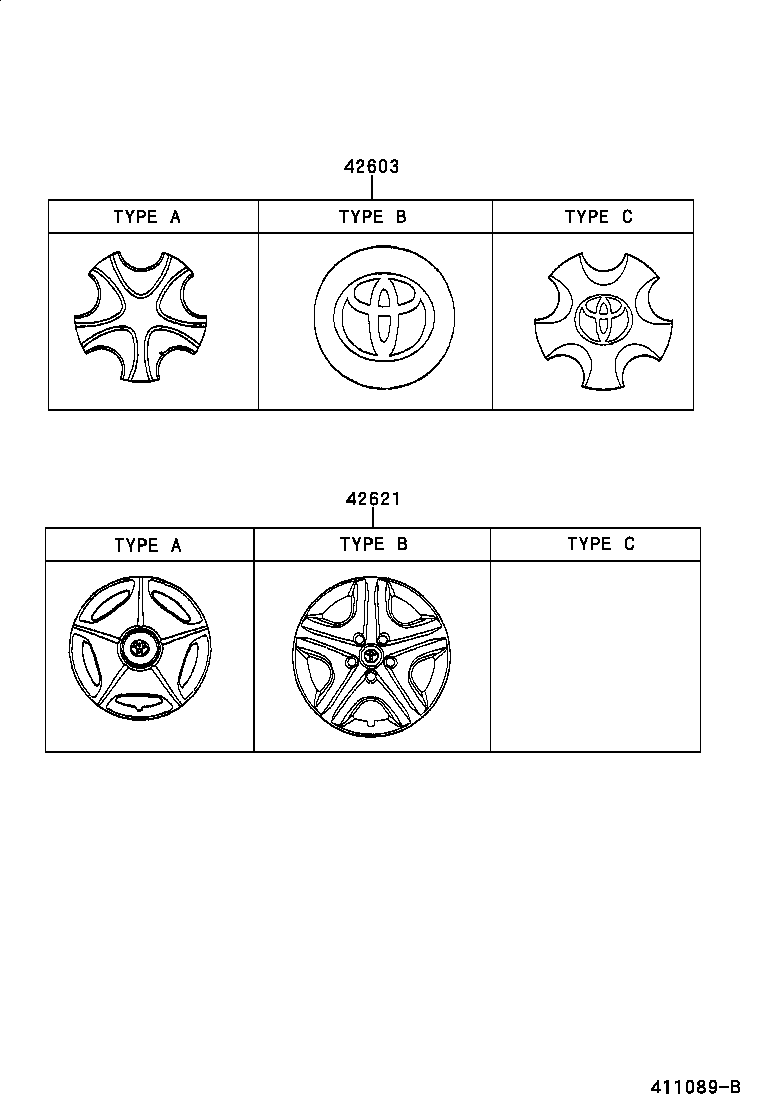

ILLUST NO. 3 OF 5(0002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-28340 |
ACR30..EUR,GEN;ACR30..GL..ARL *CHR,TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 42603-28340 |
ACR30..GL..GCC;ACR30,CLR30..ARL,EUR,GEN *CHR,TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 42603-28330 |
ACR30..(07S,08S)..DX..(ARL,EUR) *ALU,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 42603-28370 |
ACR30,CLR30 *ALU,TYPE C:REFER ILLUST. |
4 | ||
| 42603-28330 |
ACR30..DX..GCC;ACR30,CLR30..ARL,EUR *ALU,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-28300 |
ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 42602-28360 |
ACR30,CLR30..(07S,08S)..DX TYPE B:REFER ILLUST. |
4 | ||

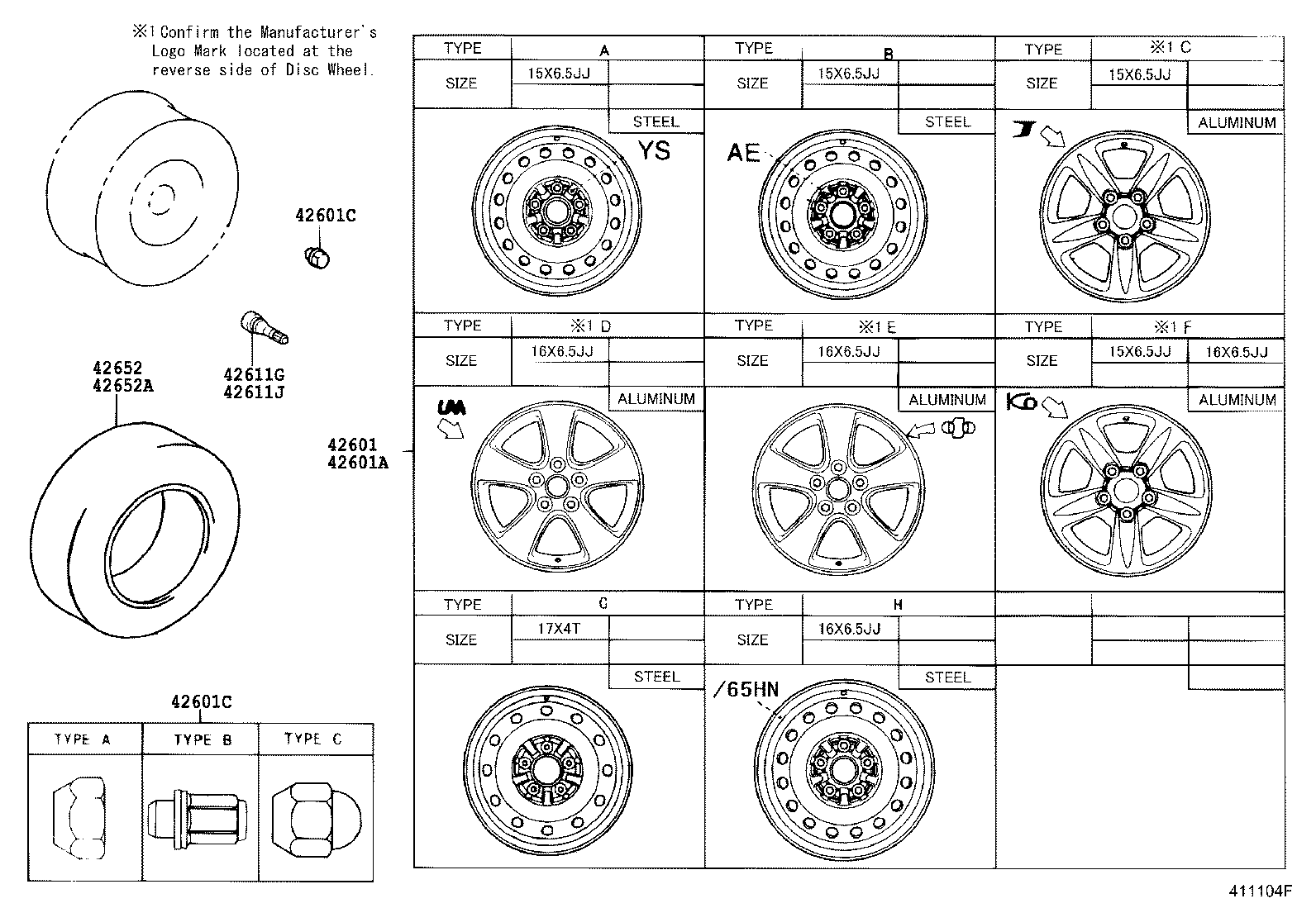

ILLUST NO. 1 OF 5(0002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-28470 |
ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
4 | ||
| 42611-28470 |
ACR30..ARL,EUR;ACR30..DX..GCC 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
4 | ||
| 42611-28420 |
ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) 15X6.5JJ,#,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 42611-28430 |
ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) 15X6.5JJ,#,TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 42611-28440 |
CLR30..LHD;ACR30..LHD..06S;ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 42611-28471 |
ACR30..DX..GCC;ACR30,CLR30..ARL,EUR 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
4 | ||
| 42611-28440 |
ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 42611-28450 |
ACR30..GL..GCC;ACR30,CLR30..ARL,EUR,GEN 16X6.5JJ,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 42611-28450 |
ACR30..EUR,GEN;ACR30..GL..ARL 16X6.5JJ,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 42611-33320 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE H:REFER ILLUST. |
4 | ||
| 42611-33310 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE J:REFER ILLUST. |
4 | ||
| 42611-28540 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 16X6.5JJ,TYPE F:REFER ILLUST. |
4 | ||
| 42611-28440 |
ACR30..DX..GCC;ACR30,CLR30..ARL,EUR 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 42611-28460 |
ACR30..GL..GCC;ACR30..ARL,EUR,GEN 16X6.5JJ,TYPE E:REFER TO ILLUSTRATION |
4 | ||
| 42611-28540 |
ACR30,CLR30 16X6.5JJ,TYPE F:REFER ILLUST. |
4 | ||
| 42611-28540 |
ACR30,CLR30 16X6.5JJ,TYPE F:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-28440 |
CLR30..LHD;ACR30..LHD..06S;ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 42611-28450 |
ACR30..EUR,GEN;ACR30..GL..ARL 16X6.5JJ,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 42611-28420 |
ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) 15X6.5JJ,#,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 42611-28470 |
ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 42611-28430 |
ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) 15X6.5JJ,#,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 42611-33320 |
ACR30,CLR30..(07S,08S)..DX 16X6.5JJ,#,TYPE H:REFER ILLUST. |
1 | ||
| 42611-28470 |
ACR30..ARL,EUR;ACR30..DX..GCC 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 42611-28450 |
ACR30..GL..GCC;ACR30,CLR30..ARL,EUR,GEN 16X6.5JJ,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 42611-28440 |
ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 42611-28471 |
ACR30..DX..GCC;ACR30,CLR30..ARL,EUR 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 42611-33320 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE H:REFER ILLUST. |
1 | ||
| 42611-33310 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE J:REFER ILLUST. |
1 | ||
| 42611-33310 |
ACR30,CLR30..(07S,08S)..DX 16X6.5JJ,#,TYPE J:REFER ILLUST. |
1 | ||
| 42611-28440 |
ACR30..DX..GCC;ACR30,CLR30..ARL,EUR 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 42611-28460 |
ACR30..GL..GCC;ACR30..ARL,EUR,GEN 16X6.5JJ,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 42611-33310 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE J:REFER ILLUST. |
1 | ||
| 42611-33320 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE H:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
ACR30,CLR30..(07S,08S)..DX TYPE C:REFER ILLUST. |
20 | ||
| 90942-01007 |
ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 90942-01058 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION |
20 | ||
| 90942-01058 |
ACR30,CLR30 TYPE B:REFER ILLUST. |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
ACR30,CLR30..(07S,08S)..DX TYPE C:REFER ILLUST. |
20 | ||
| 90942-01007 |
ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 90942-01058 |
ACR30,CLR30 TYPE B:REFER TO ILLUSTRATION |
20 | ||
| 90942-01058 |
ACR30,CLR30 TYPE B:REFER ILLUST. |
20 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
ACR30,CLR30 |
4 | ||
| 90942-05009 |
ACR30,CLR30..LHD..(07S,08S)..DX |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
ACR30,CLR30 |
1 | ||
| 90942-05009 |
ACR30,CLR30 |
1 | ||
| 42652 - TIRE | ||||
| 42652-28530 |
ACR30..LHD..(07S,08S)..EUR 205/65R15,MICHELIN |
4 | ||
| 42652-28530 |
ACR30,CLR30..LHD..DX..(EUR,GCC) 205/65R15,MICHELIN |
4 | ||
| 42652-28640 |
ACR30,CLR30..LHD..EUR 205/65R15,*Y/H |
4 | ||
| 42652-28540 |
ACR30..GL..GCC;ACR30,CLR30..LHD..(EUR,GEN) 215/60R16 |
4 | ||
| 42652-28A20 |
ACR30,CLR30..LHD..(EUR,GCC) 215/60R16,*Y/H |
4 | ||
| 42652-28541 |
ACR30,CLR30..LHD..(07S,08S)..DX 215/60R16 95H,*B/S |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-28530 |
ACR30,CLR30..LHD..DX..(EUR,GCC) 205/65R15,MICHELIN |
1 | ||
| 42652-28640 |
ACR30,CLR30..LHD..EUR 205/65R15,*Y/H |
1 | ||
| 42652-28530 |
ACR30..LHD..(07S,08S)..EUR 205/65R15,MICHELIN |
1 | ||
| 42652-28541 |
ACR30,CLR30..LHD..(EUR,GCC) 215/60R16 95H,*B/S |
1 | ||
| 42652-28540 |
ACR30,CLR30..LHD 215/60R16 |
5 | ||
| 42652-28540 |
ACR30..GL..GCC;ACR30,CLR30..LHD..(EUR,GEN) 215/60R16 |
1 | ||
| 42652-28A20 |
ACR30,CLR30..LHD..(EUR,GCC) 215/60R16,*Y/H |
1 | ||

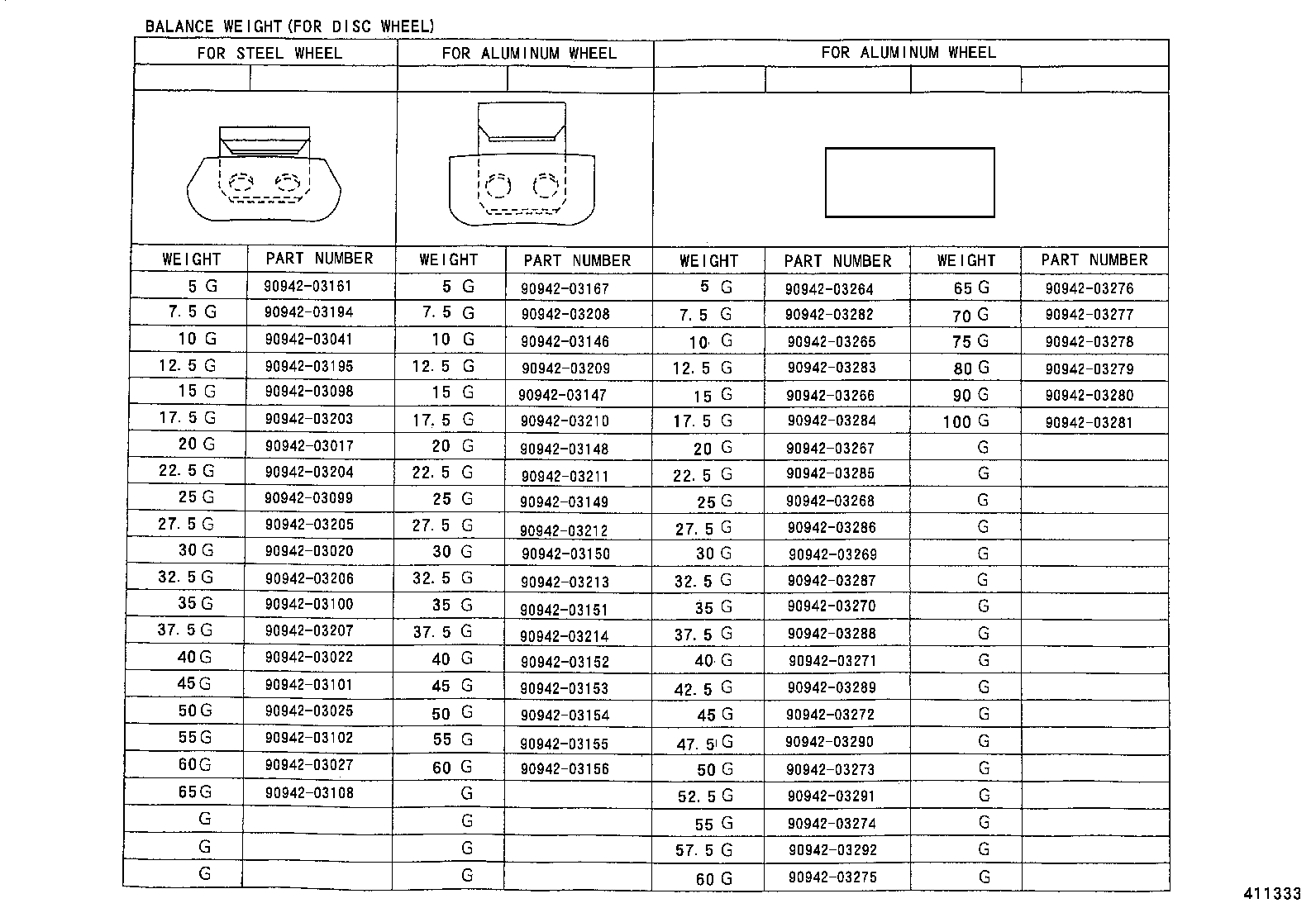

ILLUST NO. 4 OF 5(0002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03017 | ||||
| 90942-03020 | ||||
| 90942-03022 | ||||
| 90942-03025 | ||||
| 90942-03027 | ||||
| 90942-03041 | ||||
| 90942-03098 | ||||
| 90942-03099 | ||||
| 90942-03100 | ||||
| 90942-03101 | ||||
| 90942-03102 | ||||
| 90942-03108 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03155 | ||||
| 90942-03156 | ||||
| 90942-03161 | ||||
| 90942-03167 | ||||
| 90942-03194 | ||||
| 90942-03195 | ||||
| 90942-03203 | ||||
| 90942-03204 | ||||
| 90942-03205 | ||||
| 90942-03206 | ||||
| 90942-03207 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03264 | ||||
| 90942-03265 | ||||
| 90942-03266 | ||||
| 90942-03267 | ||||
| 90942-03268 | ||||
| 90942-03269 | ||||
| 90942-03270 | ||||
| 90942-03271 | ||||
| 90942-03272 | ||||
| 90942-03273 | ||||
| 90942-03274 | ||||
| 90942-03275 | ||||
| 90942-03276 | ||||
| 90942-03277 | ||||
| 90942-03278 | ||||
| 90942-03279 | ||||
| 90942-03280 | ||||
| 90942-03281 | ||||
| 90942-03282 | ||||
| 90942-03283 | ||||
| 90942-03284 | ||||
| 90942-03285 | ||||
| 90942-03286 | ||||
| 90942-03287 | ||||
| 90942-03288 | ||||
| 90942-03289 | ||||
| 90942-03290 | ||||
| 90942-03291 | ||||
| 90942-03292 | ||||

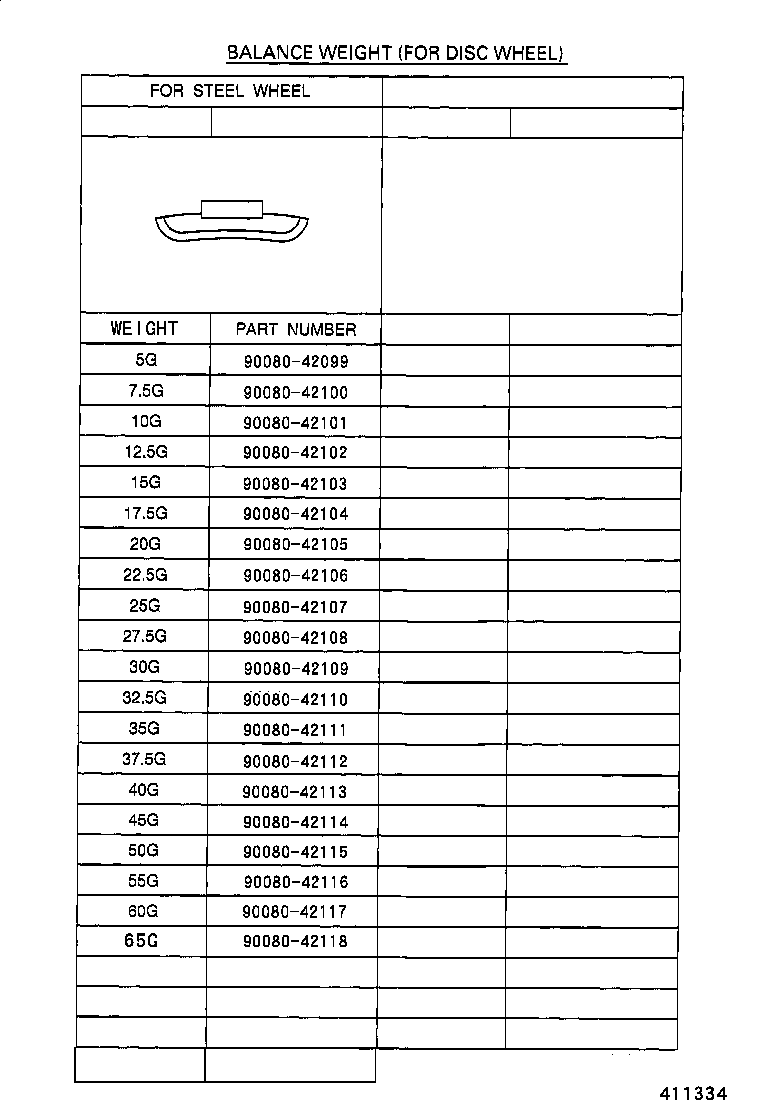

ILLUST NO. 5 OF 5(0002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-42099 | ||||
| 90080-42100 | ||||
| 90080-42101 | ||||
| 90080-42102 | ||||
| 90080-42103 | ||||
| 90080-42104 | ||||
| 90080-42105 | ||||
| 90080-42106 | ||||
| 90080-42107 | ||||
| 90080-42108 | ||||
| 90080-42109 | ||||
| 90080-42110 | ||||
| 90080-42111 | ||||
| 90080-42112 | ||||
| 90080-42113 | ||||
| 90080-42114 | ||||
| 90080-42115 | ||||
| 90080-42116 | ||||
| 90080-42117 | ||||
| 90080-42118 | ||||
ILLUST NO. 2 OF 5(0002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-28470 |
ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
4 | ||
| 42611-28470 |
ACR30..ARL,EUR;ACR30..DX..GCC 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
4 | ||
| 42611-28420 |
ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) 15X6.5JJ,#,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 42611-28430 |
ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) 15X6.5JJ,#,TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 42611-28440 |
CLR30..LHD;ACR30..LHD..06S;ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 42611-28471 |
ACR30..DX..GCC;ACR30,CLR30..ARL,EUR 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
4 | ||
| 42611-28440 |
ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 42611-28450 |
ACR30..GL..GCC;ACR30,CLR30..ARL,EUR,GEN 16X6.5JJ,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 42611-28450 |
ACR30..EUR,GEN;ACR30..GL..ARL 16X6.5JJ,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 42611-33320 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE H:REFER ILLUST. |
4 | ||
| 42611-33310 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE J:REFER ILLUST. |
4 | ||
| 42611-28540 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 16X6.5JJ,TYPE F:REFER ILLUST. |
4 | ||
| 42611-28440 |
ACR30..DX..GCC;ACR30,CLR30..ARL,EUR 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 42611-28460 |
ACR30..GL..GCC;ACR30..ARL,EUR,GEN 16X6.5JJ,TYPE E:REFER TO ILLUSTRATION |
4 | ||
| 42611-28540 |
ACR30,CLR30 16X6.5JJ,TYPE F:REFER ILLUST. |
4 | ||
| 42611-28540 |
ACR30,CLR30 16X6.5JJ,TYPE F:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-28440 |
CLR30..LHD;ACR30..LHD..06S;ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 42611-28450 |
ACR30..EUR,GEN;ACR30..GL..ARL 16X6.5JJ,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 42611-28420 |
ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) 15X6.5JJ,#,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 42611-28470 |
ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 42611-28430 |
ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) 15X6.5JJ,#,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 42611-33320 |
ACR30,CLR30..(07S,08S)..DX 16X6.5JJ,#,TYPE H:REFER ILLUST. |
1 | ||
| 42611-28470 |
ACR30..ARL,EUR;ACR30..DX..GCC 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 42611-28450 |
ACR30..GL..GCC;ACR30,CLR30..ARL,EUR,GEN 16X6.5JJ,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 42611-28440 |
ACR30..(07S,08S)..DX..(ARL,EUR) 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 42611-28471 |
ACR30..DX..GCC;ACR30,CLR30..ARL,EUR 15X6.5JJ,TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 42611-33320 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE H:REFER ILLUST. |
1 | ||
| 42611-33310 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE J:REFER ILLUST. |
1 | ||
| 42611-33310 |
ACR30,CLR30..(07S,08S)..DX 16X6.5JJ,#,TYPE J:REFER ILLUST. |
1 | ||
| 42611-28440 |
ACR30..DX..GCC;ACR30,CLR30..ARL,EUR 15X6.5JJ,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 42611-28460 |
ACR30..GL..GCC;ACR30..ARL,EUR,GEN 16X6.5JJ,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 42611-33310 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE J:REFER ILLUST. |
1 | ||
| 42611-33320 |
ACR30,CLR30..LHD..(07S,08S)..DX 16X6.5JJ,#,TYPE H:REFER ILLUST. |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
