ACR30L-MFSDKW (2000)
Toyota Previa/Tarago

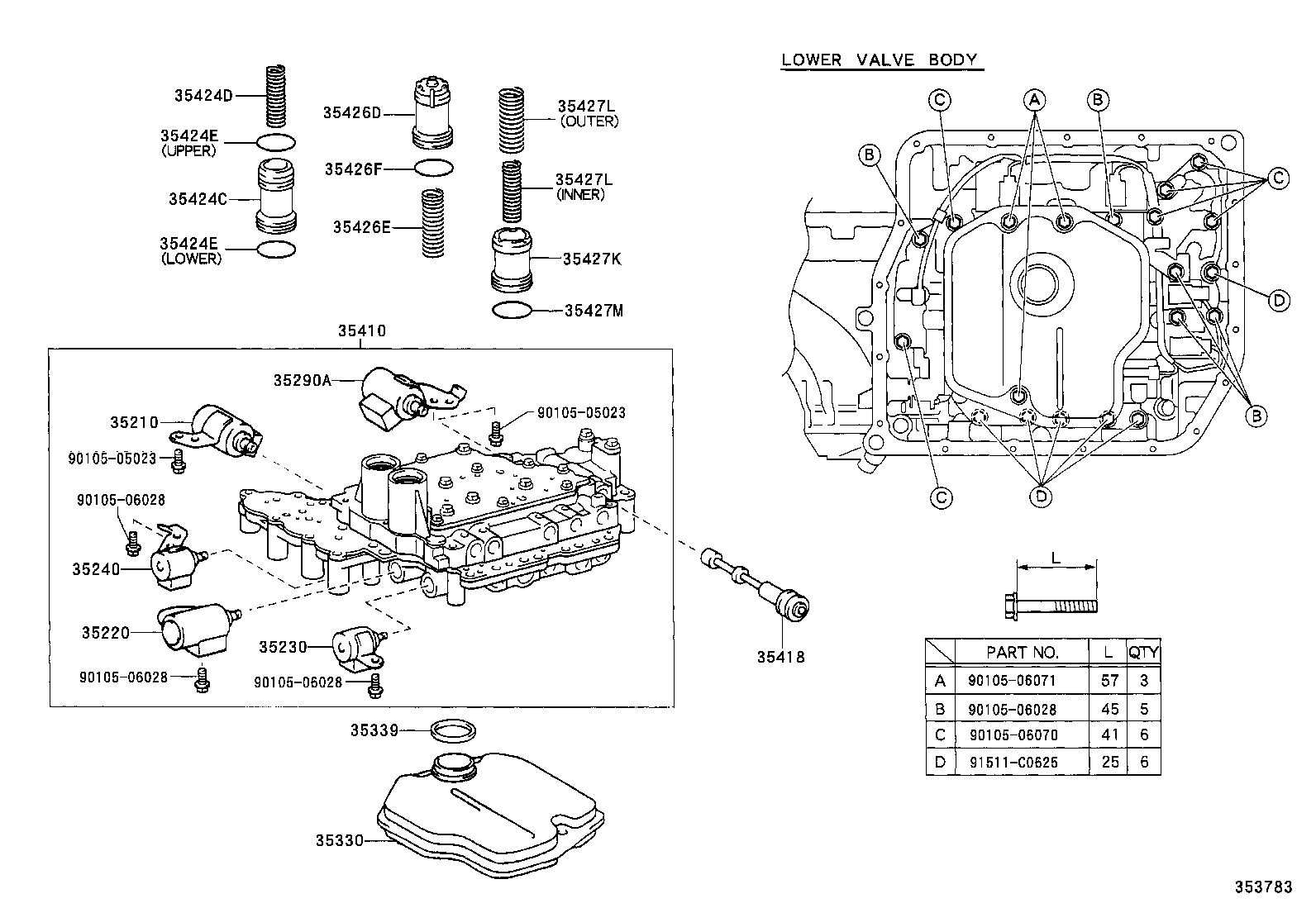

ILLUST NO. 1 OF 6(0003-0304)ATM
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-21010 |
ACR30..ATM |
1 | ||
| 35210-21010 |
ACR30..ATM |
1 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-21010 |
ACR30..ATM |
1 | ||
| 35220-21010 |
ACR30..ATM |
1 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-21010 |
ACR30..ATM |
1 | ||
| 35230-21010 |
ACR30..ATM |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-21010 |
ACR30..ATM |
1 | ||
| 35240-21010 |
ACR30..ATM |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-21010 |
ACR30..ATM |
1 | ||
| 35290-21010 |
ACR30..ATM |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-06010 |
ACR30..ATM |
1 | ||
| 35330-28010 |
ACR30..ATM |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32010 |
ACR30..ATM |
1 | ||
| 90301-32010 |
ACR30..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-48011 |
ACR30..ATM |
1 | ||
| 35410-28420 |
ACR30..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-21011 |
ACR30..ATM |
1 | ||
| 35418-21011 |
ACR30..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-32010 |
ACR30..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10214 |
ACR30..ATM |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-10006 |
ACR30..ATM |
2 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-10006 |
ACR30..ATM |
2 | ||
| 35420H - COVER, CHECK BALL | ||||
| 35493-28010 |
ACR30..ATM |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-28010 |
ACR30..ATM |
1 | ||
| 35424-21010 |
ACR30..ATM |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22039 |
ACR30..ATM |
1 | ||
| 90501-22039 |
ACR30..ATM |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
ACR30..ATM LOWER |
1 | ||
| 90301-30007 |
ACR30..ATM LOWER |
1 | ||
| 90301-27008 |
ACR30..ATM UPPER |
1 | ||
| 90301-27008 |
ACR30..ATM UPPER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
ACR30..ATM LOWER |
1 | ||
| 90301-30007 |
ACR30..ATM LOWER |
1 | ||
| 90301-27008 |
ACR30..ATM UPPER |
1 | ||
| 90301-27008 |
ACR30..ATM UPPER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35406-21010 |
ACR30..ATM |
1 | ||
| 35406-21010 |
ACR30..ATM |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90905-01035 |
ACR30..ATM |
1 | ||
| 90905-01035 |
ACR30..ATM |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
ACR30..ATM |
1 | ||
| 90301-30007 |
ACR30..ATM |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-28010 |
ACR30..ATM |
1 | ||
| 35427-21010 |
ACR30..ATM |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
ACR30..ATM OUTER |
1 | ||
| 90501-22038 |
ACR30..ATM INNER |
1 | ||
| 90501-25053 |
ACR30..ATM OUTER |
1 | ||
| 90501-22038 |
ACR30..ATM INNER |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
ACR30..ATM OUTER |
1 | ||
| 90501-22038 |
ACR30..ATM INNER |
1 | ||
| 90501-25053 |
ACR30..ATM OUTER |
1 | ||
| 90501-22038 |
ACR30..ATM INNER |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
ACR30..ATM |
1 | ||
| 90301-28008 |
ACR30..ATM |
1 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-21010 |
ACR30..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-48010 |
ACR30..ATM |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-28010 |
ACR30..ATM |
1 | ||
| 35442 - STRAINER, THROTTLE MODULATOR OIL | ||||
| 35442-28010 |
ACR30..ATM |
1 | ||
| 35471A - COVER, UPPER VALVE BODY | ||||
| 35471-21011 |
ACR30..ATM |
1 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
ACR30..ATM |
10 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
ACR30..ATM |
10 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
ACR30..ATM |
10 | ||
| Common parts | ||||
| 90105-05023 | ||||
| 90105-06028 | ||||
ILLUST NO. 2 OF 6(0003-0304)ATM
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211D - SLEEVE, LOCK UP CONTROL VALVE | ||||
| 35211-21010 |
ACR30..ATM |
1 | ||
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-28010 |
ACR30..ATM |
1 | ||
| 35212A - SEAT, PLUG (FOR LOCK UP RELAY VALVE) | ||||
| 90339-04058 |
ACR30..ATM |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-09033 |
ACR30..ATM |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-28010 |
ACR30..ATM |
1 | ||
| 35214A - KEY, STRAIGHT (FOR LOCK UP CONTROL VALVE) | ||||
| 90282-03027 |
ACR30..ATM |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-06094 |
ACR30..ATM |
1 | ||
| 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) | ||||
| 90282-03027 |
ACR30..ATM |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-28010 |
ACR30..ATM |
1 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-28010 |
ACR30..ATM |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-13045 |
ACR30..ATM |
1 | ||
| 35275B - PLUG (FOR SOLENOID MODULATOR VALVE) | ||||
| 90339-04058 |
ACR30..ATM |
1 | ||
| 35275C - KEY, STRAIGHT | ||||
| 90282-03018 |
ACR30..ATM |
1 | ||
| 35284D - VALVE, C-2 EXHAUST CHECK | ||||
| 35284-28010 |
ACR30..ATM |
1 | ||
| 35284E - KEY, STRAIGHT (FOR C-2 EXHAUST CHECK VALVE) | ||||
| 90282-03018 |
ACR30..ATM |
1 | ||
| 35284F - PLUG (FOR C-2 EXHAUST CHECK VALVE) | ||||
| 90339-04058 |
ACR30..ATM |
1 | ||
| 35284G - SPRING, COMPRESSION (FOR C-2 EXHAUST CHECK VALVE) | ||||
| 90501-05048 |
ACR30..ATM |
1 | ||
| 35284H - SPRING, COMPRESSION (FOR C-2 LOCK VALVE) | ||||
| 90501-20144 |
ACR30..ATM OUTER |
1 | ||
| 90501-13046 |
ACR30..ATM INNER |
1 | ||
| 35284H - SPRING, COMPRESSION (FOR C-2 LOCK VALVE) | ||||
| 90501-20144 |
ACR30..ATM OUTER |
1 | ||
| 90501-13046 |
ACR30..ATM INNER |
1 | ||
| 35286 - VALVE, B-1 LOCK | ||||
| 35286-28010 |
ACR30..ATM |
1 | ||
| 35286A - PLUG (FOR B-1 LOCK VALVE) | ||||
| 90339-04058 |
ACR30..ATM |
1 | ||
| 35286B - KEY, STRAIGHT (FOR B-1 LOCK VALVE) | ||||
| 90282-03018 |
ACR30..ATM |
1 | ||
| 35286C - SPRING, COMPRESSION (FOR B-1 LOCK VALVE) | ||||
| 90501-06096 |
ACR30..ATM |
1 | ||
| 35286D - SPRING, COMPRESSION (FOR B-1 LOCK VALVE) | ||||
| 90501-15024 |
ACR30..ATM INNER |
1 | ||
| 90501-21026 |
ACR30..ATM OUTER |
1 | ||
| 35286D - SPRING, COMPRESSION (FOR B-1 LOCK VALVE) | ||||
| 90501-15024 |
ACR30..ATM INNER |
1 | ||
| 90501-21026 |
ACR30..ATM OUTER |
1 | ||
| 35287 - VALVE, C-2 LOCK | ||||
| 35287-28010 |
ACR30..ATM |
1 | ||
| 35287A - KEY, STRAIGHT (FOR C-2 LOCK VALVE) | ||||
| 90282-03027 |
ACR30..ATM |
1 | ||
| 35287B - PLUG (FOR C-2 LOCK VALVE) | ||||
| 90339-04058 |
ACR30..ATM |
1 | ||
| 35287C - SPRING, COMPRESSION (FOR C-2 LOCK VALVE) | ||||
| 90501-06093 |
ACR30..ATM |
1 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35246-30010 |
ACR30..ATM |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35247-30010 |
ACR30..ATM |
1 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
ACR30..ATM |
1 | ||
| 35425F - VALVE, ACCUMULATOR | ||||
| 35425-28010 |
ACR30..ATM |
2 | ||
| 35425F - VALVE, ACCUMULATOR | ||||
| 35425-28010 |
ACR30..ATM |
2 | ||
| 35425G - RING, SNAP (FOR ACCUMULATOR VALVE) | ||||
| 96151-02500 |
ACR30..ATM |
2 | ||
| 35425G - RING, SNAP (FOR ACCUMULATOR VALVE) | ||||
| 96151-02500 |
ACR30..ATM |
2 | ||
| 35466K - VALVE, CLUTCH APPLY CONTROL | ||||
| 35466-28010 |
ACR30..ATM |
1 | ||
| 35466L - SPRING, COMPRESSION (FOR CLUTCH APPLY CONTROL VALVE) | ||||
| 90501-06092 |
ACR30..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-21010 |
ACR30..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12177 |
ACR30..ATM |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03018 |
ACR30..ATM |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-04060 |
ACR30..ATM |
1 | ||
| 35469M - SPACER (FOR ACCUMULATOR VALVE) | ||||
| 35469-28030 |
ACR30..ATM |
2 | ||
| 35469M - SPACER (FOR ACCUMULATOR VALVE) | ||||
| 35469-28030 |
ACR30..ATM |
2 | ||
| 35476H - PLUNGER, CLUTCH APPLY CONTROL VALVE | ||||
| 35476-28010 |
ACR30..ATM |
1 | ||
| 35489M - VALVE, B-3 ORIFICE CONTROL | ||||
| 35489-28010 |
ACR30..ATM |
1 | ||
| 35489N - KEY, STRAIGHT (FOR B-3 ORIFICE CONTROL VALVE) | ||||
| 35478-28010 |
ACR30..ATM |
1 | ||
| 35489Q - SPRING, COMPRESSION (FOR B-3 ORIFICE CONTROL VALVE) | ||||
| 90501-05047 |
ACR30..ATM |
1 | ||
| 35492G - SLEEVE, CLUTCH APPLY CONTROL VALVE | ||||
| 35492-21010 |
ACR30..ATM |
1 | ||
| 35492H - PIN, STRAIGHT (FOR CLUTCH APPLY CONTROL VALVE) | ||||
| 90250-03092 |
ACR30..ATM |
1 | ||
| 35493V - SEAT, CHECK VALVE, NO.2 | ||||
| 90282-03018 |
ACR30..ATM |
1 | ||
ILLUST NO. 3 OF 6(0003-0304)ATM
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-28010 |
ACR30..ATM |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16155 |
ACR30..ATM |
1 | ||
| 35415Q - SPACER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90560-07028 |
ACR30..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-28030 |
ACR30..ATM |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-28030 |
ACR30..ATM |
1 | ||
| 35417B - PIN, STRAIGHT (FOR PRIMARY REGULATOR VALVE SLEEVE) | ||||
| 90250-03093 |
ACR30..ATM |
1 | ||
| 35417C - PLUG(FOR PRIMARY REGULATOR VALVE) | ||||
| 90339-06020 |
ACR30..ATM |
1 | ||
| 35445K - VALVE, B-2 CONTROL | ||||
| 35445-28010 |
ACR30..ATM |
1 | ||
| 35445L - KEY, STRAIGHT (FOR B-2 CONTROL VALVE) | ||||
| 90282-03026 |
ACR30..ATM |
1 | ||
| 35445M - PLUG (FOR B-2 CONTROL VALVE) | ||||
| 90339-04058 |
ACR30..ATM |
1 | ||
| 35445N - SPRING, COMPRESSION (FOR B-2 CONTROL VALVE) | ||||
| 90501-06095 |
ACR30..ATM |
1 | ||
| 35456H - VALVE, C-2 CONTROL | ||||
| 35456-28020 |
ACR30..ATM |
1 | ||
| 35456J - KEY, STRAIGHT (FOR C-2 CONTROL VALVE) | ||||
| 90282-03026 |
ACR30..ATM |
1 | ||
| 35456K - PLUG (FOR C-2 CONTROL VALVE) | ||||
| 90339-04059 |
ACR30..ATM |
1 | ||
| 35456L - SPRING, COMPRESSION (FOR C-2 CONTROL VALVE) | ||||
| 90501-09137 |
ACR30..ATM |
1 | ||
| 35464F - VALVE, B-1 CONTROL | ||||
| 35464-28010 |
ACR30..ATM |
1 | ||
| 35464G - KEY, STRAIGHT (FOR B-1 CONTROL VALVE) | ||||
| 90282-03026 |
ACR30..ATM |
1 | ||
| 35464H - PLUG (FOR B-1 CONTROL VALVE) | ||||
| 90339-04060 |
ACR30..ATM |
1 | ||
| 35464J - SPRING, COMPRESSION (FOR B-1 CONTROL VALVE) | ||||
| 90501-07124 |
ACR30..ATM |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-28010 |
ACR30..ATM |
1 | ||
| 35486C - SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE) | ||||
| 90501-15013 |
ACR30..ATM |
1 | ||
| 35486D - BALL (FOR PRESSURE RELIFE VALVE) | ||||
| 90360-10006 |
ACR30..ATM |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-28010 |
ACR30..ATM |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09033 |
ACR30..ATM |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 35479-28010 |
ACR30..ATM |
1 | ||
| Common parts | ||||
| 90105-05023 | ||||

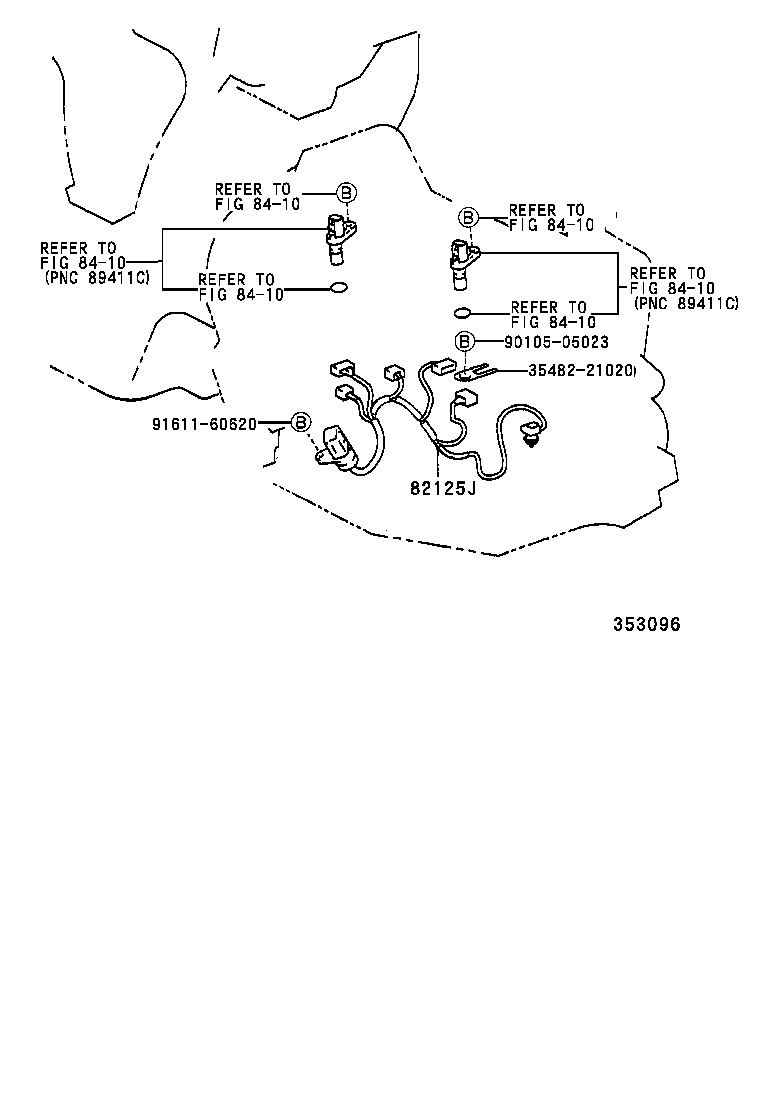

ILLUST NO. 6 OF 6(0003-0304)ATM
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-28180 |
ACR30..ATM |
1 | ||
| 82125-28180 |
ACR30..ATM |
1 | ||
| Common parts | ||||
| 35482-21020 | ||||
| 90105-05023 | ||||
| 91611-60620 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 1 OF 3(0304- )ATM
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-21010 |
ACR30..ATM |
1 | ||
| 35210-21010 |
ACR30..ATM |
1 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-21010 |
ACR30..ATM |
1 | ||
| 35220-21010 |
ACR30..ATM |
1 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-21010 |
ACR30..ATM |
1 | ||
| 35230-21010 |
ACR30..ATM |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-21010 |
ACR30..ATM |
1 | ||
| 35240-21010 |
ACR30..ATM |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-21010 |
ACR30..ATM |
1 | ||
| 35290-21010 |
ACR30..ATM |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-06010 |
ACR30..ATM |
1 | ||
| 35330-28010 |
ACR30..ATM |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32010 |
ACR30..ATM |
1 | ||
| 90301-32010 |
ACR30..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-48011 |
ACR30..ATM |
1 | ||
| 35410-28420 |
ACR30..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-21011 |
ACR30..ATM |
1 | ||
| 35418-21011 |
ACR30..ATM |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-28010 |
ACR30..ATM |
1 | ||
| 35424-21010 |
ACR30..ATM |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22039 |
ACR30..ATM |
1 | ||
| 90501-22039 |
ACR30..ATM |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
ACR30..ATM LOWER |
1 | ||
| 90301-30007 |
ACR30..ATM LOWER |
1 | ||
| 90301-27008 |
ACR30..ATM UPPER |
1 | ||
| 90301-27008 |
ACR30..ATM UPPER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
ACR30..ATM LOWER |
1 | ||
| 90301-30007 |
ACR30..ATM LOWER |
1 | ||
| 90301-27008 |
ACR30..ATM UPPER |
1 | ||
| 90301-27008 |
ACR30..ATM UPPER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35406-21010 |
ACR30..ATM |
1 | ||
| 35406-21010 |
ACR30..ATM |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90905-01035 |
ACR30..ATM |
1 | ||
| 90905-01035 |
ACR30..ATM |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-30007 |
ACR30..ATM |
1 | ||
| 90301-30007 |
ACR30..ATM |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-28010 |
ACR30..ATM |
1 | ||
| 35427-21010 |
ACR30..ATM |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
ACR30..ATM OUTER |
1 | ||
| 90501-22038 |
ACR30..ATM INNER |
1 | ||
| 90501-25053 |
ACR30..ATM OUTER |
1 | ||
| 90501-22038 |
ACR30..ATM INNER |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-25053 |
ACR30..ATM OUTER |
1 | ||
| 90501-22038 |
ACR30..ATM INNER |
1 | ||
| 90501-25053 |
ACR30..ATM OUTER |
1 | ||
| 90501-22038 |
ACR30..ATM INNER |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
ACR30..ATM |
1 | ||
| 90301-28008 |
ACR30..ATM |
1 | ||
| Common parts | ||||
| 90105-05023 | ||||
| 90105-06028 | ||||
| 90105-06070 | ||||
| 90105-06071 | ||||
| 91511-C0625 | ||||

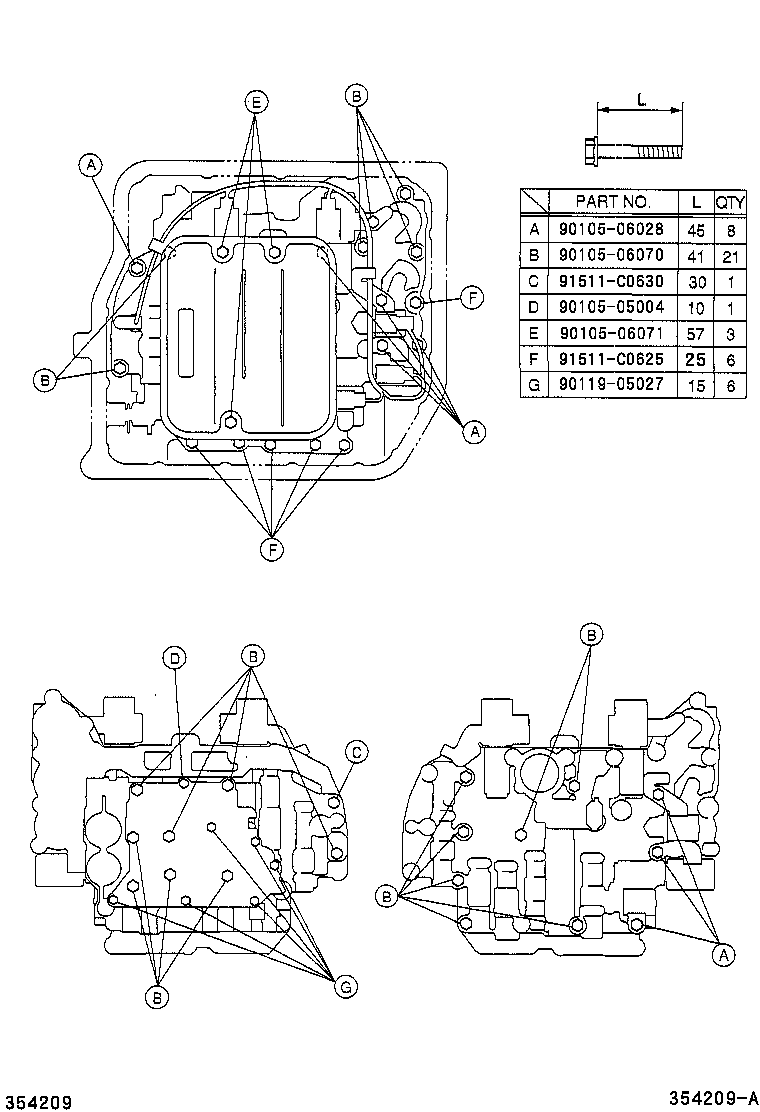

ILLUST NO. 5 OF 6(0003-0304)ATM
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05004 | ||||
| 90105-06028 | ||||
| 90105-06070 | ||||
| 90105-06071 | ||||
| 90119-05027 | ||||
| 91511-C0625 | ||||
| 91511-C0630 | ||||

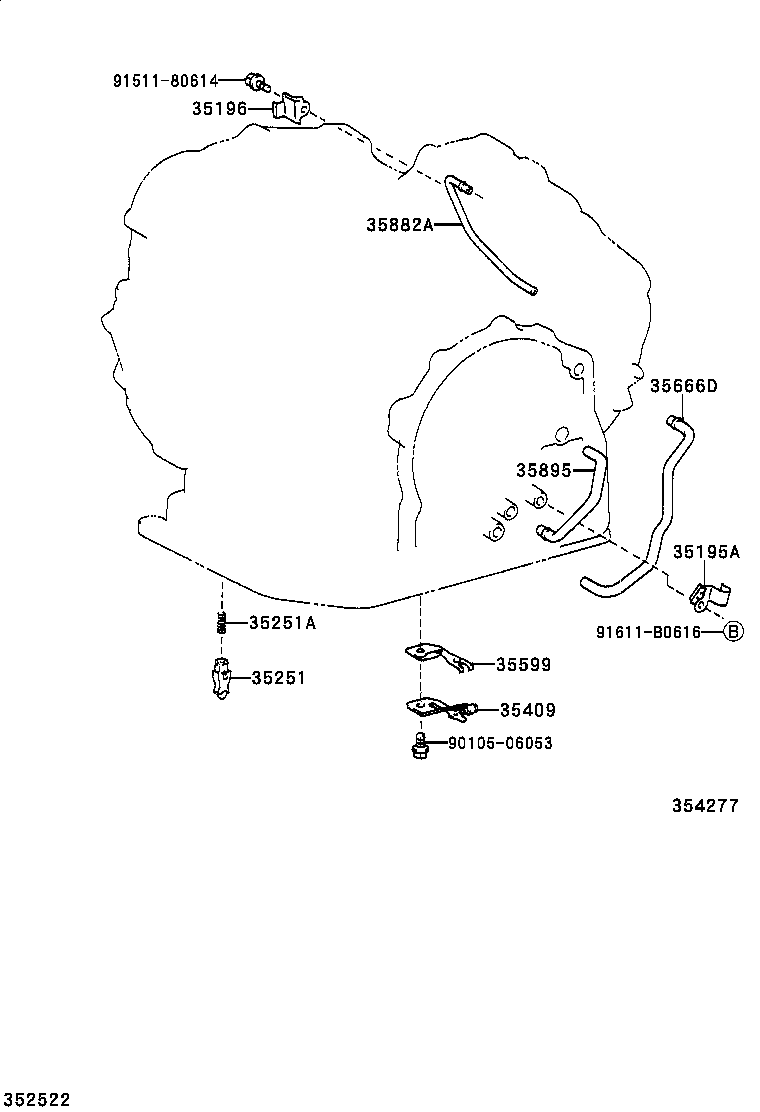

ILLUST NO. 4 OF 6(0003-0304)ATM
U241
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-21010 |
ACR30..ATM |
1 | ||
| 35195-21010 |
ACR30..ATM |
1 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-21010 |
ACR30..ATM |
1 | ||
| 35196-21010 |
ACR30..ATM |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
ACR30..ATM |
1 | ||
| 35251-30020 |
ACR30..ATM |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
ACR30..ATM |
1 | ||
| 90501-03005 |
ACR30..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-21010 |
ACR30..ATM |
1 | ||
| 35409-21010 |
ACR30..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-21010 |
ACR30..ATM |
1 | ||
| 35599-21010 |
ACR30..ATM |
1 | ||
| 35666D - TUBE, BRAKE APPLY | ||||
| 35666-28020 |
ACR30..ATM |
1 | ||
| 35666-32010 |
ACR30..ATM |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-28020 |
ACR30..ATM |
1 | ||
| 35882-32020 |
ACR30..ATM |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-21010 |
ACR30..ATM |
1 | ||
| 35895-28010 |
ACR30..ATM |
1 | ||
| Common parts | ||||
| 90105-06053 | ||||
| 91511-80614 | ||||
| 91611-B0616 | ||||

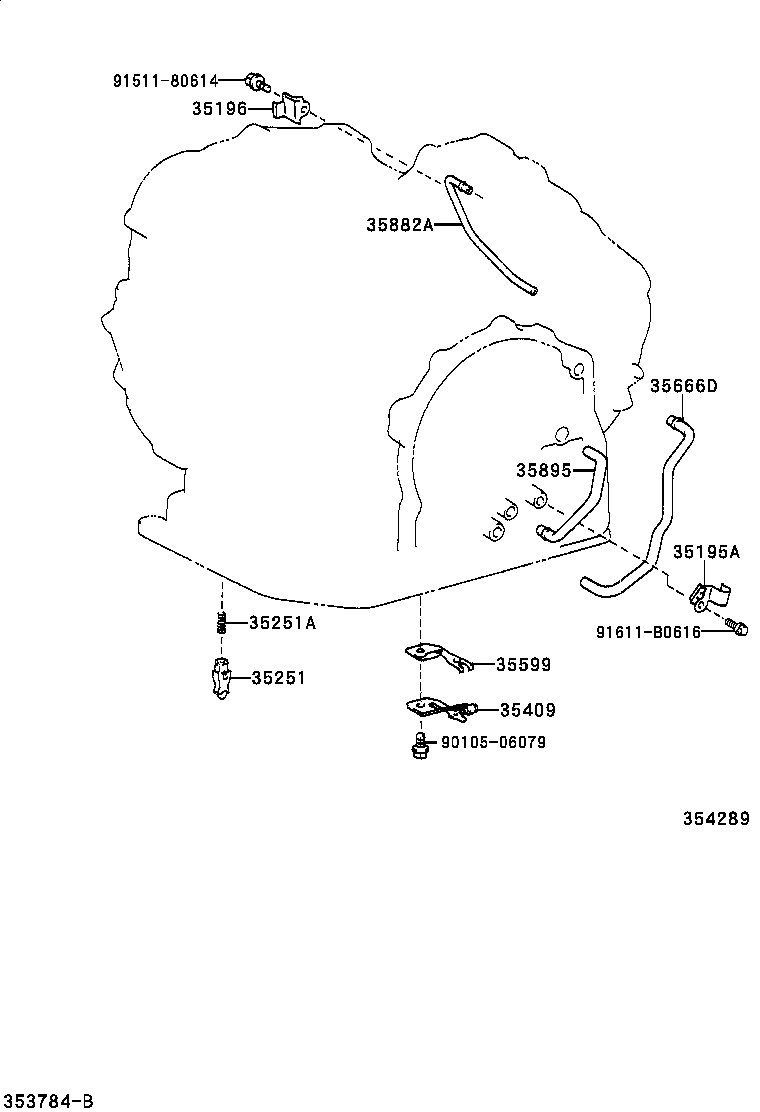

ILLUST NO. 2 OF 3(0304- )ATM
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-21010 |
ACR30..ATM |
1 | ||
| 35195-21010 |
ACR30..ATM |
1 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-21010 |
ACR30..ATM |
1 | ||
| 35196-21010 |
ACR30..ATM |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
ACR30..ATM |
1 | ||
| 35251-30020 |
ACR30..ATM |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
ACR30..ATM |
1 | ||
| 90501-03005 |
ACR30..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-21010 |
ACR30..ATM |
1 | ||
| 35409-21010 |
ACR30..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-21010 |
ACR30..ATM |
1 | ||
| 35599-21010 |
ACR30..ATM |
1 | ||
| 35666D - TUBE, BRAKE APPLY | ||||
| 35666-28020 |
ACR30..ATM |
1 | ||
| 35666-32010 |
ACR30..ATM |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-28020 |
ACR30..ATM |
1 | ||
| 35882-32020 |
ACR30..ATM |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-21010 |
ACR30..ATM |
1 | ||
| 35895-28010 |
ACR30..ATM |
1 | ||
| Common parts | ||||
| 90105-06079 | ||||
| 91511-80614 | ||||
| 91611-B0616 | ||||

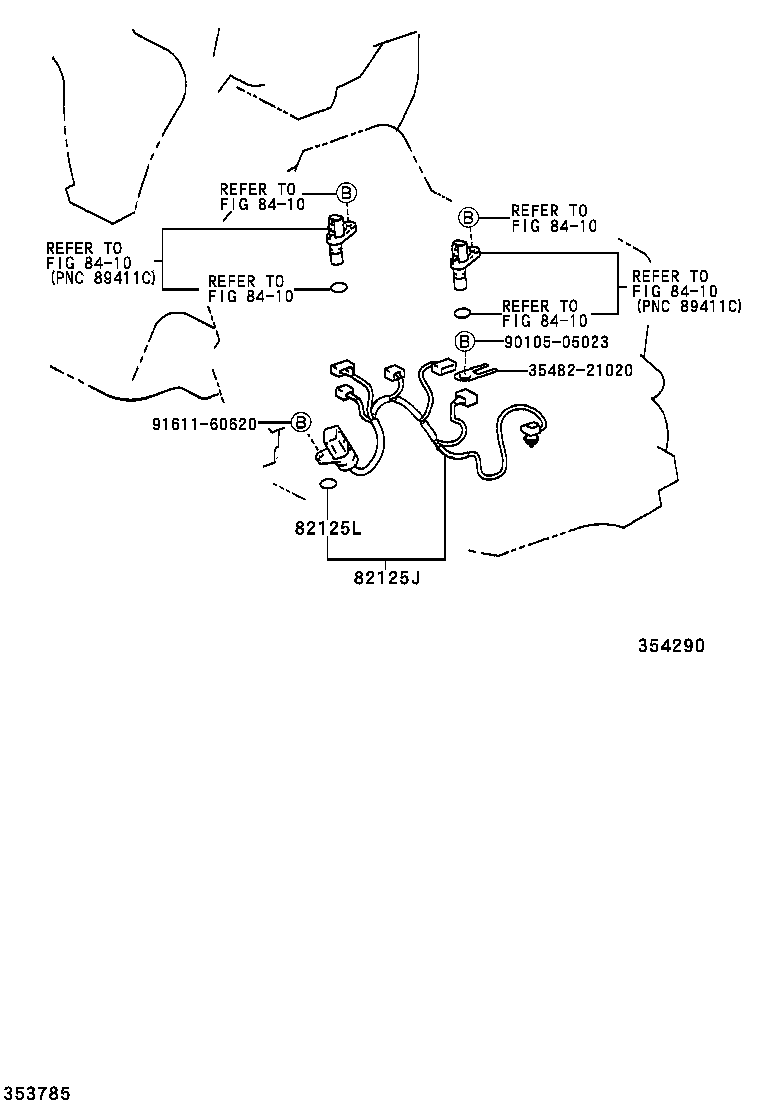

ILLUST NO. 3 OF 3(0304- )ATM
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-28180 |
ACR30..ATM |
1 | ||
| 82125-28180 |
ACR30..ATM |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
ACR30..ATM |
1 | ||
| Common parts | ||||
| 35482-21020 | ||||
| 90105-05023 | ||||
| 91611-60620 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
