ACR30L-MFMDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

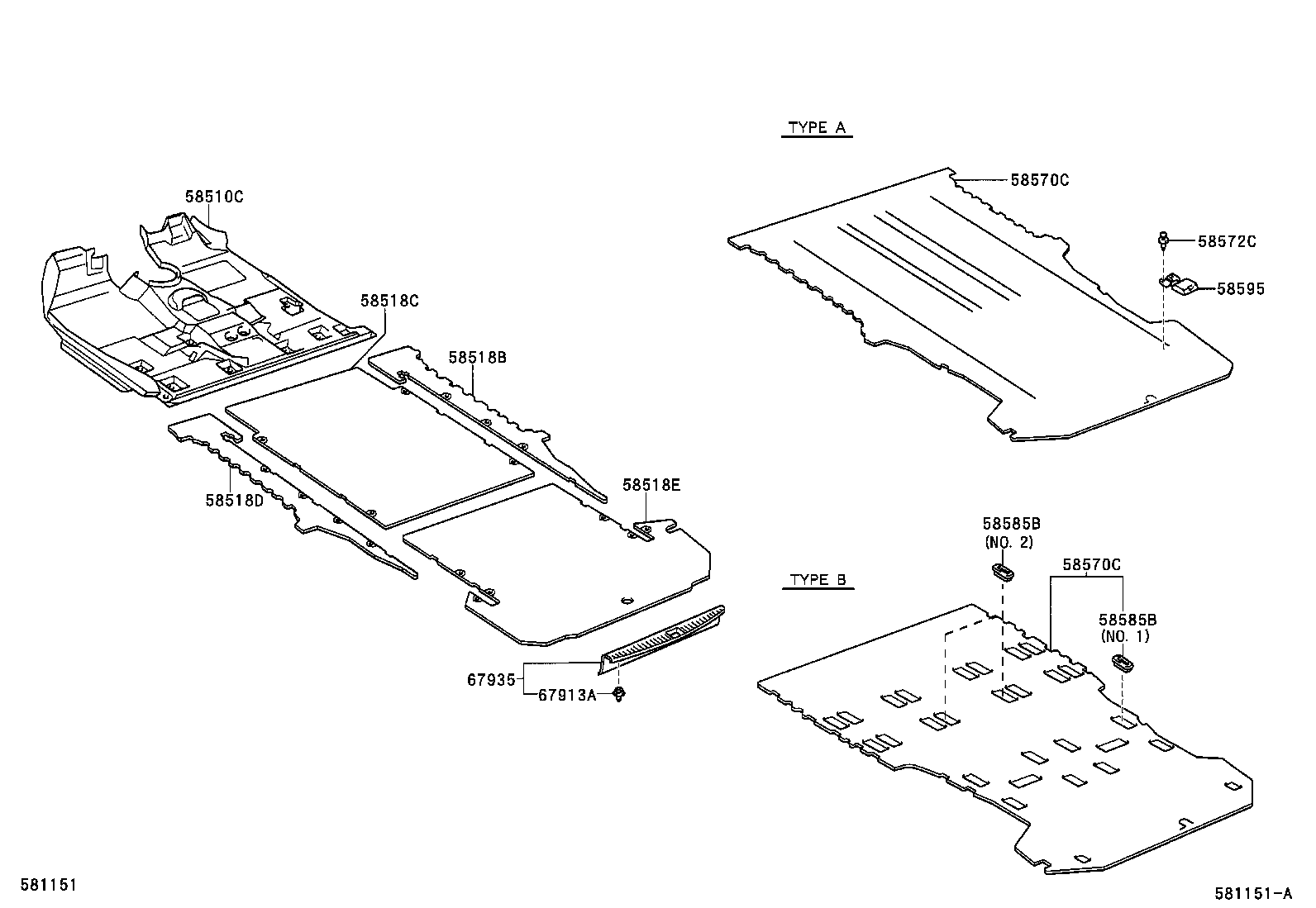

Click highlighted areas on diagram

diagram 58510C 58518B 58518C 58518D 58518E 58570C 58570C 58572C 58585B 58585B 58595 67913A 67935
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-2R850B0

ACR30,CLR30..LHD..MTM

BLUISH GRAY,TRIM11

 1
58510-2R850B1

ACR30,CLR30..LHD..MTM

MEDIUM CHARCOAL,TRIM12

 1
58510-28A00B0

ACR30,CLR30..LHD..(06S,07S)..MTM

W(VSC),GRAY,TRIM1#

 1
58510-28A10B0

ACR30,CLR30..LHD..(06S,07S)..MTM

GRAY,TRIM1#

 1
58518B - MAT, REAR FLOOR, NO.2
58518-28300

ACR30,CLR30..(06S,07S)..EUR

W(REAR DETACHABLE SEAT)

 1
58518-28090

ACR30..(06S,07S)..EUR

W(REAR DETACHABLE SEAT)

 1
58518C - MAT, REAR FLOOR, NO.2
58518-28110

ACR30..(06S,07S)..EUR

W(REAR DETACHABLE SEAT)

 1
58518-28330

ACR30,CLR30..07S..EUR

W(REAR DETACHABLE SEAT)

 1
58518D - MAT, REAR FLOOR, NO.2
58518-28100

ACR30..(06S,07S)..EUR

W(REAR DETACHABLE SEAT)

 1
58518-28320

ACR30,CLR30..(06S,07S)..EUR

W(REAR DETACHABLE SEAT)

 1
58518E - MAT, REAR FLOOR, NO.2
58518-28130

ACR30..(06S,07S)..EUR

COLD SPEC & W(REAR DETACHABLE SEAT)

 1
58518-28120

ACR30..(06S,07S)..EUR

W(REAR DETACHABLE SEAT)

 1
58518-28360

ACR30,CLR30..(06S,07S)..EUR

COLD SPEC & W(REAR DETACHABLE SEAT)

 1
58518-28350

ACR30,CLR30..(06S,07S)..EUR

W(REAR DETACHABLE SEAT)

 1
58570C - CARPET ASSY, REAR FLOOR
58570-28020B5

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM11

 1
58570-28020B6

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION,MEDIUM CHARCOAL,TRIM12

 1
58570-28060B6

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION, COLD SPEC,MEDIUM CHARCOAL,TRIM12

 1
58570-28060B5

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION, COLD SPEC,BLUISH GRAY,TRIM11

 1
58570-28390B0

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION, COLD SPEC,GRAY,TRIM1#

 1
58570-28460B1

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#

 1
58570C - CARPET ASSY, REAR FLOOR
58570-28020B5

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM11

 1
58570-28020B6

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION,MEDIUM CHARCOAL,TRIM12

 1
58570-28060B6

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION, COLD SPEC,MEDIUM CHARCOAL,TRIM12

 1
58570-28060B5

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION, COLD SPEC,BLUISH GRAY,TRIM11

 1
58570-28390B0

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION, COLD SPEC,GRAY,TRIM1#

 1
58570-28460B1

ACR30,CLR30..07S..EUR

TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#

 1
58572C - CLIP, REAR FLOOR MAT SET
90467-10034N8

ACR30,CLR30..(06S,07S)..EUR

W(REAR DETACHABLE SEAT),CREAM YELLOW,TRIM11,12

 2
90467-10034N8

ACR30,CLR30..(06S,07S)..EUR

W(REAR DETACHABLE SEAT),CREAM YELLOW,TRIM1#

 2
58585B - COVER, REAR FLOOR SEAT LOCK
58585-28020B0

ACR30,CLR30..(06S,07S)..EUR

LT. BLUISH GRAY,TRIM11,NO.1

 1
58585-28050B0

ACR30,CLR30..07S..EUR

MD.GRAY,TRIM1#,NO.2

 1
58585-28020B1

ACR30,CLR30..07S..EUR

MD.CHARCOAL,TRIM15

 18
58585-28020B1

ACR30,CLR30..(06S,07S)..EUR

MD.CHARCOAL,TRIM12,NO.1

 1
58585-28020B2

ACR30,CLR30..(06S,07S)..EUR

MD.GRAY,TRIM15,NO.1

 1
58585B - COVER, REAR FLOOR SEAT LOCK
58585-28020B0

ACR30,CLR30..(06S,07S)..EUR

LT. BLUISH GRAY,TRIM11,NO.1

 1
58585-28050B0

ACR30,CLR30..07S..EUR

MD.GRAY,TRIM1#,NO.2

 1
58585-28020B1

ACR30,CLR30..07S..EUR

MD.CHARCOAL,TRIM15

 18
58585-28020B1

ACR30,CLR30..(06S,07S)..EUR

MD.CHARCOAL,TRIM12,NO.1

 1
58585-28020B2

ACR30,CLR30..(06S,07S)..EUR

MD.GRAY,TRIM15,NO.1

 1
67913A - CLIP(FOR SCUFF PLATE)
90467-09182

ACR30,CLR30

 4
90467-09182

ACR30,CLR30

 4
67935 - PLATE, BACK DOOR SCUFF
67935-28040B0

ACR30,CLR30

LT. BLUISH GRAY,TRIM11

 1
67935-28040B2

ACR30,CLR30

MD.GRAY,TRIM1#

 1
67935-28040B1

ACR30,CLR30

MD.CHARCOAL,TRIM12

 1
