ACR30L-MFMDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )MTM

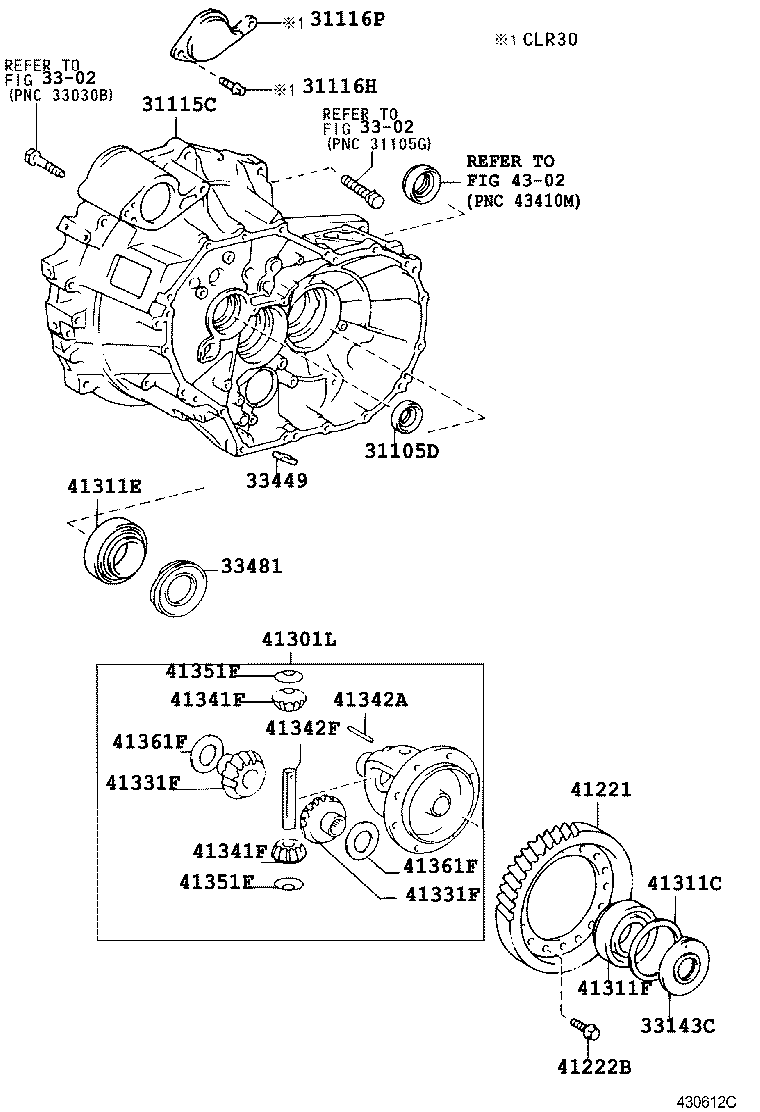

Click highlighted areas on diagram

E352,E353

diagram 31105D 31115C 31116H 31116P 3302 3302 33143C 33449 33481 41221 41222B 41301L 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30006

ACR30,CLR30..MTM

 1
90311-30006

ACR30,CLR30..MTM

 1
90311-30017

ACR30,CLR30..MTM

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-28020

ACR30..MTM

 1
31115-28021

ACR30..MTM

 1
31115-20071

ACR30..MTM

 1
31115-28021

ACR30..(06S,07S)..MTM

 1
33143C - BAFFLE, FRONT DIFFERENTIAL OIL
33143-28010

ACR30,CLR30..MTM

 1
33143-28010

ACR30,CLR30..MTM

 1
33449 - MAGNET, TRANSMISSION
33449-20010

ACR30,CLR30..(06S,07S)..MTM

 1
33449-20010

ACR30,CLR30..MTM

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-28050

ACR30,CLR30..MTM

N=32

 1
33481-28050

ACR30,CLR30..(06S,07S)..MTM

N=32

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-28080

ACR30..MTM

 1
41221-28080

ACR30..(06S,07S)..MTM

 1
41221-20390

ACR30..MTM

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12319

ACR30,CLR30..MTM

 16
90105-12319

ACR30,CLR30..(06S,07S)..MTM

 16
41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41301-28070

ACR30,CLR30..MTM

 1
41301-28070

ACR30,CLR30..(06S,07S)..MTM

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-56055

ACR30,CLR30..MTM

T=2.00,MARK 0

 1
90564-56062

ACR30,CLR30..MTM

T=2.35,MARK 7

 1
90564-56060

ACR30,CLR30..MTM

T=2.25,MARK 5

 1
90564-56064

ACR30,CLR30..MTM

T=2.45,MARK 9

 1
90564-56072

ACR30,CLR30..MTM

T=2.85,MARK H

 1
90564-56061

ACR30,CLR30..MTM

T=2.30,MARK 6

 1
90564-56065

ACR30,CLR30..MTM

T=2.50,MARK A

 1
90564-56067

ACR30,CLR30..MTM

T=2.60,MARK C

 1
90564-56056

ACR30,CLR30..MTM

T=2.05,MARK 1

 1
90564-56059

ACR30,CLR30..MTM

T=2.20,MARK 4

 1
90564-56063

ACR30,CLR30..MTM

T=2.40,MARK 8

 1
90564-56068

ACR30,CLR30..MTM

T=2.65,MARK D

 1
90564-56058

ACR30,CLR30..MTM

T=2.15,MARK 3

 1
90564-56066

ACR30,CLR30..MTM

T=2.55,MARK B

 1
90564-56057

ACR30,CLR30..MTM

T=2.10,MARK 2

 1
90564-56071

ACR30,CLR30..MTM

T=2.80,MARK G

 1
90564-56070

ACR30,CLR30..MTM

T=2.75,MARK F

 1
90564-56069

ACR30,CLR30..MTM

T=2.70,MARK E

 1
90564-56059

ACR30,CLR30..MTM

T=2.20,MARK 4

 1
90564-56056

ACR30,CLR30..MTM

T=2.05,MARK 1

 1
90564-56057

ACR30,CLR30..MTM

T=2.10,MARK 2

 1
90564-56055

ACR30,CLR30..MTM

T=2.00,MARK 0

 1
90564-56060

ACR30,CLR30..MTM

T=2.25,MARK 5

 1
90564-56063

ACR30,CLR30..MTM

T=2.40,MARK 8

 1
90564-56067

ACR30,CLR30..MTM

T=2.60,MARK C

 1
90564-56062

ACR30,CLR30..MTM

T=2.35,MARK 7

 1
90564-56058

ACR30,CLR30..MTM

T=2.15,MARK 3

 1
90564-56070

ACR30,CLR30..MTM

T=2.75,MARK F

 1
90564-56069

ACR30,CLR30..MTM

T=2.70,MARK E

 1
90564-56071

ACR30,CLR30..MTM

T=2.80,MARK G

 1
90564-56061

ACR30,CLR30..MTM

T=2.30,MARK 6

 1
90564-56065

ACR30,CLR30..MTM

T=2.50,MARK A

 1
90564-56066

ACR30,CLR30..MTM

T=2.55,MARK B

 1
90564-56072

ACR30,CLR30..MTM

T=2.85,MARK H

 1
90564-56064

ACR30,CLR30..MTM

T=2.45,MARK 9

 1
90564-56068

ACR30,CLR30..MTM

T=2.65,MARK D

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-57001

ACR30,CLR30..MTM

 1
90366-57001

ACR30,CLR30..MTM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50072

ACR30,CLR30..MTM

 1
90366-50072

ACR30,CLR30..MTM

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-28020

ACR30,CLR30..MTM

 2
41331-28020

ACR30,CLR30

 2
41331-28020

ACR30,CLR30..(06S,07S)..MTM

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-28020

ACR30,CLR30..MTM

 2
41331-28020

ACR30,CLR30

 2
41331-28020

ACR30,CLR30..(06S,07S)..MTM

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-28010

ACR30,CLR30

 2
41341-28010

ACR30,CLR30..MTM

 2
41341-28010

ACR30,CLR30..(06S,07S)..MTM

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-28010

ACR30,CLR30

 2
41341-28010

ACR30,CLR30..MTM

 2
41341-28010

ACR30,CLR30..(06S,07S)..MTM

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ACR30,CLR30

 1
90250-06058

ACR30,CLR30

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-28010

ACR30,CLR30..(06S,07S)..MTM

 1
41342-28010

ACR30,CLR30..MTM

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-30060

ACR30,CLR30..(06S,07S)..MTM

 2
41351-30060

ACR30,CLR30..MTM

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-30060

ACR30,CLR30..(06S,07S)..MTM

 2
41351-30060

ACR30,CLR30..MTM

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-28230

ACR30,CLR30

T=1.0,MARK 1

 2
41361-28240

ACR30..08S..ATM;ACR30,CLR30..06S,07S

T=1.1,MARK 2

 2
41361-28260

ACR30..08S..ATM;ACR30,CLR30..06S,07S

T=1.3,MARK 4

 2
41361-28230

ACR30..08S..ATM;ACR30,CLR30..06S,07S

T=1.0,MARK 1

 2
41361-28260

ACR30,CLR30

T=1.3,MARK 4

 2
41361-28250

ACR30..08S..ATM;ACR30,CLR30..06S,07S

T=1.2,MARK 3

 2
41361-28250

ACR30,CLR30

T=1.2,MARK 3

 2
41361-28240

ACR30,CLR30

T=1.1,MARK 2

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-28230

ACR30,CLR30

T=1.0,MARK 1

 2
41361-28240

ACR30..08S..ATM;ACR30,CLR30..06S,07S

T=1.1,MARK 2

 2
41361-28260

ACR30..08S..ATM;ACR30,CLR30..06S,07S

T=1.3,MARK 4

 2
41361-28230

ACR30..08S..ATM;ACR30,CLR30..06S,07S

T=1.0,MARK 1

 2
41361-28260

ACR30,CLR30

T=1.3,MARK 4

 2
41361-28250

ACR30..08S..ATM;ACR30,CLR30..06S,07S

T=1.2,MARK 3

 2
41361-28250

ACR30,CLR30

T=1.2,MARK 3

 2
41361-28240

ACR30,CLR30

T=1.1,MARK 2

 2
Linked diagrams
3302
4302
