ACR30L-MDSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

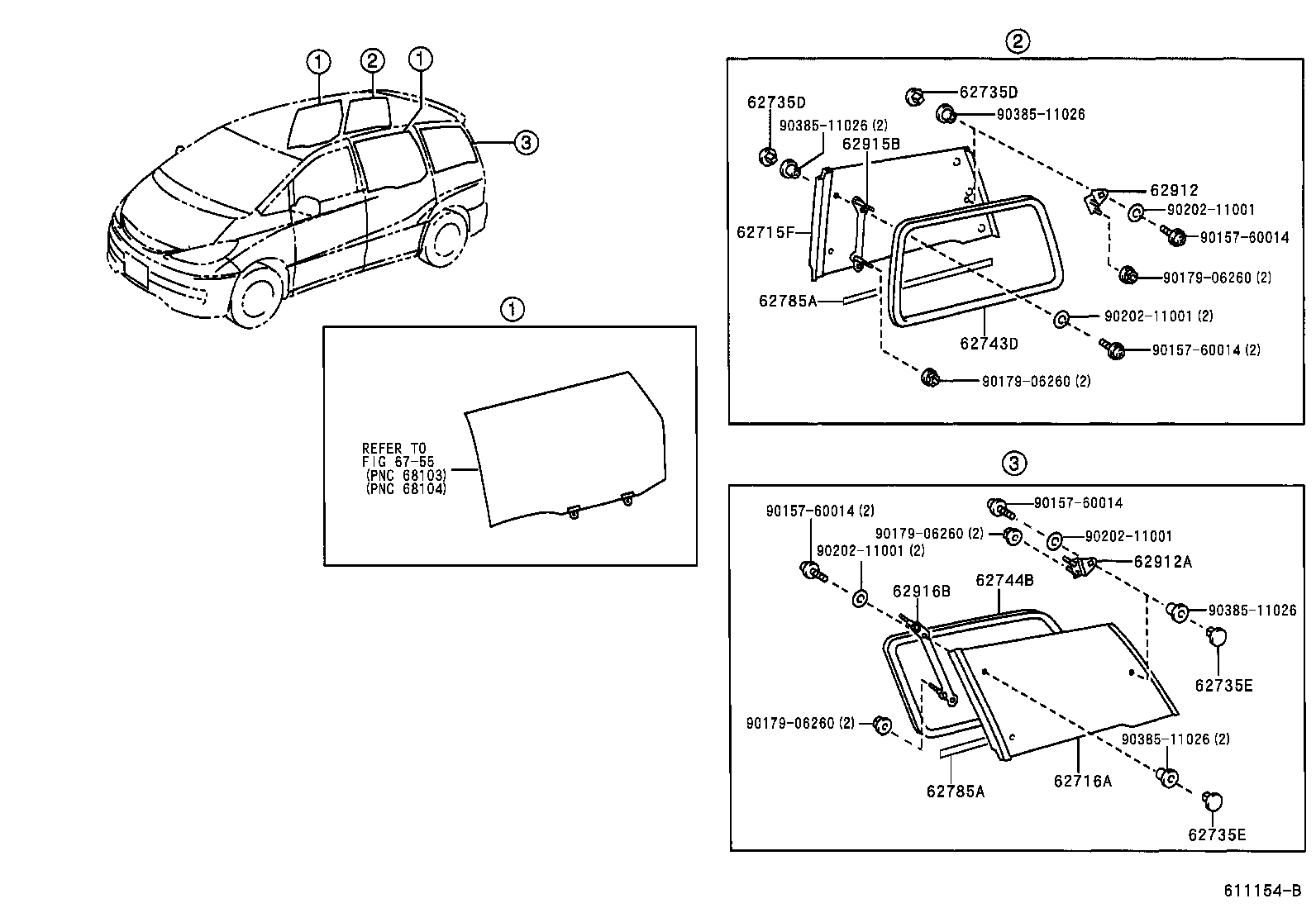

Click highlighted areas on diagram

diagram 62715F 62716A 62735D 62735D 62735E 62735E 62743D 62744B 62785A 62785A 62912 62912A 62915B 62916B 6755 9015760014 9015760014 9015760014 9015760014 9017906260 9017906260 9017906260 9017906260 9020211001 9020211001 9020211001 9020211001 9038511026 9038511026 9038511026 9038511026
Part # Description Qty Price
62715F - GLASS, SIDE REAR WINDOW, RH
62715-28440

ACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)

*TEM,T=3.5,GRAY

 1
62715-28330

ACR30..GL;ACR30..EUR

*TEM,T=3.5,GRAY

 1
62715-28331

ACR30..GL;ACR30..EUR

*TEM,T=3.5,GRAY

 1
62715-28441

ACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)

*TEM,T=3.5,GRAY

 1
62715-28441

ACR30..GL..ARL;ACR30,CLR30..EUR,GEN

*TEM,T=3.5,GRAY

 1
62716A - GLASS, SIDE REAR WINDOW, LH
62716-28520

ACR30..GL;ACR30..EUR

*TEM,T=3.5,GRAY

 1
62716-28521

ACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)

*TEM,T=3.5,GRAY

 1
62716-28522

ACR30..GL..ARL;ACR30,CLR30..EUR,GEN

*TEM,T=3.5,GRAY

 1
62716-28522

ACR30,CLR30..EUR;ACR30..GL..(ARL,GEN)

*TEM,T=3.5,GRAY

 1
62735D - RETAINER, SIDE REAR WINDOW HINGE, RH
62735-28020

ACR30,CLR30

 3
62735-28020

ACR30,CLR30

 3
62735D - RETAINER, SIDE REAR WINDOW HINGE, RH
62735-28020

ACR30,CLR30

 3
62735-28020

ACR30,CLR30

 3
62735E - RETAINER, SIDE REAR WINDOW HINGE, LH
62735-28020

ACR30,CLR30

 3
62735-28020

ACR30,CLR30

 3
62735E - RETAINER, SIDE REAR WINDOW HINGE, LH
62735-28020

ACR30,CLR30

 3
62735-28020

ACR30,CLR30

 3
62743D - WEATHERSTRIP, SIDE REAR WINDOW, RH
62743-28040

ACR30,CLR30

 1
62743-28040

ACR30,CLR30

 1
62743-28041

ACR30,CLR30

 1
62743-28042

ACR30,CLR30

 1
62744B - WEATHERSTRIP, SIDE REAR WINDOW, LH
62743-28040

ACR30,CLR30

 1
62743-28040

ACR30,CLR30

 1
62744-28041

ACR30,CLR30

 1
62744-28040

ACR30,CLR30

 1
62785A - SPACER, QUARTER WINDOW GLASS
62785-28010

ACR30,CLR30

 2
62785-28010

ACR30,CLR30

 2
62785A - SPACER, QUARTER WINDOW GLASS
62785-28010

ACR30,CLR30

 2
62785-28010

ACR30,CLR30

 2
62912 - BASE, SIDE WINDOW LOCK HOOK, RH
62912-28020

ACR30,CLR30

 1
62912-28020

ACR30,CLR30

 1
62912A - BASE, SIDE WINDOW LOCK HOOK, LH
62912-28020

ACR30,CLR30

 1
62912-28020

ACR30,CLR30

 1
62915B - BASE, SIDE WINDOW LOCK, RH
62915-28020

ACR30,CLR30

 1
62915-28020

ACR30,CLR30

 1
62916B - BASE, SIDE WINDOW LOCK, LH
62916-28010

ACR30,CLR30

 1
62916-28010

ACR30,CLR30

 1
Common parts
90157-60014
90179-06260
90202-11001
90385-11026
Linked diagrams
6755
