ACR30L-MDSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )LHD..ATM

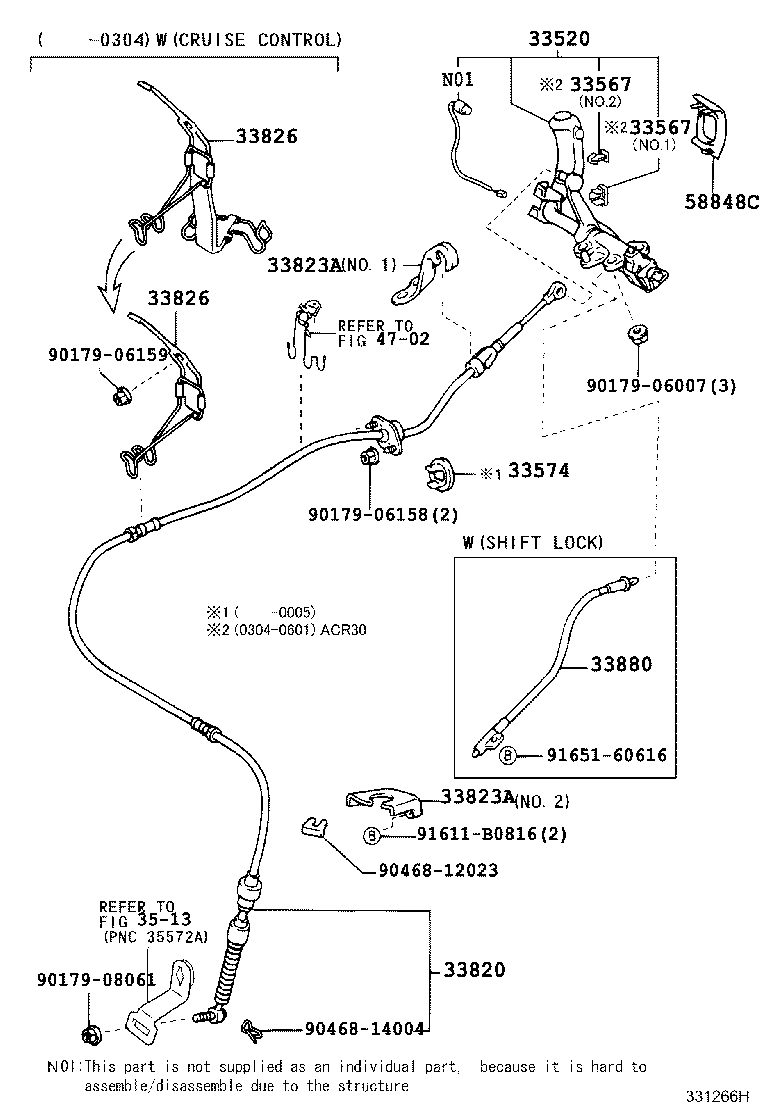

Click highlighted areas on diagram

diagram 33520 33567 33567 33574 33820 33823A 33823A 33826 33826 33880 3513 4702 58848C 9017906007 9017906158 9017906159 9017908061 9046812023 9046814004 91611B0816 9165160616
Part # Description Qty Price
33520 - SHAFT ASSY, CONTROL
33520-28190B1

ACR30..LHD..ATM

DK.CHARCOAL,TRIM12

 1
33520-28190B0

ACR30..LHD..ATM

BLUISH GRAY,TRIM11

 1
33520-28192B2

ACR30..LHD..ATM

DK.GRAY,TRIM1#

 1
33520-28260B0

ACR30..LHD..ATM

LEATHER,DK.GRAY,TRIM1#

 1
33520-28191B2

ACR30..LHD..ATM

DK.GRAY,TRIM1#

 1
33520-28261B0

ACR30..LHD..ATM

LEATHER,DK.GRAY,TRIM1#

 1
33567 - CLAMP, CONTROL SHAFT TUBE
33567-28010

ACR30..ATM

NO.1

 1
33567-44010

ACR30..ATM

NO.2

 1
33567 - CLAMP, CONTROL SHAFT TUBE
33567-28010

ACR30..ATM

NO.1

 1
33567-44010

ACR30..ATM

NO.2

 1
33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33574-28040

ACR30..ATM

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-28370

ACR30..LHD..ATM

 1
33820-28371

ACR30..LHD..ATM

 1
33823A - BRACKET, TRANSMISSION CONTROL CABLE
33823-28230

ACR30..LHD..ATM

NO.1

 1
33823-28240

ACR30..ATM

NO.2

 1
33823-28240

ACR30..ATM

NO.2

 1
33823-28230

ACR30..LHD..ATM

NO.1

 1
33823A - BRACKET, TRANSMISSION CONTROL CABLE
33823-28230

ACR30..LHD..ATM

NO.1

 1
33823-28240

ACR30..ATM

NO.2

 1
33823-28240

ACR30..ATM

NO.2

 1
33823-28230

ACR30..LHD..ATM

NO.1

 1
33826 - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-28070

ACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM

 1
33826-28070

ACR30..ATM

 1
78183-28340

ACR30..GL..GEN;ACR30..ATM..(ARL,EUR,GCC)

W(CRUISE CONTROL)

 1
33826 - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-28070

ACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM

 1
33826-28070

ACR30..ATM

 1
78183-28340

ACR30..GL..GEN;ACR30..ATM..(ARL,EUR,GCC)

W(CRUISE CONTROL)

 1
33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
33880-28060

ACR30..LHD..(06S,07S)..ATM..EUR

TAIWAN SPEC

 1
58848C - COVER, SHIFT LEVER HOLE
58848-28060B1

ACR30..LHD..ATM

MD.CHARCOAL,TRIM12

 1
58848-28060B0

ACR30..LHD..ATM

LT. BLUISH GRAY,TRIM11

 1
58848-28060B2

ACR30..LHD..ATM

MD.GRAY,TRIM1#

 1
Common parts
90179-06007
90179-06158
90179-06159
90179-08061
90468-12023
90468-14004
91611-B0816
91651-60616
Linked diagrams
3513
4702
