Toyota Picnic SXM10 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
PICNIC
SXM10L-ARSDKW (1998)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

SXM10L-ARSDKW (1998)

Toyota Picnic

Production Apr 1998 - May 2001

Engine 3SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

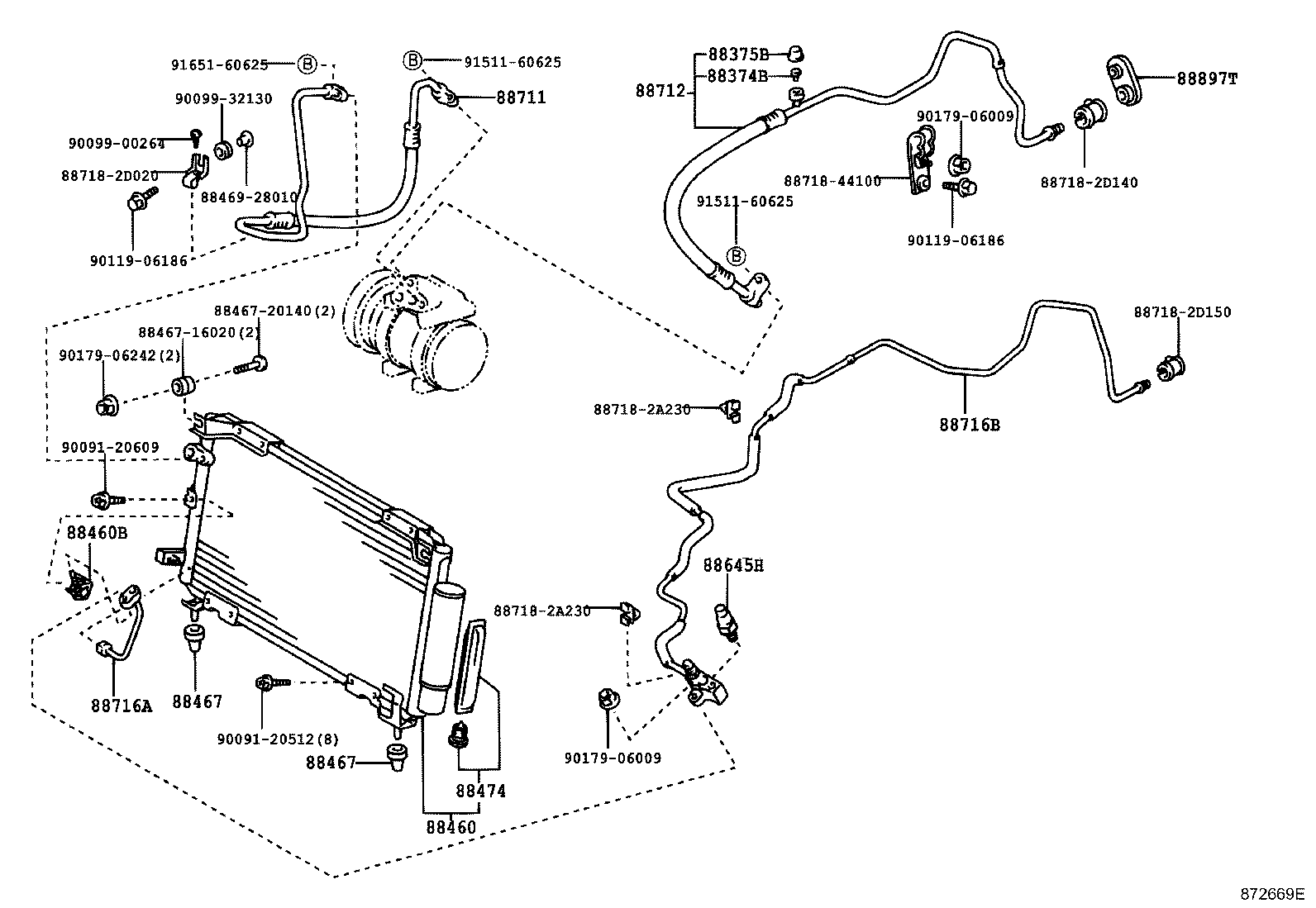

ILLUST NO. 1 OF 2(9804- )SXM10..LHD

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	SXM10;CXM10..RHD W(DUAL AIR CONDITIONER)	09/1996 - 04/1998	2
88374-30010	CXM10,SXM10	08/2000 - 12/2999	1
88374-30010	CXM10,SXM10	04/1998 - 08/2000	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	CXM10,SXM10	08/2000 - 12/2999	1
88375-30290	CXM10,SXM10	09/1996 - 08/2000	1
88460 - CONDENSER ASSY, COOLER
88460-44020	SXM10..LHD	09/1996 - 04/1998	1
88460-44350	SXM10..LHD	04/1998 - 12/2999	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-44130	CXM10,SXM10..LHD	04/1998 - 08/2000	1
88688-44070	CXM10,SXM10	09/1996 - 04/1998	1
88688-44130	CXM10,SXM10..LHD	08/2000 - 12/2999	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060	CXM10,SXM10	09/1996 - 08/2000	2
88467-32060	CXM10,SXM10	08/2000 - 12/2999	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060	CXM10,SXM10	09/1996 - 08/2000	2
88467-32060	CXM10,SXM10	08/2000 - 12/2999	2
88474 - DRYER, COOLER
88474-47010	CXM10,SXM10	04/1998 - 08/2000	1
88474-47010	CXM10,SXM10	08/2000 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-44010	SXM10 MAKER OPTION	04/1998 - 12/2999	1
88645-20050	SXM10..07S;SXM10..LHD..06S DEALER OPTION	04/1998 - 12/2999	1
88645-20050	SXM10	09/1996 - 04/1998	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-44040	SXM10..LHD DEALER OPTION	09/1996 - 04/1998	1
88711-44130	SXM10..LHD	04/1998 - 07/1998	1
88711-44020	SXM10..LHD	09/1996 - 04/1998	1
88711-44230	CXM10,SXM10..LHD MAKER OPTION	09/1999 - 08/2000	1
88711-44130	SXM10..LHD DEALER OPTION	07/1998 - 08/1998	1
88711-44230	CXM10,SXM10..LHD MAKER OPTION	08/2000 - 12/2999	1
88711-44180	CXM10,SXM10..LHD	07/1998 - 09/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-44030	SXM10..LHD	09/1996 - 04/1998	1
88712-44130	SXM10..LHD	04/1998 - 07/1998	1
88712-44040	SXM10..LHD DEALER OPTION	09/1996 - 04/1998	1
88712-44210	SXM10..LHD DEALER OPTION	04/1998 - 08/1998	1
88712-44250	SXM10..LHD	07/1998 - 09/1999	1
88712-44300	SXM10..LHD	09/1999 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-44290	CXM10,SXM10..LHD	04/1998 - 08/2000	1
88716-44020	CXM10,SXM10..LHD	09/1996 - 04/1998	1
88716-44290	CXM10,SXM10..LHD	08/2000 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44110	CXM10,SXM10..LHD DEALER OPTION	09/1996 - 04/1998	1
88716-44030	SXM10..LHD	09/1996 - 04/1998	1
88716-44430	CXM10,SXM10..LHD DEALER OPTION	08/2000 - 12/2999	1
88716-44430	CXM10,SXM10..LHD DEALER OPTION	04/1998 - 08/2000	1
88716-44320	SXM10..LHD	04/1998 - 12/2999	1
88897T - GROMMET, COOLER
88897-44020	CXM10,SXM10..LHD	09/1996 - 08/2000	1
88897-44020	CXM10,SXM10..LHD	08/2000 - 12/2999	1
Common parts
88467-16020
88467-20140
88469-28010
88718-2A230
88718-2D020
88718-2D140
88718-2D150
88718-44100
90091-20512
90091-20609
90099-00264
90099-32130
90119-06186
90179-06009
90179-06242
91511-60625
91651-60625

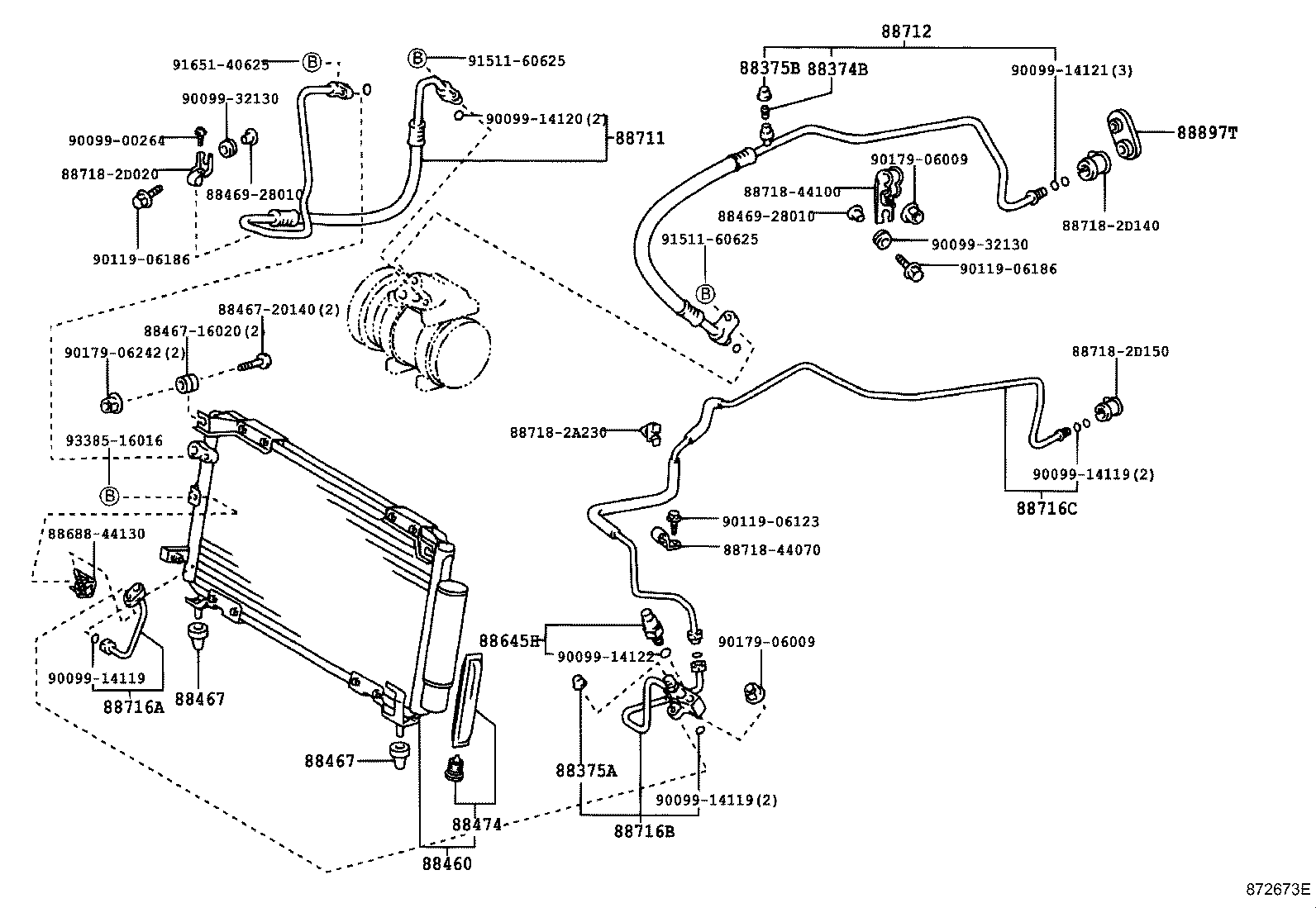

ILLUST NO. 1 OF 2(9804- )SXM10..LHD

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	SXM10;CXM10..RHD W(DUAL AIR CONDITIONER)	09/1996 - 04/1998	2
88374-30010	CXM10,SXM10	08/2000 - 12/2999	1
88374-30010	CXM10,SXM10	04/1998 - 08/2000	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	CXM10,SXM10	09/1996 - 08/2000	1
88375-30280	CXM10,SXM10	08/2000 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	CXM10,SXM10	08/2000 - 12/2999	1
88375-30290	CXM10,SXM10	09/1996 - 08/2000	1
88460 - CONDENSER ASSY, COOLER
88460-44020	SXM10..LHD	09/1996 - 04/1998	1
88460-44350	SXM10..LHD	04/1998 - 12/2999	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060	CXM10,SXM10	09/1996 - 08/2000	2
88467-32060	CXM10,SXM10	08/2000 - 12/2999	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060	CXM10,SXM10	09/1996 - 08/2000	2
88467-32060	CXM10,SXM10	08/2000 - 12/2999	2
88474 - DRYER, COOLER
88474-47010	CXM10,SXM10	04/1998 - 08/2000	1
88474-47010	CXM10,SXM10	08/2000 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-44010	SXM10 MAKER OPTION	04/1998 - 12/2999	1
88645-20050	SXM10..07S;SXM10..LHD..06S DEALER OPTION	04/1998 - 12/2999	1
88645-20050	SXM10	09/1996 - 04/1998	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-44040	SXM10..LHD DEALER OPTION	09/1996 - 04/1998	1
88711-44130	SXM10..LHD	04/1998 - 07/1998	1
88711-44020	SXM10..LHD	09/1996 - 04/1998	1
88711-44230	CXM10,SXM10..LHD MAKER OPTION	09/1999 - 08/2000	1
88711-44130	SXM10..LHD DEALER OPTION	07/1998 - 08/1998	1
88711-44230	CXM10,SXM10..LHD MAKER OPTION	08/2000 - 12/2999	1
88711-44180	CXM10,SXM10..LHD	07/1998 - 09/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-44030	SXM10..LHD	09/1996 - 04/1998	1
88712-44130	SXM10..LHD	04/1998 - 07/1998	1
88712-44040	SXM10..LHD DEALER OPTION	09/1996 - 04/1998	1
88712-44210	SXM10..LHD DEALER OPTION	04/1998 - 08/1998	1
88712-44250	SXM10..LHD	07/1998 - 09/1999	1
88712-44300	SXM10..LHD	09/1999 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-44290	CXM10,SXM10..LHD	04/1998 - 08/2000	1
88716-44020	CXM10,SXM10..LHD	09/1996 - 04/1998	1
88716-44290	CXM10,SXM10..LHD	08/2000 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44110	CXM10,SXM10..LHD DEALER OPTION	09/1996 - 04/1998	1
88716-44030	SXM10..LHD	09/1996 - 04/1998	1
88716-44430	CXM10,SXM10..LHD DEALER OPTION	08/2000 - 12/2999	1
88716-44430	CXM10,SXM10..LHD DEALER OPTION	04/1998 - 08/2000	1
88716-44320	SXM10..LHD	04/1998 - 12/2999	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-44360	CXM10,SXM10..LHD	04/1998 - 12/2999	1
88897T - GROMMET, COOLER
88897-44020	CXM10,SXM10..LHD	09/1996 - 08/2000	1
88897-44020	CXM10,SXM10..LHD	08/2000 - 12/2999	1
Common parts
88467-16020
88467-20140
88469-28010
88688-44130
88718-2A230
88718-2D020
88718-2D140
88718-2D150
88718-44070
88718-44100
90099-00264
90099-14119
90099-14120
90099-14121
90099-14122
90099-32130
90119-06123
90119-06186
90179-06009
90179-06242
91511-60625
91651-40625
93385-16016

SXM10L-ARSDKW (1998)

ILLUST NO. 1 OF 2(9804- )SXM10..LHD

ILLUST NO. 1 OF 2(9804- )SXM10..LHD
