SXM10L-ARSDKW (1998)
Toyota Picnic
Production
Apr 1998
-
May 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

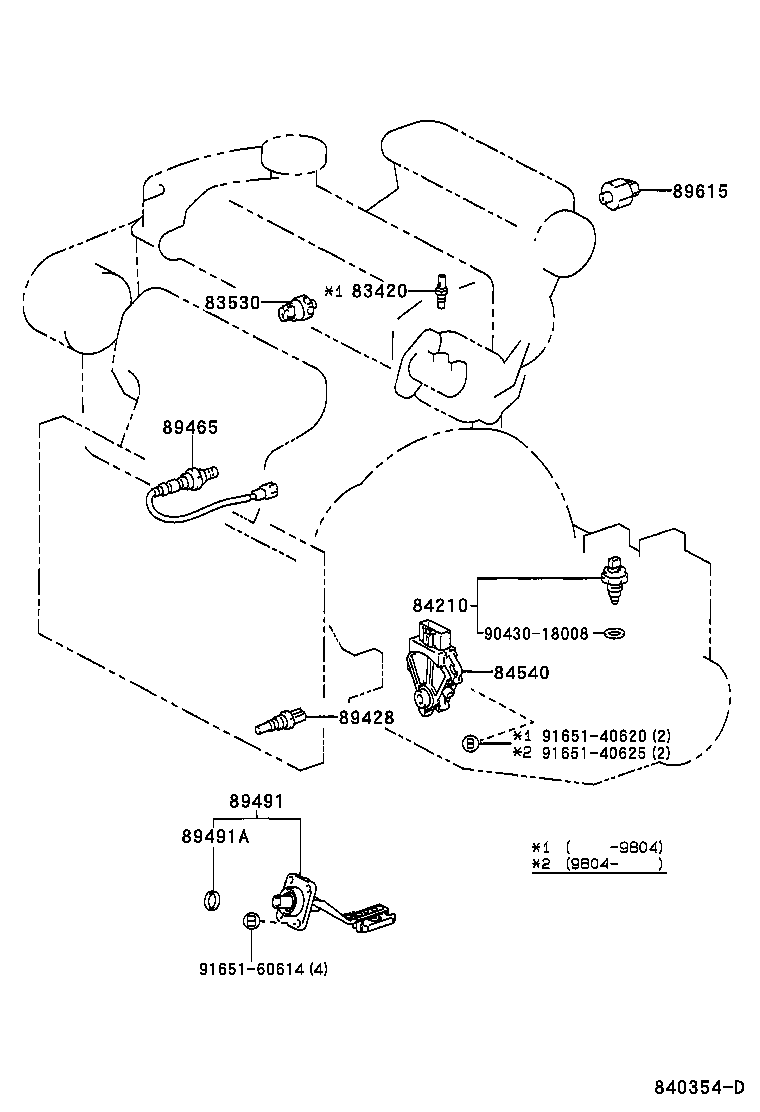

ILLUST NO. 1 OF 6(9609-0005)SXM10
Click highlighted areas on diagram
E/G & T/M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
SXM10 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
SXM10 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12200 |
SXM10..ATM TOKAIRIKA |
1 | ||
| 84540-12210 |
SXM10..ATM MATSUSHITA |
1 | ||
| 84540-16050 |
SXM10..ATM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
SXM10 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-44010 |
SXM10 |
1 | ||
| 89465-20430 |
SXM10 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-44010 |
SXM10 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
SXM10 |
1 | ||
| 89493-60010 |
CXM10,SXM10 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-33020 |
SXM10 DENSO |
1 | ||
| 89615-32040 |
SXM10 TOYOTA |
1 | ||
| 89615-20030 |
SXM10 TOYOTA |
1 | ||
| 89615-32030 |
SXM10 DENSO |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||
| 91651-60614 | ||||

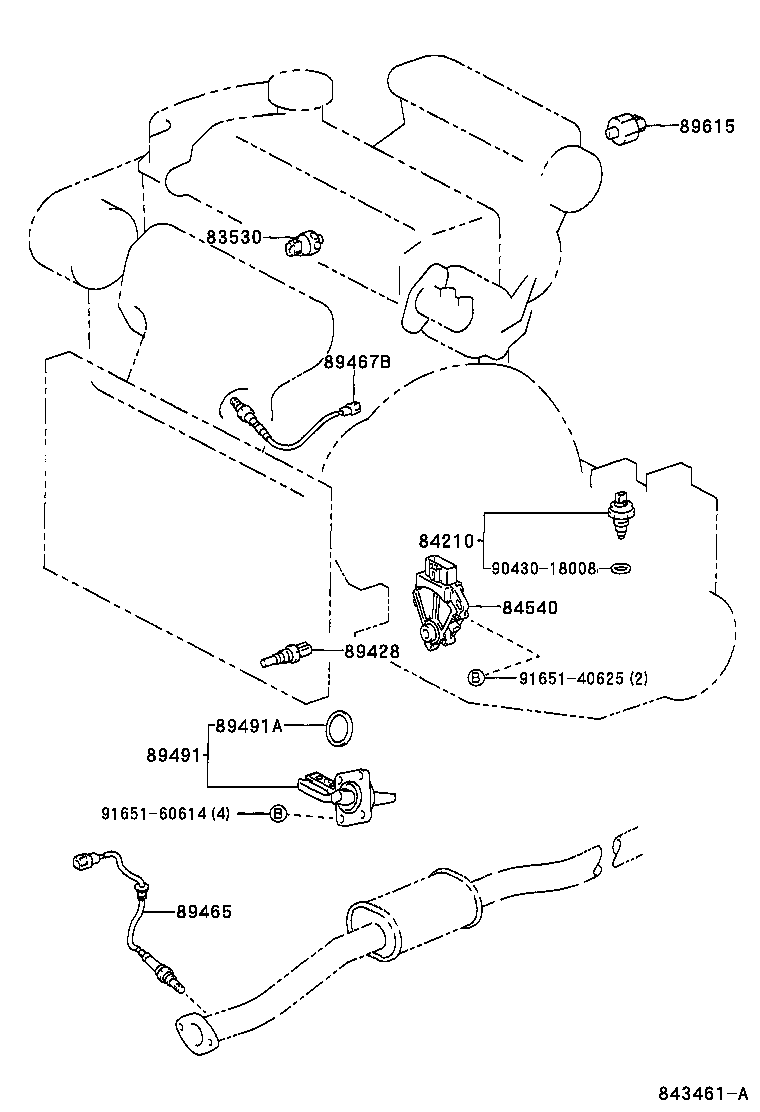

ILLUST NO. 1 OF 6(0005- )SXM10
Click highlighted areas on diagram
E/G & T/M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
SXM10 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12200 |
SXM10..ATM TOKAIRIKA |
1 | ||
| 84540-12210 |
SXM10..ATM MATSUSHITA |
1 | ||
| 84540-16050 |
SXM10..ATM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
SXM10 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-44010 |
SXM10 |
1 | ||
| 89465-20430 |
SXM10 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-44010 |
SXM10 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-44010 |
SXM10 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
SXM10 |
1 | ||
| 89493-60010 |
CXM10,SXM10 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-33020 |
SXM10 DENSO |
1 | ||
| 89615-32040 |
SXM10 TOYOTA |
1 | ||
| 89615-20030 |
SXM10 TOYOTA |
1 | ||
| 89615-32030 |
SXM10 DENSO |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
| 91651-60614 | ||||
