SXM10L-ARSDKW (1998)

Toyota Picnic

Production Apr 1998 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

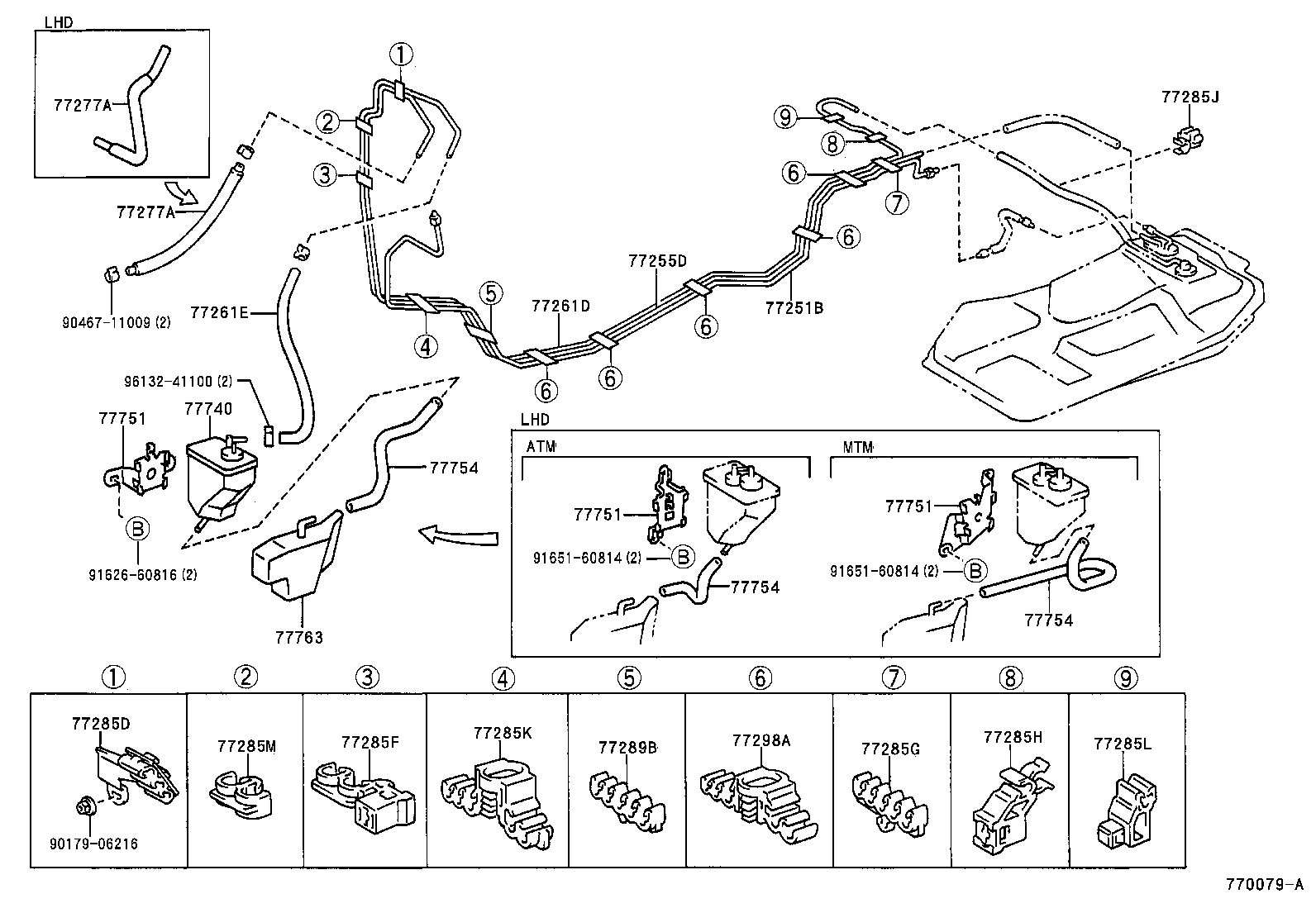

ILLUST NO. 2 OF 2(9609-0005)SXM10

Click highlighted areas on diagram

diagram 77251B 77255D 77261D 77261E 77277A 77277A 77285D 77285F 77285G 77285H 77285J 77285K 77285L 77285M 77289B 77298A 77740 77751 77751 77751 77754 77754 77754 77763 9017906216 9046711009 9162660816 9165160814 9165160814 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-44030

SXM10..LHD

 1
77255D - TUBE, FUEL RETURN
77255-44030

SXM10..LHD

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-44020

SXM10..LHD

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

SXM10

*H,L=170

 1
95333-06030

SXM10

*H,L=220

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-74590

SXM10..LHD

 1
23271-74770

SXM10..LHD

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-74590

SXM10..LHD

 1
23271-74770

SXM10..LHD

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-44010

SXM10

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-44020

SXM10

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-44030

CXM10,SXM10

 1
77285H - CLAMP, FUEL TUBE, NO.1
77285-44040

SXM10

 1
77285J - CLAMP, FUEL TUBE, NO.1
77285-44050

CXM10,SXM10

 1
77285K - CLAMP, FUEL TUBE, NO.1
77285-44060

CXM10,SXM10

 1
77285L - CLAMP, FUEL TUBE, NO.1
77285-44070

SXM10

 1
77285M - CLAMP, FUEL TUBE, NO.1
77285-44080

SXM10

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-10030

CXM10,SXM10

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-12040

CXM10,SXM10

 5
77740 - CANISTER ASSY, CHARCOAL
77740-12690

SXM10

 1
77704-44020

SXM10

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-44030

SXM10..LHD..ATM

 1
77751-44060

SXM10..LHD

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-44030

SXM10..LHD..ATM

 1
77751-44060

SXM10..LHD

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-44030

SXM10..LHD..ATM

 1
77751-44060

SXM10..LHD

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-44020

SXM10..LHD..ATM

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-44020

SXM10..LHD..ATM

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-44020

SXM10..LHD..ATM

 1
77763 - CASE, CHARCOAL CANISTER DRAIN
77763-44010

SXM10

 1
Common parts
90179-06216
90467-11009
91626-60816
91651-60814
96132-41100

ILLUST NO. 2 OF 2(0005- )SXM10

Click highlighted areas on diagram

diagram 77251B 77255D 77261D 77261E 77277A 77277A 77285D 77285F 77285G 77285H 77285J 77285K 77285L 77285M 77289B 77298A 77740 77751 77751 9017906216 9046711009 9162660816 9162660816 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-44030

SXM10..LHD

 1
77255D - TUBE, FUEL RETURN
77255-44030

SXM10..LHD

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-44020

SXM10..LHD

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

SXM10

*H,L=170

 1
95333-06030

SXM10

*H,L=220

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-74590

SXM10..LHD

 1
23271-74770

SXM10..LHD

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-74590

SXM10..LHD

 1
23271-74770

SXM10..LHD

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-44010

SXM10

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-44020

SXM10

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-44030

CXM10,SXM10

 1
77285H - CLAMP, FUEL TUBE, NO.1
77285-44040

SXM10

 1
77285J - CLAMP, FUEL TUBE, NO.1
77285-44050

CXM10,SXM10

 1
77285K - CLAMP, FUEL TUBE, NO.1
77285-44060

CXM10,SXM10

 1
77285L - CLAMP, FUEL TUBE, NO.1
77285-44070

SXM10

 1
77285M - CLAMP, FUEL TUBE, NO.1
77285-44080

SXM10

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-10030

CXM10,SXM10

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-12040

CXM10,SXM10

 5
77740 - CANISTER ASSY, CHARCOAL
77740-12690

SXM10

 1
77704-44020

SXM10

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-44030

SXM10..LHD..ATM

 1
77751-44060

SXM10..LHD

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-44030

SXM10..LHD..ATM

 1
77751-44060

SXM10..LHD

 1
Common parts
90179-06216
90467-11009
91626-60816
96132-41100
