SXM10L-ARSDKW (1998)

Toyota Picnic

Production Apr 1998 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

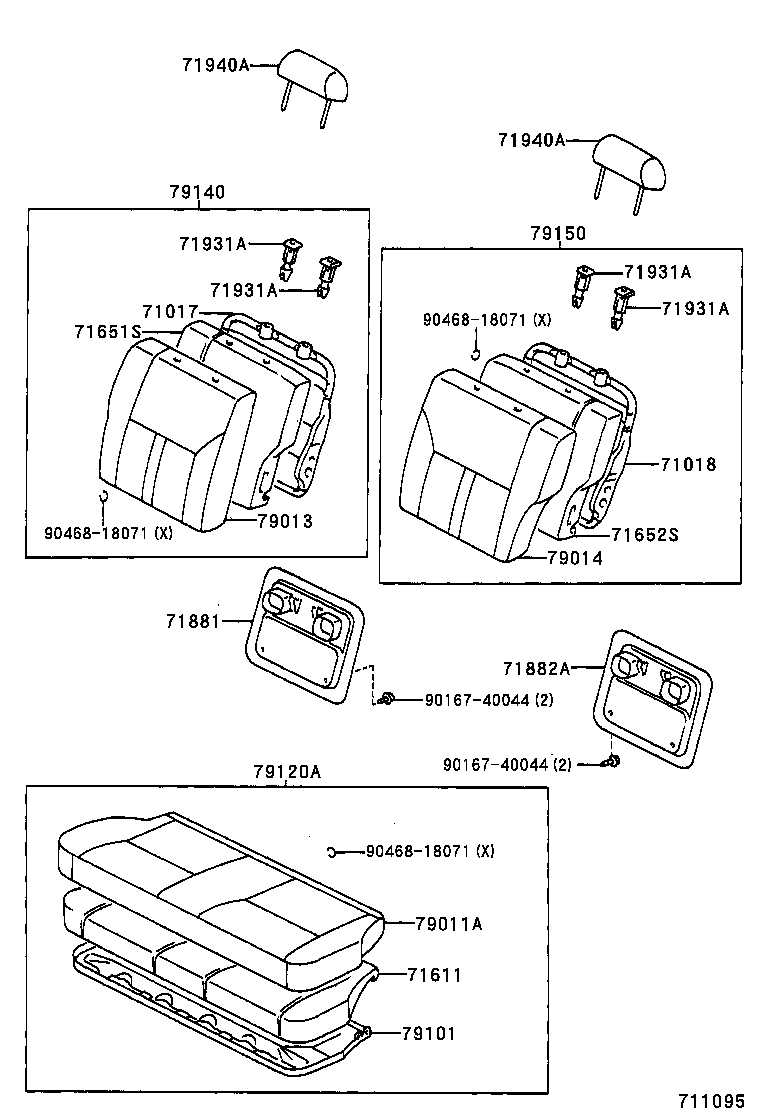

ILLUST NO. 1 OF 2(9804- )07S

Click highlighted areas on diagram

NO.1 SEAT

diagram 71017 71018 71611 71651S 71652S 71881 71882A 71931A 71931A 71931A 71931A 71940A 71940A 79011A 79013 79014 79101 79120A 79140 79150 9016740044 9016740044 9046818071 9046818071 9046818071
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
79103-44010

CXM10,SXM10..07S

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
79104-44010

CXM10,SXM10..07S

 1
71611 - PAD, REAR SEAT CUSHION
79135-44010

CXM10,SXM10..07S

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
79175-44020

CXM10,SXM10

 1
79175-44010

CXM10,SXM10..07S

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
79175-44020

CXM10,SXM10

 1
79185-44010

CXM10,SXM10..07S

 1
71881 - BOARD, REAR SEAT BACK, RH
71881-44010B0

CXM10,SXM10..07S

MD.MOON MIST,TRIM1#

 1
71882A - BOARD, REAR SEAT BACK, LH
71881-44010B0

CXM10,SXM10..07S

MD.MOON MIST,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-12040P6

CXM10,SXM10

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

CXM10,SXM10

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-12040P6

CXM10,SXM10

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

CXM10,SXM10

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-12040P6

CXM10,SXM10

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

CXM10,SXM10

W(LOCK),BLUE GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-12040P6

CXM10,SXM10

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-44010B0

CXM10,SXM10

W(LOCK),BLUE GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-44011B3

CXM10,SXM10

MEDIUM MOON MIST,TRIM1#

 2
71910-44010B0

CXM10,SXM10

MD.MOON MIST,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-44011B3

CXM10,SXM10

MEDIUM MOON MIST,TRIM1#

 2
71910-44010B0

CXM10,SXM10

MD.MOON MIST,TRIM1#

 2
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-44011B2

CXM10,SXM10..07S

MEDIUM MOON MIST,TRIM1#

 1
79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH
79013-44051B1

CXM10,SXM10..07S

MEDIUM MOON MIST,TRIM1#

 1
79013-44040B0

CXM10,SXM10

MEDIUM MOON MIST,TRIM1#

 1
79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79014-44041B1

CXM10,SXM10..07S

MEDIUM MOON MIST,TRIM1#

 1
79014-44050B0

CXM10,SXM10

MEDIUM MOON MIST,TRIM1#

 1
79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION
79101-44010

CXM10,SXM10..07S

 1
79120A - CUSHION ASSY, NO.1 SEAT
79120-44011B1

CXM10,SXM10..07S

MEDIUM MOON MIST,TRIM1#

 1
79140 - BACK ASSY, NO.1 SEAT, RH
79140-44040B0

CXM10,SXM10

MD.MOON MIST,TRIM1#

 1
79140-44051B1

CXM10,SXM10..07S

MEDIUM MOON MIST,TRIM1#

 1
79150 - BACK ASSY, NO.1 SEAT, LH
79150-44050B0

CXM10,SXM10

MEDIUM MOON MIST,TRIM1#

 1
79150-44041B1

CXM10,SXM10..07S

MEDIUM MOON MIST,TRIM1#

 1
Common parts
90167-40044
90468-18071

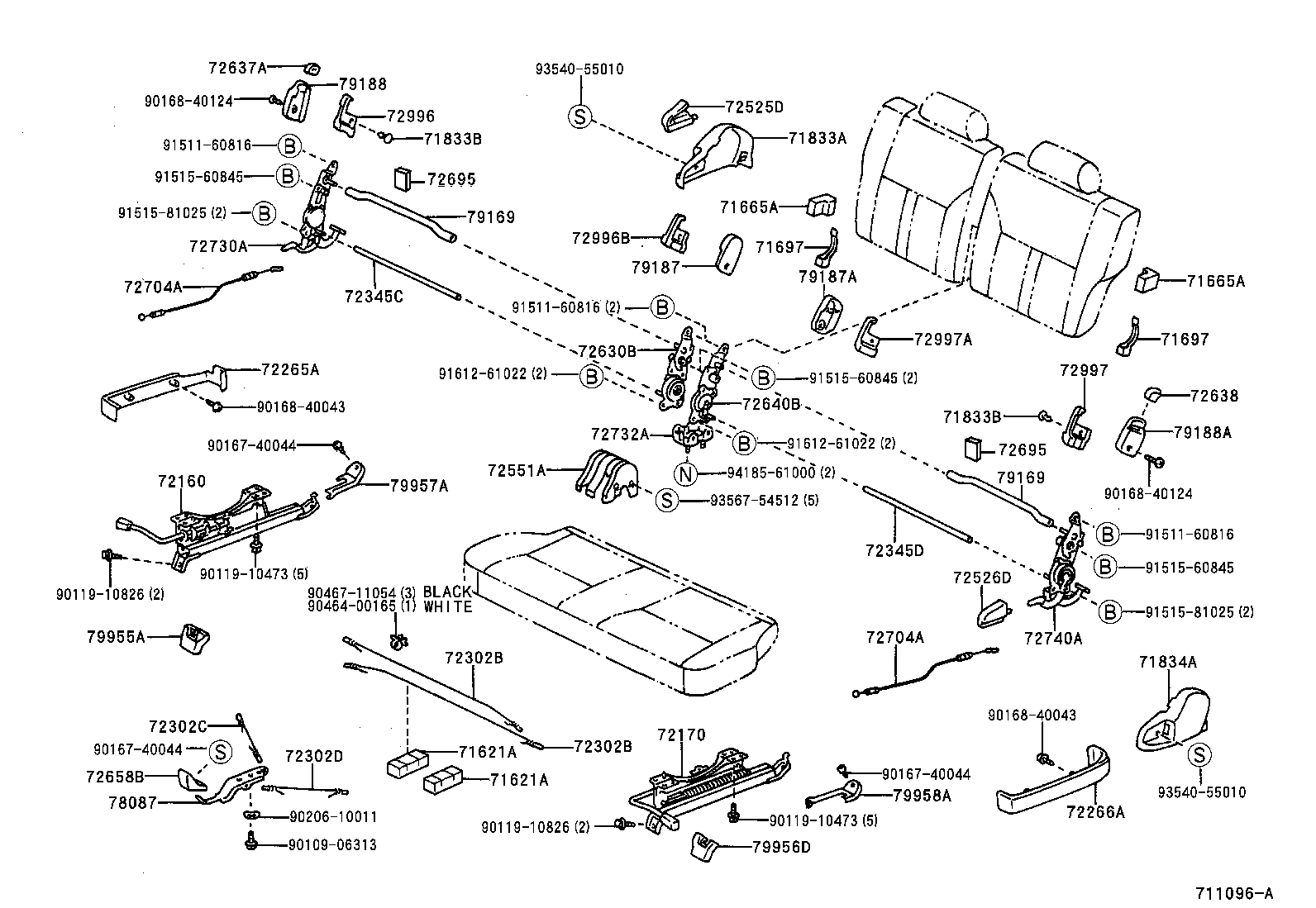

ILLUST NO. 2 OF 2(9804- )07S
