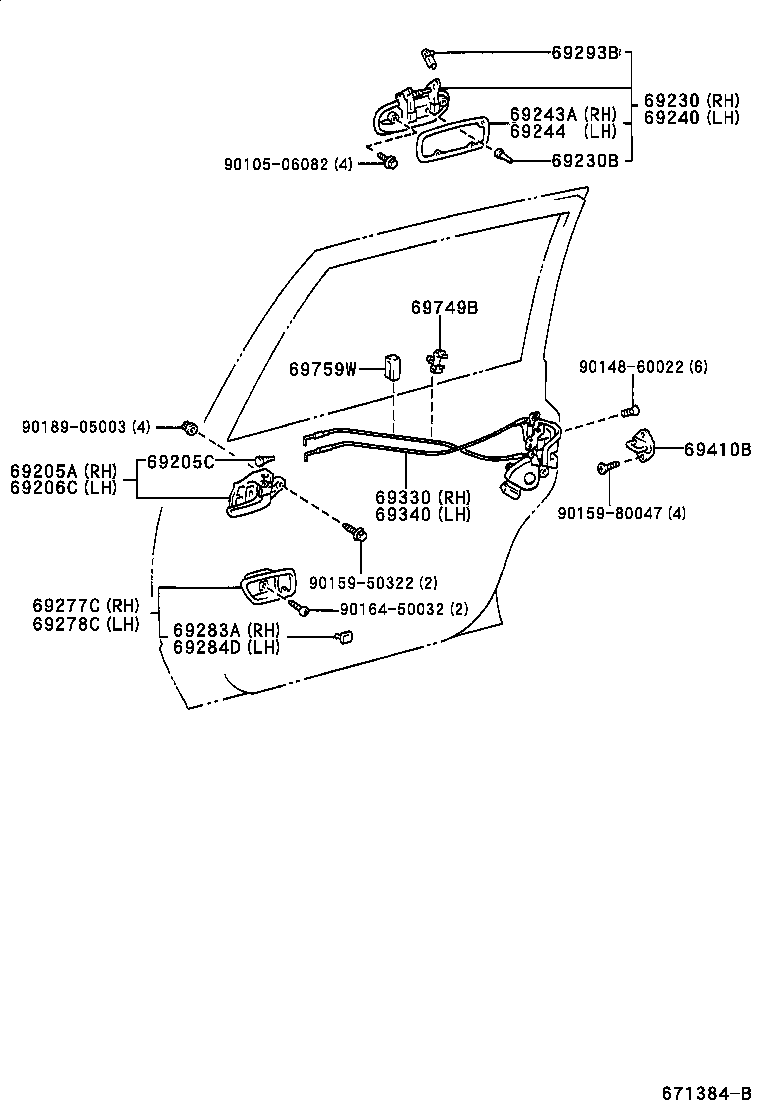

SXM10L-ARSDKW (1998)
Toyota Picnic
(9804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-30120B3 |
CXM10,SXM10 MD.MOON MIST,TRIM1# |
1 | ||
| 69205-44010B1 |
CXM10,SXM10 MD.MOON MIST,TRIM1# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
CXM10,SXM10 |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-30120B3 |
CXM10,SXM10 MD.MOON MIST,TRIM1# |
1 | ||
| 69206-44010B1 |
CXM10,SXM10 MD.MOON MIST,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-12180J2 |
CXM10,SXM10 BRIGHT BLUE ME.,8K4 |
1 | ||
| 69230-12180A1 |
CXM10,SXM10 WHITE,056 |
1 | ||
| 69230-12180G4 |
CXM10,SXM10 GREEN ME.OP.,6P4 |
1 | ||
| 69230-12230E1 |
CXM10,SXM10 GOLD ME,4L9 |
1 | ||
| 69230-12180B2 |
CXM10,SXM10 SILVER ME,199 |
1 | ||
| 69230-12230A2 |
CXM10,SXM10 WHITE,056 |
1 | ||
| 69230-12230D3 |
CXM10,SXM10 WINE RED MC,3J8 |
1 | ||
| 69230-12180G3 |
CXM10,SXM10 DK.GREEN M.M.,6N5 |
1 | ||
| 69230-12230B3 |
CXM10,SXM10 SILVER ME,199 |
1 | ||
| 69230-12180K0 |
CXM10,SXM10 PURPLE M.M.OP.GR.,934 |
1 | ||
| 69230-12230G4 |
CXM10,SXM10 DK.GREEN M.M.,6P3 |
1 | ||
| 69230-12230H1 |
CXM10,SXM10 DK.TURQUOISE MC.,760 |
1 | ||
| 69230-44020J1 |
CXM10,SXM10 BLUE ME.AMC.,8N2 |
1 | ||
| 69230-12230J4 |
CXM10,SXM10 DK.BLUE MM.GR.,8K5 |
1 | ||
| 69230-44020H0 |
CXM10,SXM10 DK.TURQUOISE MC.,760 |
1 | ||
| 69230-44020B0 |
CXM10,SXM10 SILVER ME,199 |
1 | ||
| 69230-12230J5 |
CXM10,SXM10 BLUE ME.AMC.,8N2 |
1 | ||
| 69230-44020D0 |
CXM10,SXM10 WINE RED MC,3J8 |
1 | ||
| 69230-44020A0 |
CXM10,SXM10 WHITE,056 |
1 | ||
| 69230-44020G0 |
CXM10,SXM10 DK.GREEN M.M.,6P3 |
1 | ||
| 69230-12180D1 |
CXM10,SXM10 WINE RED MC,3J8 |
1 | ||
| 69230-12180J3 |
CXM10,SXM10 DK.BLUE MM.GR.,8K5 |
1 | ||
| 69230-44020E0 |
CXM10,SXM10 GOLD ME,4L9 |
1 | ||
| 69230-44020J0 |
CXM10,SXM10 DK.BLUE MM.GR.,8K5 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
CXM10,SXM10 |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-12180D1 |
CXM10,SXM10 WINE RED MC,3J8 |
1 | ||
| 69240-12180G4 |
CXM10,SXM10 GREEN ME.OP.,6P4 |
1 | ||
| 69240-12180A1 |
CXM10,SXM10 WHITE,056 |
1 | ||
| 69240-12230A2 |
CXM10,SXM10 WHITE,056 |
1 | ||
| 69240-12180J2 |
CXM10,SXM10 BRIGHT BLUE ME.,8K4 |
1 | ||
| 69240-12180K0 |
CXM10,SXM10 PURPLE M.M.OP.GR.,934 |
1 | ||
| 69240-12230E1 |
CXM10,SXM10 GOLD ME,4L9 |
1 | ||
| 69240-12230J4 |
CXM10,SXM10 DK.BLUE MM.GR.,8K5 |
1 | ||
| 69240-12230B3 |
CXM10,SXM10 SILVER ME,199 |
1 | ||
| 69240-12230D3 |
CXM10,SXM10 WINE RED MC,3J8 |
1 | ||
| 69240-12180B2 |
CXM10,SXM10 SILVER ME,199 |
1 | ||
| 69240-44020J1 |
CXM10,SXM10 BLUE ME.AMC.,8N2 |
1 | ||
| 69240-12230G4 |
CXM10,SXM10 DK.GREEN M.M.,6P3 |
1 | ||
| 69240-12180J3 |
CXM10,SXM10 DK.BLUE MM.GR.,8K5 |
1 | ||
| 69240-12180G3 |
CXM10,SXM10 DK.GREEN M.M.,6N5 |
1 | ||
| 69240-44020H0 |
CXM10,SXM10 DK.TURQUOISE MC.,760 |
1 | ||
| 69240-44020E0 |
CXM10,SXM10 GOLD ME,4L9 |
1 | ||
| 69240-44020G0 |
CXM10,SXM10 DK.GREEN M.M.,6P3 |
1 | ||
| 69240-44020B0 |
CXM10,SXM10 SILVER ME,199 |
1 | ||
| 69240-12230J5 |
CXM10,SXM10 BLUE ME.AMC.,8N2 |
1 | ||
| 69240-44020J0 |
CXM10,SXM10 DK.BLUE MM.GR.,8K5 |
1 | ||
| 69240-44020D0 |
CXM10,SXM10 WINE RED MC,3J8 |
1 | ||
| 69240-12230H1 |
CXM10,SXM10 DK.TURQUOISE MC.,760 |
1 | ||
| 69240-44020A0 |
CXM10,SXM10 WHITE,056 |
1 | ||
| 69243A - PAD, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69243-12020 |
CXM10,SXM10 |
1 | ||
| 69244 - PAD, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69244-12020 |
CXM10,SXM10 |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-30150B2 |
CXM10,SXM10 MD.MOON MIST,TRIM1# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69278-30080B2 |
CXM10,SXM10 MD.MOON MIST,TRIM1# |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040B2 |
CXM10,SXM10 MD.MOON MIST,TRIM1# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30040B2 |
CXM10,SXM10 MD.MOON MIST,TRIM1# |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
CXM10,SXM10 LH |
1 | ||
| 69293-12030 |
CXM10,SXM10 RH |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-44030 |
CXM10,SXM10 |
1 | ||
| 69330-44010 |
CXM10,SXM10 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-44010 |
CXM10,SXM10 |
1 | ||
| 69060-44030 |
CXM10,SXM10 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
CXM10,SXM10 |
2 | ||
| 69410-20110 |
CXM10,SXM10 |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32030 |
CXM10,SXM10 |
2 | ||
| 69749-30050 |
CXM10,SXM10 |
2 | ||
| 69759W - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-44030 |
CXM10,SXM10 |
2 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90148-60022 | ||||
| 90159-50322 | ||||
| 90159-80047 | ||||
| 90164-50032 | ||||
| 90189-05003 | ||||
