SXM10L-ARSDKW (1998)

Toyota Picnic

Production Apr 1998 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )

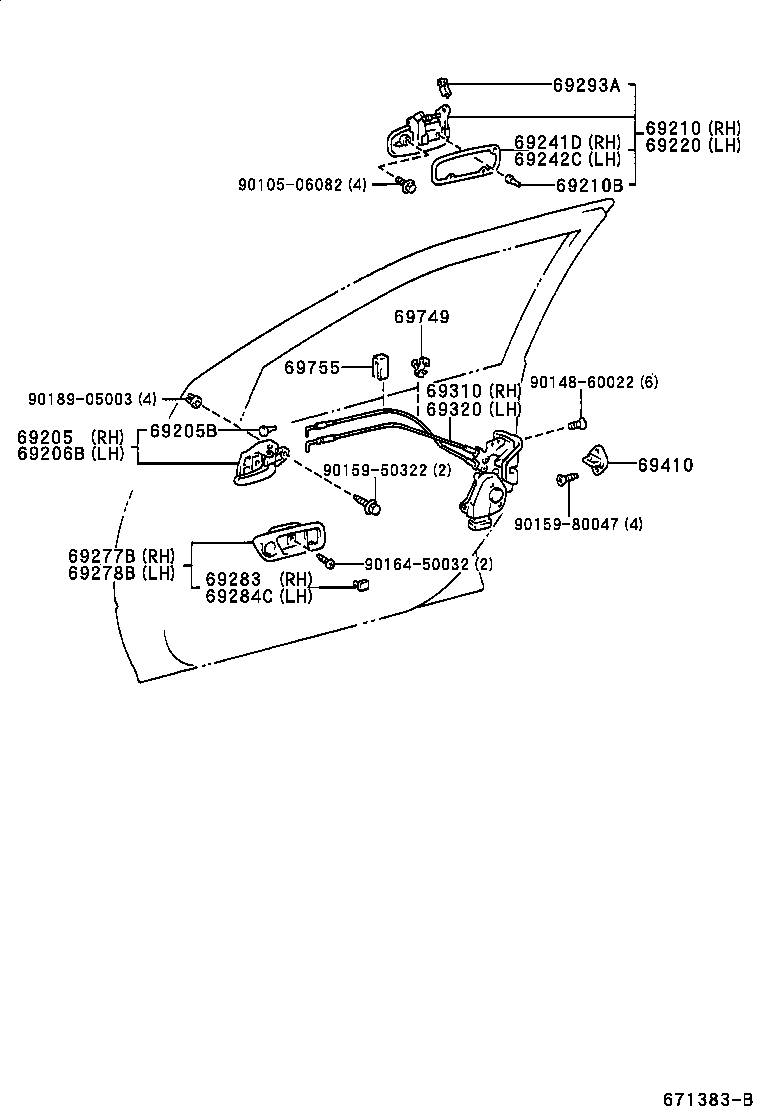

Click highlighted areas on diagram

diagram 69205 69205B 69206B 69210 69210B 69220 69241D 69242C 69277B 69278B 69283 69284C 69293A 69310 69320 69410 69749 69755 9010506082 9014860022 9015950322 9015980047 9016450032 9018905003
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-44010B1

CXM10,SXM10

MD.MOON MIST,TRIM1#

 1
69205-30120B3

CXM10,SXM10

MD.MOON MIST,TRIM1#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014

CXM10,SXM10

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-44010B1

CXM10,SXM10

MD.MOON MIST,TRIM1#

 1
69206-30120B3

CXM10,SXM10

MD.MOON MIST,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-12200D1

CXM10,SXM10

WINE RED MC,3J8

 1
69210-12200J3

CXM10,SXM10

BRIGHT BLUE ME.,8K4

 1
69210-12200G4

CXM10,SXM10

GREEN ME.OP.,6P4

 1
69210-12200B3

CXM10,SXM10

SILVER ME,199

 1
69210-12200A1

CXM10,SXM10

WHITE,056

 1
69210-12290A2

CXM10,SXM10

WHITE,056

 1
69210-12290G4

CXM10,SXM10

DK.GREEN M.M.,6P3

 1
69210-44020J1

CXM10,SXM10

BLUE ME.AMC.,8N2

 1
69210-12290J5

CXM10,SXM10

DK.BLUE MM.GR.,8K5

 1
69210-44020A0

CXM10,SXM10

WHITE,056

 1
69210-12290E1

CXM10,SXM10

GOLD ME,4L9

 1
69210-12200J4

CXM10,SXM10

DK.BLUE MM.GR.,8K5

 1
69210-12290D3

CXM10,SXM10

WINE RED MC,3J8

 1
69210-44020B0

CXM10,SXM10

SILVER ME,199

 1
69210-12200G3

CXM10,SXM10

DK.GREEN M.M.,6N5

 1
69210-12290B3

CXM10,SXM10

SILVER ME,199

 1
69210-12200K0

CXM10,SXM10

PURPLE M.M.OP.GR.,934

 1
69210-12290H1

CXM10,SXM10

DK.TURQUOISE MC.,760

 1
69210-12290J6

CXM10,SXM10

BLUE ME.AMC.,8N2

 1
69210-44020E0

CXM10,SXM10

GOLD ME,4L9

 1
69210-44020D0

CXM10,SXM10

WINE RED MC,3J8

 1
69210-44020G0

CXM10,SXM10

DK.GREEN M.M.,6P3

 1
69210-44020J0

CXM10,SXM10

DK.BLUE MM.GR.,8K5

 1
69210-44020H0

CXM10,SXM10

DK.TURQUOISE MC.,760

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04018

CXM10,SXM10

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-12190A1

CXM10,SXM10

WHITE,056

 1
69220-12190D1

CXM10,SXM10

WINE RED MC,3J8

 1
69220-12190G4

CXM10,SXM10

GREEN ME.OP.,6P4

 1
69220-12290A2

CXM10,SXM10

WHITE,056

 1
69220-12190J4

CXM10,SXM10

DK.BLUE MM.GR.,8K5

 1
69220-12290B3

CXM10,SXM10

SILVER ME,199

 1
69220-12290G4

CXM10,SXM10

DK.GREEN M.M.,6P3

 1
69220-12290D3

CXM10,SXM10

WINE RED MC,3J8

 1
69220-12190G3

CXM10,SXM10

DK.GREEN M.M.,6N5

 1
69220-12190J3

CXM10,SXM10

BRIGHT BLUE ME.,8K4

 1
69220-12290J5

CXM10,SXM10

DK.BLUE MM.GR.,8K5

 1
69220-12190K0

CXM10,SXM10

PURPLE M.M.OP.GR.,934

 1
69220-12290E1

CXM10,SXM10

GOLD ME,4L9

 1
69220-44020B0

CXM10,SXM10

SILVER ME,199

 1
69220-44020D0

CXM10,SXM10

WINE RED MC,3J8

 1
69220-12190B3

CXM10,SXM10

SILVER ME,199

 1
69220-44020E0

CXM10,SXM10

GOLD ME,4L9

 1
69220-12290H1

CXM10,SXM10

DK.TURQUOISE MC.,760

 1
69220-12290J6

CXM10,SXM10

BLUE ME.AMC.,8N2

 1
69220-44020A0

CXM10,SXM10

WHITE,056

 1
69220-44020J1

CXM10,SXM10

BLUE ME.AMC.,8N2

 1
69220-44020H0

CXM10,SXM10

DK.TURQUOISE MC.,760

 1
69220-44020G0

CXM10,SXM10

DK.GREEN M.M.,6P3

 1
69220-44020J0

CXM10,SXM10

DK.BLUE MM.GR.,8K5

 1
69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH
69241-12100

CXM10,SXM10

 1
69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH
69242-12050

CXM10,SXM10

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-30150B2

CXM10,SXM10

MD.MOON MIST,TRIM1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-30080B2

CXM10,SXM10

MD.MOON MIST,TRIM1#

 1
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-30040B2

CXM10,SXM10

MD.MOON MIST,TRIM1#

 1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69284-30040B2

CXM10,SXM10

MD.MOON MIST,TRIM1#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

CXM10,SXM10

LH

 1
69293-12030

CXM10,SXM10

RH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-44030

CXM10,SXM10..LHD

 1
69030-44050

CXM10,SXM10..LHD

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-44030

CXM10,SXM10..LHD

 1
69040-44050

CXM10,SXM10..LHD

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

CXM10,SXM10

 2
69410-20110

CXM10,SXM10

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-30050

CXM10,SXM10

 2
69749-32030

CXM10,SXM10

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-20390

CXM10,SXM10

 2
69759-44030

CXM10,SXM10

 2
Common parts
90105-06082
90148-60022
90159-50322
90159-80047
90164-50032
90189-05003
