SXM10L-ARSDKW (1998)

Toyota Picnic

Production Apr 1998 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )ATM

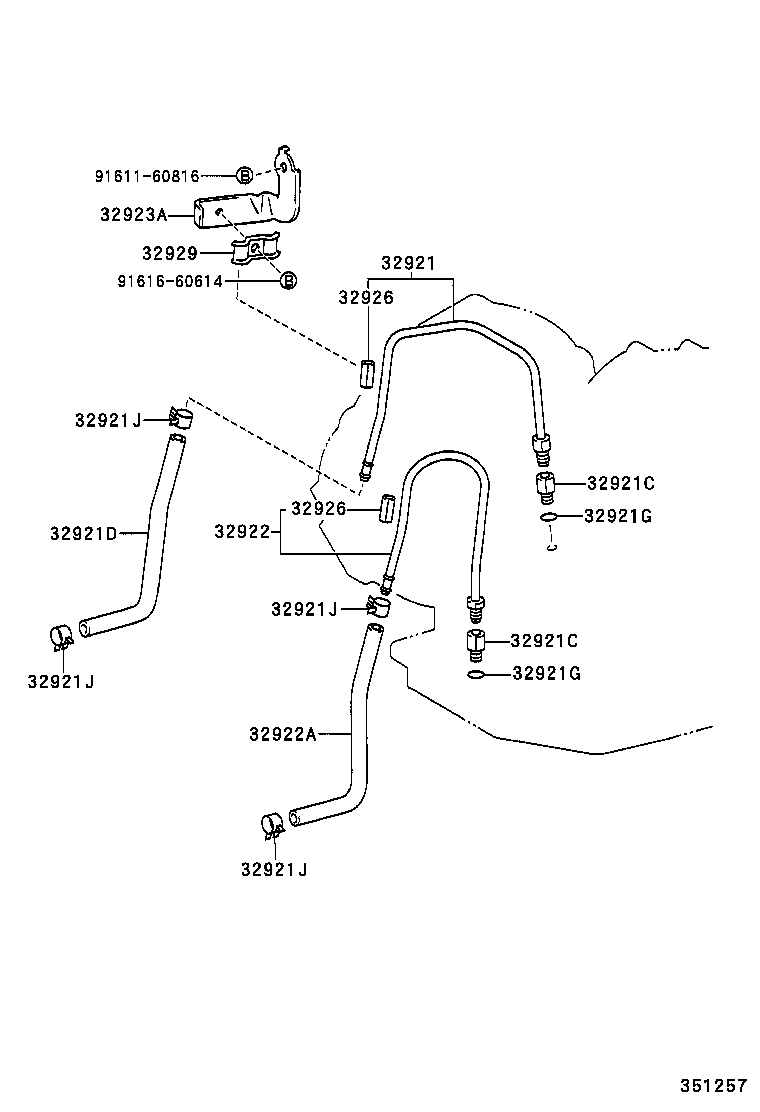

Click highlighted areas on diagram

A247E

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32923A 32926 32926 32929 9161160816 9161660614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-44070

SXM10..ATM

 1
32921-44020

SXM10..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

SXM10..ATM

 2
90404-16031

SXM10..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

SXM10..ATM

 2
90404-16031

SXM10..ATM

 2
32921D - HOSE(FOR OIL COOLER INLET)
90445-17117

SXM10..ATM

 1
90445-17115

SXM10..ATM

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

SXM10..ATM

 2
90301-11006

SXM10..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

SXM10..ATM

 2
90301-11006

SXM10..ATM

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

SXM10..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

SXM10..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

SXM10..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

SXM10..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-44060

SXM10..ATM

 1
32922-44020

SXM10..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-35011

SXM10..ATM

 1
90445-17128

SXM10..ATM

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-44020

SXM10..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-20010

SXM10..ATM

L=25,ID=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-20010

SXM10..ATM

L=25,ID=10

 2
32929 - CLAMP, FLEXIBLE HOSE, NO.2
90462-12074

SXM10..ATM

 1
Common parts
91611-60816
91616-60614
