SXM10L-ARSDKW (1998)

Toyota Picnic

Production Apr 1998 - May 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

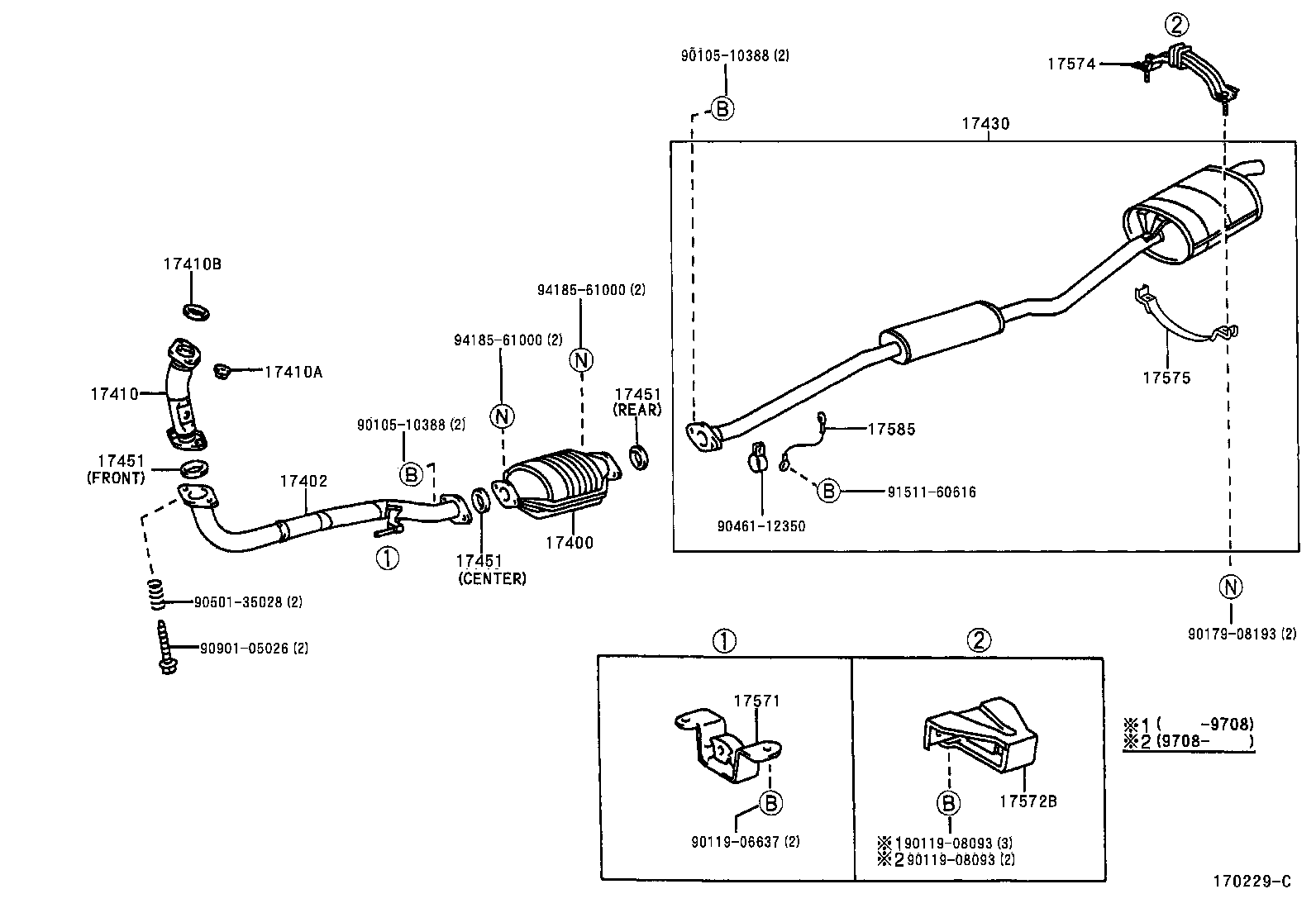

(9609-0005)3SFE

Click highlighted areas on diagram

diagram 17400 17402 17410 17410A 17410B 17430 17451 17451 17451 17571 17572B 17574 17575 17585 9010510388 9010510388 9011906637 9011908093 9011908093 9017908193 9046112350 9050135028 9090105026 9151160616 9418561000 9418561000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-74440

3SFE..SXM10

*115=TOYOTA/-00/N

 1
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-74020

3SFE..SXM10

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-74470

3SFE..SXM10

 1
17410-7B020

3SFE..SXM10

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3SFE..SXM10

 2
17410B - GASKET, EXHAUST PIPE
17451-74051

3SFE..SXM10

 1
90917-06065

3SFE..SXM10

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-7B310

3SFE..SXM10

 1
17430-7A730

3SFE..SXM10

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

3SFE..SXM10

REAR

 1
17451-54010

3SFE..SXM10

FRONT

 1
90917-06043

3SFE..SXM10

CENTER

 1
90917-06057

3SFE..SXM10

CENTER

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

3SFE..SXM10

REAR

 1
17451-54010

3SFE..SXM10

FRONT

 1
90917-06043

3SFE..SXM10

CENTER

 1
90917-06057

3SFE..SXM10

CENTER

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

3SFE..SXM10

REAR

 1
17451-54010

3SFE..SXM10

FRONT

 1
90917-06043

3SFE..SXM10

CENTER

 1
90917-06057

3SFE..SXM10

CENTER

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-74450

3CTE,3SFE..CXM10,SXM10

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-74100

3SFE..SXM10

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-74130

3SFE..SXM10

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-74140

3CTE,3SFE..CXM10,SXM10

 1
17575-74140

3CTE,3SFE..CXM10,SXM10

 1
17585 - HANGER, EXHAUST PIPE
17585-74080

3CTE,3SFE..CXM10,SXM10

 1
Common parts
90105-10388
90119-06637
90119-08093
90179-08193
90461-12350
90501-35028
90901-05026
91511-60616
94185-61000

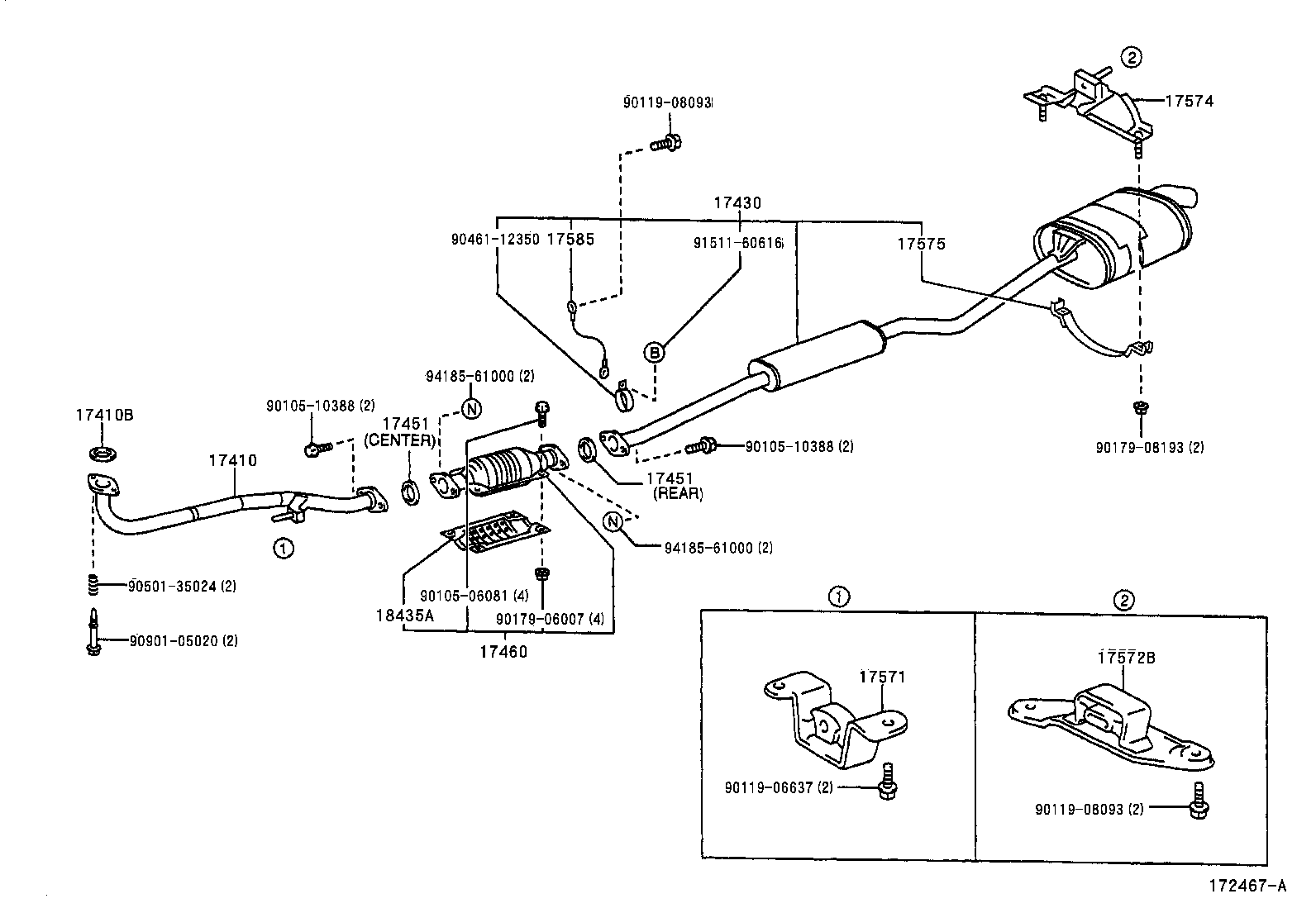

(0005- )3SFE

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17451 17460 17571 17572B 17574 17575 17585 18435A 9010506081 9010510388 9010510388 9011906637 9011908093 9011908093 9017906007 9017908193 9046112350 9050135024 9090105020 9151160616 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-74470

3SFE..SXM10

 1
17410-7B020

3SFE..SXM10

 1
17410B - GASKET, EXHAUST PIPE
17451-74051

3SFE..SXM10

 1
90917-06065

3SFE..SXM10

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-7B310

3SFE..SXM10

 1
17430-7A730

3SFE..SXM10

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

3SFE..SXM10

REAR

 1
17451-54010

3SFE..SXM10

FRONT

 1
90917-06043

3SFE..SXM10

CENTER

 1
90917-06057

3SFE..SXM10

CENTER

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

3SFE..SXM10

REAR

 1
17451-54010

3SFE..SXM10

FRONT

 1
90917-06043

3SFE..SXM10

CENTER

 1
90917-06057

3SFE..SXM10

CENTER

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-74190

3SFE..SXM10

*115=TOYOTA/00-01/Y

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-74450

3CTE,3SFE..CXM10,SXM10

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-74100

3SFE..SXM10

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-74130

3SFE..SXM10

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-74140

3CTE,3SFE..CXM10,SXM10

 1
17575-74140

3CTE,3SFE..CXM10,SXM10

 1
17585 - HANGER, EXHAUST PIPE
17585-74080

3CTE,3SFE..CXM10,SXM10

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-20020

3SFE..SXM10

 1
Common parts
90105-06081
90105-10388
90119-06637
90119-08093
90179-06007
90179-08193
90461-12350
90501-35024
90901-05020
91511-60616
94185-61000
